Monday Kids UTC2822M Mini Mono Audio Amplifier Board 2W BTL Amplifier Module Volume Adjustable Single Power 1.8V to 12V
$2.46
Availability:
In stock
SKU
EK158
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: Audio Amplifier Board
- Condition: New
- Type: Logic ICs
- Dissipation Power: none
- Supply Voltage: DC 3-9V
- Operating Temperature: -30~85 celsius
- is_customized: Yes
- Application: Audio Amplifier Board
- Model: X2822-3
- Output Power: 2W
Product Introduction:
1.Model:X2822-3
2.Amplifier Chip:TDA2822M
3.Sound Track Number:single sound track
4.Input Power:DC 3-9V
5.Output Power:2W
6.Output Impedance:4-32 ohm
7.Size:40*35*15mm (not include potentiometer handle length)
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)

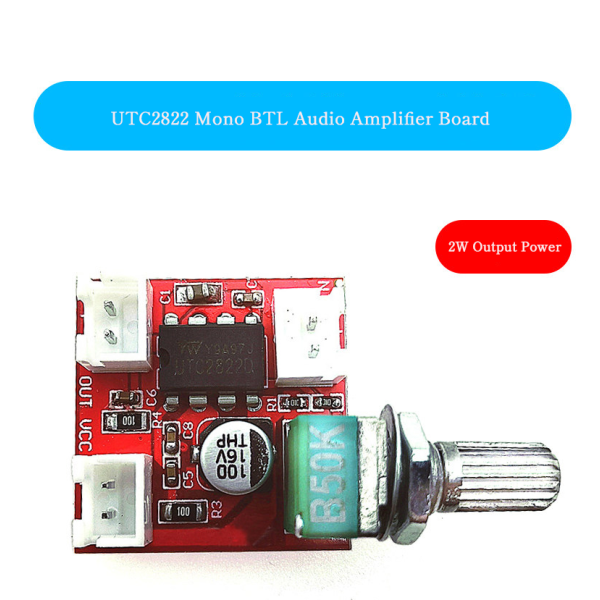

UTC2822 Mono BTL Amplifier Module
Low Voltage · High Drive Capacity · 2W Output · SMT Precision Process
Technical Specifications
Operating Voltage
1.8V - 12V DC
Output Power
~2W (High Output)
PCB Dimensions
25mm × 25mm
Amplifier IC
Original UTC2822D
Key Features & Highlights
Equipped with the original UNISONIC TECHNOLOGIES CO., LTD. UTC2822D audio power amplifier chip, this module utilizes a BTL (Bridge-Tied Load) mono topology. It delivers significantly higher driving power at low operating voltages with stable and reliable acoustic performance.
- Original IC Chip: Utilizes genuine UTC2822D IC, providing reliable performance and full pin-to-pin compatibility with TDA2822M circuits.
- Powerful BTL Output: Optimized BTL mono configuration delivers up to 2W output power for crisp and powerful sound.
- Sealed Type-09 Potentiometer: Built-in dust-proof volume potentiometer ensures quiet adjustment without static noise over long-term use.
- Precision SMT Assembly: Built with Surface Mount Technology (SMT) for clean board aesthetics, reduced interference, and durable operation.
- Standard XH2.54 Connectors: Fitted with standard XH2.54 headers for power and audio connections, enabling easy and error-free wiring.
Wiring & Connector Guide
• Power Input: XH2.54 Header (1.8V–12V)
• Audio Input: XH2.54 Header
• Speaker Output: XH2.54 Header (for 4–8Ω Speakers)
• Volume Control: Rotary Potentiometer with Nut
