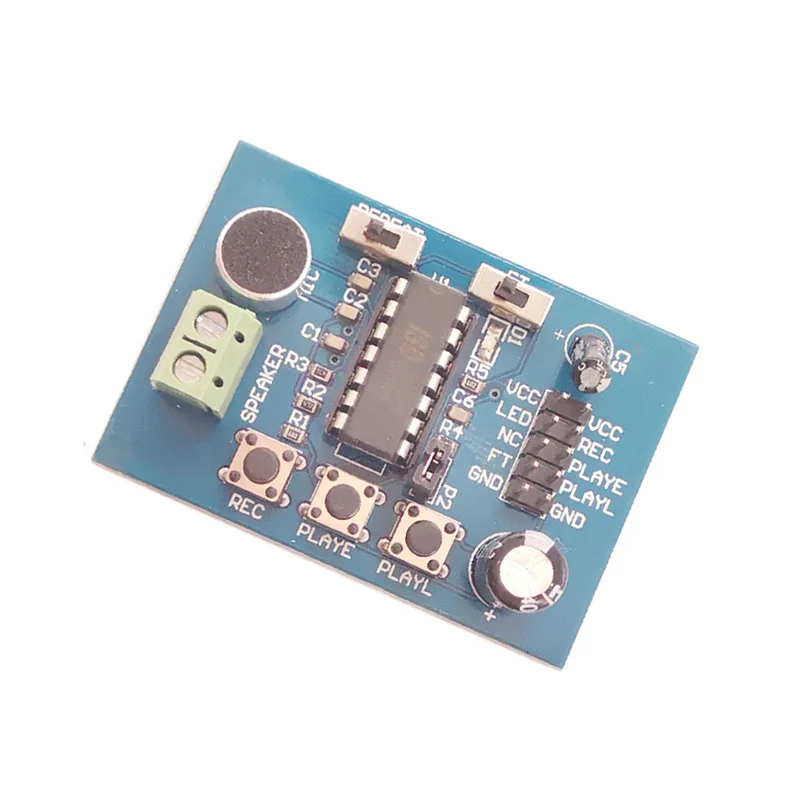

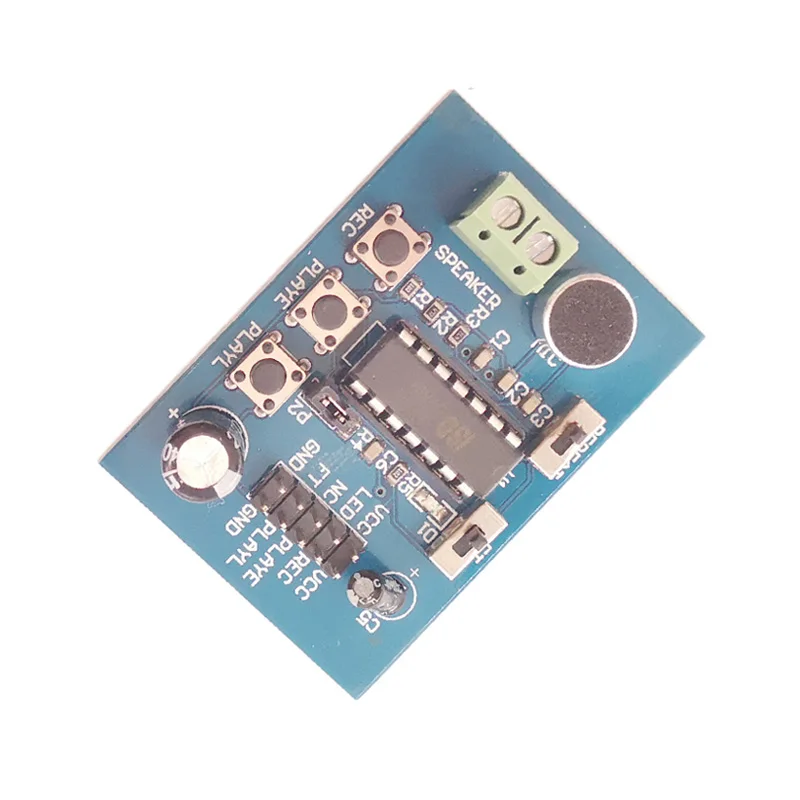

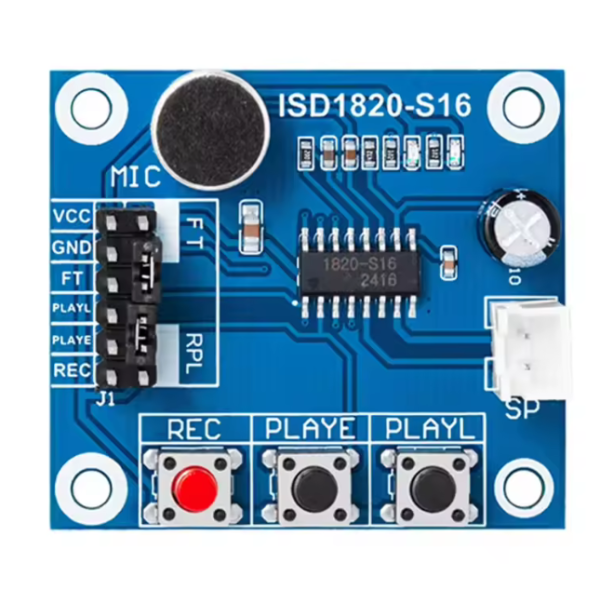

Monday Kids ISD1820 Voice Board Module (On-board Microphone) Sound Recording Module
$1.90
Availability:
In stock
SKU
RY-ES-540
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
Main Chipset
ISD1820
Operating Voltage
3V – 5V DC
Power Input
3–5V via Pin Headers
Key Features
- User-friendly 10-second voice recording and playback
- High-quality, natural voice restoration
- Can be used as a megaphoning/passthrough module
- Supports Loop Playback, Jog Playback, and Single-Pass Playback
- Microcontroller (MCU) controllable
- Directly drives small 8Ω / 0.5W speakers
Control Mode
Supports onboard push-buttons or external MCU control. IO control lines are fully broken out to pin headers.
Button Operation Guide
- REC Record Button: Press and hold to record; release to stop recording.
- PLAYE Edge-Triggered Playback: Press once to play the current audio clip.
- PLAYL Level-Triggered (Jog) Playback: Press and hold to play; release to stop.
- RPL Loop Playback Switch: Enable continuous loop playback mode.
- FT Jumper Feed-Through Control: Routes microphone audio directly to the speaker output.
Package Includes
- 1 × ISD1820 Voice Module
