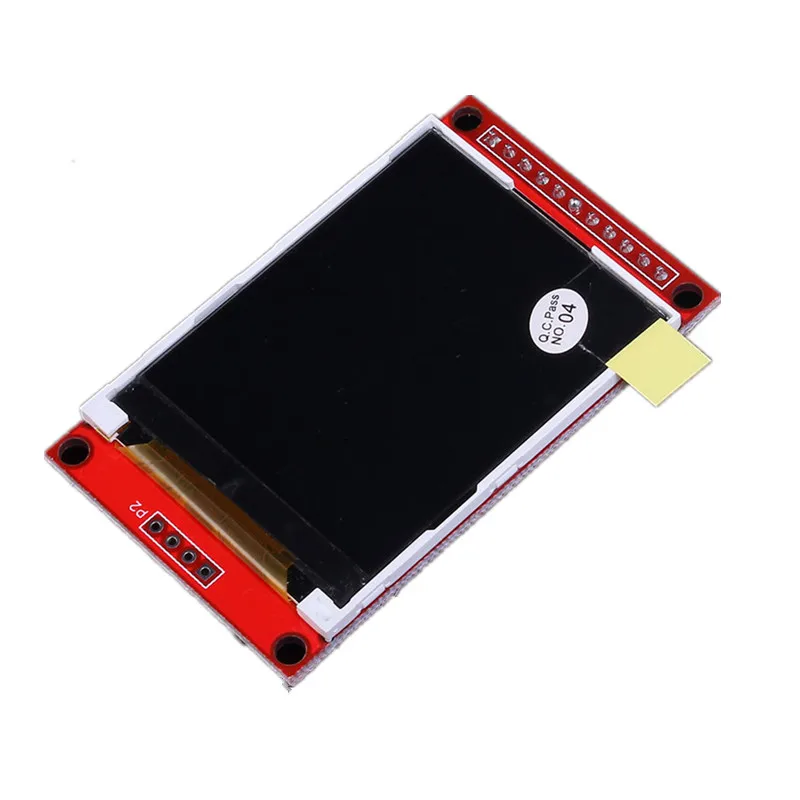

Monday Kids ILI9225 2.0 Inch UART TFT LCD Display Module SPI Interface Colorful Screen Serial Port 176x220 Support 3/5.5V Power Supply 4 IO

$4.45
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Model Number: 2.0 Inch LCD
  • Dissipation Power: none
  • Operating Temperature: -30~85 celsius
  • is_customized: Yes
  • Supply Voltage: 5V or 3.3V
  • Application: 2.0 Inch LCD
  • Resolution: 176*220
  • Support 1: For Arduino MCU direct insertion,Integrated SD card expansion circuit
  • Support 2: Preserve SPI FLASH word circuit,easy tot expand applications

NOTE : we have documents of most of products in our store

If you need it , contact us :)

Product Introduction:


1.Size:2.0 inch SPI seial bus
2.Resolution:176*220
3.Driving IC:ILI9225

Features:


1.Support for Arduino MCU direct insertion,don't need any connections
2.Integrated stabilivolt IC,support 5V or 3.3V power supply
3.Compatible with 5V/3.3V IO level,support MCU IO connections
4.Integrated backlight control circuit,can control on/off or PWM dimming
5.Integrated SD card expansion circuit
6.Preserve SPI FLASH word circuit,easy tot expand applications

  • Unit Type: piece
  • Package Weight: 0.024kg (0.05lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
