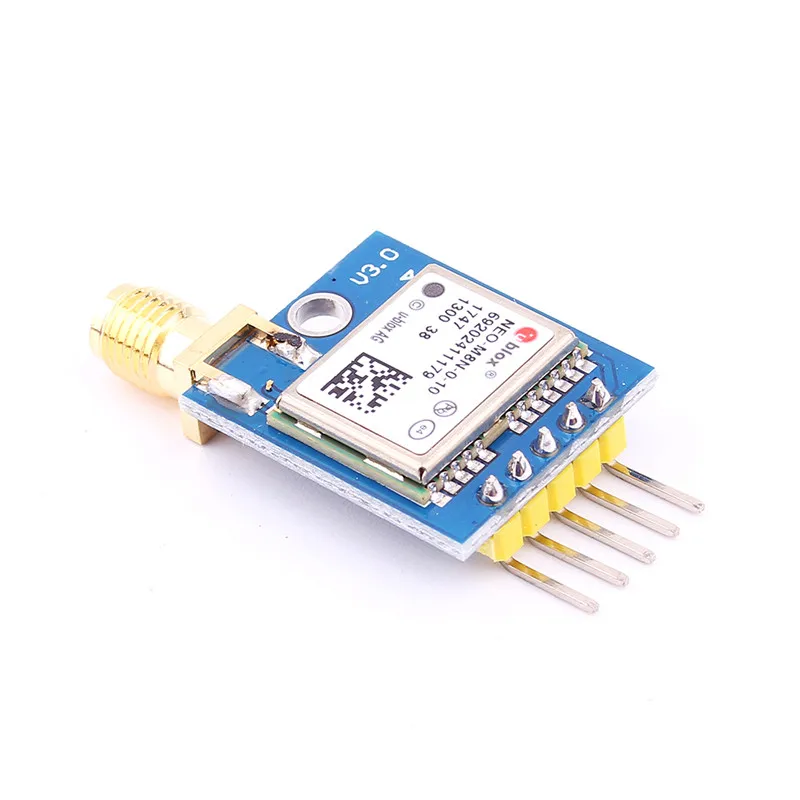

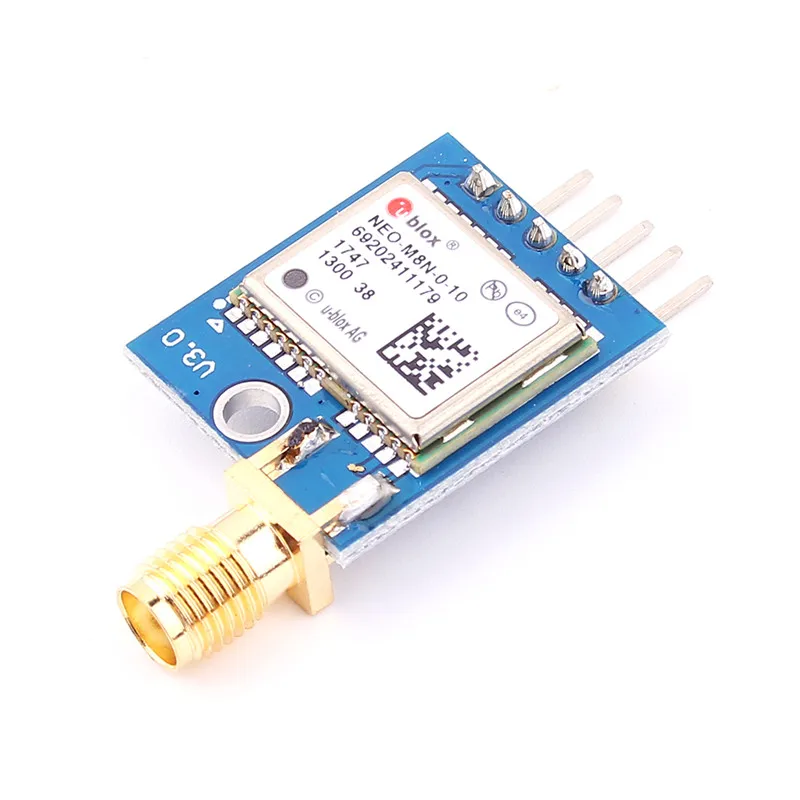

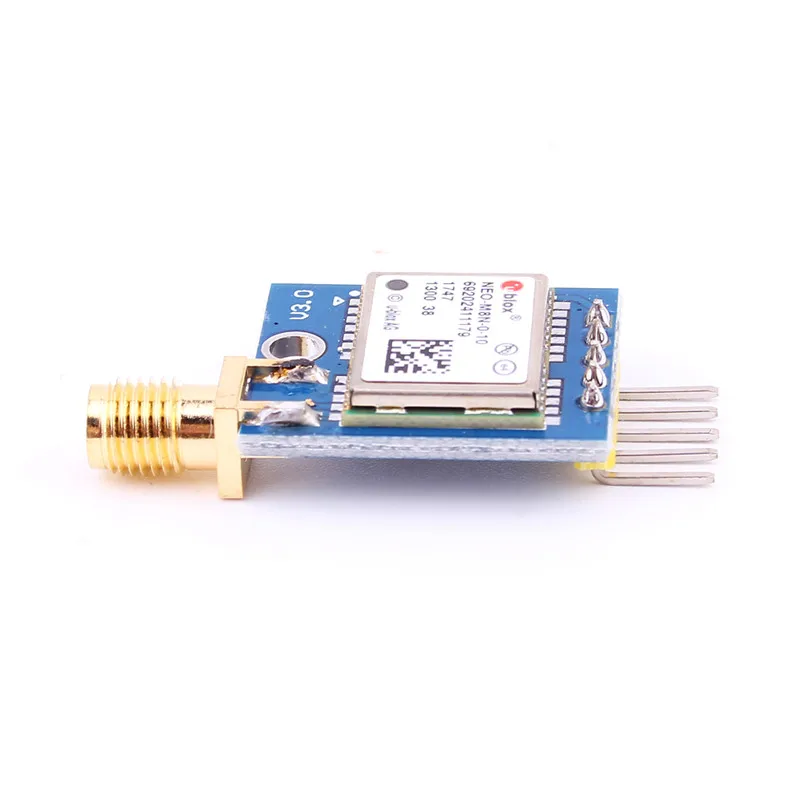

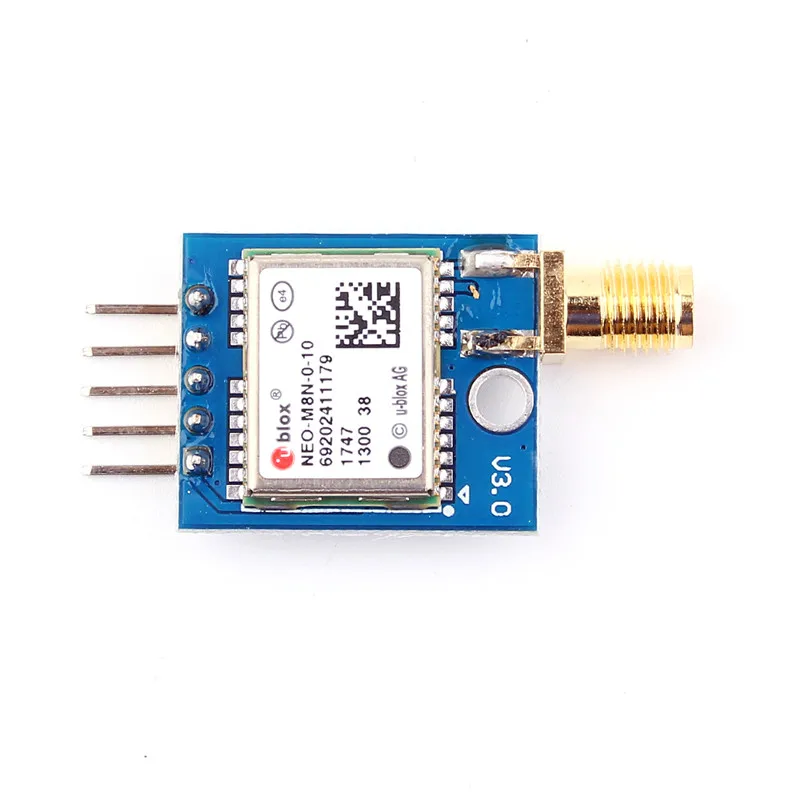

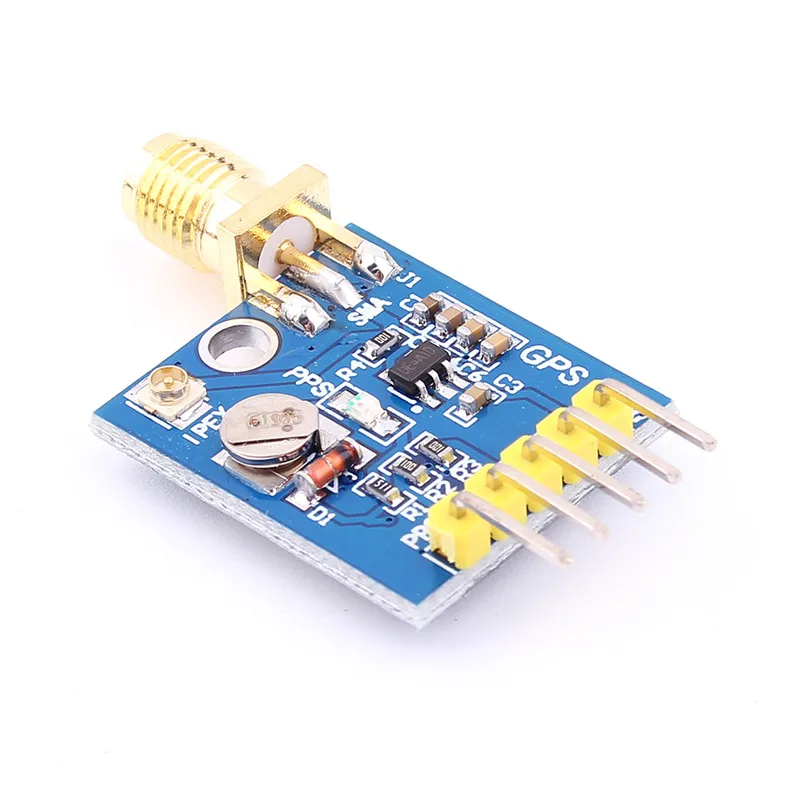

Monday Kids GPS GLONASS Beidou Three 3 Mode Satellite Positioning Module IPEX SMA Interface M8N 3.3V 5V Navigation for Arduino C51

$22.31
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • Model Number: Satellite Positioning Module
  • Supply Voltage: 3.3V 5V
  • is_customized: Yes
  • Operating Temperature: -35~80 Celsius
  • Application: Satellite Positioning Module

Product Introduction:


1.Output Baud Rate: 9600bps (can be modified by U-CENTER)
2.Output Frequency: 1Hz (can be modified by U-CENTER)
3.Output Protocol: NMEA-0183
4.Output Level: serial communication TTL level
5.Support Satellite: GPS satellite,Beidou satellite,GLONASS satellite

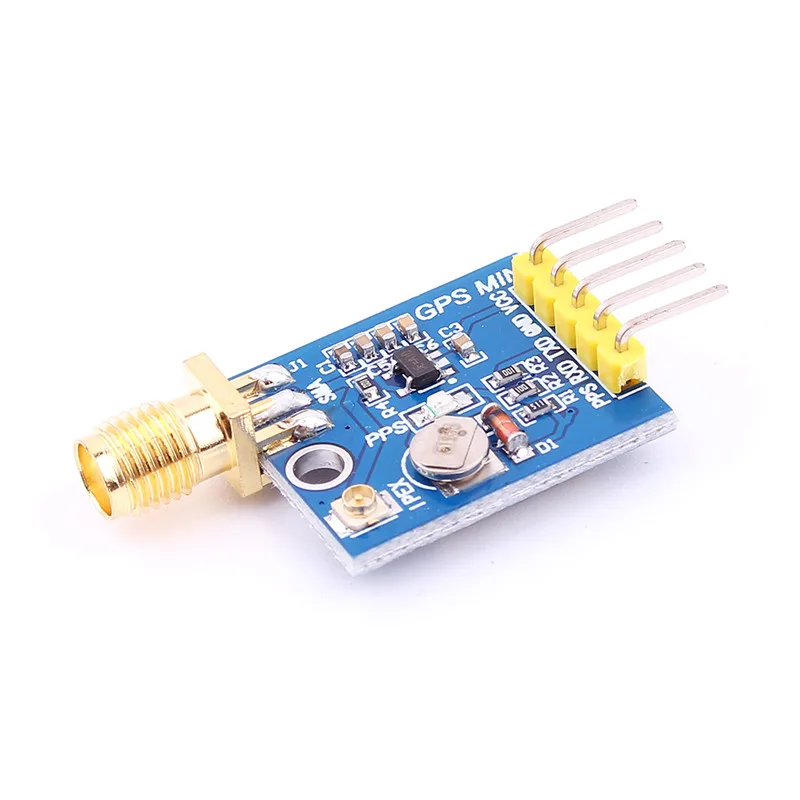

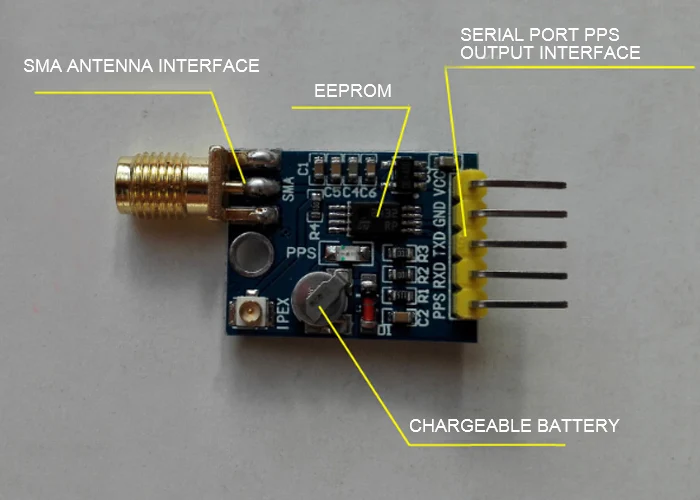

6.With IPEX and SMA antenna interface, and it can connect with various active antenna
7.With chargeable backup battery, and it can save data after power failure
8.Compatible with 5V/3.3V, applicable for various MCUs

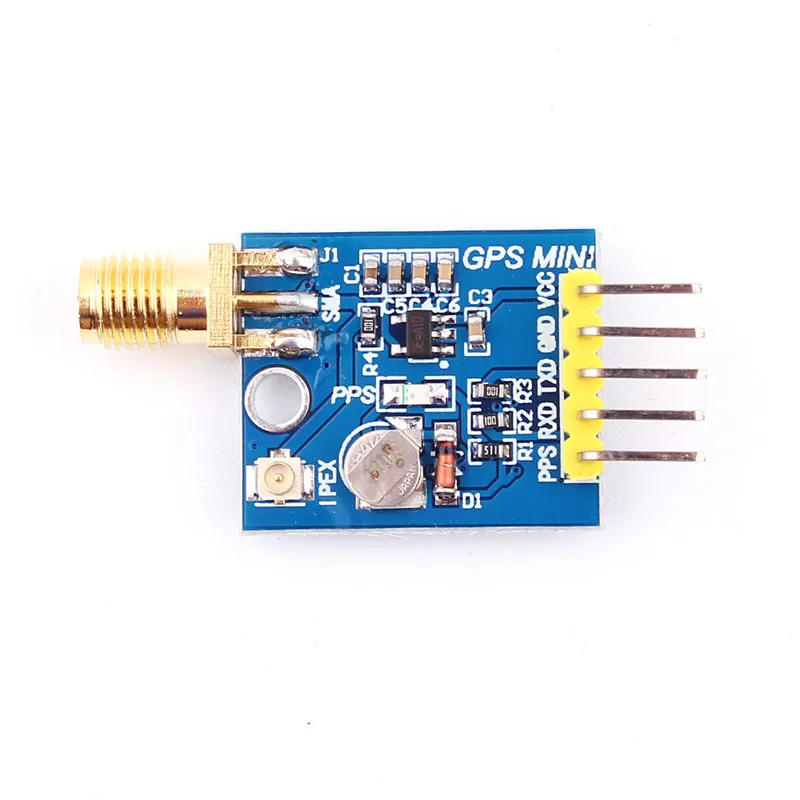

Pin Definition:


1.VCC: power (3.3-5.0V)
2.GND: ground
3.TXD: module serial port transmit pin (TTL level, it cannot directly connect RS232 level), it can connect MCU RXD
4.RXD: module serial port receive pin (TTL level, it cannot directly connect RS232 level), it can connect MCU TXD
5.PPS: clock pulse output pin

  • Unit Type: piece
  • Package Weight: 0.02kg (0.04lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
