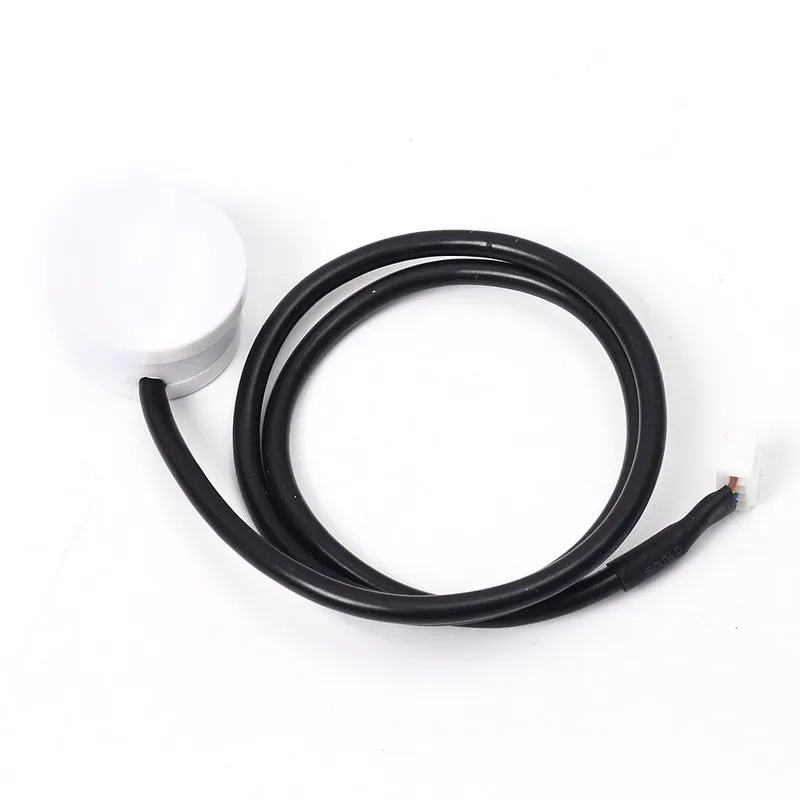

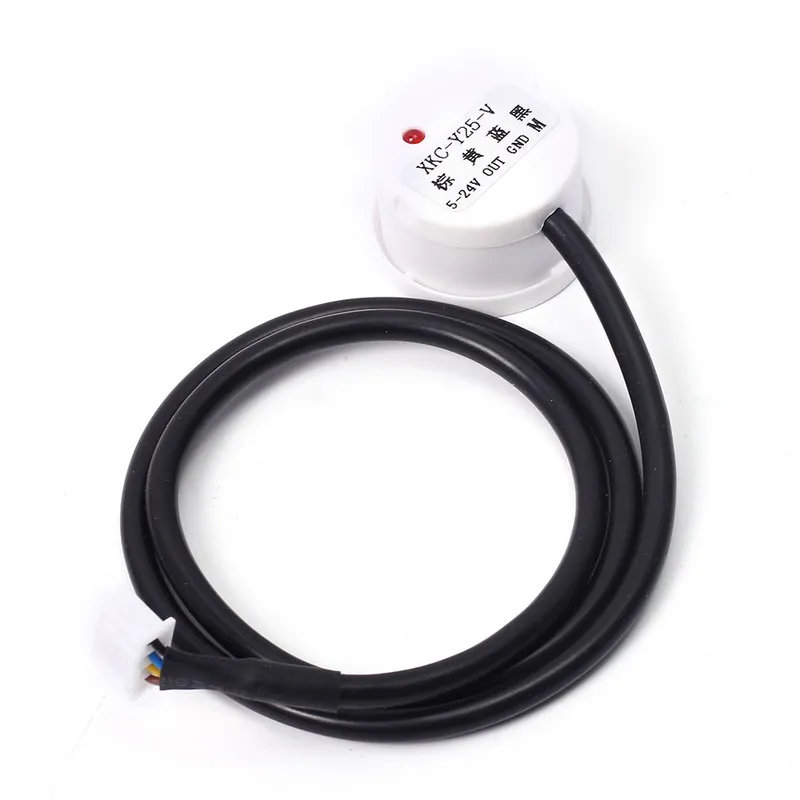

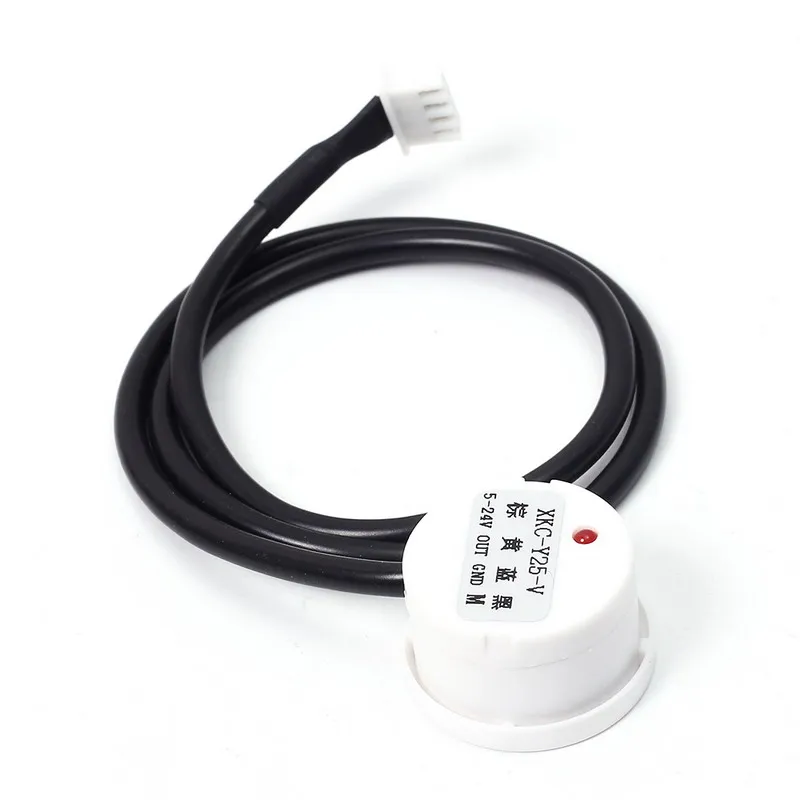

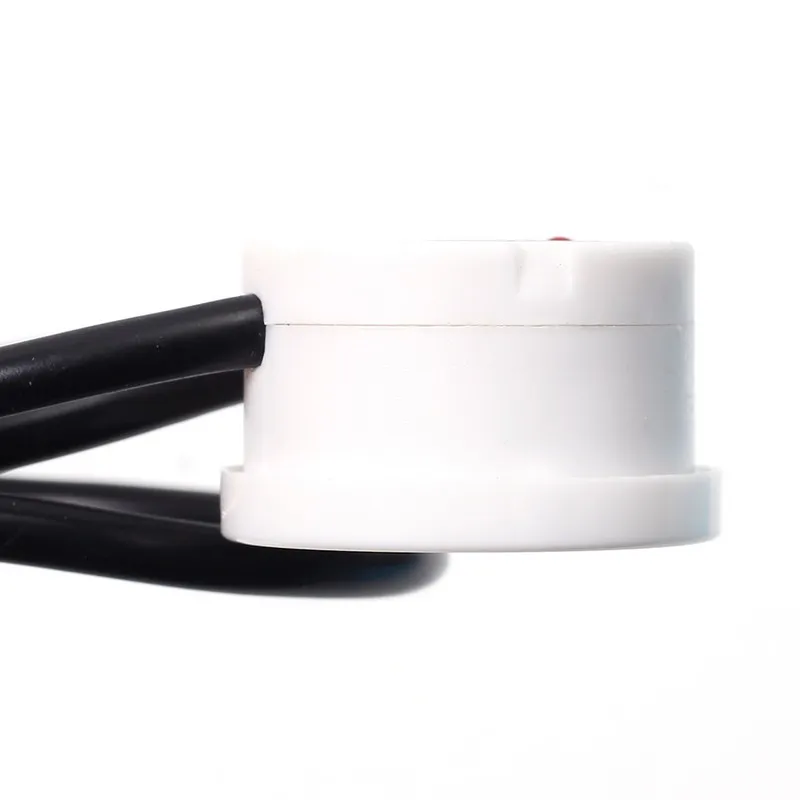

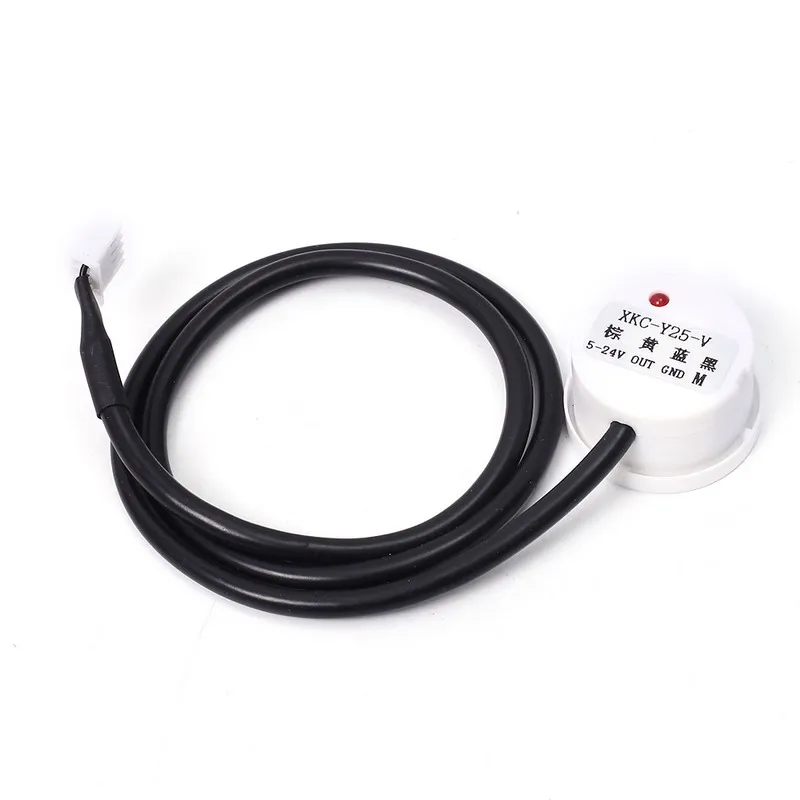

Monday Kids Non-contact Liquid Level Detection Sensor Water Level Sensor Detection Tool High/Low Level Output Automatic Control for Arduino

$4.29
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Application: Computer
  • Condition: New
  • Type: Logic ICs
  • Supply Voltage: DC 5~24V
  • Operating Temperature: 0~100 Ceksius
  • is_customized: Yes
  • Model Number: Non-contact Liquid Level Detection Sensor
  • Current consumption: 5mA
  • Output voltage (high voltage): InVCC
  • Output voltage (low voltage): 0V
  • Output current: 1~50mA
  • Range of induction thickness sensitivity: 0~20mm

1. Description:

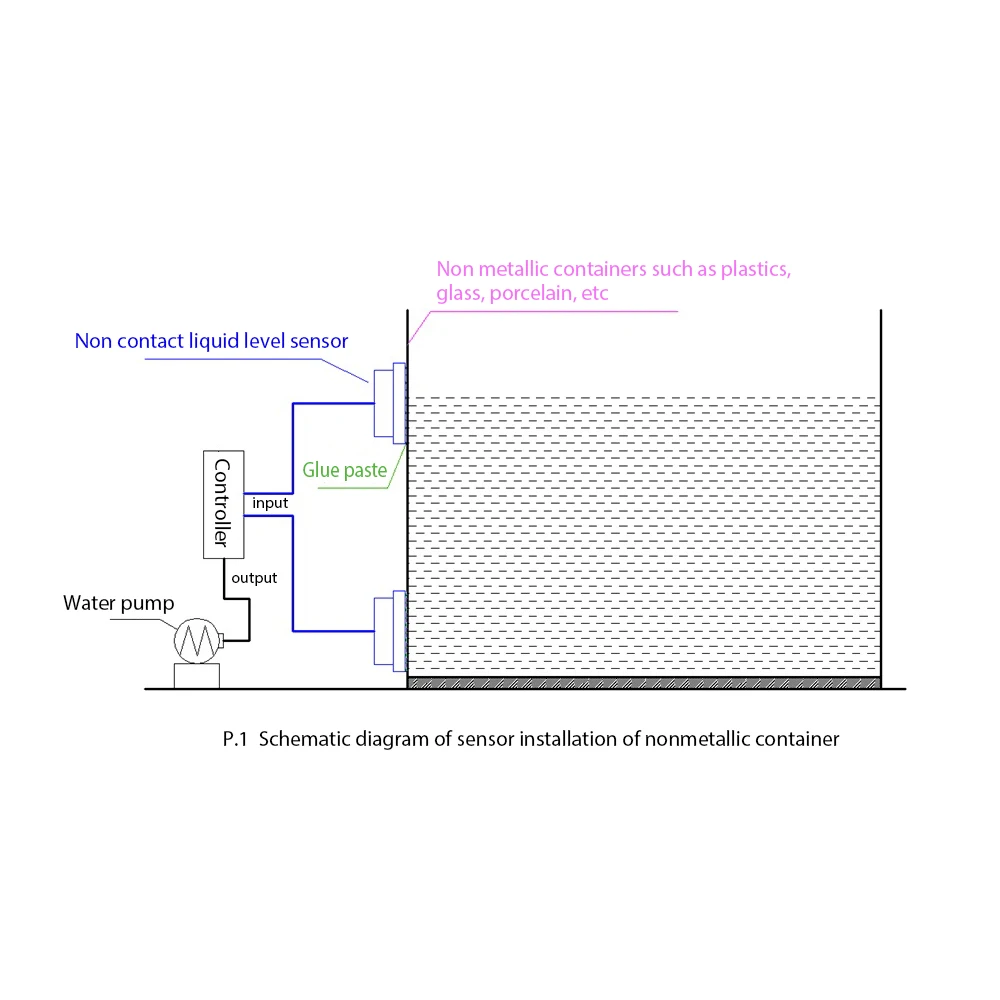

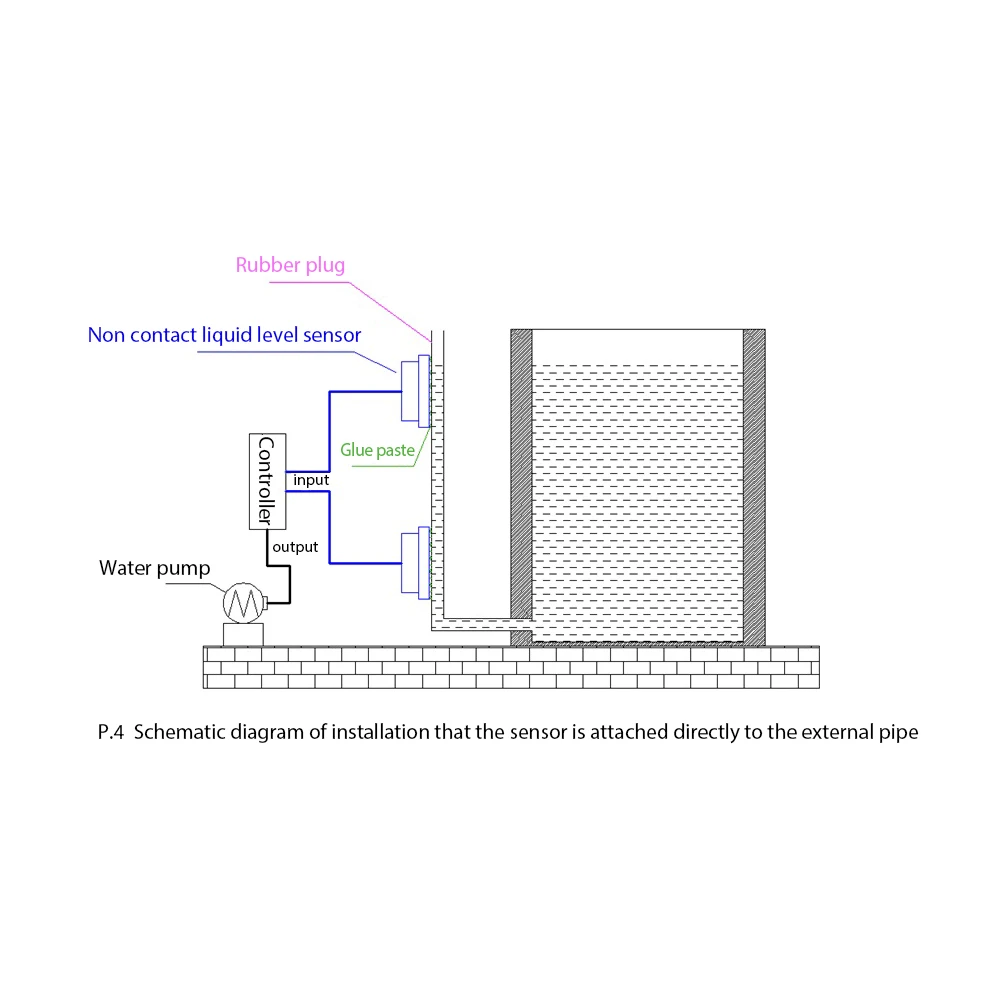

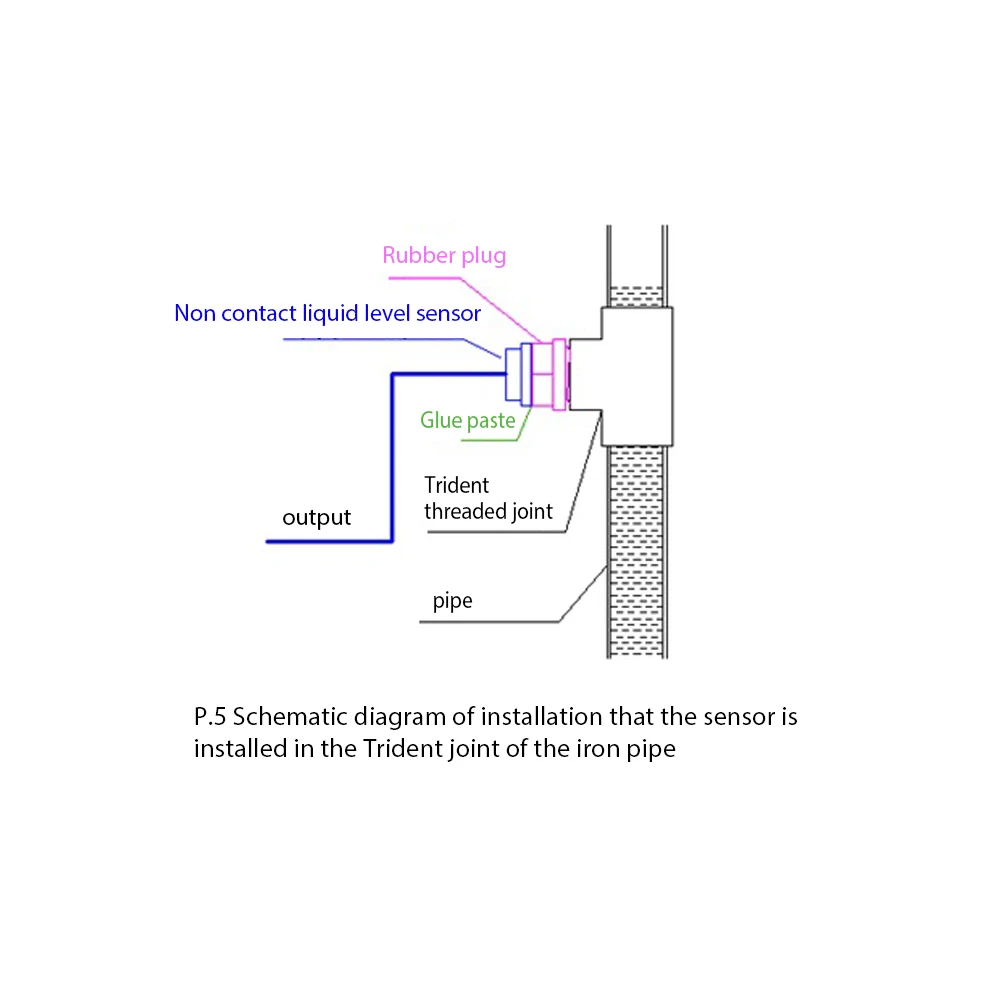

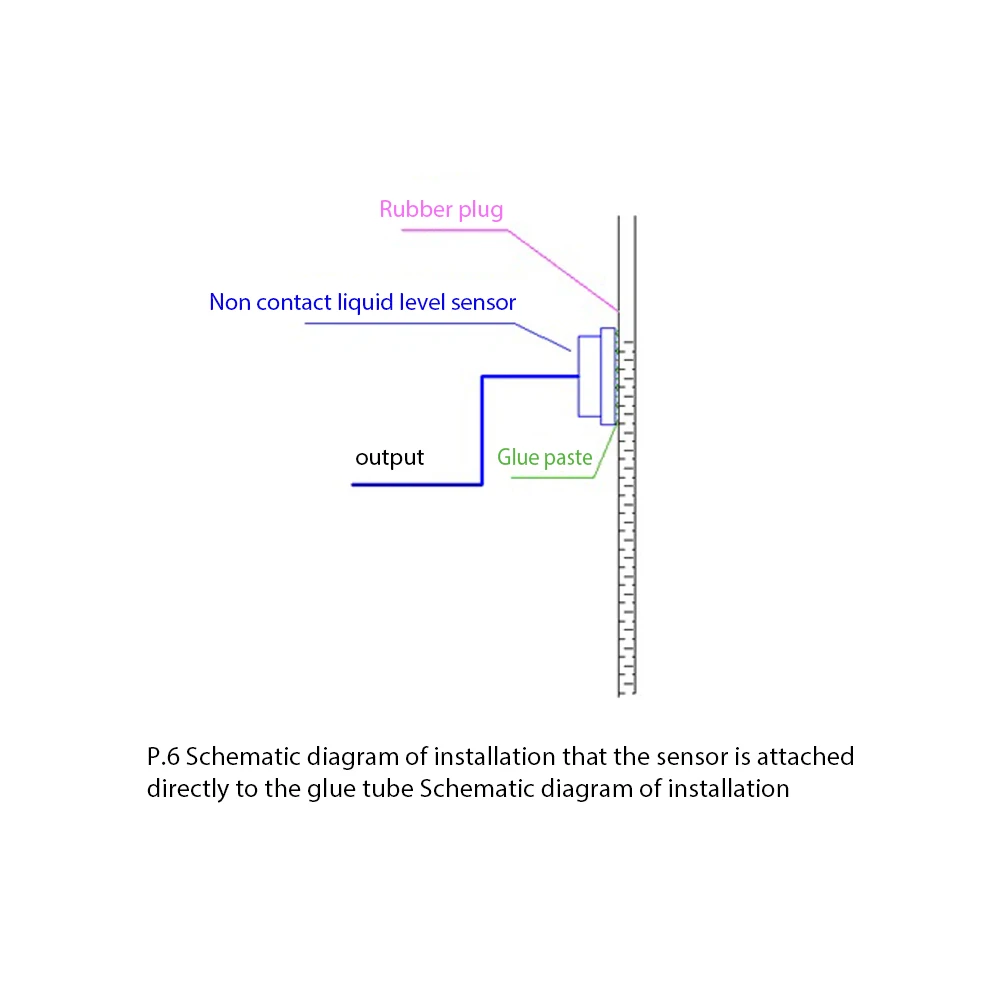

The liquid level sensor (probe) is installed above and below the outer wall (high and low level) of the container, which can detect the toxic substances, strong acid, strong alkali and various liquid levels in the high pressure airtight container.
The liquid level sensor has no special requirements for the liquid medium and the container material, so it can be widely used.

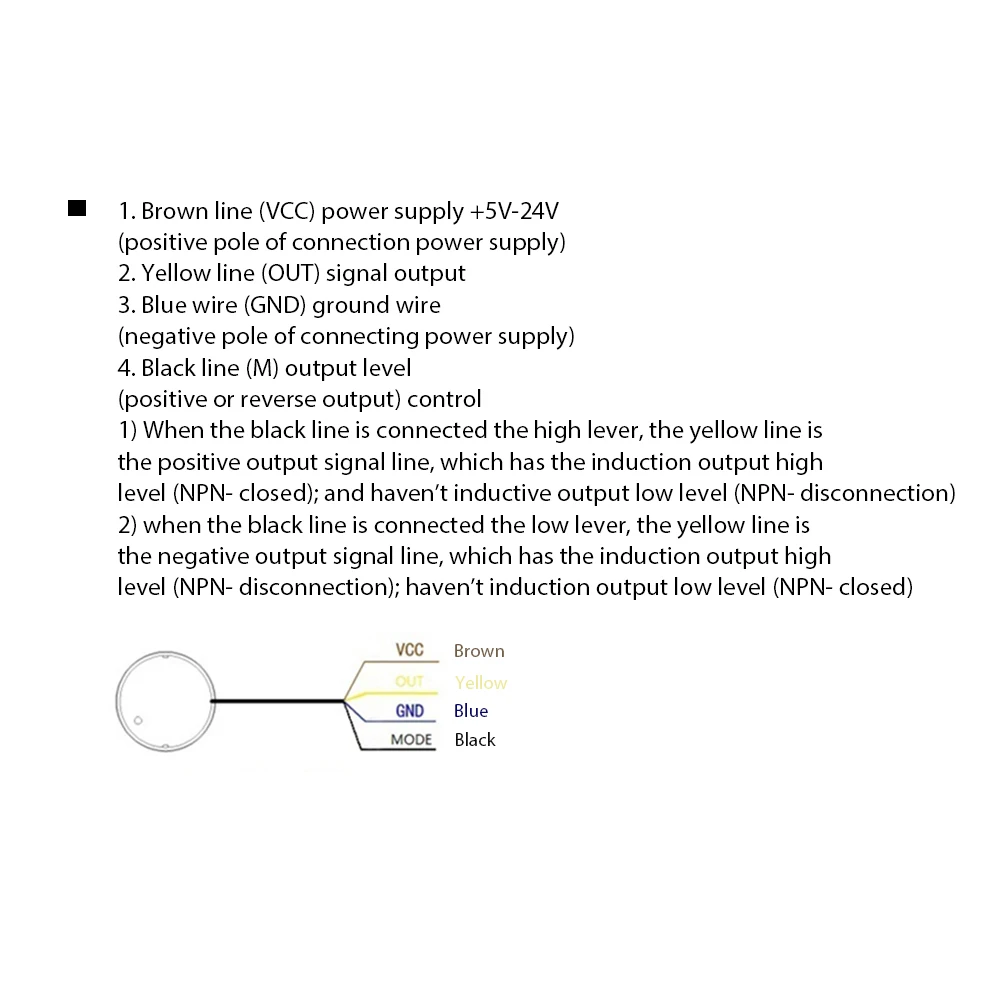

The signal output interface of this liquid level sensor is the high and low level output interface, which is a level that can induce high output and can not induce low level output.

2. Feature:

1>. Non contact liquid level sensor, suitable for any container outer wall.
2>. Intelligent level adjustment, liquid level memory function, and liquid level status display mode, which can realize multi-point series connection.
3>.The detection is accurate and stable, which can detect boiling water level.
4>. Pure electronic circuit structure, stable performance, durable life.
5>. High stability, high sensitivity and strong anti-interference ability, which are free from external electromagnetic interference.
6>. Open collector output, wide voltage range (5~24V), suitable for connection of various circuits and applications.

3. Parameter:

NO.

Parameter

Value

1

InVCC

DC 5~24 V

2

Current consumption

5mA

3

Output voltage (high voltage)

InVCC

4

Output voltage (low voltage)

0V

5

Output current

1~50mA

6

Response time

500mS

7

Working environment temperature

0~100℃

8

Range of induction thickness (sensitivity)

0~20mm

9

Communication

RS485

10

Humidity

5%~100%

11

Texture of material

ABS

12

Waterproof performance

IP67

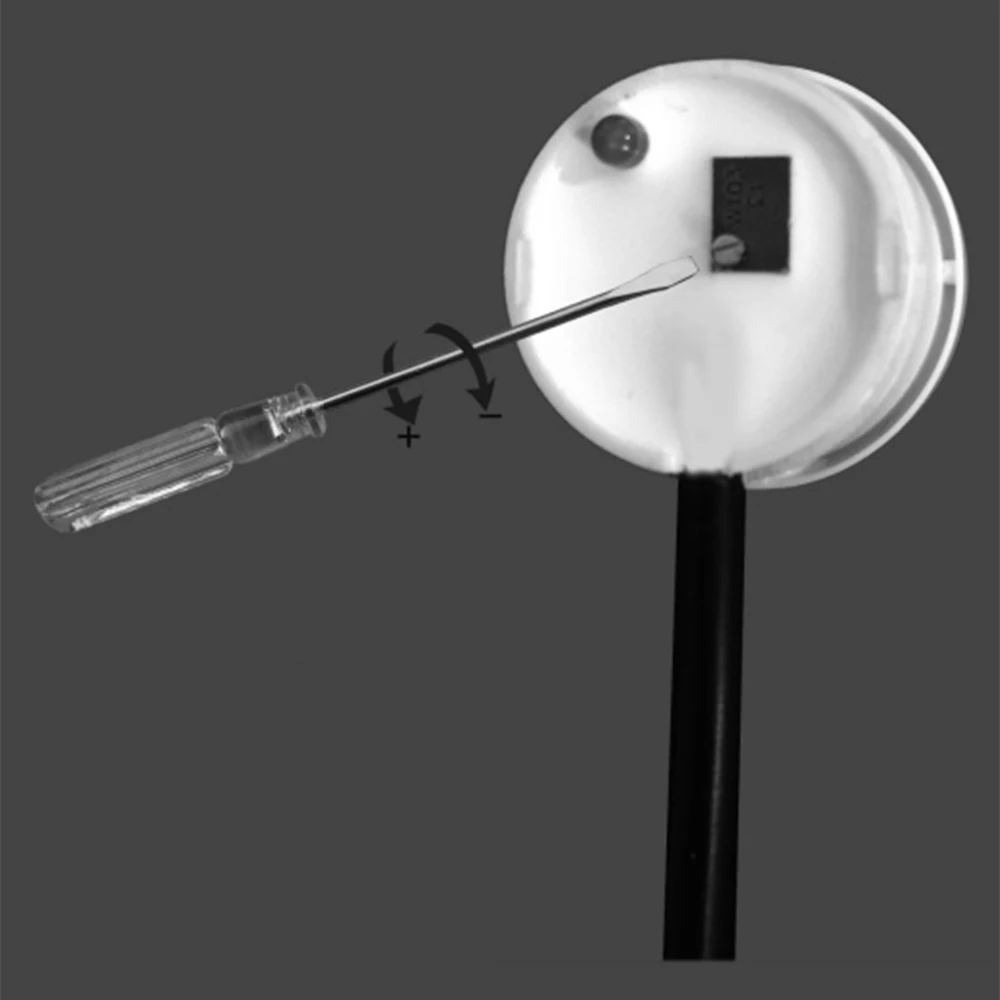

4. Sensitivity modulation:

1>. Opens the sensing head back cover.
2>. Using a small screwdriver to adjust the sensitivity knob, and anticlockwise rotation is to improve sensitivity, while clockwise rotation is to reduce sensitivity.

  • Unit Type: piece
  • Package Weight: 0.3kg (0.66lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
