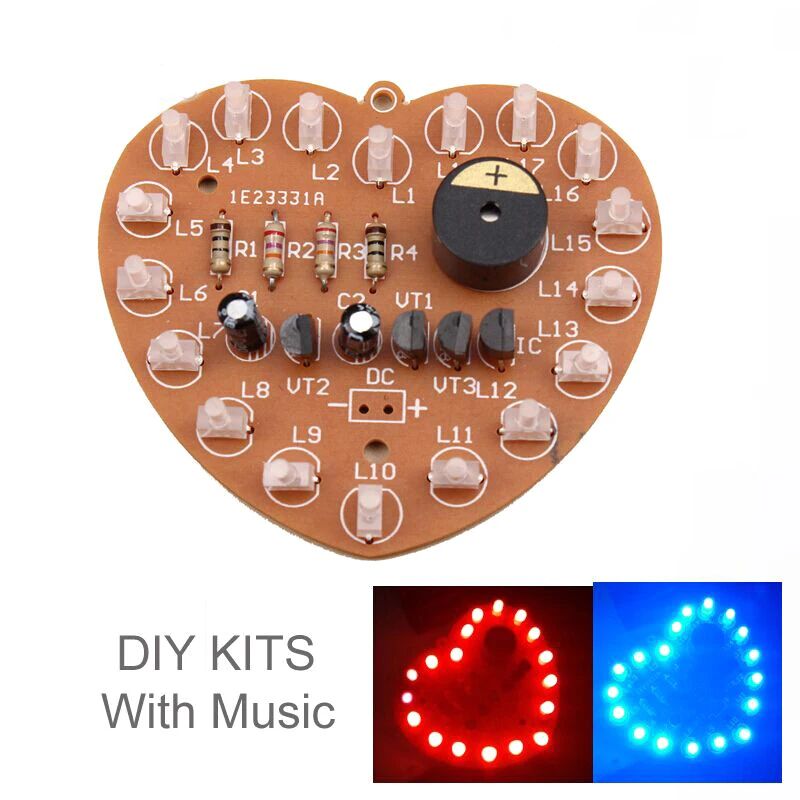

Monday Kids DIY Kit Music Flash Light Kits 18 LEDs Heart-Shaped Red Green Dual-Color Flashing Happy Birthday Music Gift Electronic Fun Parts
$1.51
Availability:
In stock
SKU
EK580
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: Music Flash Light Kit
- Condition: New
- Type: Logic ICs
- Supply Voltage: 3 - 12V
- Dissipation Power: none
- Operating Temperature: -20 ~ 65 celsius
- is_customized: Yes
- Application: Electronic Circut
1. Description
1>. It is DIY kit. Customers need weld it by themselves.
2>. It displays with green and red LED.
3>. 18pcs LED automatic flashing alternately with music “Happy Birthday to you”.

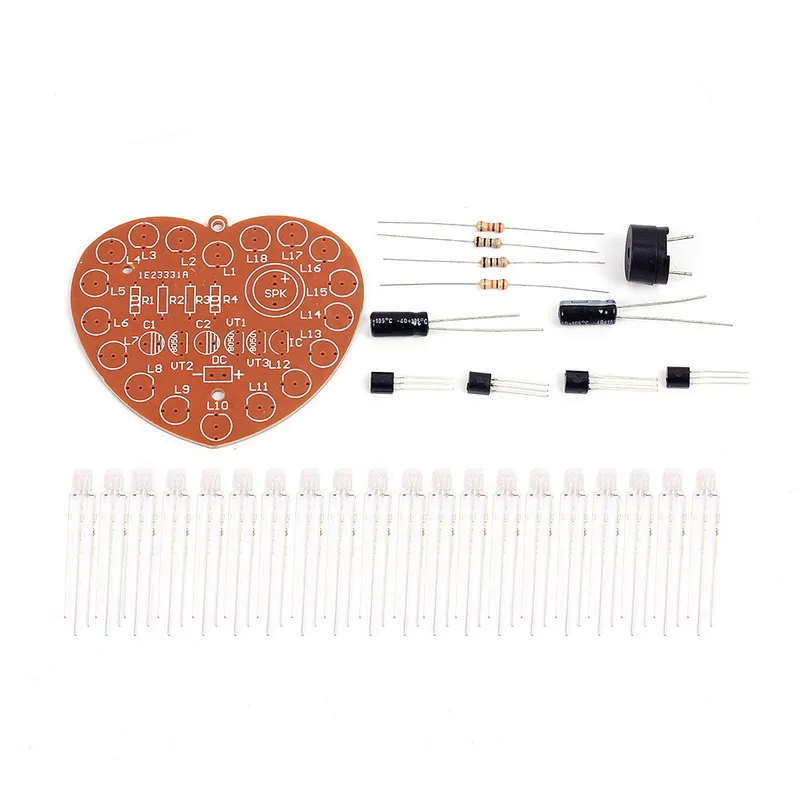

2. Component listing.
Component | Number | Parameter | Quantity |
Electrolytic capacitor | C1,C2 | 100uf | 2 |
Resistance | R1,R4 | 10ohm | 2 |
Resistance | R2,R3 | 27Kohm | 2 |
9300 | IC | TO-92 | 1 |
S8050 | VT1,VT2,VT3 | TO-92 | 3 |
Buzzer | SPK | 1 | |
Red Green LED | L1-L18 | 18 | |

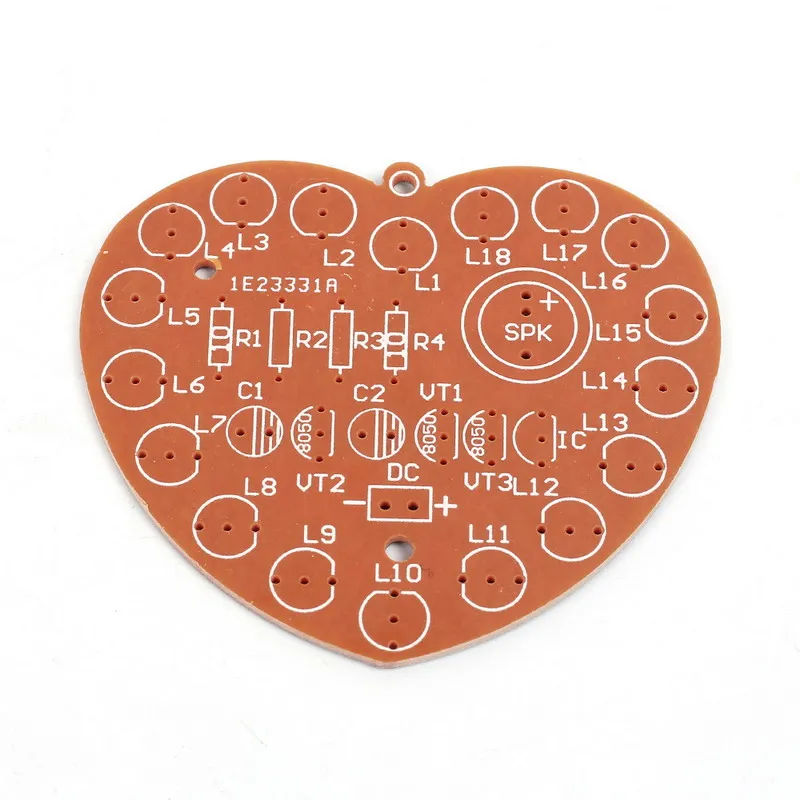

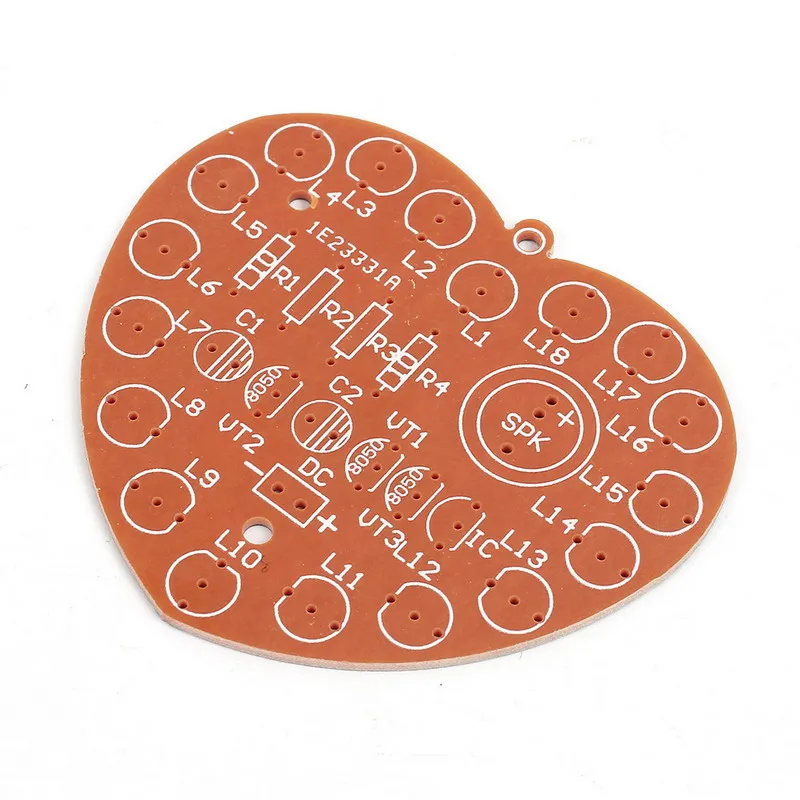

PCB | 1 |
3. Schematic
- Unit Type: piece
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
