Monday Kids 433MHz 100 Meters Wireless Module Kit (ASK Transmitter STX882+ ASK Receiver SRX882 + 2Pcs Copper Spring Antenna)
$1.85
Availability:
In stock
SKU
EK204
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: 3.6V
- Condition: New
- Type: Logic ICs
- Model Number: ASK Transmitter STX882
- Dissipation Power: none
- Operating Temperature: -30 ~ 85 celsius
- is_customized: Yes
- Application: Electronic Circuit
- Frequency: 433Mhz
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|

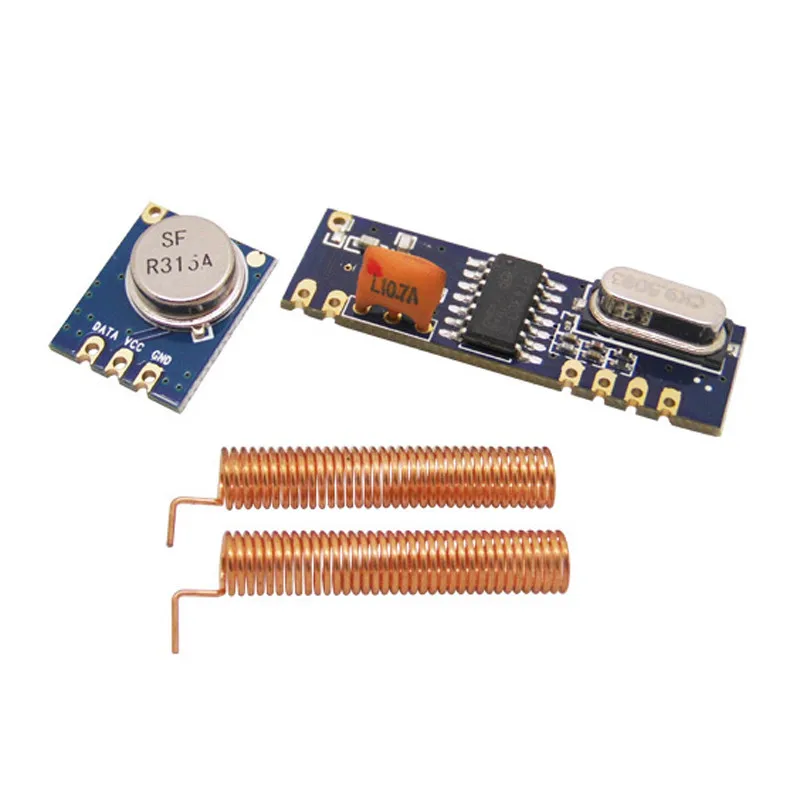

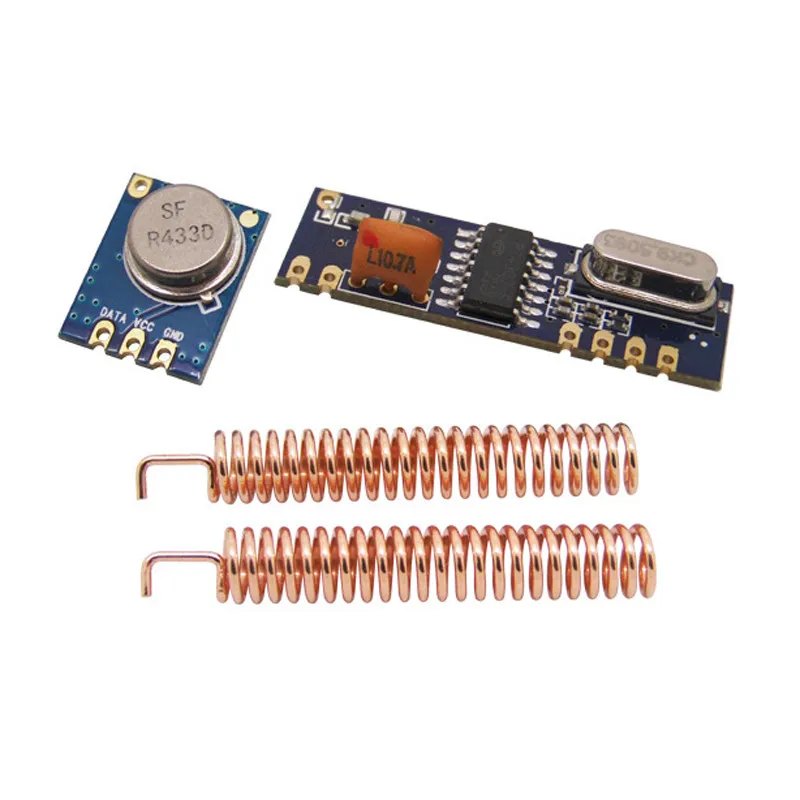

433MHz 100 Meters Wireless Module Kit (ASK Transmitter STX882+ ASK Receiver SRX882 + 2Pcs Copper Spring Antenna)

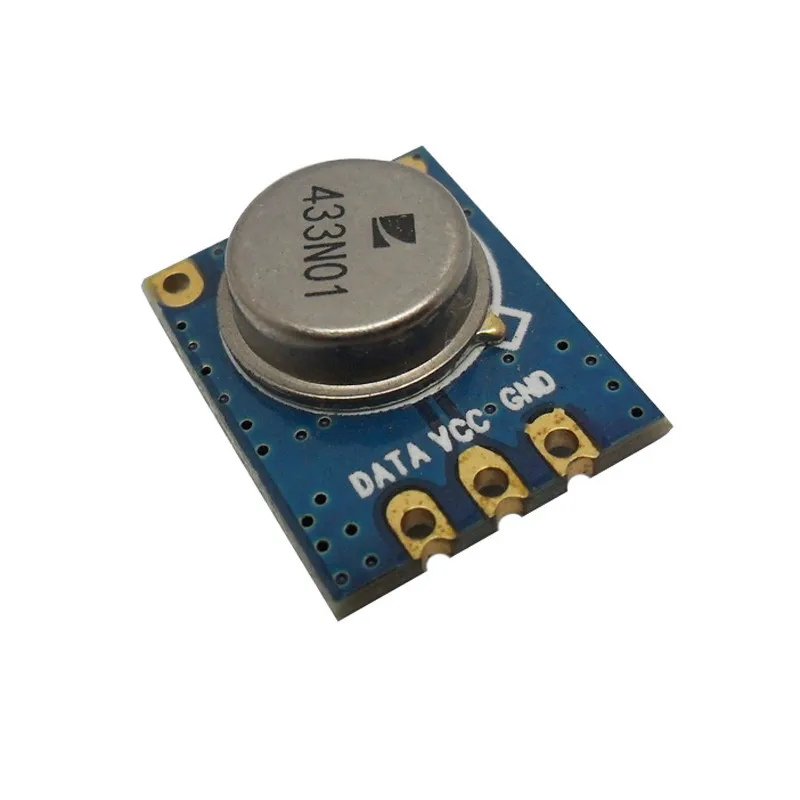

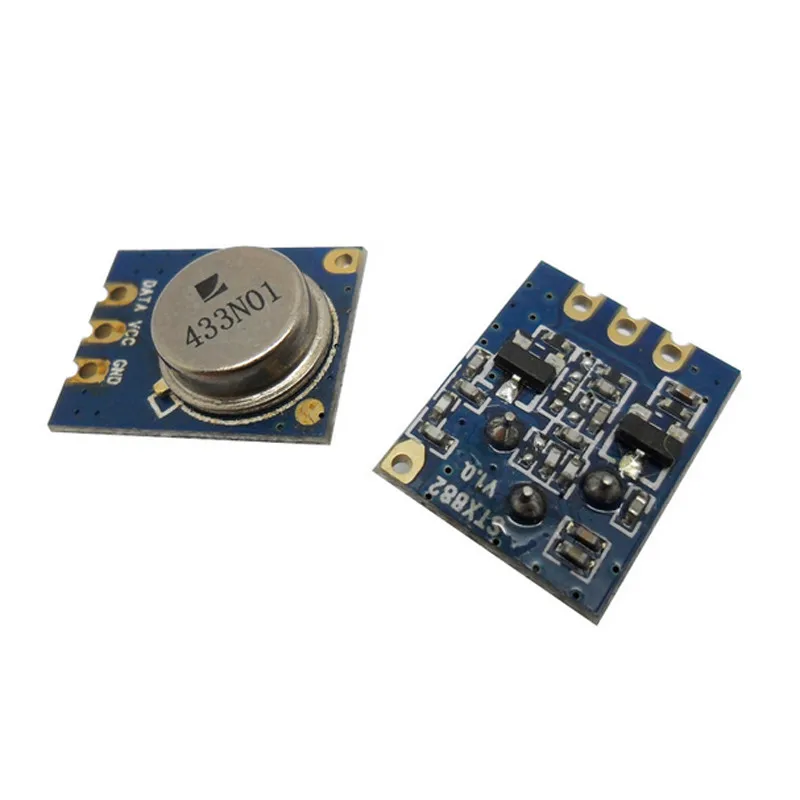

STX882 ASK Wireless Remote Control Transmitter Module
STX882 is a ASK transmitter module with small size, ultra high power, low harmonics. With high stability, it can be achieved at 50mW power when the voltage is 3.6V, it is the maximum transmitter power module under the the same voltage in the market. Data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient.
Application Circuit:
Pin Definition:
1: ANT, Antenna Input
2: DATA, Data Input
3: VCC, Connect Power Positive
4: GND, Connect Power Ground
Mechanical Dimension

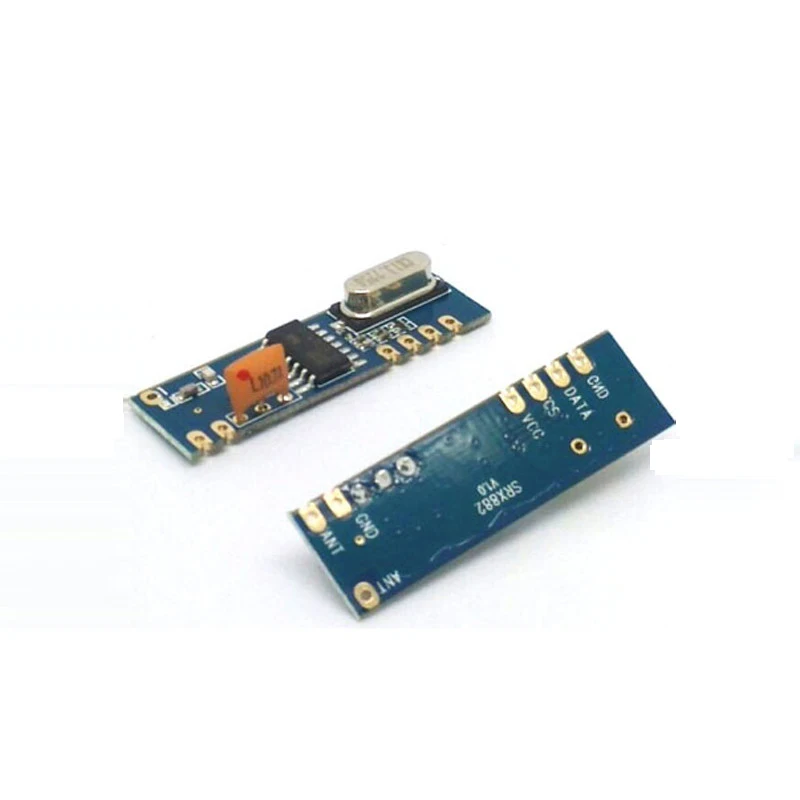

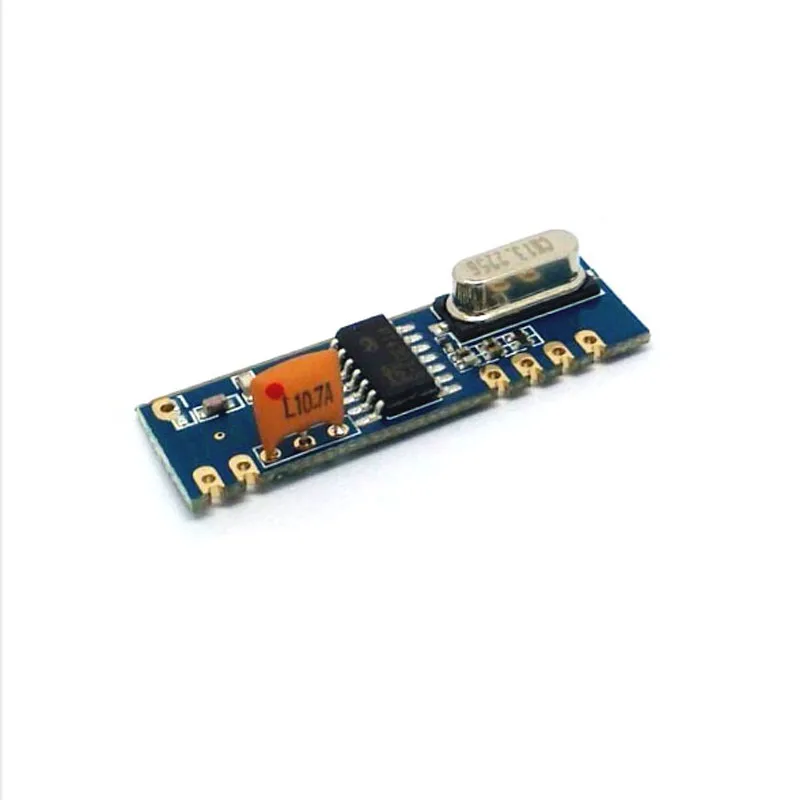

SRX882 ASK ASK Wireless Remote Control Superheterodyne Receiver Module
SRX882 is a superheterodyne receiver with micro power and strong driving force, is supplementary STX882 / STX888 module. Data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient.
Pin Definition:
1: ANT, Connect 50 Ohm Antenna
2: GND, Connect Power Ground
3: VCC, Connect Power Positive
4: CS, Modules Enable Pin, Floating or Connected to High Level Work, Sleep When Connect Ground
5: DATA, Data Input
6: GND, Connect Power Ground
7: ANT, Connect 50 Ohm Antenna
Mechanical Dimension
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
