Monday Kids DC 3V-5V Arc Generator High Voltage Transformer Electronic Lighter for USB Cigarette Lighter
$4.39
Availability:
In stock
SKU
EK499
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
Please note that this product is supplied as individual components, requiring you to solder them into a finished product based on your needs. Additionally, this product includes a circuit schematic, giving you the option to either solder the components onto the provided PCB accessory or integrate them into your own hardware system. This flexibility is one of the product's key highlights, which is why it is offered as loose parts. It provides buyers with a high degree of customization flexibility to meet a wide range of application scenarios tailored to their specific requirements.
For the tutorial, please kindly refer to Google Drive
Product Specifications: High-Voltage Arc Lighter Kit
| Dimensions | 17 mm × 71 mm |
|---|---|
| Circuit Board Material | Double-Sided 1.6 mm FR-4 Board |
| Output Pulse Voltage | 0.5 kV – 0.8 kV |
| Operating Frequency | 20 kHz – 25 kHz |
| Arc Distance | 5 – 8 mm |
| Operating Voltage | DC 3 – 5 V, Current ≥ 3 A, Power ≥ 15 W |
| Recommended Power Source | 3.7 V 18650 Lithium Battery |

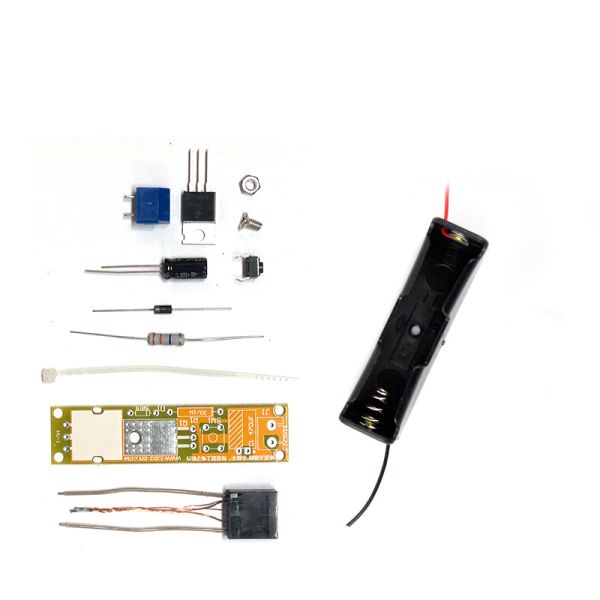

Bill of Materials
| Component | Specification | PCB Label | Quantity |
|---|---|---|---|
| Resistor | 33 Ω | R1 | 1 |
| Electrolytic Capacitor | 470 µF | C1 | 1 |
| Diode | IN4007 | D1 | 1 |
| Push Button Switch | 6 × 6 × 5 mm | SW1 | 1 |
| Transistor | D880 | Q1 | 1 |
| Terminal Block | 2P | JK1 | 1 |
| High-Frequency Transformer | 14 × 15 × 8 mm | T1 | 1 |
| PCB | - | - | 1 |
| Screw | - | - | 1 |
| Nut | M3 | - | 1 |
Product Functions and Applications
Capable of instantly igniting cigarettes or paper, this ultra-compact DIY electronic lighter is ideal for electronics enthusiasts to study and learn.
Operating Principle and Effects
When the input is connected to a DC 3–5 V power source, the secondary high-voltage output generates a purple, high-temperature arc up to 0.8 cm. The arc is silent, extremely hot, and can instantly ignite paper, cigarettes, or even cause thin wires to spark.
The transformer is resin-encapsulated for safety and reliability. Recommended continuous operation time is ≤ 1 minute. Ensure proper heat dissipation.
⚠ High Voltage Hazard! Do not touch the high-voltage components during operation.
Soldering and Wiring Instructions
- The PCB silkscreen indicates component placements; solder according to the markings.
- Resistors are non-polarized, but ensure correct resistance values.
- Electrolytic capacitors are polarized: long lead is positive (+), short lead is negative (−), matching the PCB silkscreen.
- When connecting the power line to the terminal block, ensure correct polarity to avoid reverse connection.
- Ensure the chip is installed with the correct orientation.
Module Usage and Maintenance
1. Pre-Power-On Checks
- Verify correct polarity of the input power.
- Before powering on, adjust the high-voltage line spacing to 0.2–0.8 cm.
- Arc length is proportional to battery voltage/capacity: higher voltage results in a longer arc.
2. No-Load and Testing Restrictions
- Do not power on without a load; during testing, gradually adjust from short to longer distances.
- Maximum arc distance is ≤ 1 cm. Exceeding 1 cm may cause unreleased high-voltage energy, potentially damaging the module.
3. Operating Duration and Heat Dissipation
- The module has high power and poor heat dissipation; limit continuous operation to ≤ 1 minute and ensure proper cooling.
4. Power Requirements
- Input: DC 3–5 V, current ≥ 3 A, power ≥ 15 W.
- Prohibited: Using phone or power banks (insufficient current may damage the phone or power bank).
- Recommended: 3.7 V 18650 lithium battery. If the arc fails to form, shorten the distance or increase the voltage slightly.
5. Discharge Needle Maintenance
- The discharge needle is made of high-temperature-resistant iron; sharper tips improve discharge performance.
- After prolonged use, if the needle tip oxidizes, scrape it clean to restore performance.
⚠ High Voltage Hazard! Do not touch the high-voltage output or discharge needle while powered on.
