Monday Kids DC-DC Vehicle Charging Board 8V-35V 5V 8A Power Supply Depressurization Module 4 port USB Output mobile Charger Car
$3.92
Availability:
In stock
SKU
RY-ES-370
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Application: Computer
- Condition: New
- is_customized: Yes
- Type: Voltage Regulator
- Model Number: Power Supply Depressurization Module

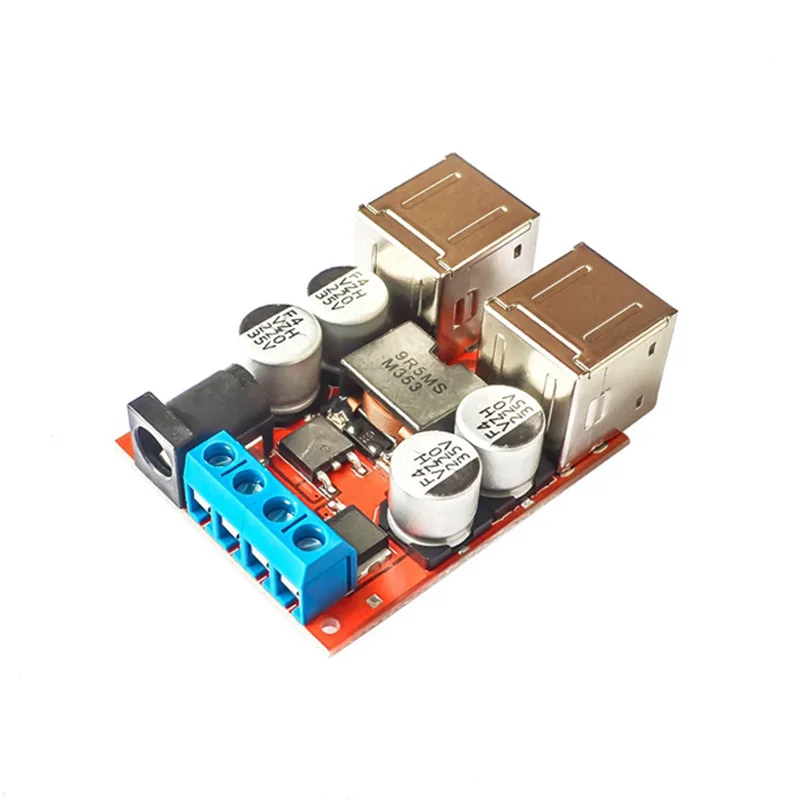

DC-DC Vehicle Charging Board 8V-35V 5V 8A Power Supply Depressurization Module 4 port USB Output mobile Charger Car
1.4 independent dedicated charging management IC, can effectively support a variety of mobile phones for maximum current charging, fast charging, safe and reliable.
2. The charging identification IC is compatible with Apple's full range of Android products, and most mobile phones can achieve the fastest charging speed.
3. Support 4 channels of USB and 2A current charging at the same time, the current is large and the charging is fast, and the total output current can reach 8A.
4. Input adopts MOS tube reverse connection protection to maximize conversion efficiency and reduce loss.
5. Output with overvoltage protection to see and effectively protect the phone.
6.8-35V ultra-wide input voltage, 12V 24V car can be perfectly supported.
7. Synchronous rectification scheme can effectively reduce heat generation and improve efficiency, and the efficiency can reach up to 96%.
8. The industry's advanced flat line high current inductance, large current and small heat generation, high conversion efficiency.
9.4 high-quality chip capacitors, and then increase the capacity of MLCC capacitors, the output ripple is lower, and the interference is smaller.
10. High-quality double-layer gold-plated USB port, the life is twice that of ordinary USB.
11. The default delivery is about 5.2V output voltage.
Module parameters:
Input voltage: DC 8-35V
Input current: 5.5A
Output voltage: 5.2V
Output current: total maximum 8A, current adaptive, mobile phone single port charging up to 2A.
Dynamic response speed: 300us (load flow change 5%)
Conversion efficiency: 95% (12V to 5.2V3.5A measured, efficiency is related to differential pressure and load size.)
Load regulation rate: 0.2-0.3% (10%-50% load measured by 12V input)
Ripple & Noise: 120mVP-P (20MHz bandwidth 12V to 5.2V3A measured)
Switching frequency: 100KHz
No-load current: 18mA (12V car 5V measured)
Wiring method: IN input OUT input Terminal block DC seat
Fixed mode: M3*1 M2*2
Net weight: about 36 grams
supporting device :
USB-powered devices such as cell phones, digital cameras, tablets, navigators, and driving recorders. It can charge 4 mobile phones at the same time, and the total current of 4 channels is 8A.
A variety of input and output methods, support for terminal input, DC block input, output support 4 * USB output, terminal output 5V.
physical dimension:
54 (long) * 39 (wide) * 21 (height) mm (including USB port)
Pin mode: VIN+ input positive, GND common ground, OUT+ output positive
Precautions:
(1) Do not use overvoltage and overload, otherwise it will damage the battery and power supply.
(2) The module can only be stepped down and cannot be boosted. It cannot supply power to electrical equipment higher than the input voltage.
(3) Pay attention to ventilation and heat dissipation when working for a long time, high current, high power and full load, in order to extend the service life of the power supply.
(4) Do not work at full load for a long time. Please keep 20% margin when working continuously. Pay attention to ventilation and heat dissipation.
1 * DC-DC Vehicle Charging Board
- Unit Type: piece
- Package Weight: 0.05kg (0.11lb.)
- Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
