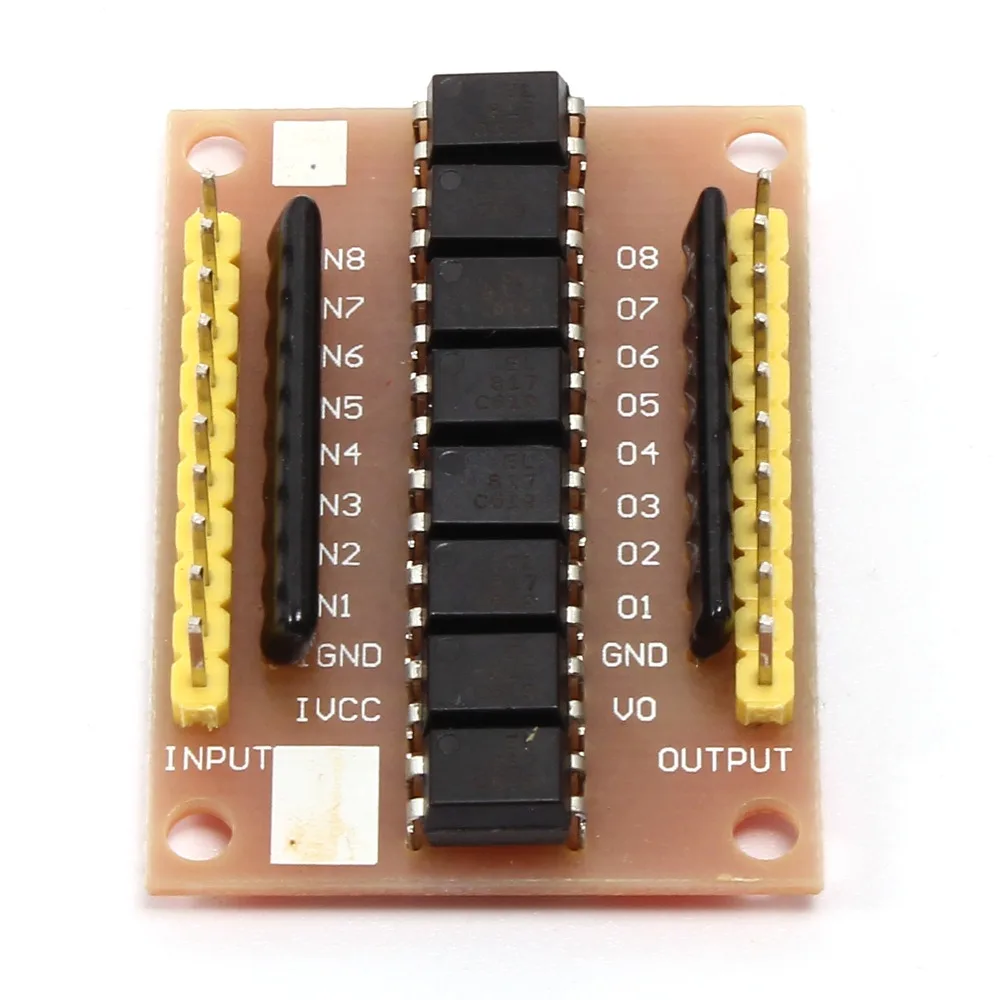

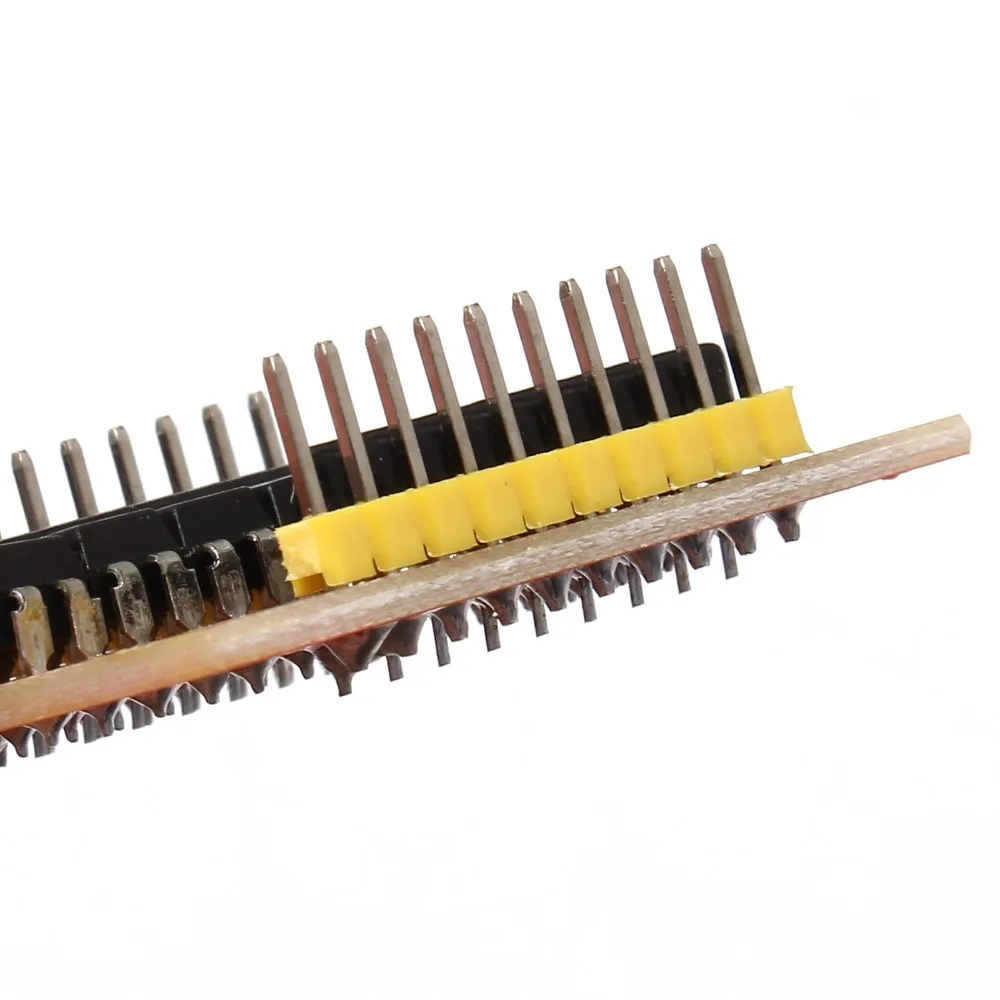

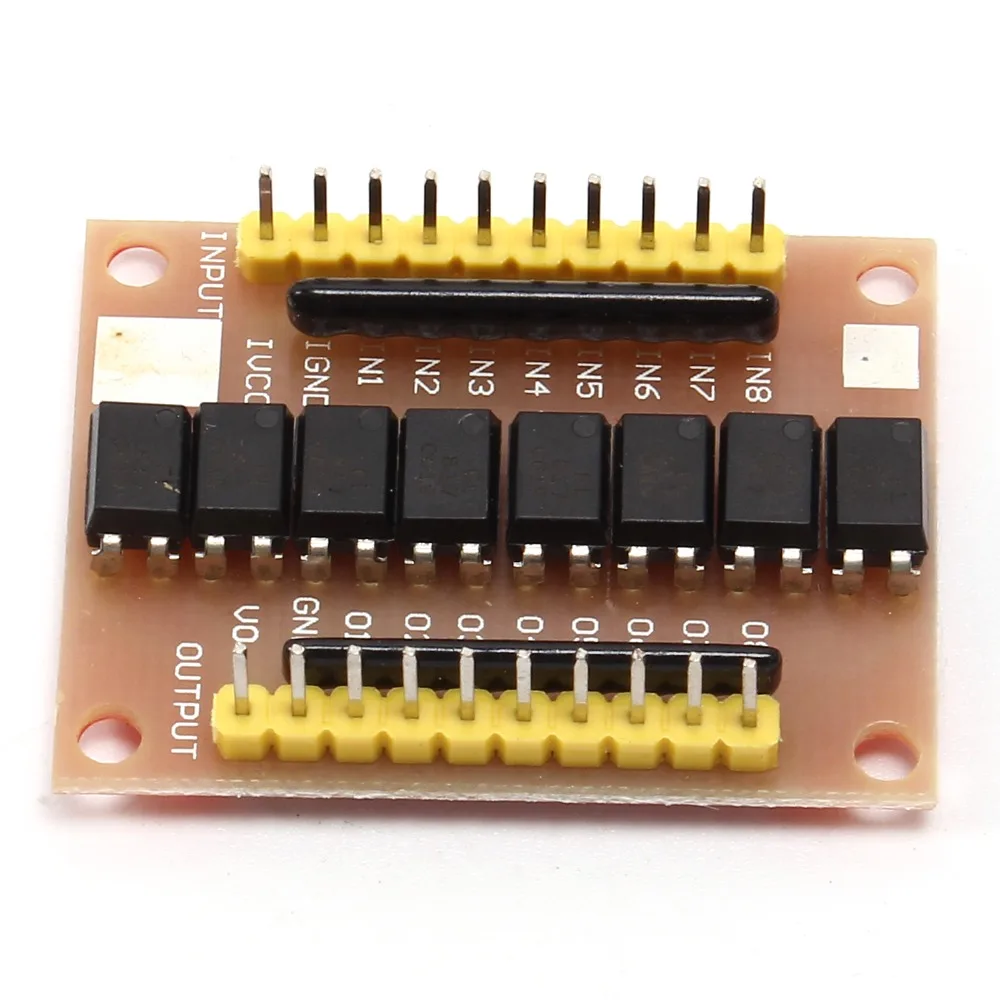

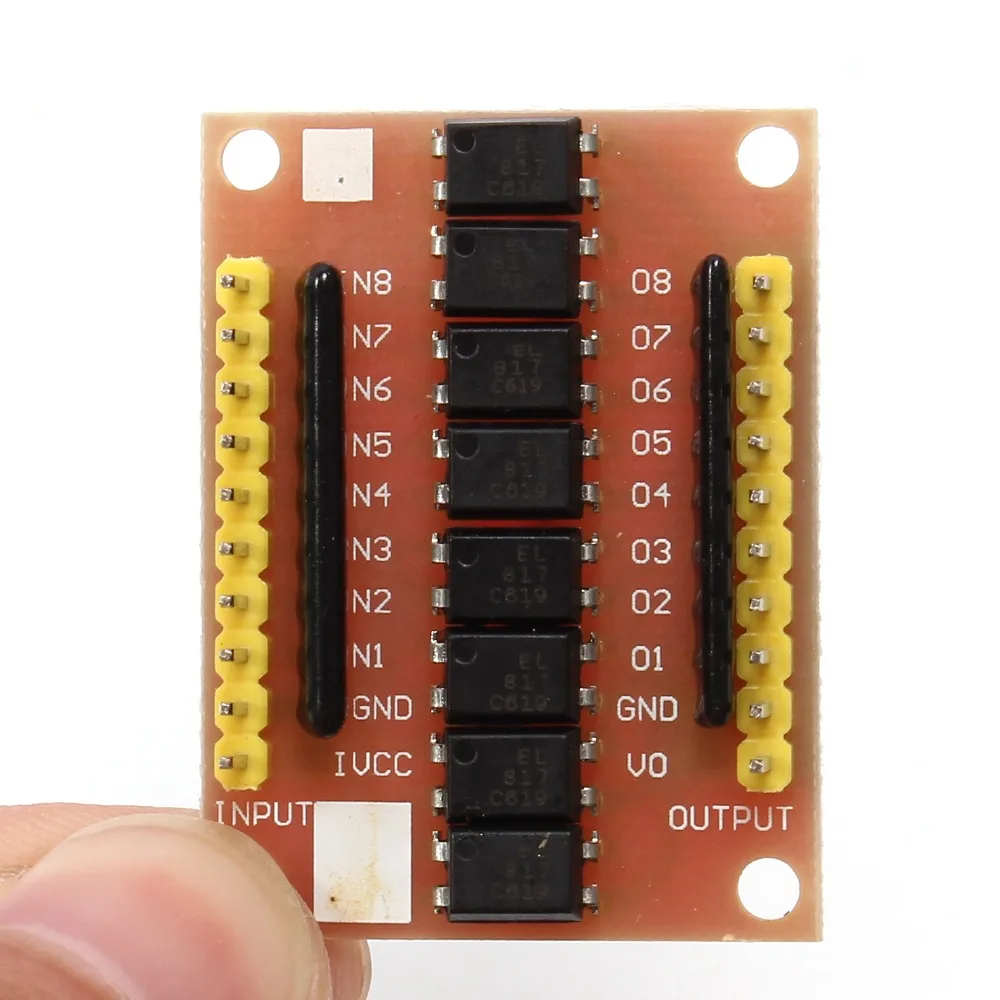

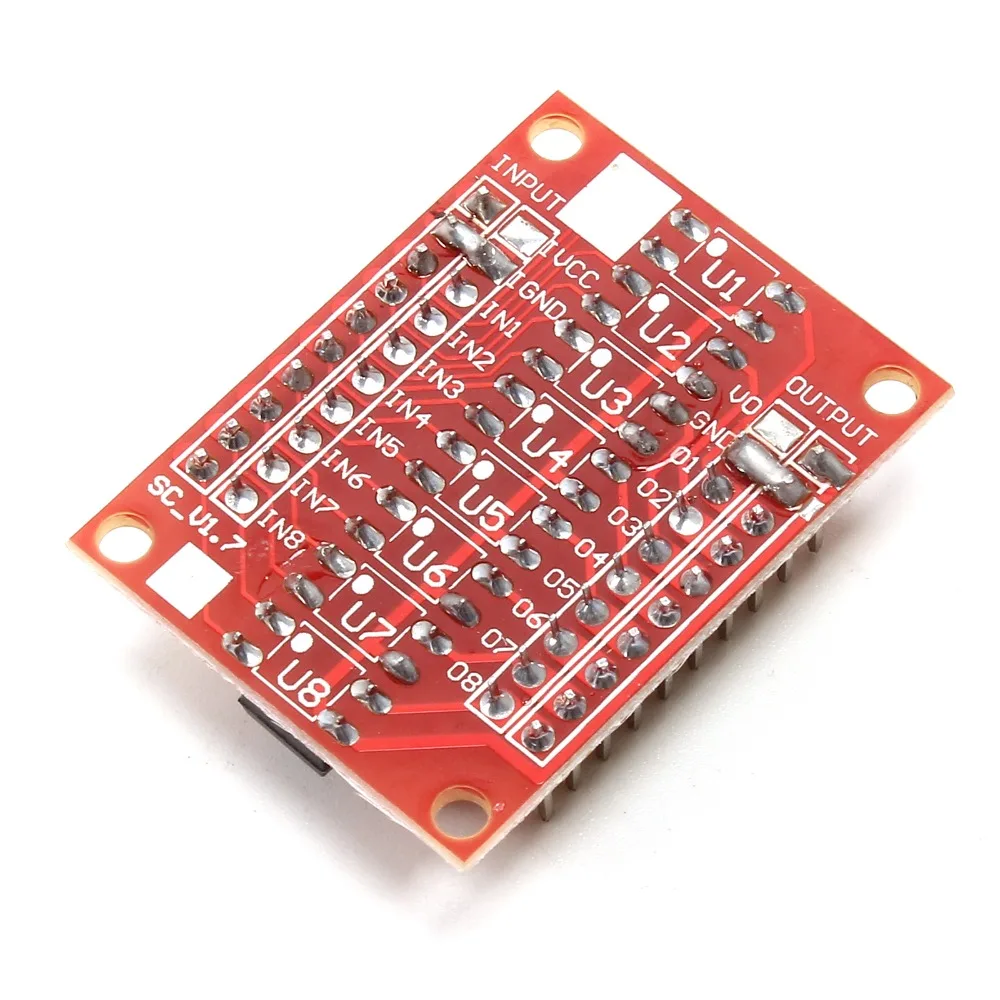

Monday Kids 12V 8 Channel Optocoupler Isolation Board High Level Trigger Isolated Module Positive Phase Amplification Plate 50mA
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- Supply Voltage: none
- Operating Temperature: -55-110 Celsius
- Dissipation Power: none
- is_customized: Yes
- Model Number: Optocoupler Isolation Board Module
- Application: Optocoupler Isolation Board Module
- Input Current: 50MA(MAX)
- Operating Current: More than 1MA
- Maximum Signal Frequency: 80KHz
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
Product Introduction:
1.Isolation Voltage:more than 3000V
2.Input Current:50MA(MAX)
3.Operating Current:more than 1MA
4.Output Maximum Current:50MA (when input voltage is within the range of 15-20MA)
5.Operating Temperature:-55 Celsius-110 Celsius
6.Maximum Signal Frequency:80KHz
Functions:
1.SCM output level can be used to isolating,anti-interference and protect SCM some circuit when driving motor
2.SCM outpput level is low,and driven module voltage is high
3.High voltagr testing
4.Amplifying Current
If it is high level trigger please make sure your high level has a certain driving ability, because the light inside the LED is 5-10 to MA.
- Unit Type: piece
- Package Weight: 0.019kg (0.04lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
