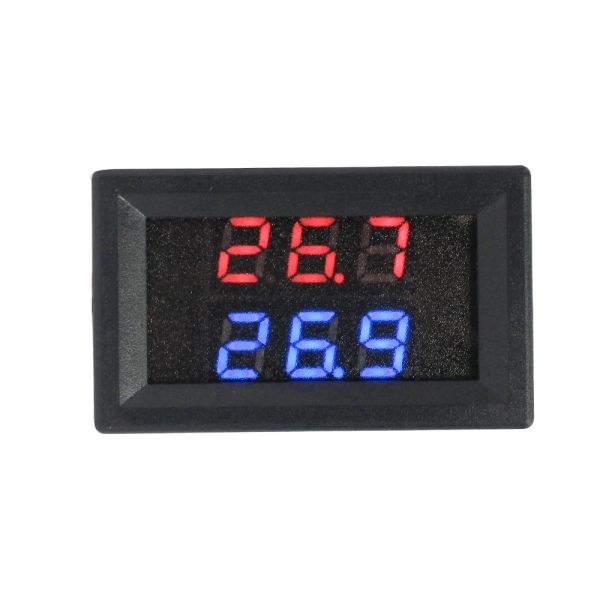

Monday Kids DC 4.0V-28V Dual Digital LED Display Thermometer Meter K-type Thermocouple High Temperature Thermocouple Tester

$3.79
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: None
  • Condition: New
  • Type: Logic ICs
  • Supply Voltage: DC 4.0V-28V
  • Dissipation Power: none
  • Operating Temperature: -50~125 Celsius
  • is_customized: Yes
  • Dimensions: 48*29*26mm
  • Weight: 26.14
  • Material: Semiconductor+RF-4+Plastic
  • Color: Black
  • Feature 1: Dual temperature display;Use industrial grade K-Type sensor
  • Feature 2: LED display;Measuring temperature range is wide;High precision detecti

1.Description:

Sensing the ambient temperature with a K-type thermocouple and displaying it on the display.

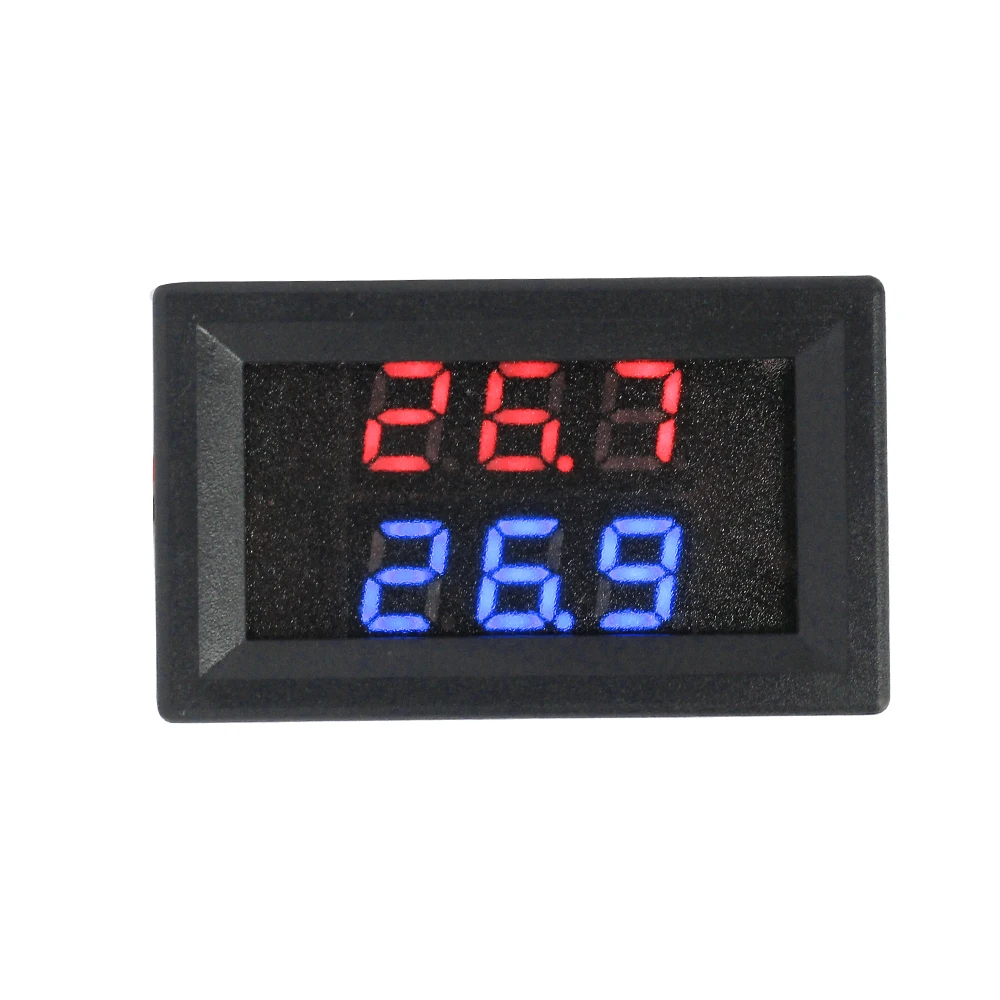

It can display two different temperature.One from K-type thermometer and one from a temperature built in display screen.

2.Features:

1>.Dual temperature display;

2>.Use industrial grade K-Type sensor;

3>.LED display;

4>.Measuring temperature range is wide;

5>.With temperature compensation function.Effectively avoids the influence of ambient temperature on the sensor, and the temperature measurement is more accurate.

6>.High precision detection;

3.Parameters:

1>.Product name: K-Type High Temperature Thermometer;

2>.Work voltage:DC 4.0V-28V;

3>.Temperature type:Celsius;

4>.K-type thermocouple Measure range:-60℃~999℃;

5>.Built-in sensor Measure range:-50℃~125℃

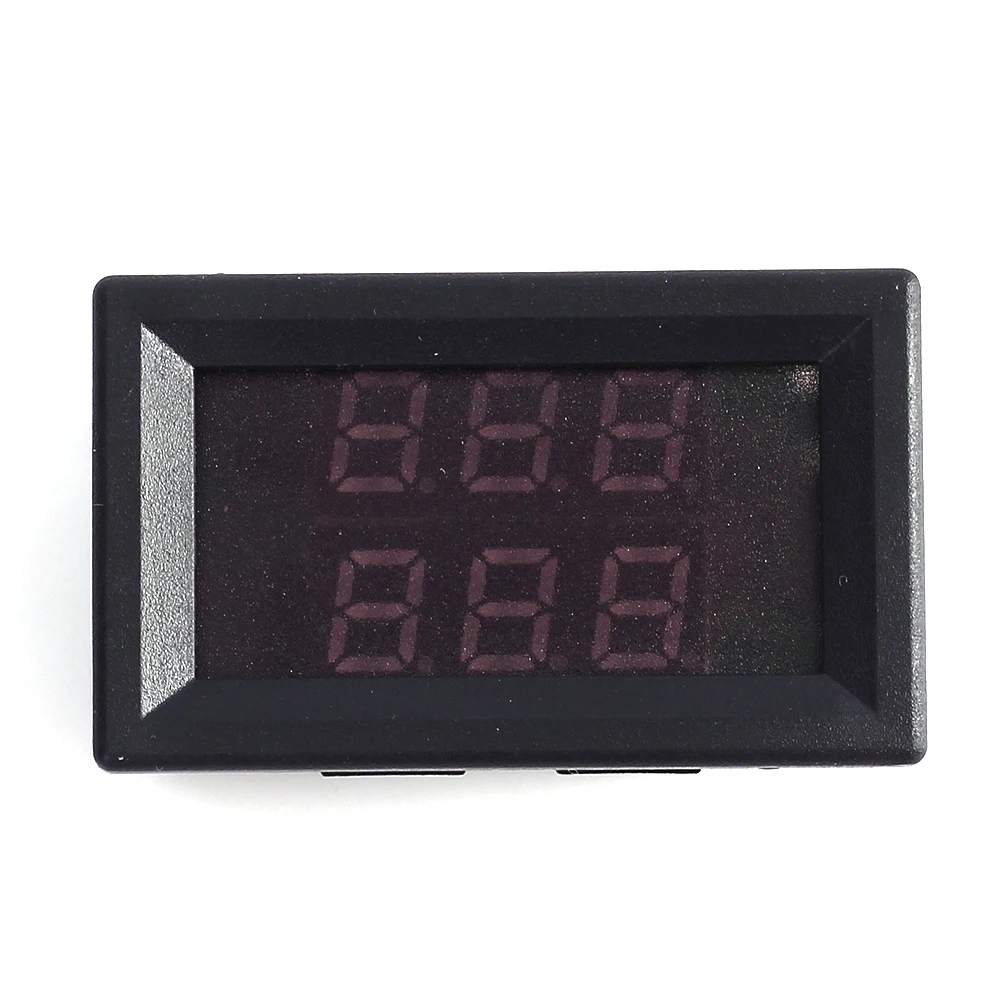

6>.LED Display:Red+Blue 3Bit;

7>.Length of sensor:0.5meter;

8>.Measurement accuracy:1℃(It is 0.1℃ when temperature is -9.9~9.9℃);

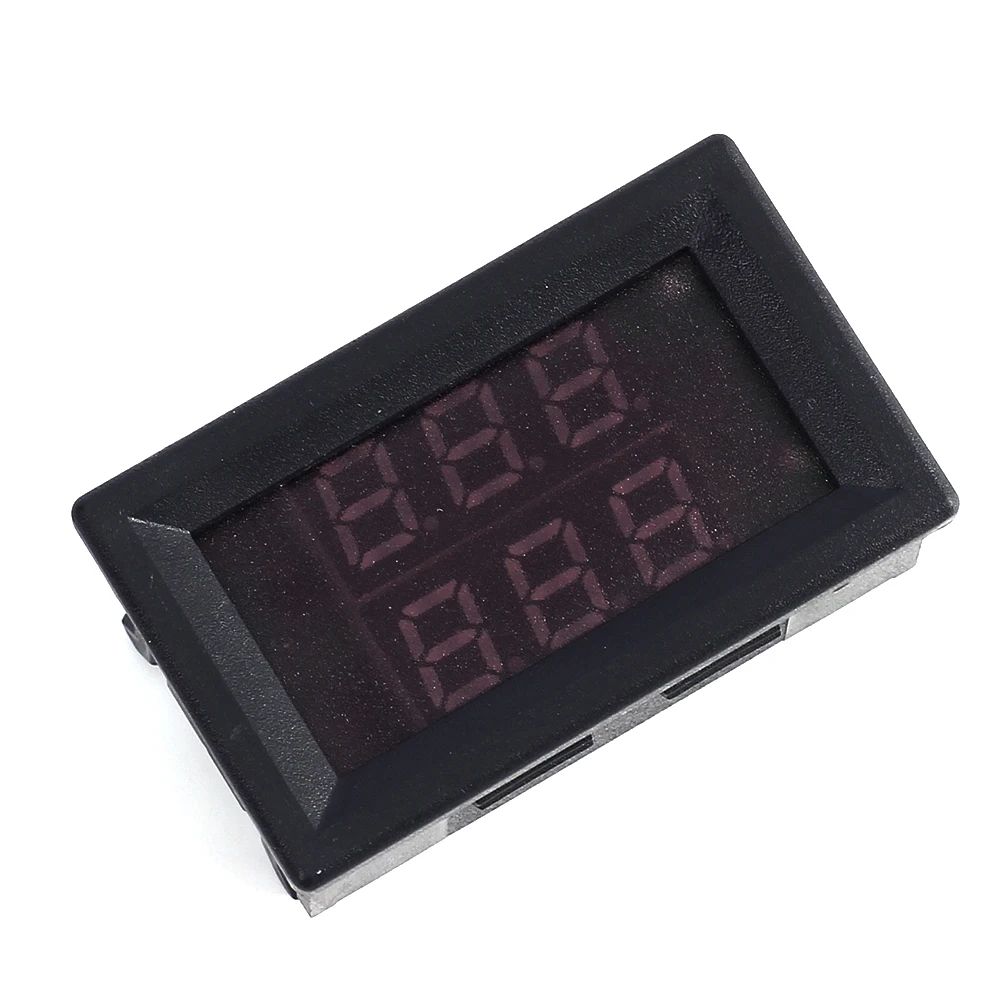

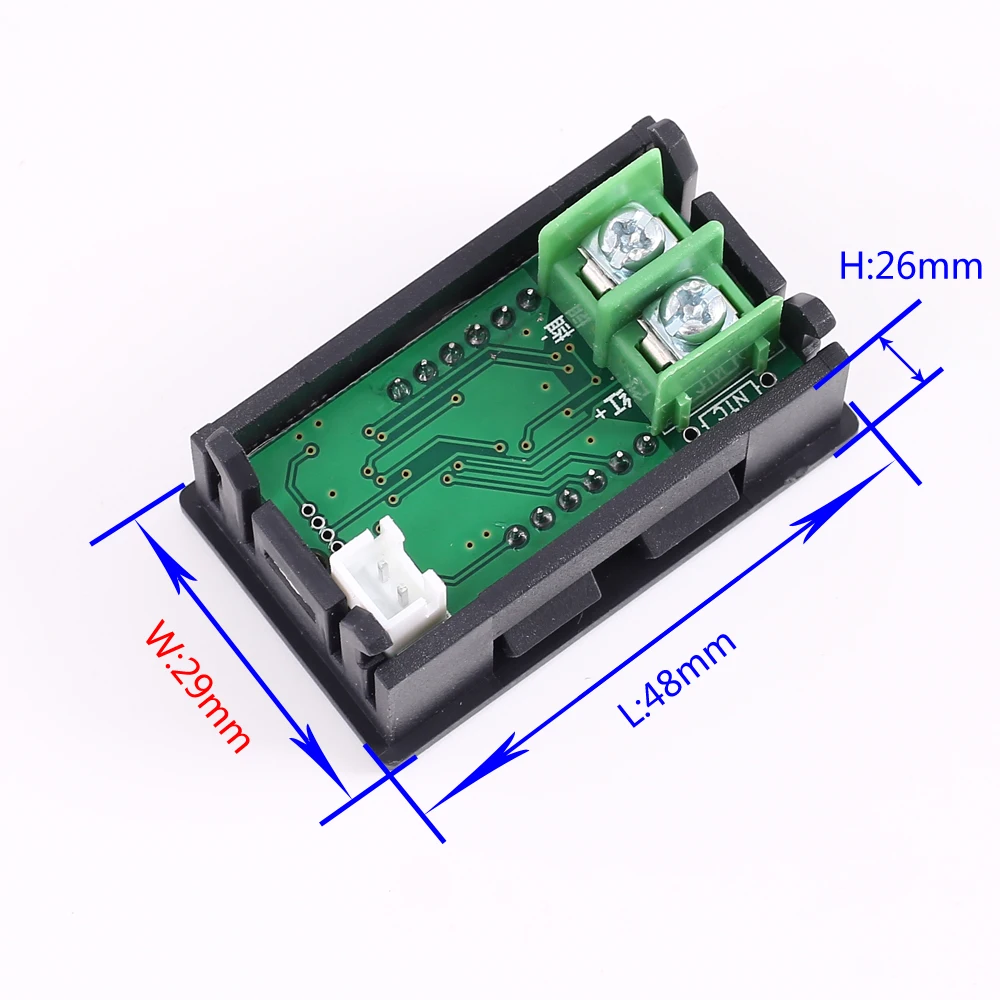

9>.Size for display:48*29*26mm;

4.Use steps:

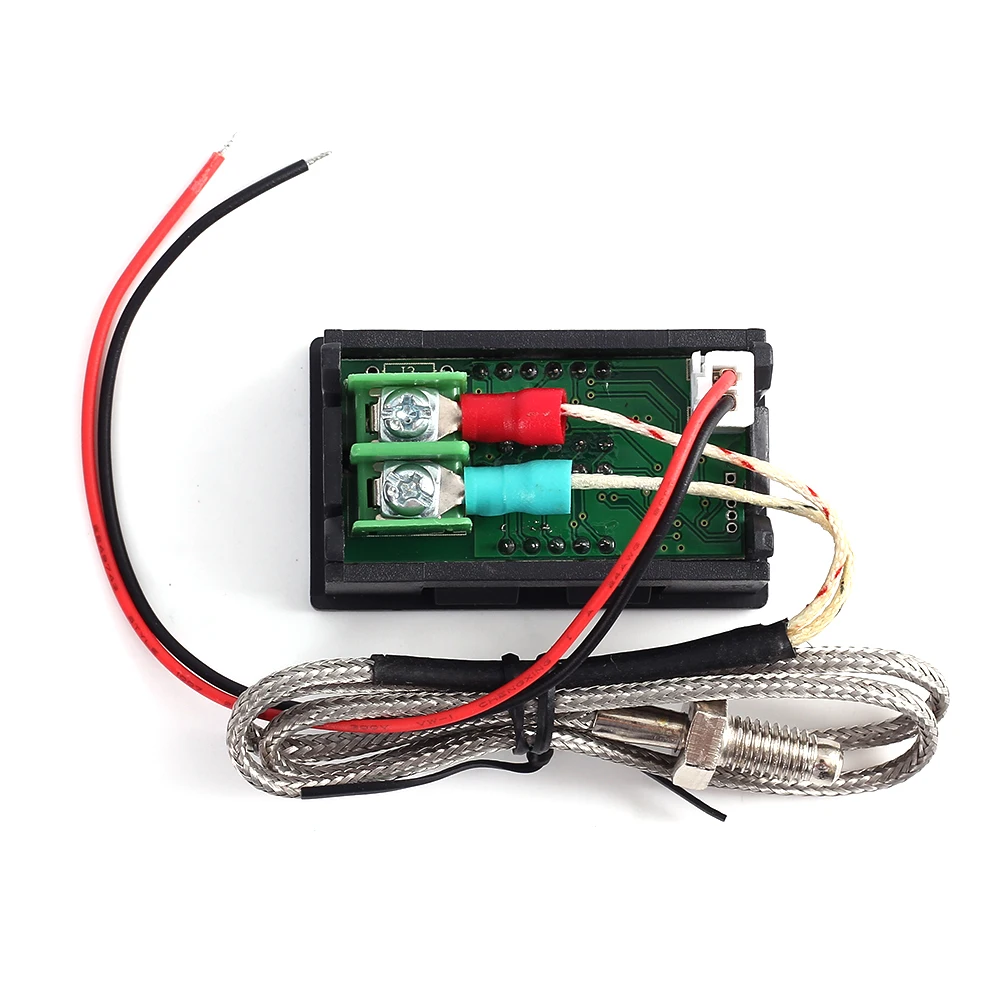

1>.Connect sensor to display screen in right terminal;

2>.Place the sensor in the correct position;

3>.Connect to power supply white socket.Pay attention to the connect direction;

5.Application:

1>.Industrial temperature measurement;

2>.Measurement of temperature in the life;

3>.It can be embedded in an instrument to measure certain specific temperatures;

4>.Applied to the measurement of boilers, air, liquids, etc;

5>.Production workshop;

6>.Vegetable cultivation.

6.Please Note:

1>.Sensor wire should not be connected incorrectly;

2>.Power wire attention direction.

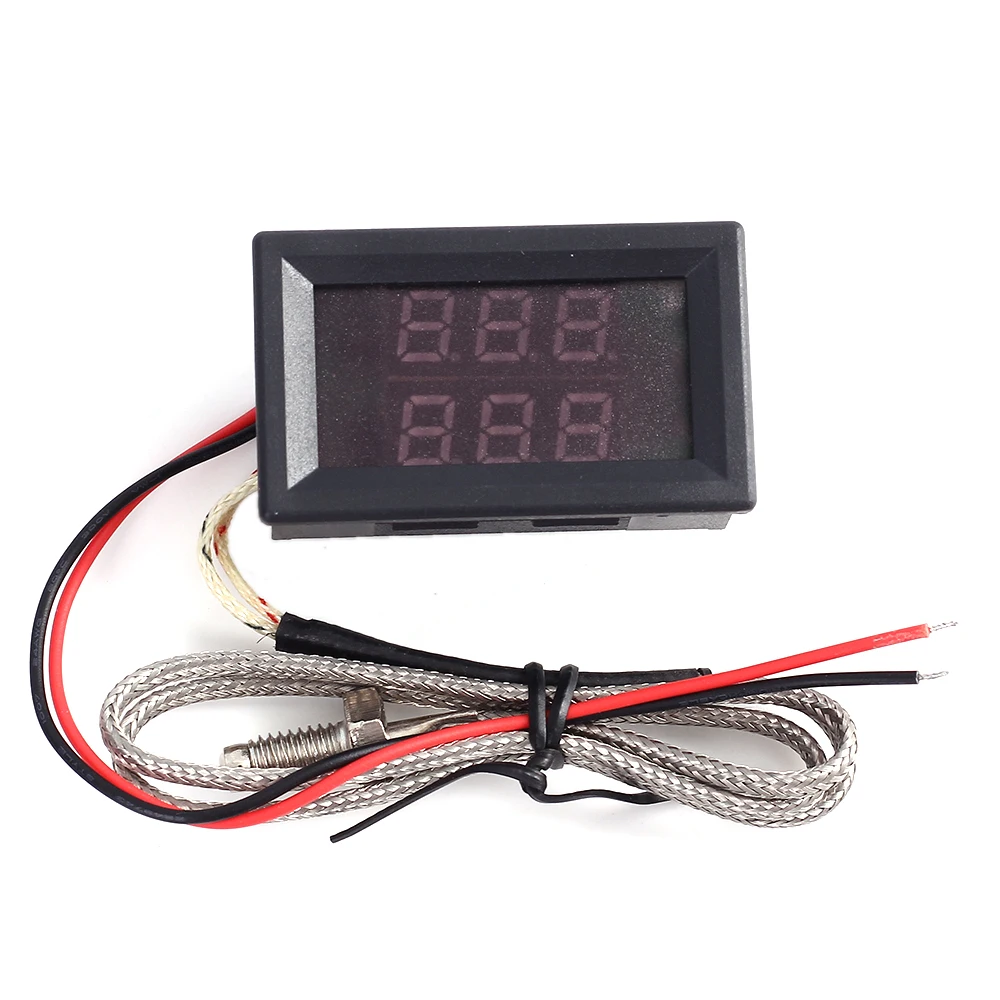

7.Package:

1>.1pcs K-Type High Temperature Thermometer;

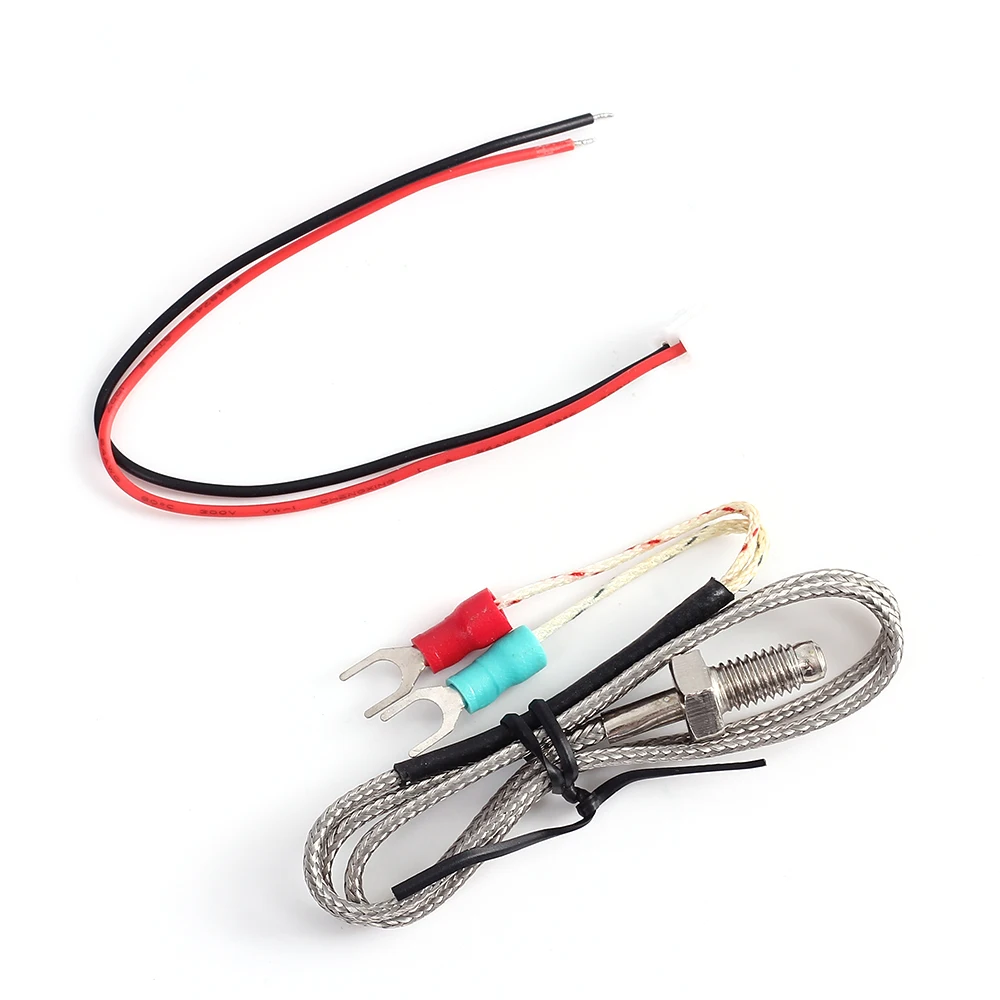

2>.1pcs K-Type Thermocouple ;

3>.1pcs 15cm 2P XH2.54-2P Cable;

  • Unit Type: piece
  • Package Weight: 0.015kg (0.03lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
