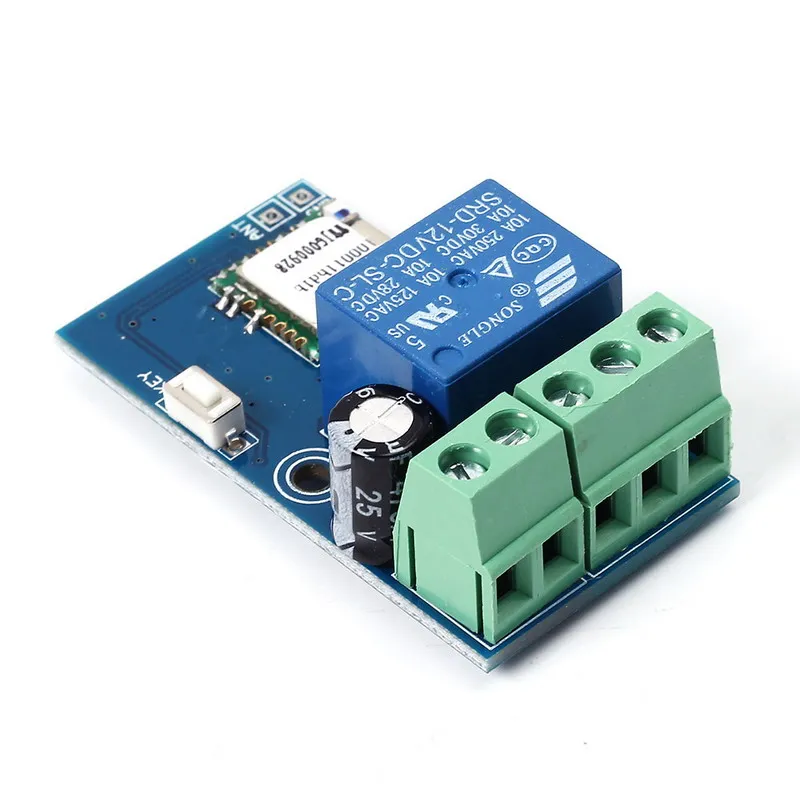

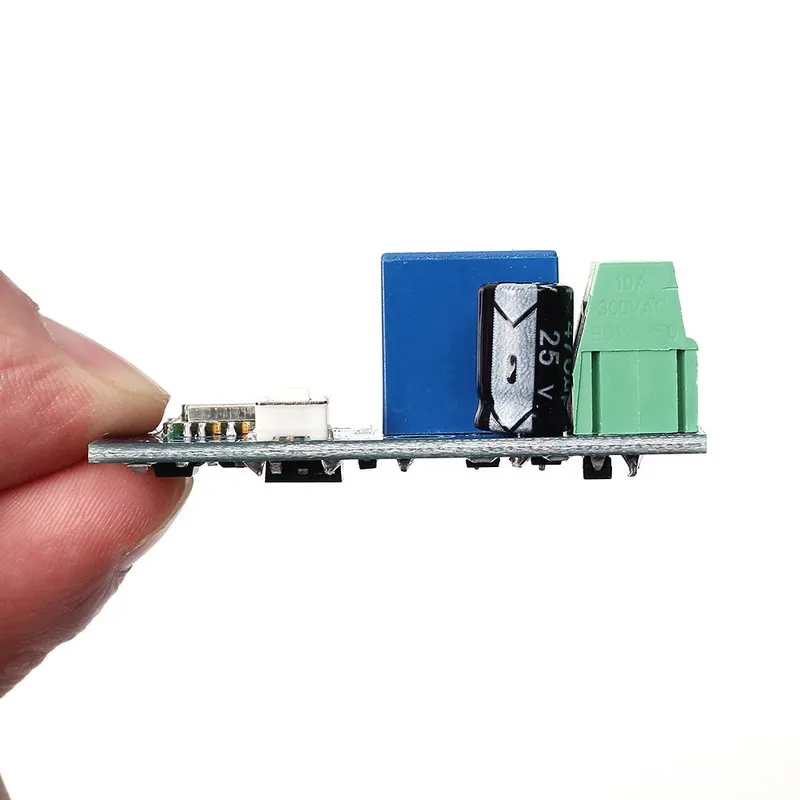

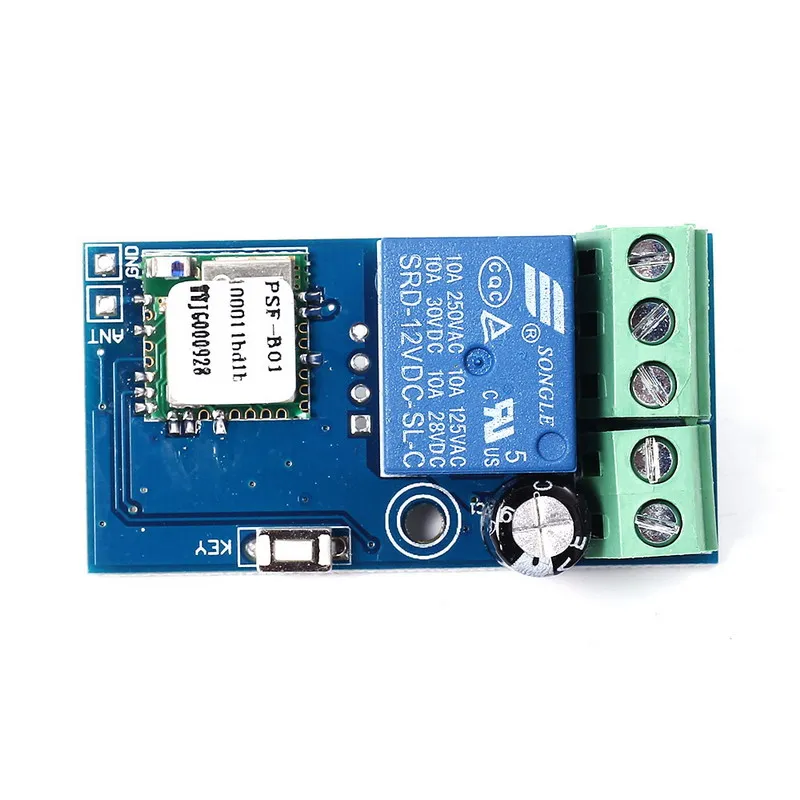

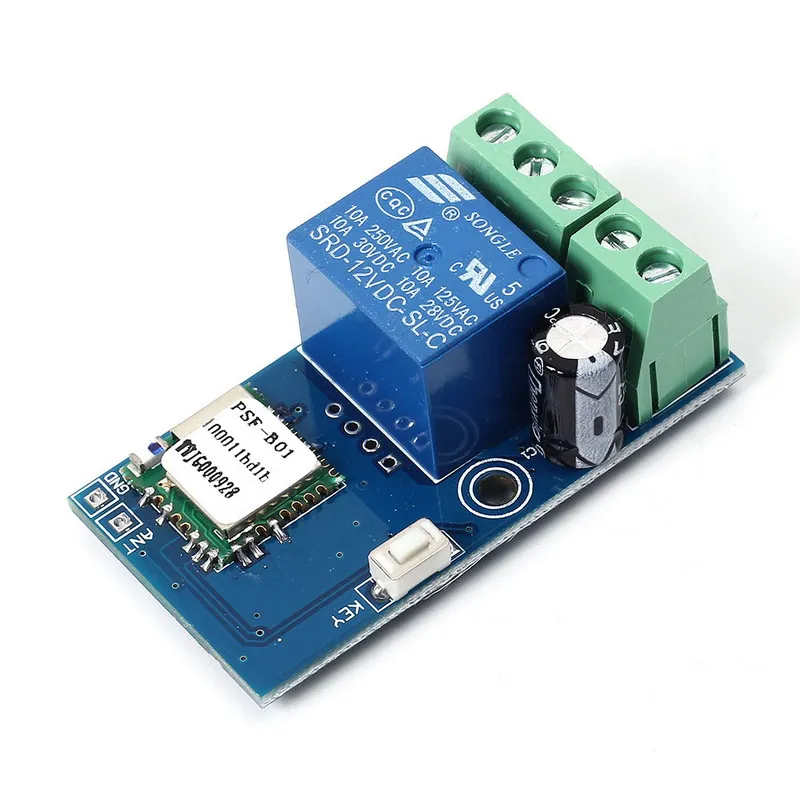

Monday Kids DC 12V Wireless Wifi Relay Switch Module Mobile Phone Remote Control Timer Jog Mode Low Power For Android IOS Smart Home

$7.15
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Supply Voltage: DC 12V
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: -30~85 Cesius
  • Model Number: 12V Wifi Relay Switch
  • is_customized: Yes
  • Application: 12V Wifi Relay Switch
  • Operating Current: 250mA
  • Quiescent Current: 90mA
  • Size: 5.2*2.8*2cm
  • Output Port: NO NC,mechanical switch output port
  • Operating Mode: inching Jog Mode
  • Port Withstand Voltage: AC 0-250V/7A;DC 0-30V/7A

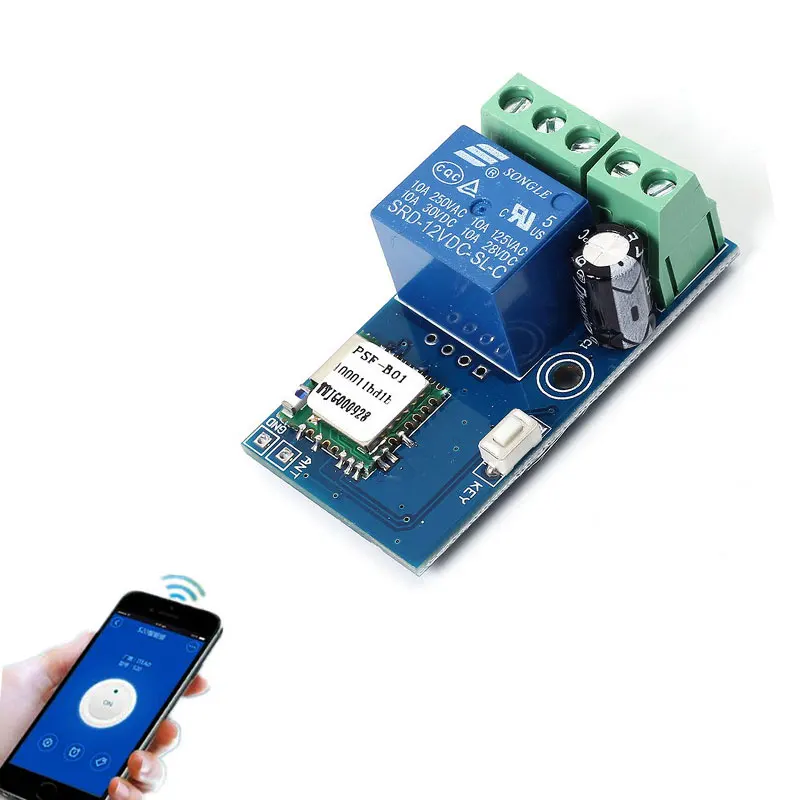

  • Control Way: wifi network control,support

Product Introduction:

1.Size:5.2*2.8*2cm

2.Operating Voltage:DC 12V

3.Operating Current:250mA

4.Quiescent Current:90mA

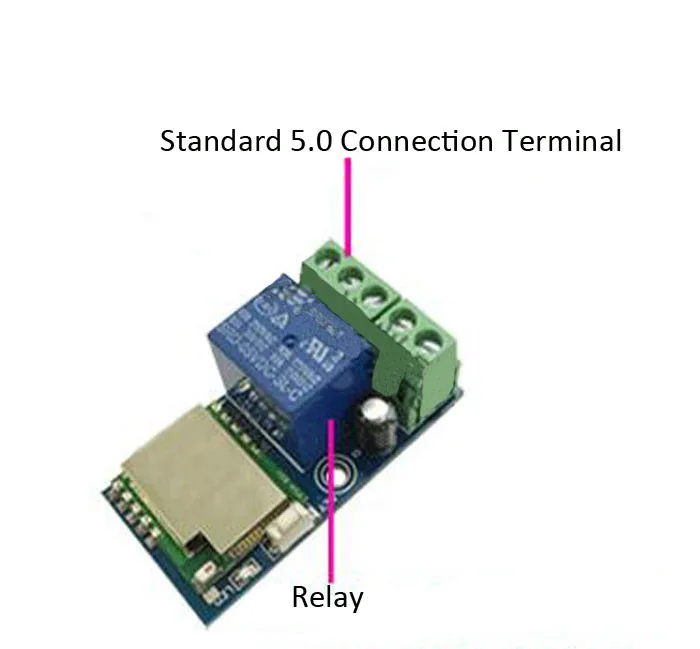

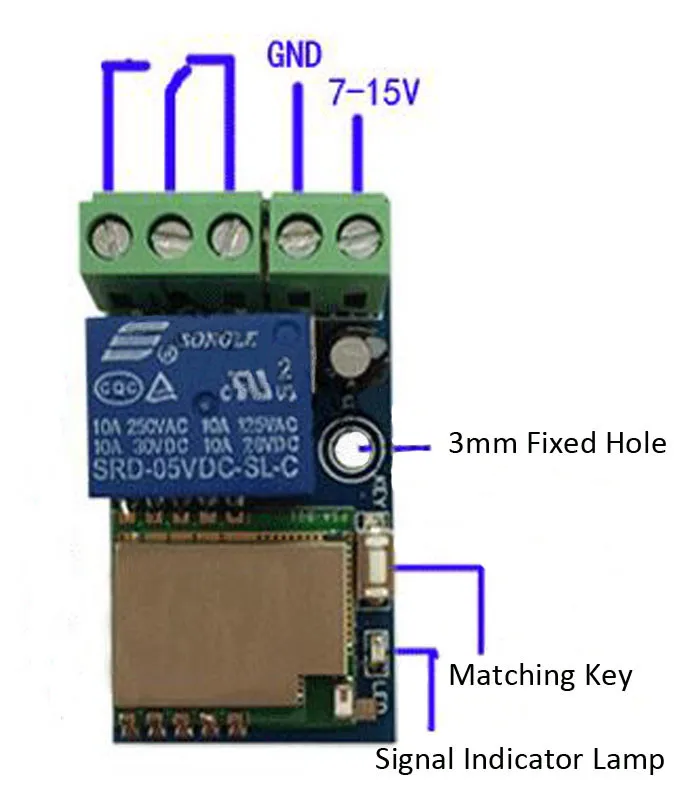

5.Output Port:NO NC,mechanical switch output port

6.Port Withstand Voltage:AC 0-250V/7A;DC 0-30V/7A

7.Control Way:wifi network control,support 2G/3G/4G cellphone network

8.Operating Mode:inching

Please download the picture of the app "eWeLink "

Connect APP, mobile phone number registered Login,

1. click on "set" the matching button, until the light is released after the flash;

2. Name the device to complete the operation;

3. Enter the home name and password for the WIFI;

4. Add a search device

  • Unit Type: piece
  • Package Weight: 0.052kg (0.11lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
