Monday Kids DC-DC Automatic Step Up Step Down Module 3.5V-28V to 1.25V-26V Voltage Converter Board Boost Buck Power Supply Module

Be the first to review this product

$3.12

Availability: In stock

SKU

EK193

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: 3.5-28V
Condition: New
Type: Logic ICs
Dissipation Power: none
Operating Temperature: -30~85 celsius
is_customized: Yes
Model Number: Automatic Step Up Step Down Module
Application: Automatic Step Up Step Down Module
Output voltage: 1.25-26V

NOTE : we have documents of most of products in our store

If you need it , contact us :)

Description

This module can realize the fuction that input voltage within a certain range, and output voltage automatically. (it will not be affected by input voltage). It's can be used as step up and down power module that user can adjust the power more Convenient.

1.Parameters

Input voltage:3.5-28V
Input current:1A
Output voltage:1.25-26V
Output current:1A
high efficiency:Step-up and down conversion efficiency of up to 90%.
High Current:Output the maximum current 3A
Electrical parameters:
1）. Rated working parameters:
Input voltage: 3.5 ~ 28V Input current: 1A
Output voltage: 1.25 ~ 26V Input current: 1A

2）. Limit operating parameters:
Input voltage: 32V Input current: 3A
Output voltage: 32V Output current: 3

2.Maximum Rating

Input voltage:32V
Input current:3A
Output voltage:32V
Output current:3A

3.PCB size:38*60mm

4.Notes
Due to the low frequency of switch, the inductance will make some noise when the current is high. But it'll not affect the usage.

Applications:
Such as input 3.5V, the output adjustable range is 1.25 ~ 25V
Such as input 12V, the output adjustable range is 1.25 ~ 32V (limit parameters)
Such as input 28V, the output adjustable range is 1.25 ~ 32V (limit parameters)

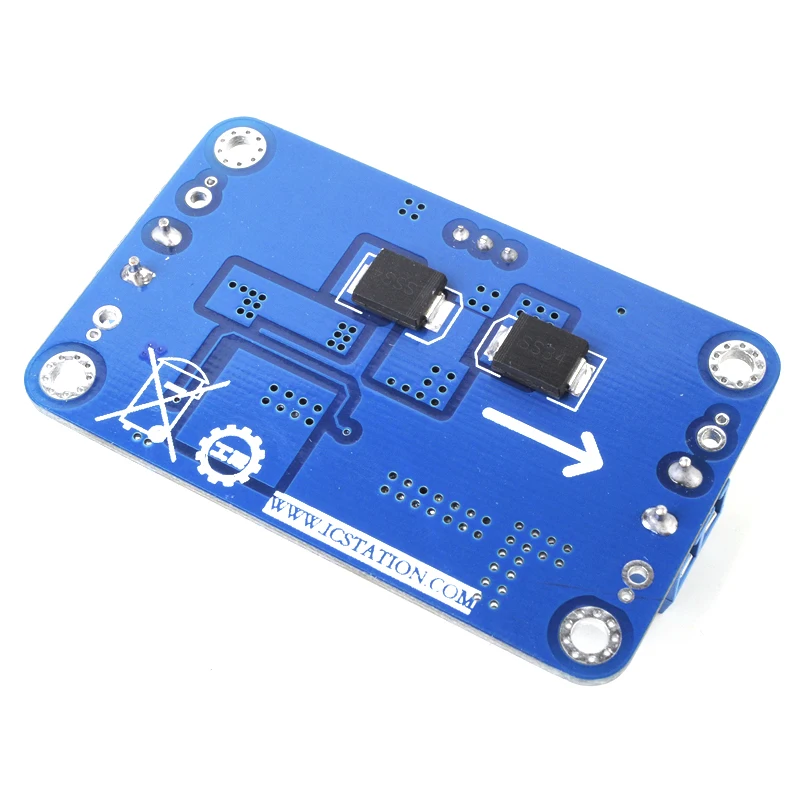

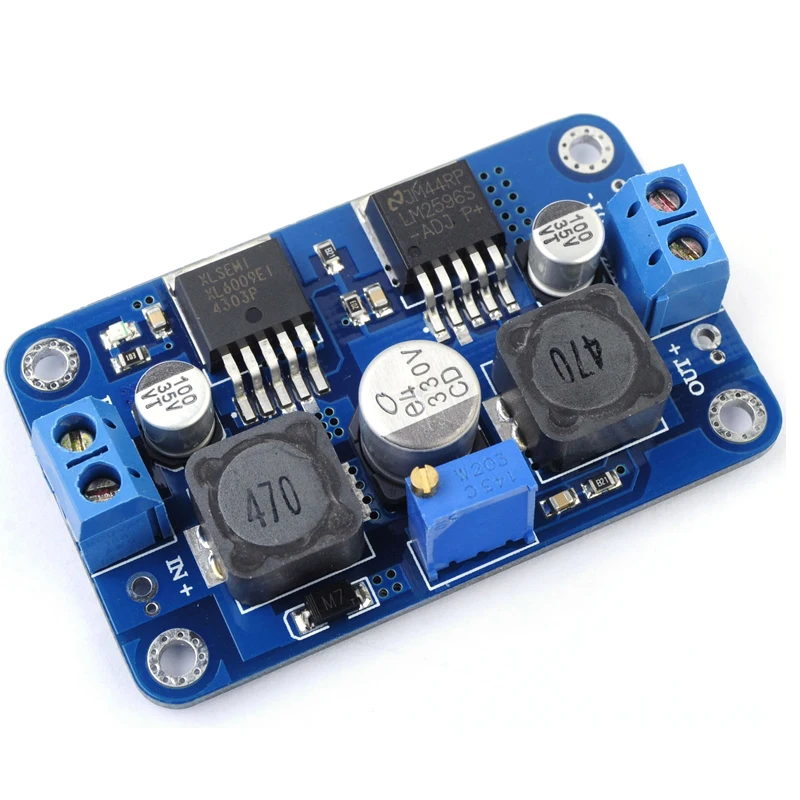

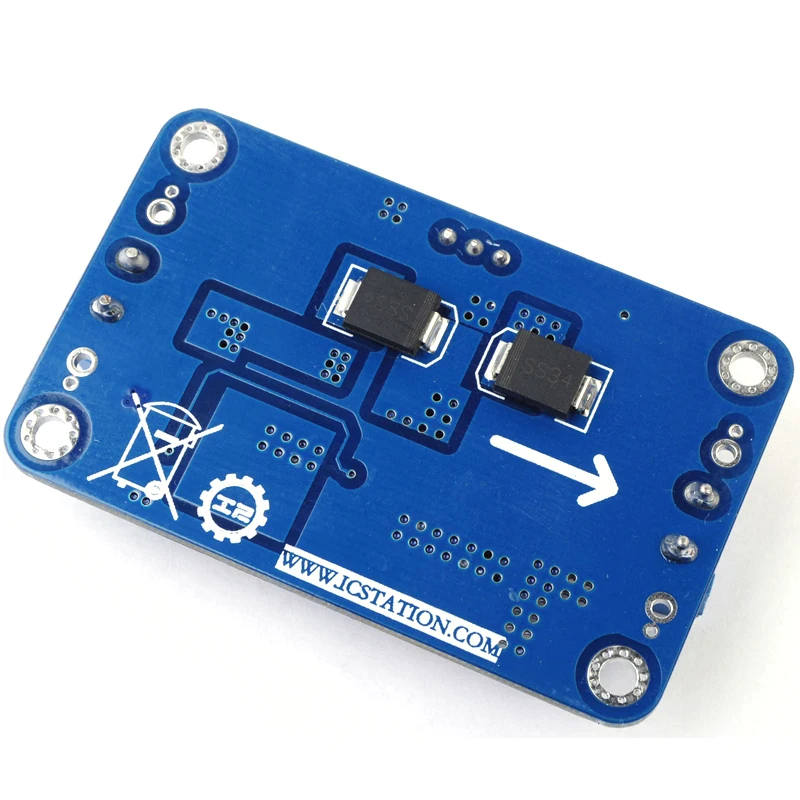

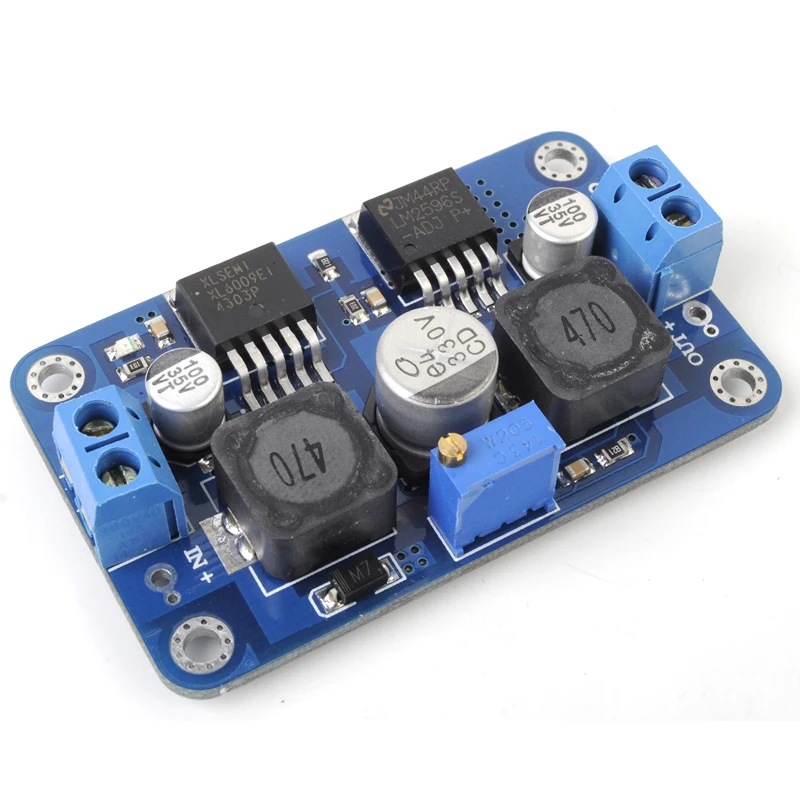

5.Physic diagram
