Monday Kids DC 12V Photosensitive Resistance Relay Control Module Light Control Switch Photo Induction Module RM007
$4.10
Availability:
In stock
SKU
RY-ES-200
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- is_customized: Yes
- Type: Voltage Regulator
- Supply Voltage: 12V
- Model Number: Photosensitive Resistance Relay Control Module

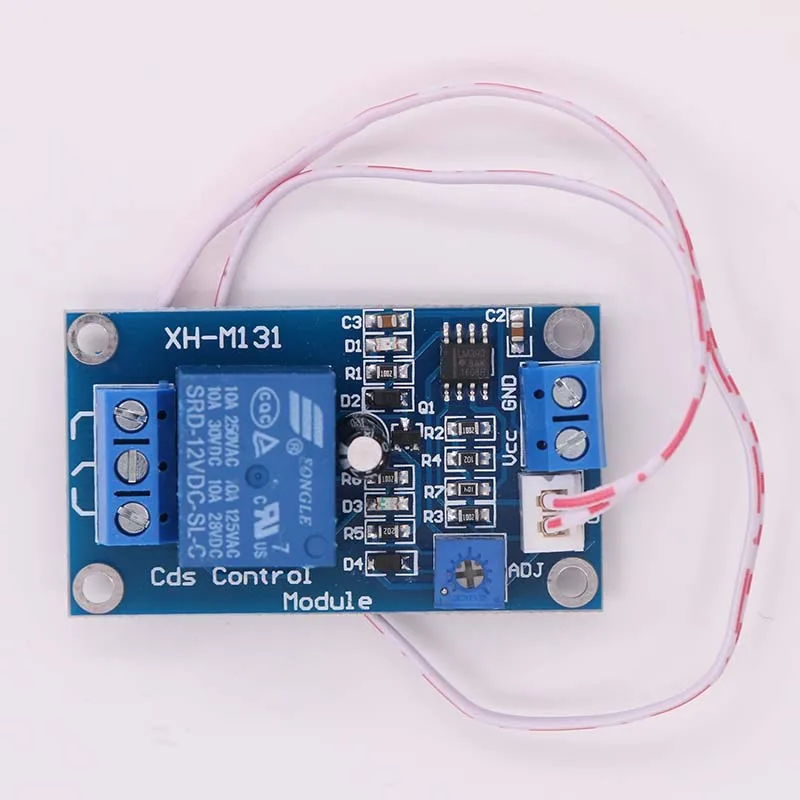

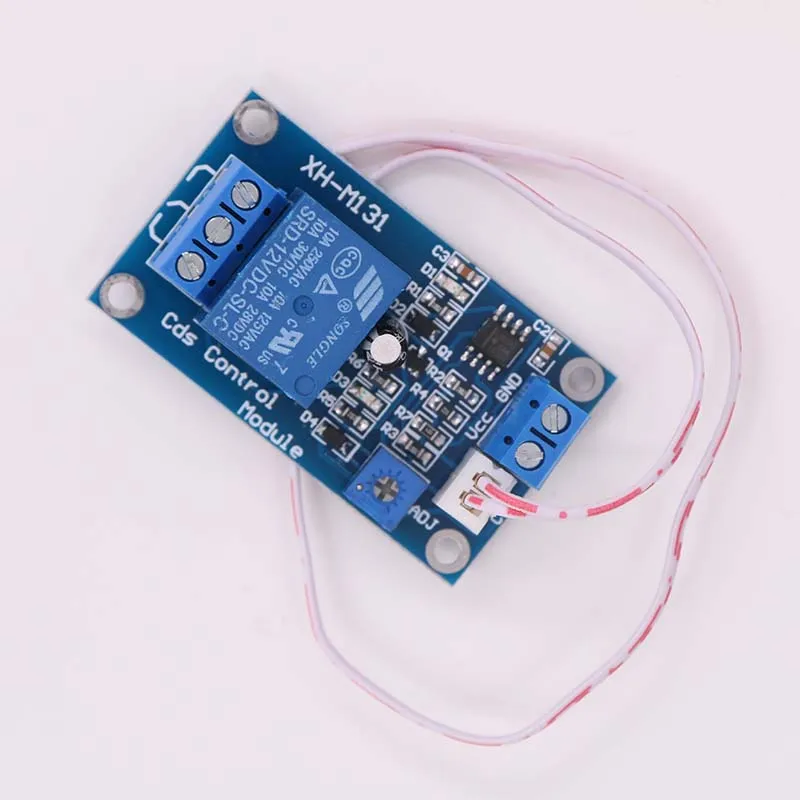

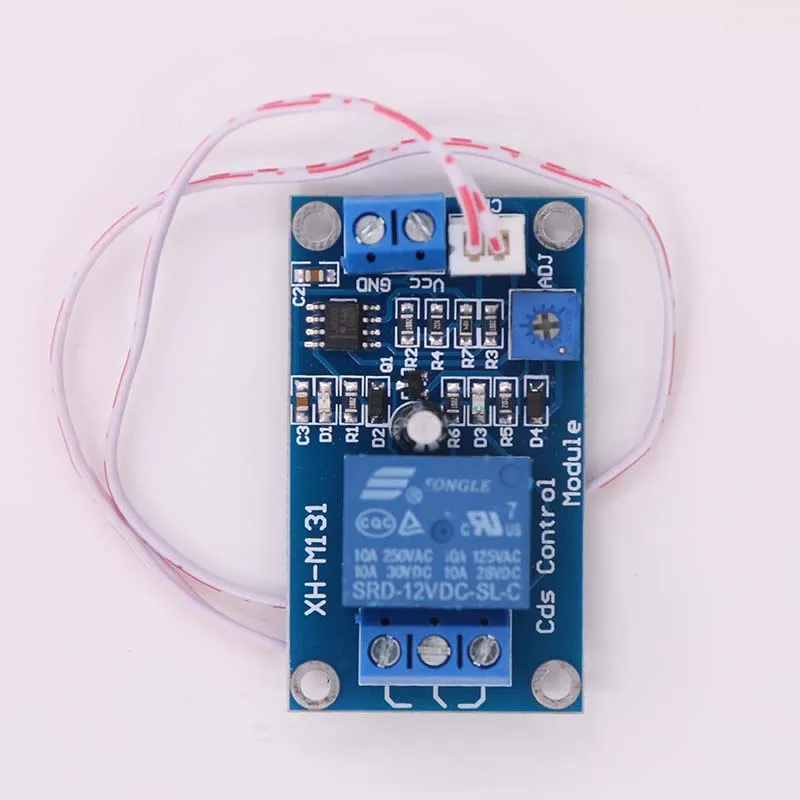

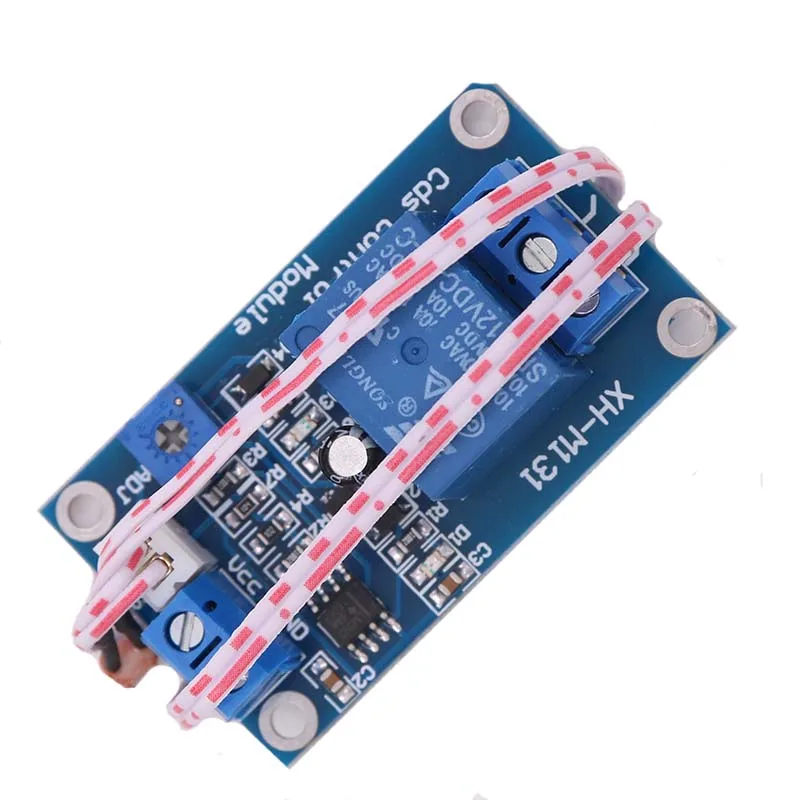

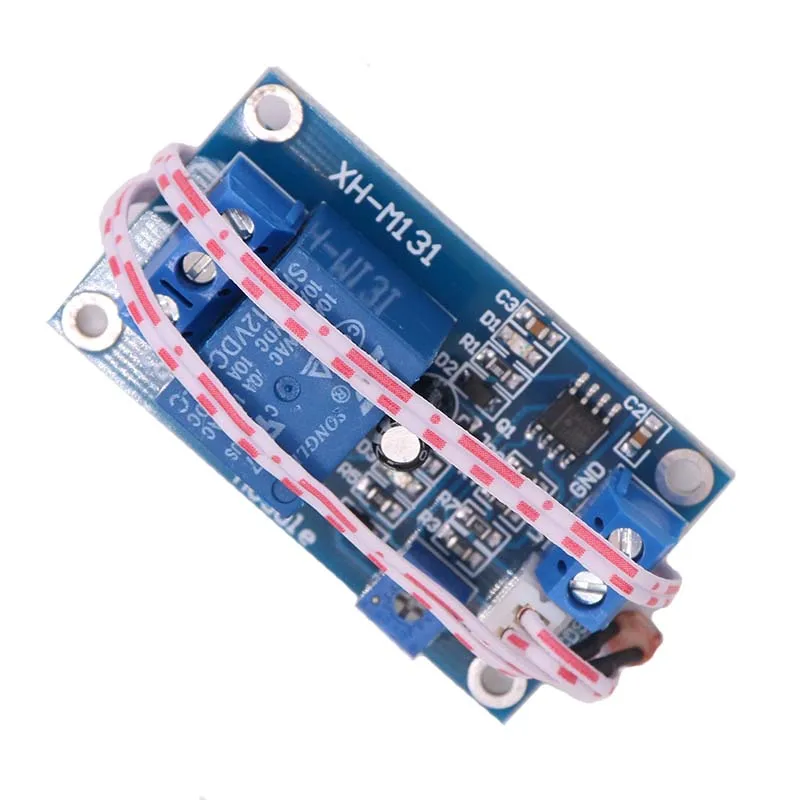

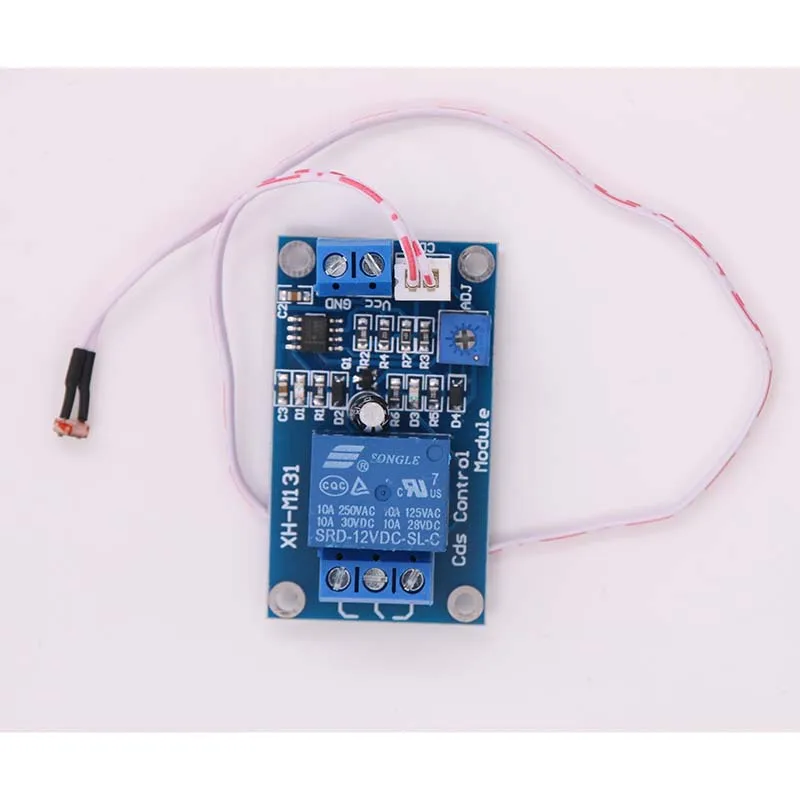

DC 12V Photosensitive Resistance Relay Control Module Light Control Switch Photo Induction Module
Function characteristic:
-
use photosensitive resistance induction intensity of light,with genuine quality relay, can directly control AC or DC load, often open Interface maximum load capacity: AC 0V--250V/10A, DC 0V--30V/10A;
-
can through the potentiometer adjusting sensitivity, by adjusting the potentiometer, set the starting relay threshold, when the darker than the threshold, module relay pull,Lighter than threshold, module relay release;
-
Intelligent adjust design, when the relay action,automatic tuning action threshold, to solve the problem of critical value of repeated action;
-
the module has anti reverse function, anti - connect power supply will not damage the module;
-
equipped with power indicator light (red), relay status indicator (blue)
-
with 4 fixed bolt holes, easy to install;
-
module size: 5.0cm*3.0cm*1.8cm;
Instructions:
1, the photosensitive resistance module is sensitive to environmental light, generally used to detect the brightness of the surrounding environment changes;
2, when the module in the ambient light darker than the threshold ,relay pull,ehe common end is connected with the normally open (and disconnect often closed),when the external environment is lighter than the threshold,relay disconnect, common ends and often open off (with constant closed end connected);
3, the public side, normally open, normally closed three ports are equivalent to a dual control switch,
when relay coil with power,common end breakover often open end,When no electricity, the public side breakover with often closed end;
Electrical parameters:
Working current: when 5V less than 90mA (when relay no action less than 5mA)
when 12V less than 50mA (when relay no action less than 5mA)
when 24V is less than 30mA(when relay no action less than 5mA)
Working temperature: recommended -20 - 60 degrees Celsius (limit working temperature range -30 - 70 degrees Celsius)
Load capacity: relay normally open port maximum load capacity: DC 0-30V/10A, AC 0-250V/10A
Relay normally closed port maximum load capacity: DC 0-28V/10A, AC 0-125V/10A
1 * Photosensitive Resistance Relay Control Module
- Unit Type: piece
- Package Weight: 0.04kg (0.09lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
