Monday Kids D2-2 DIY Kit Intelligent Tracking Line Smart Car Suite Kit AT89C2051 51 MCU Electronic Production Smart Patrol Automobile Parts
$6.50
Availability:
In stock
SKU
EK827
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- Supply Voltage: none
- Dissipation Power: none
- Model Number: Tracking Smart Car
- Operating Temperature: -30~85 celsius
- is_customized: Yes
- Application: Electric Toy
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|

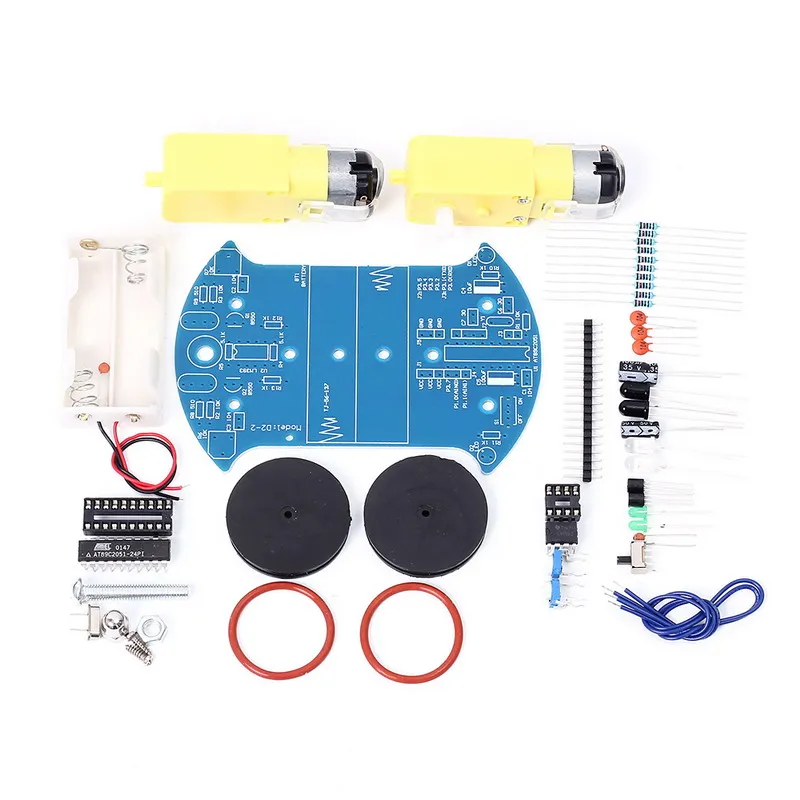

1.Packing List:
Components | Specification | Quantity |
Ceramic Capacitor | 0.1uF | 3 |
Ceramic Capacitor | 30pF | 2 |
Electrolytic Capacitor | 10uF | 1 |
Electrolytic Capacitor | 100uF | 1 |
Pin | 20-pin | 1 |
Crystal Oscillator | 6MHz | 1 |
LED | 3mm Green | 2 |
Infrared Transmission Tube | 5mm Transparent | 2 |
Infrared Receiving Tube | 5mm Black | 2 |
Triode | 8550 | 2 |
Color Ring Resistor | 10K ohm | 3 |
Color Ring Resistor | 510 ohm | 2 |
Color Ring Resistor | 1K ohm | 4 |
Color Ring Resistor | 5.1K ohm | 2 |
Potentiometer | 10K ohm | 2 |
SCM | 89C2051 | 1 |
Comparator | LM393 | 1 |
Switch | 2-pin | 1 |
Reduction Motor | JD3-100 | 2 |
Car Wheel | 2 | |
Silica Gel Wheel | 2 | |
Car Wheel Screw | 2 | |
Hub Screw | M2.2*7mm | 1 |
Universal Wheel Screw | M5*30mm | 1 |
Universal Wheel Screw Nut | M5 | 1 |
Universal Wheel | M5 | 1 |
PCB | 1 | |
Battery Case | AA*2 | 1 |
Connection Wire | Red | 1 |
Connection Wire | Black | 1 |
2.Operating Principle Picture:

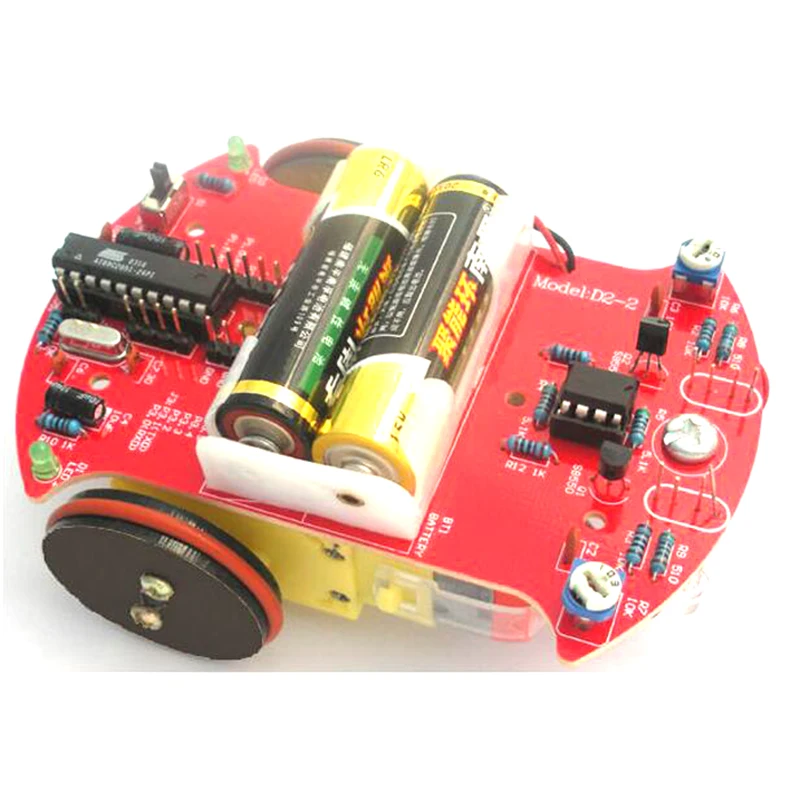

3.Finished Product Picture:
NOTE:Package does not contain battery, the picture is only for reference demonstration effect!!
- Unit Type: piece
- Package Weight: 0.13kg (0.29lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
