Monday Kids CC2640 1.8V-3.8V Bluetooth BLE 4.1 Wireless Module For DOTT iBeacon Base Station Intelligent Control System Beacon Module W/Case
$6.02
Availability:
In stock
SKU
RY-ES-11
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: 1.8V-3.8V
- Condition: New
- Type: Voltage Regulator
- is_customized: Yes
- Model Number: CC2640 Bluetooth BLE 4.1 Wireless Module
- Application: Bluetooth 4.0 Wireless Module
Note :It not including the battery.
Overview：

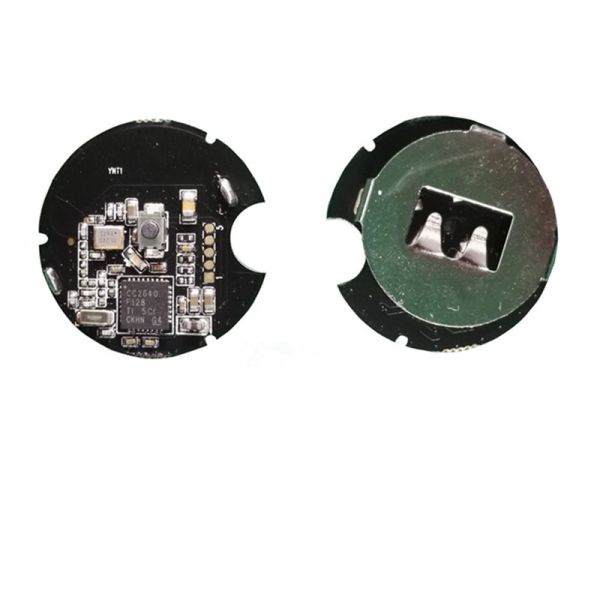

The CC2640 beacon module fully supports the single mode Bluetooth Low Energy operation, and
the output power can support class 2. The module provides the ability to either put your entire
application into the integrated ARM Cortex M3 microcontroller, or use the module in Network
Processor mode in conjunction with the microcontroller of your choice. RF Core’s dedicated ARM
Cortex M0 improves system performance and frees up FLASH memory for custom applications.The
beacon with battery shrapnel in its back，and easy to test with a button battery CR2032.
Feature：
*Built in CC2640F128 Bluetooth Smart
*(BLE 4.1) System-On-Chip (SOC)
*128 kB Flash / 20 kBSRAM
*RF Output Power: +5 dBm
*RF Receive Sensitivity: -96 dBm
*Operating Voltage: 1.8V to 3.8V
*Operating Temperature: -40 to +85C
*8.4 mA Transmit Mode (+5 dBm)
*7.4 mA Receive Mode
*1μA Standby (SRAM/CPU retention and RTCrunning) with quick 100 μsstart up
*200nA Shutdown
*61μA/MHz Active CPU Current
*Drivers, Bluetooth Low Energy
*Controller, and bootloader inROM
*Flexible peripheralset
*On board 32 kHZ and 24 MHz Crystals
Worldwide Acceptance:
Applications：
Indoor navigation
mobile payment
in-store promotions specialist
flow analysis
for iBeacon Descriptions
Run standalone as iBeacon, External host is not required.
Application for advertisement and location.
Support customize your own for iBeacon configuration including UUID etc.
Built in JTAG port for customized other application firmware as a standalone
system.
Electrical Characteristics：
Package including:
1* CC2640 module with case(not including the battery)
- Unit Type: piece
- Package Weight: 0.035kg (0.08lb.)
- Package Size: 15cm x 12cm x 3cm (5.91in x 4.72in x 1.18in)
