Monday Kids B-5921 Eight-Tube Radio Assembly Kit - Electronic Production Teaching Training DIY Soldering Practice

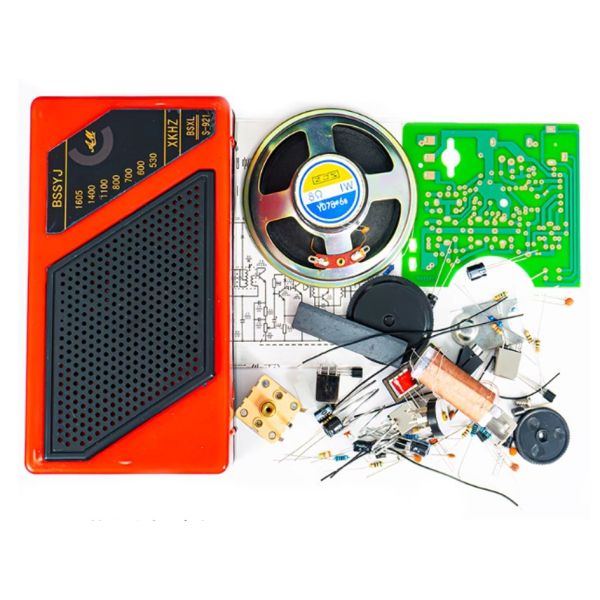

This product is a B-5921 Eight-Tube Radio Assembly Kit designed for electronic enthusiasts and students for electronic production teaching training and DIY soldering practice. The kit includes all necessary electronic components and circuit board, allowing users to assemble and solder a complete eight-tube radio. It is ideal for students for electronic skills training and for electronic enthusiasts for DIY projects.

Product Parameters:

Model: WK-56-82
Operating Voltage: 1.5V (1 D-type battery)
Dimensions: 150 x 80 x 39mm
Frequency Range: 530 - 1605KHz


Function Explanation: The low-voltage eight-tube radio assembly kit is complete with accessories, suitable for electronic enthusiasts and vocational school students for practical use.

Circuit Principle: The circuit uses two stages of intermediate amplification and two PNP transistors (9012) for power amplification, with input and output transformers. The device features a novel design, high sensitivity, good selectivity, and bright sound quality. It is simple to make and has the following advantages: the circuit design is straightforward, using common components, making selection, assembly, debugging, and maintenance very convenient, suitable for beginner and intermediate electronic enthusiasts to make themselves.

Product Features:

Educational Value: Suitable for students to conduct electronic skills training, helping them grasp basic knowledge of electronic components and soldering techniques.
DIY Project: Perfect for electronic enthusiasts to carry out DIY projects, enhancing hands-on skills and innovative thinking.
High-Quality Components: Uses high-quality electronic components to ensure circuit stability and reliability.
Detailed Manual: Comes with a detailed assembly and soldering manual to help users complete the project smoothly.
Practical Function: The finished eight-tube radio can be used for practical applications such as listening to broadcasts.


Combination of Education and Entertainment: Students can learn electronic knowledge through hands-on creation, increasing their interest in learning.
Easy Assembly: Detailed manual and high-quality components make the assembly process simple and easy to understand.


Usage Instructions:

Preparation: Gather soldering tools (soldering iron, solder wire, etc.) and power supply.
Assemble Circuit: Follow the manual to solder the electronic components onto the circuit board.
Connect Power: Connect the circuit board to a 1.5V DC power supply.
Test Function: Test the eight-tube radio's functionality by inputting a signal to ensure it works properly.


Circuit Diagram: A detailed circuit diagram is provided with the kit. Users can follow the circuit diagram to assemble and solder, ensuring the accuracy of the circuit.

Purchase Information:

Applicable Range: The kit is suitable for students' electronic skills training and electronic enthusiasts' DIY projects.
