Monday Kids 70-110MHz 1.5V FM Frequency Modulation Wireless Microphone Module DIY Kit Transmitter Board Parts Kits Electronic Suite + Shell

$1.85
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Operating Temperature: -30~85 Celsius
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Supply Voltage: 1.5V (DC 3-6V)
  • Model Number: Wireless Microphone Module DIY
  • Application: Wireless Microphone Module DIY

Product Introduction:


1.Model: RF-01
2.Operating Voltage: 1.5V (DC 3-6V)
3.Operating Current: 5-10mA
4.Frequency Range: 70MHz-110MHz
5.Transmission Distance: 5-30m

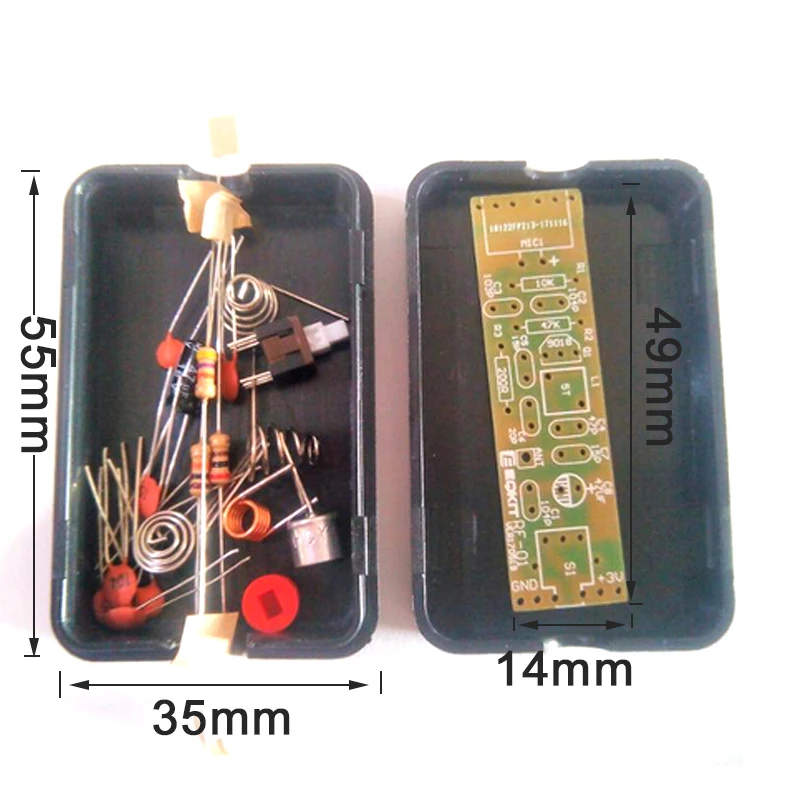

6.PCB Size: 49*13mm
7.Appeanrance Size: 55*35*15mm

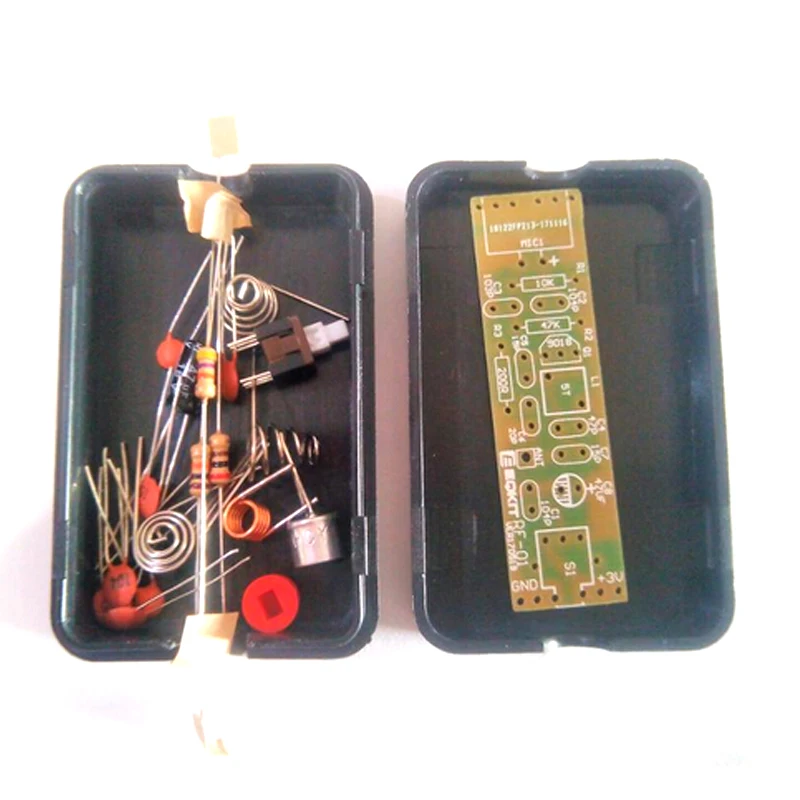

Product Component List:

RF-01 Component list

NO.

Name

Mode

QTY

R1

RES

10K

1

R2

RES

47K

1

R3

RES

200R

1

L1

Inductor

5T

1

S1

Switch

5.8*5.8mm

1

S1

Switch cap

F6*H5

1

Q1

Triode

S9018

1

MIC1

Microphone

5*6mm

1

C8

E.C

47uF/16v

1

C5.C7

Cap

15pF

2

C6

Cap

20pF

1

C4

Cap

47pF

1

C3

Cap

103P

1

C1.C2

Cap

104P

2

——

Cell shrapnel

7#Φ7mm

2

——

Cell shrapnel

7#Φ7mm

2

——

Shell

55*35*15(mm)

1

——

RF-01PCB

49mm*14mm

1

ANT

Wire(Give)

200mm

1

Please note :we have the document to install it, if you need, please leave message to us, thank you!
