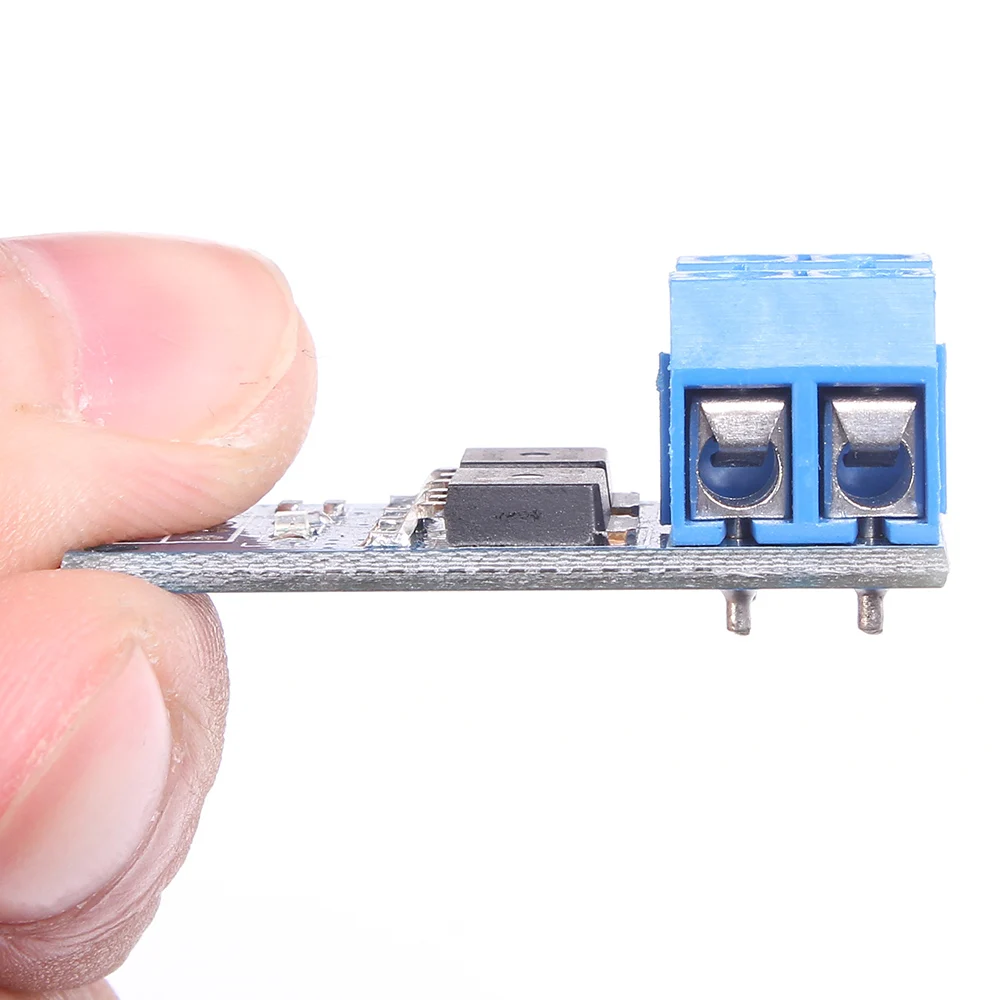

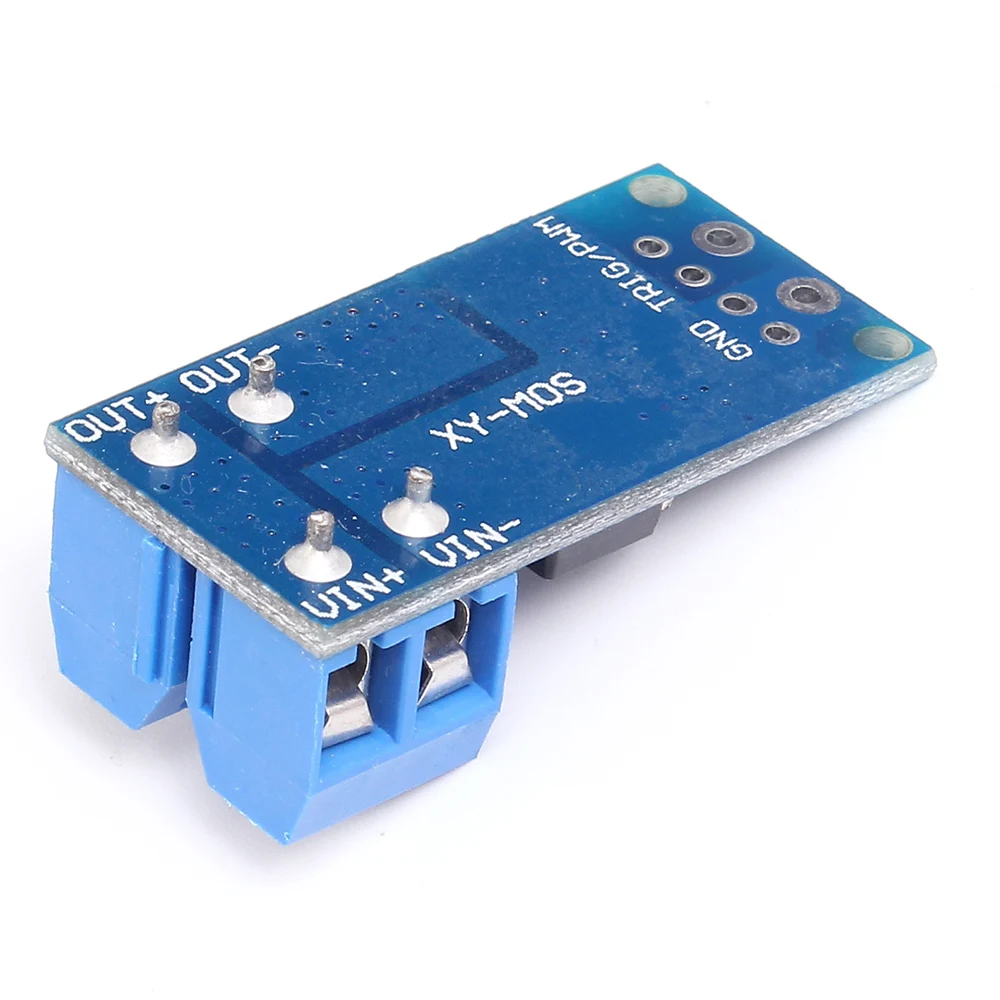

Monday Kids High Power MOS FET Trigger Switch Drive Module PWM Regulator Electronic Switch Control Panel DC 5V-36V

$1.39
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • Model Number: MOS FET Trigger Switch
  • Operating Temperature: -40~85 Celsius
  • is_customized: Yes
  • Supply Voltage: DC 5V-6V
  • Application: MOS FET Trigger Switch
  • Output Capacity: DC 5-36V/15A/400W
  • Size: 3.4*1.7*1.2cm
  • Applications: Motor,lamp bulb,LED lamp strip,micro water pump etc

Product Introduction:


1.Operating Voltage:DC 5V-6V

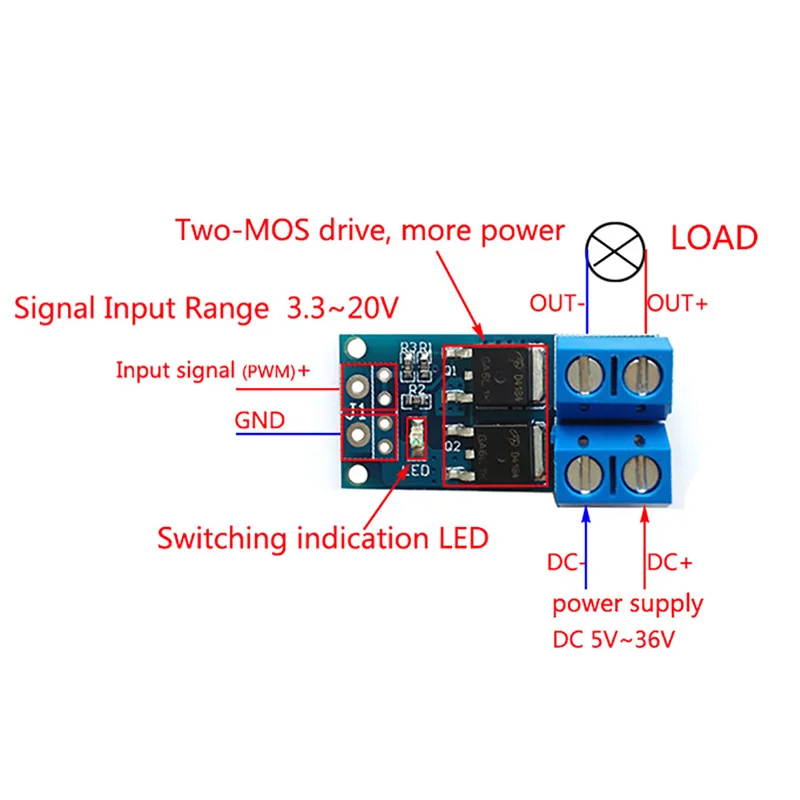

2.Trigger Signal Source:digital high/low level (DC 3.3-20V),can connect with MCU IO port,PLC interface,DC power etc;can connect with PWM signal;support signal frequency 0--20KHz
3.Output Capacity:DC 5-36V/15A/400W
4.Operating Temperature:-40~85 Celsius
5.Size:3.4*1.7*1.2cm
6.Applications:motor,lamp bulb,LED lamp strip,micro water pump etc

Features:

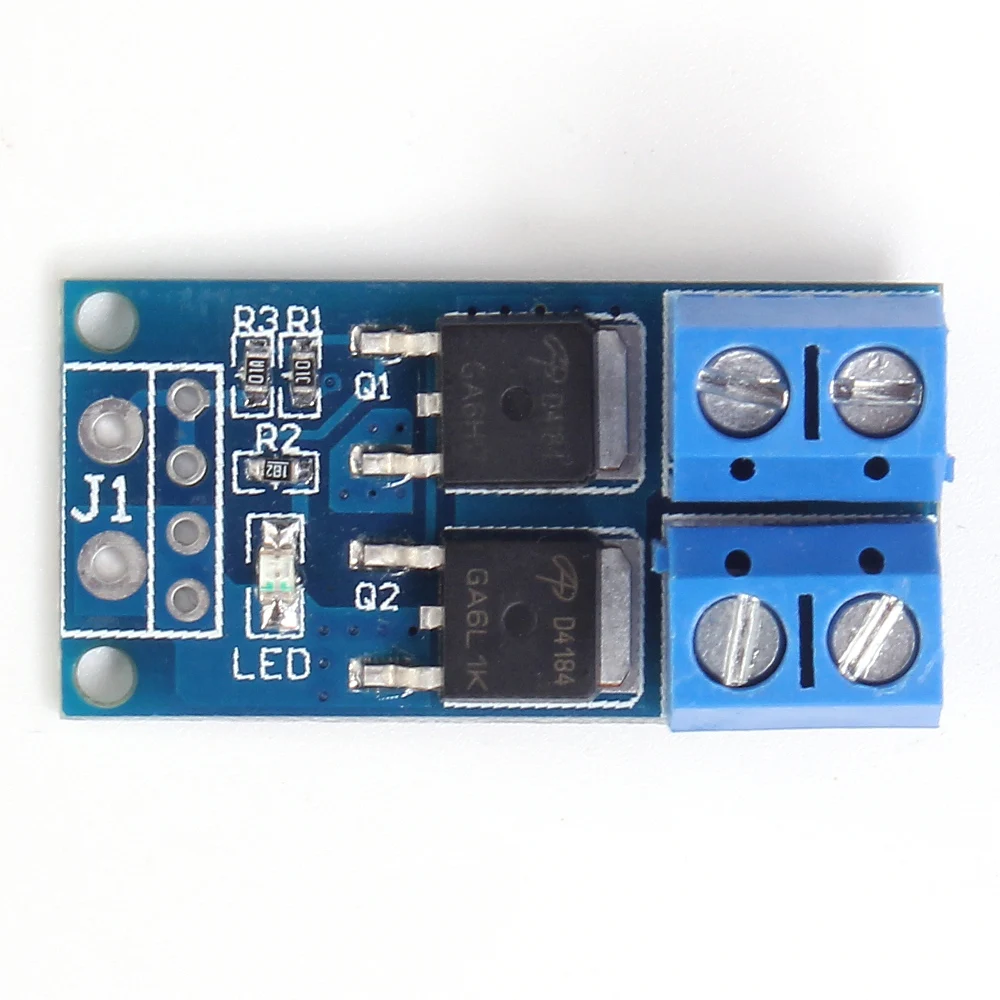

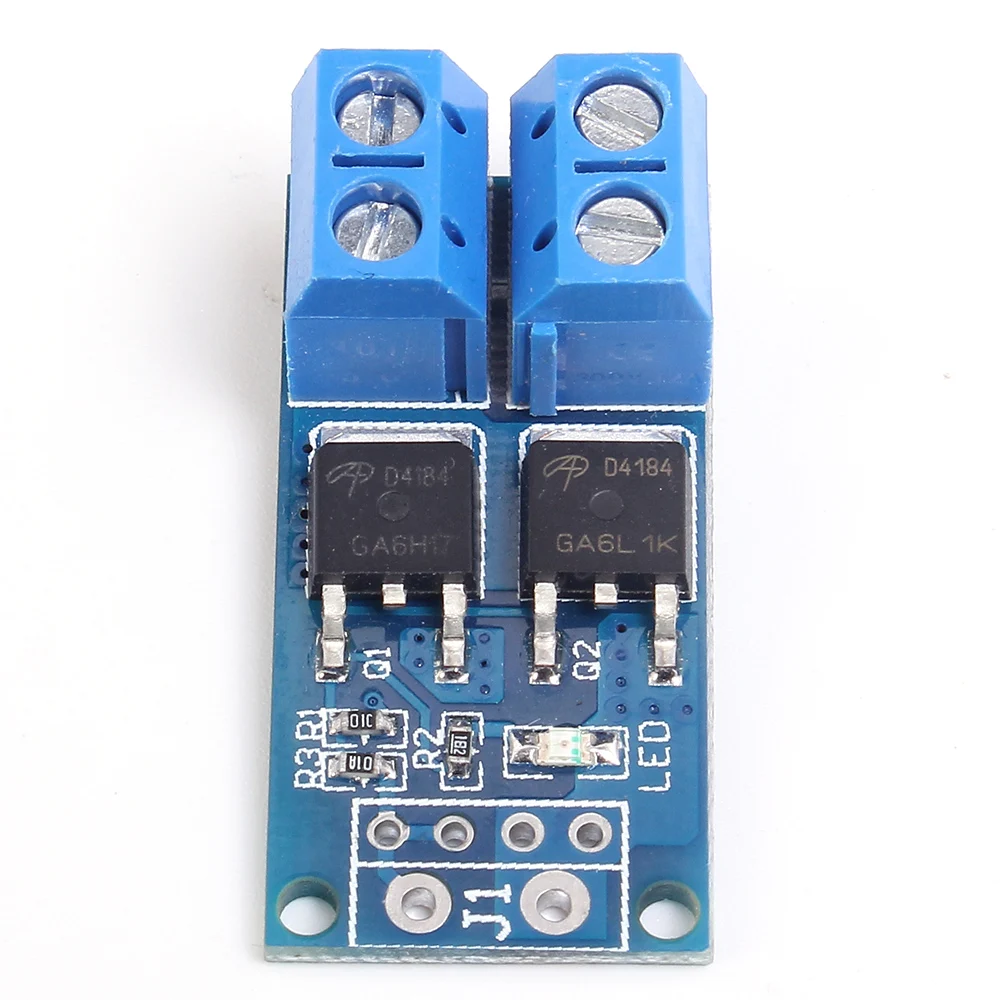

1.Adopt Double MOS Parallel Connection Active Output
2.Wide Voltage:support PWM
3.Can Achieve High Power Equipment Control


  • Unit Type: piece
  • Package Weight: 0.015kg (0.03lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
