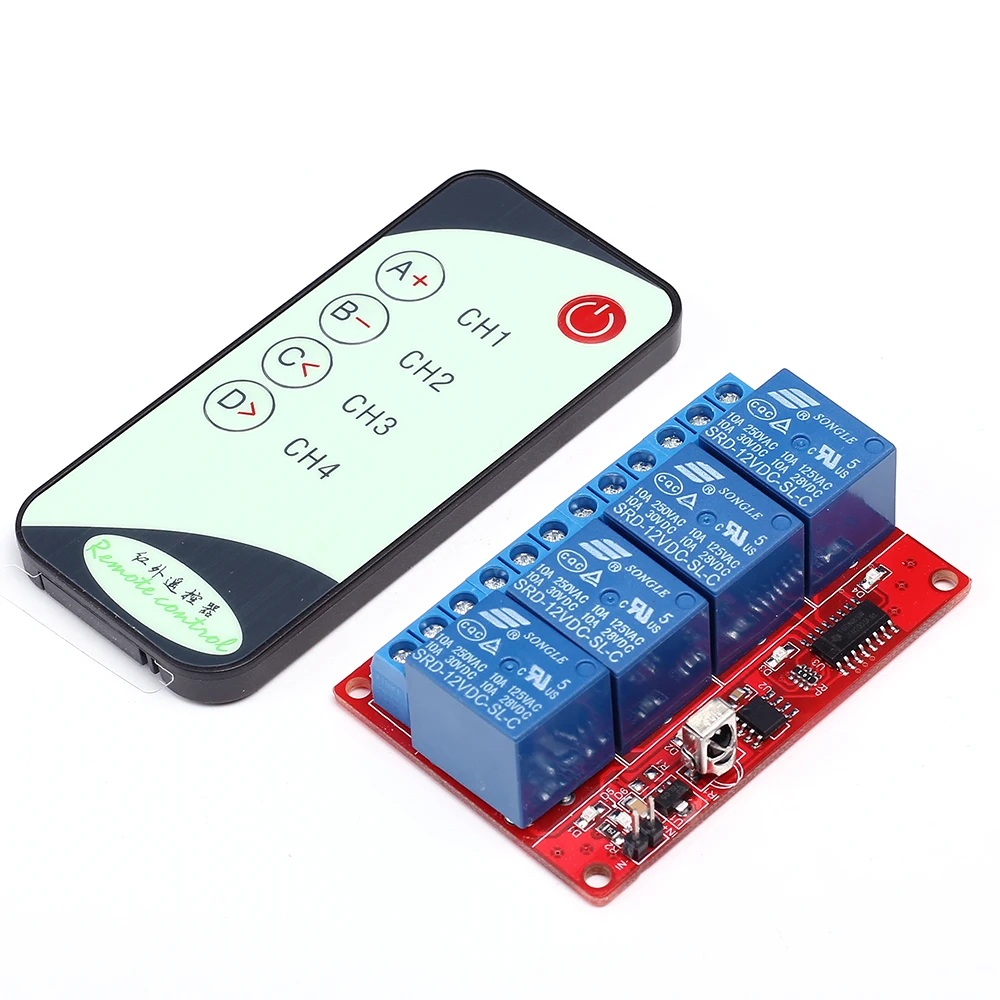

Monday Kids 4 Channel 12V Infrared Receiver Relay Driver Board + 5-Key IR Remote Control Switch 150mA 8m 4CH Transmmiter
$8.84
Availability:
In stock
SKU
EK676
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- is_customized: Yes
- Supply Voltage: 12V
- Operating Temperature: -30~85 celsius
- Model Number: Receiver Relay Driver Board
- Application: Receiver Relay Driver Board
- Board Size: 45*65*20mm
- Quiescent Operating Current: <=1mA
- Whole Absorption Current: <150mA
- Max Remote Control Distance: 8M
Product Introduction:
1.Power Supply Voltage:12V (VIN+ connects with 12V positive,GND- connects with 12V negative)
2.Board Size:45*65*20mm
3.Quiescent Operating Current:<=1mA
4.Whole Absorption Current:<150mA
5.Max Remote Control Distance:8M
6.Relay Loading Capacitiy:250V AC-10A;125V AC-10A;30V DC-10A;28V DC-10A
7.Operating Principle:when press CH1,the relay 1 will operte and LED1 will be on;if press again,relay 1 will release and LED1 will be off;CH2 key can control relay 2 and LED2 in the same way;and CH3 and CH4 so on;the power key on remote control can control all the relays absorption and release in the same time
Conenction Picture:
- Unit Type: piece
- Package Weight: 0.09kg (0.20lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
