Monday Kids 5pcs/lot 2S 3A Li-ion Lithium Battery 7.4 8.4V 18650 Charger Protection Board BMS PCM for Li-ion Lipo Battery Cell Pack
$2.04
Availability:
In stock
SKU
RY-ES-486
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Application: Computer
- Condition: New
- Supply Voltage: 7.4 8.4V
- Operating Temperature: -40-+50C
- Type: Voltage Regulator
- is_customized: Yes
- Model Number: 2S 3A Li-ion Lithium Battery BMS Protection Board
- Over charge voltage: 4.25-4.35v
- Over dishcarge voltage: 2.3-3.0v
- Max continuous current: 3A
- Max peak current: 5A
Description:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption
Technical Parameters:
- Over charge voltage:4.25-4.35v±0.05v
- Over dishcarge voltage: 2.3-3.0v±0.05v
- Max continuous current:3A
- Max peak current:5A
- Working temperature:-40---+50
- Storage Temperature:-40-- +80
- Small current:less than 3uA
- Life cycle :more than 50000hours
- Resistance:Less than 45m
- Short cut protection :Protectable,charge can repair
- Size: 36*6*1.0mm

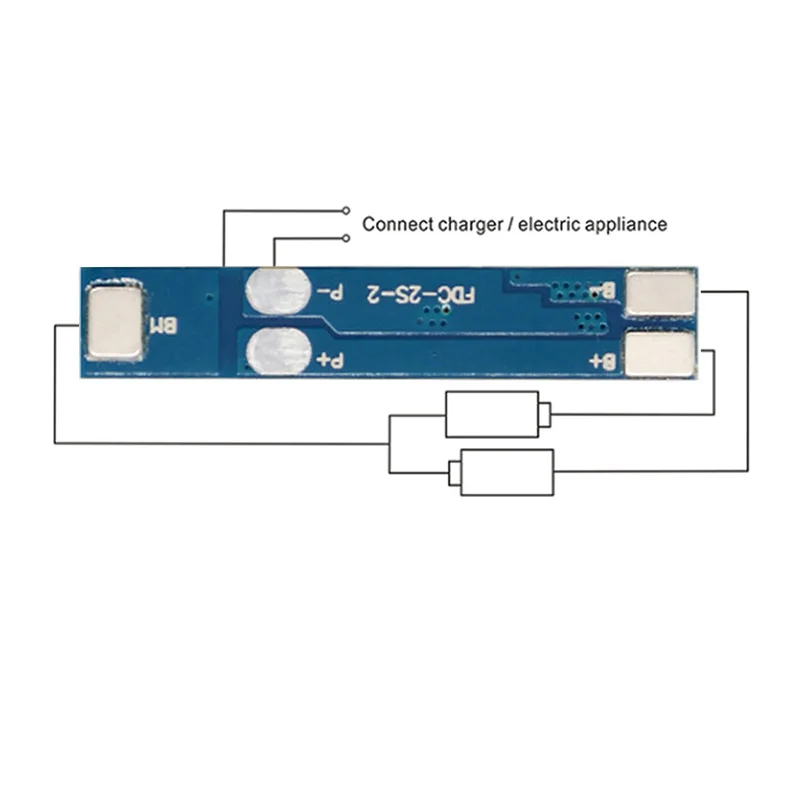

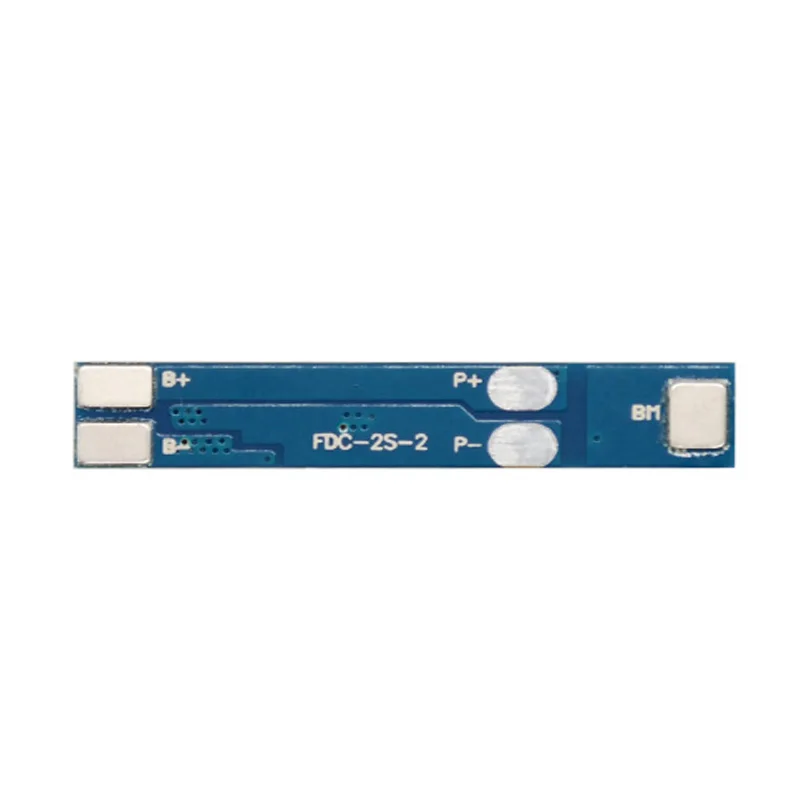

Solder joint description:
· B+ is connected to the battery positive pole;
· B- is connected to the negative pole of the battery;
· MB is connected to the connection point between battery 1 and battery 2;
· P+ is connected to the positive terminal of the charge/discharge terminal (the charge terminal/discharge terminal is shared);
· P- Connect the charge/discharge terminal negative (common to the charge/discharge terminal).
Package include:
5 * 7.4v 8.4V 18650 Charger Protection Board
- Unit Type: lot (5 pieces/lot)
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
