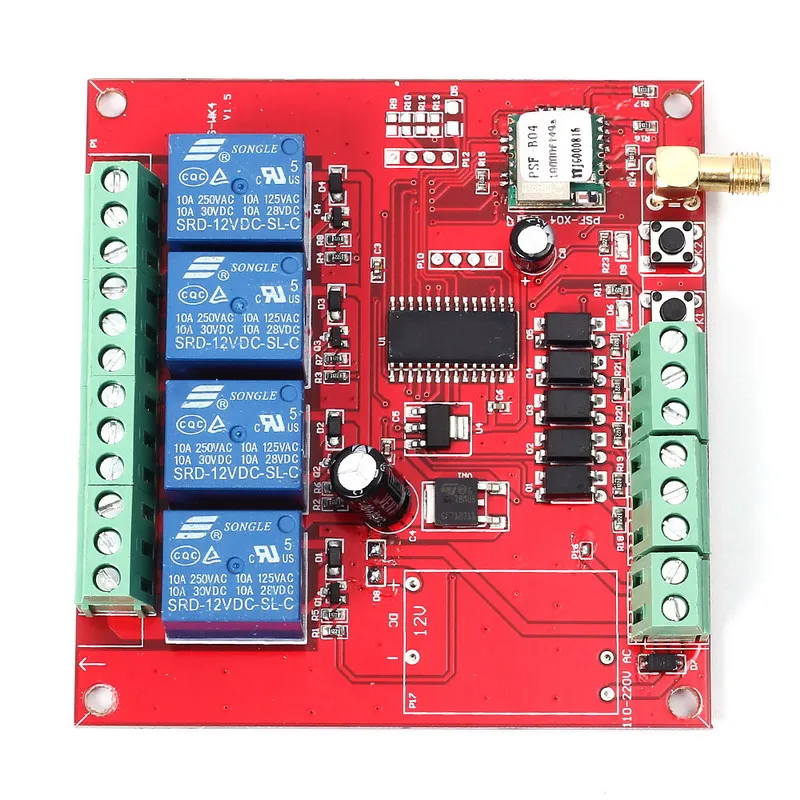

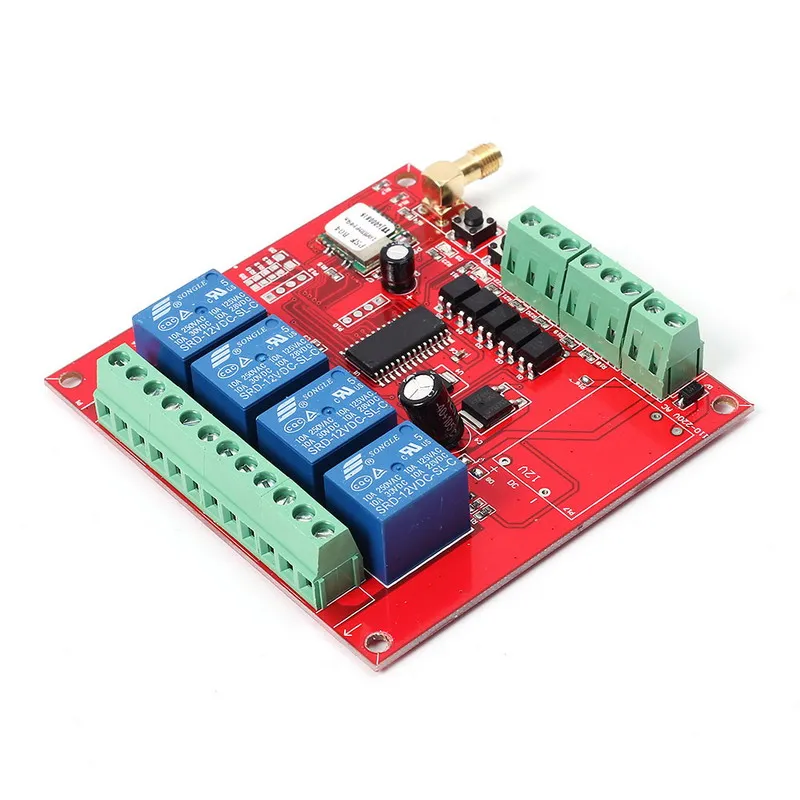

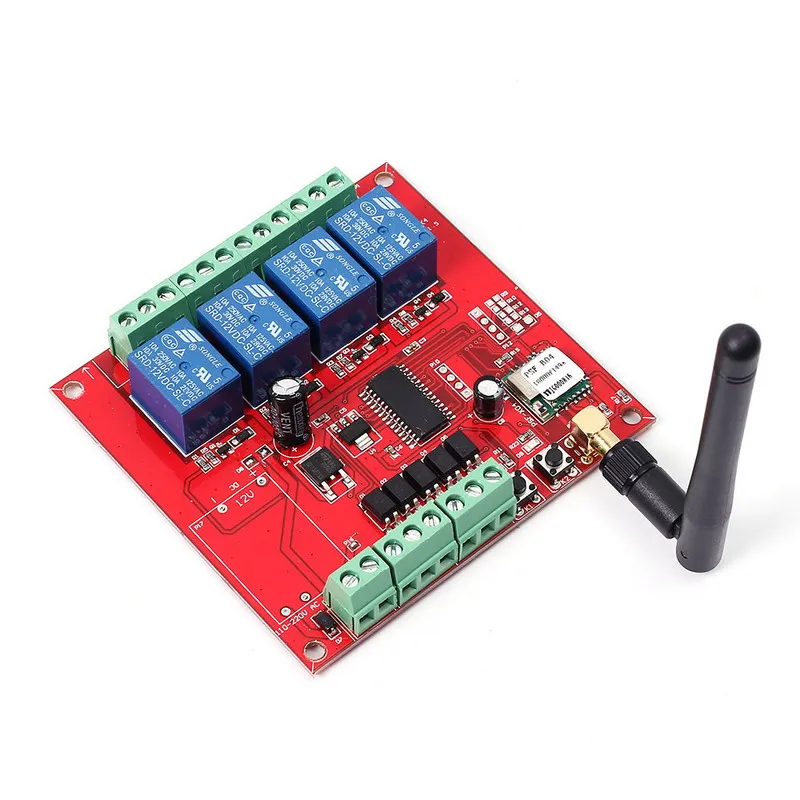

Monday Kids DC 9-38V Wifi Relay Switch Multi-Channel Mobile Phone Remote Control Network Relay Module With Antenna Wireless Smart Home wk4
$20.76
Availability:
In stock
SKU
EK599
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: Wifi Relay Switch
- Supply Voltage: DC 9-38V
- Operating Temperature: -30~85 Celsius
- Condition: New
- Type: Logic ICs
- Dissipation Power: none
- is_customized: Yes
- Application: Smart Home
- Antenna Length: 10cm
- Size: 116*92*42mm
- Application Field: support Android,Iphone,Wechat ,cellphone control
- Output Port:: NO NC;mechanical switch output port
- Control Way: wifi network control,support 2G/3G/4G cellphone network
- Rated Load: AC 0-250V/8A 1400W;DC 0-30V/8A 200W
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
Video link: http://cloud.video.taobao.com/play/u/218960742/p/1/e/1/t/1/43145123.swf
Features:
1,as long as the connection wifi can access the Internet, the phone can access the Internet can control, but also mobile phone traffic control.
2, with four independent switches, can be self-locking, jog, interlock, motor control
3, can be regular, cycle timing, regular work every day
4, 1 mobile phone can add an unlimited number of devices, a device can be shared to his phone

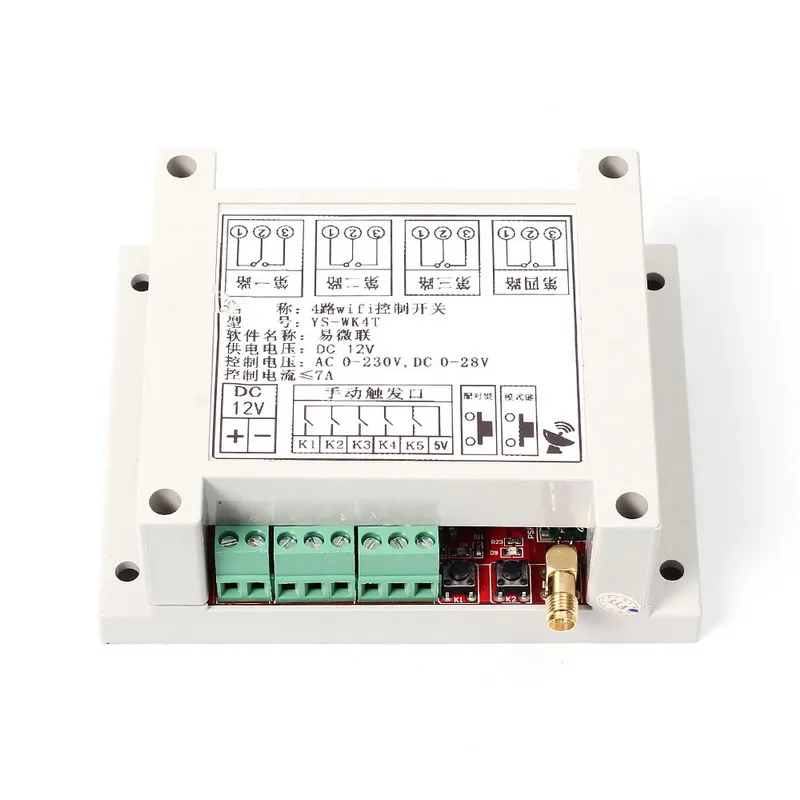

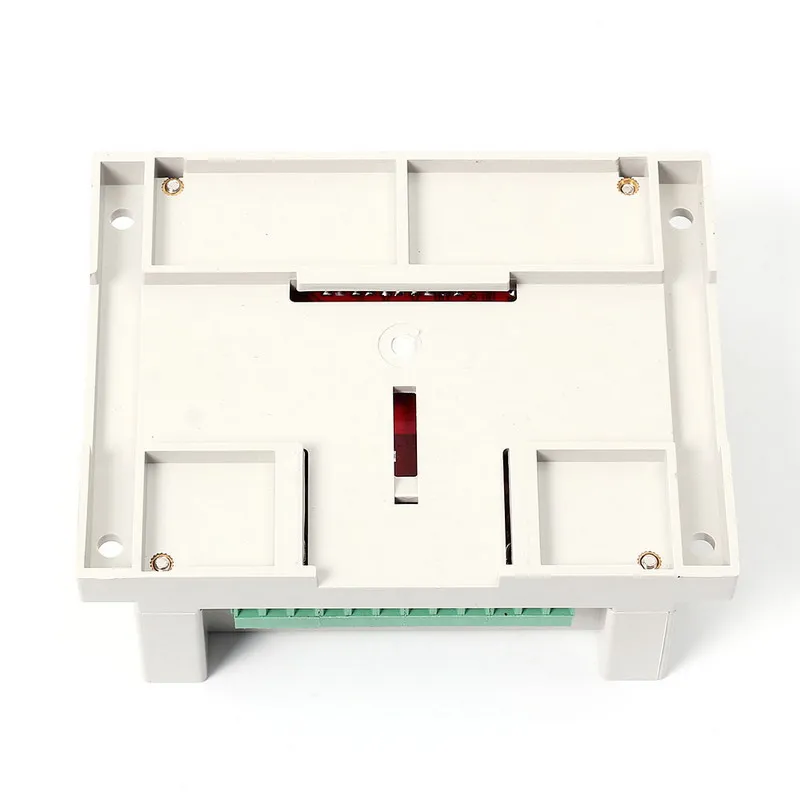

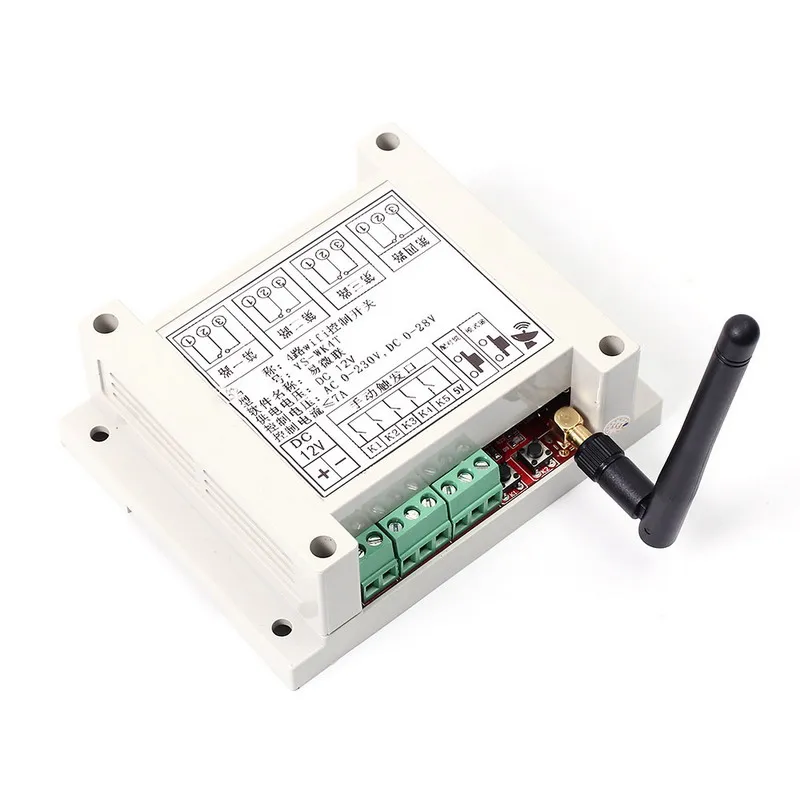

5, wiring using standard industrial terminals, and industrial plastic shell
6, support control 0-250V voltage 8A circuit, about 1700w power, covering 90% of household appliances and equipment
SET key, the setting key is used to set the mode and Wifi paired connection mode
Set the key operation method: set button has two kinds of methods of operation, short press and long press 3s.
Short press the operation is the mode selection, press the mode once accumulated, a total of 5 modes (self-locking, jog, interlock, 2 self-locking +1 group motor, 2 sets of motor);
Long press 3s operation is the pairing operation function, long press 3s or later release, wait 5s, the indicator light flashes, into the pairing state.
Set the key operation method: set button has two kinds of methods of operation, short press and long press 3s.
Short press the operation is the mode selection, press the mode once accumulated, a total of 5 modes (self-locking, jog, interlock, 2 self-locking +1 group motor, 2 sets of motor);
Long press 3s operation is the pairing operation function, long press 3s or later release, wait 5s, the indicator light flashes, into the pairing state.

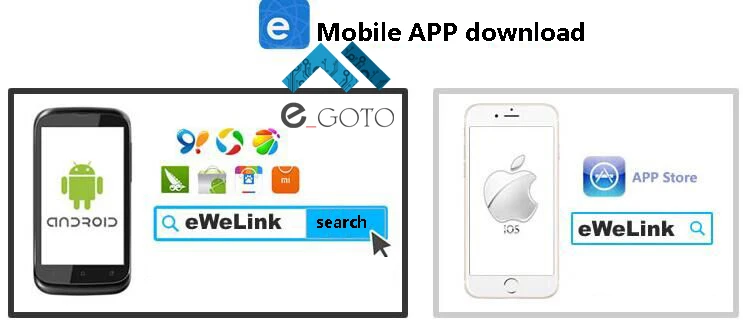

Please download the picture of the app "eWeLink "
Connect APP, mobile phone number registered Login,
1. click on "set" the matching button, until the light is released after the flash;
2. Name the device to complete the operation;
3. Enter the home name and password for the WIFI;
4. Add a search device
Special Instructions:

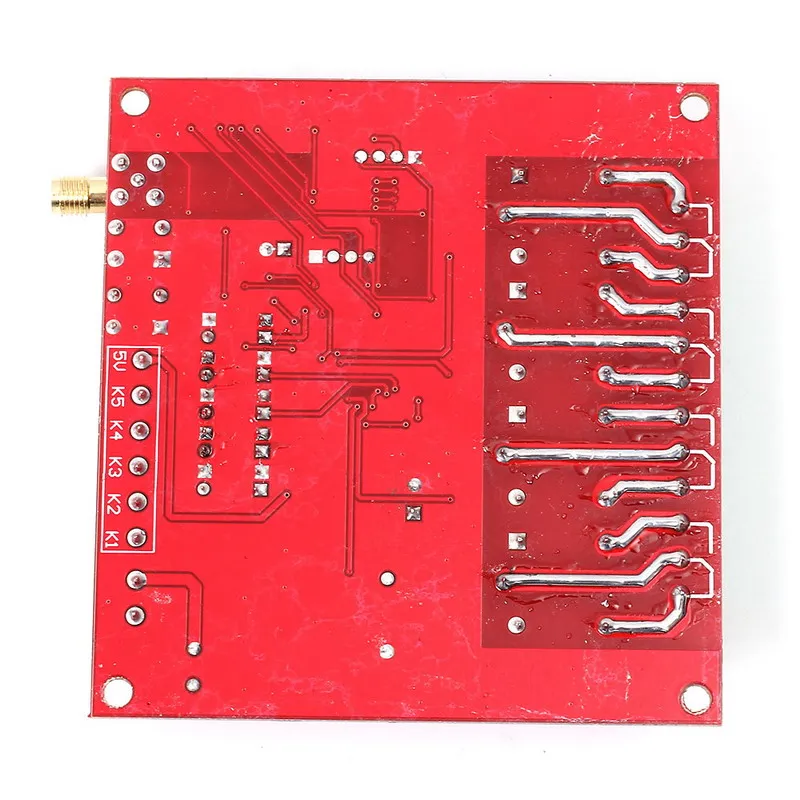

Manual key operation method: This product has five manual control buttons, respectively, K1-K5, the five ports were connected to the five 2-pin button, the other one of the keys connected to the GND port, then press the button Equivalent to pressing the button on the phone. (K1-K5 touch the GND port to trigger, falling edge trigger mode)
Set the key operation method: set button has two kinds of methods of operation, short press and long press 3s.
Short press the operation is the mode selection, press the mode once accumulated, a total of 5 modes (self-locking, jog, interlock, 2 self-locking +1 group motor, 2 sets of motor);
Long press 3s operation is the pairing operation function, long press 3s or later release, wait 5s, the indicator light flashes, into the pairing state.
Relay switch Description: relay switch is equivalent to a single pole double throw switch, the middle of the copper around the move, is a mechanical switch, conventional we only need to use normally open port (right), no voltage output, only as a switch control conduction function.
- Unit Type: piece
- Package Weight: 0.2kg (0.44lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
