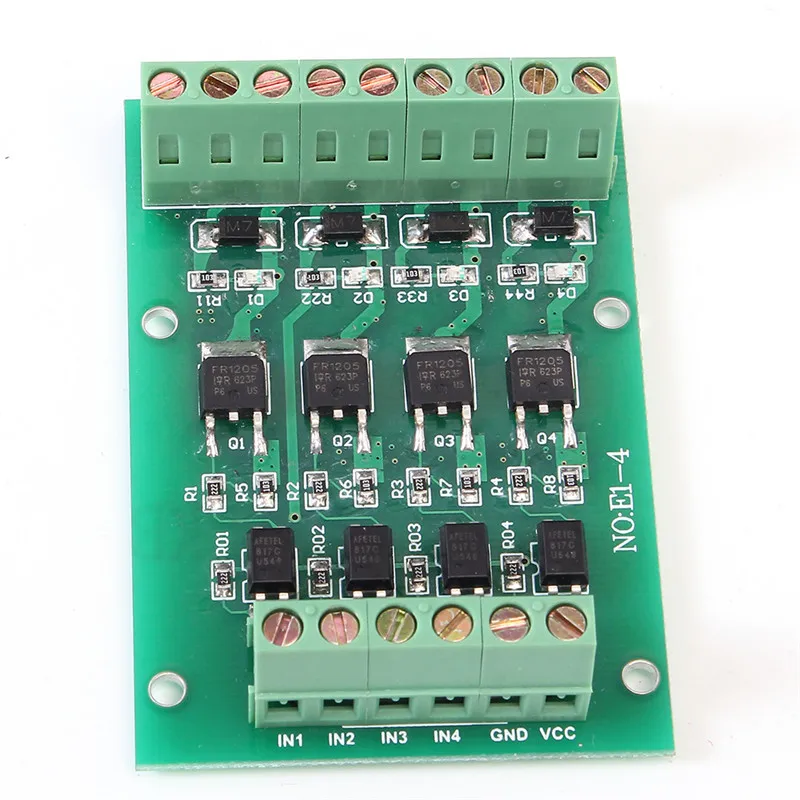

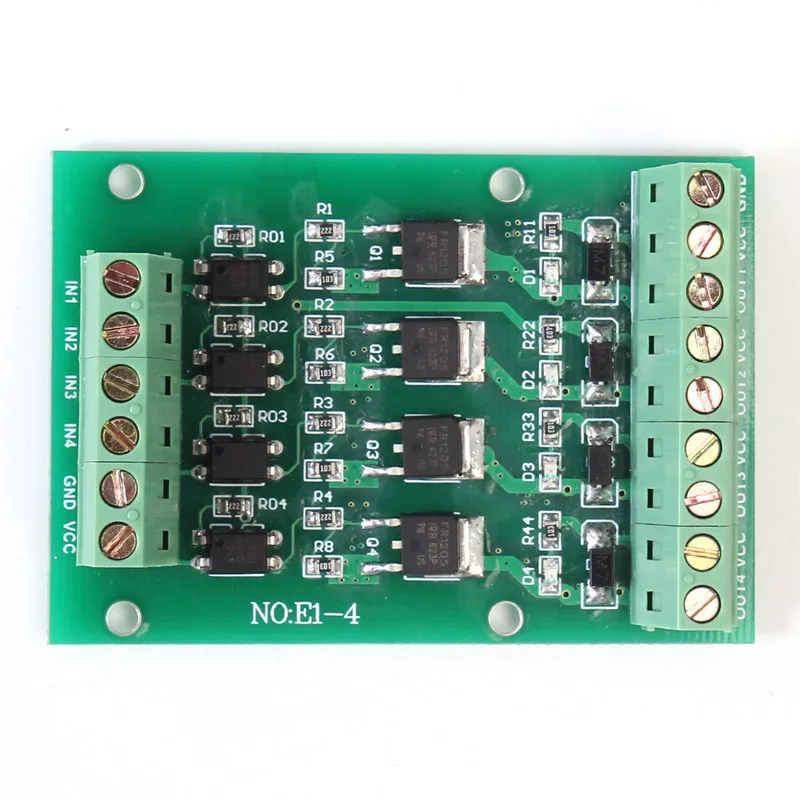

Monday Kids 4 Channel Relay Module FET Field-Effect Tube Module NMOS FR1205 DC 5-24V Solenoid Driver With Optocoupler Isolation
$7.29
Availability:
In stock
SKU
EK422
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Operating Temperature: -30~85 Celsius
- Supply Voltage: DC 5-24V
- Condition: New
- Type: Logic ICs
- Dissipation Power: none
- Model Number: 4 Channel Relay Module
- is_customized: Yes
- Application: 4 Channel Relay Module
|
|
|
|
Product Introduction:
1.Size:63*48*16mm
2.Main Chip:FR1205(NMOS)
3.Input Controlling Voltage:DC 5-24V(The input voltage should not be greater than your MCU working voltage)
4.Output Controlling Voltage:55V (max);current:5A (min)
5.Input Control Power And Controlled Power Are Both Optocoupler Isolated
6.4-Channel Output Signal With Indicator Light
7.4-Channel Input Signal Effective With Optocoupler Isolation

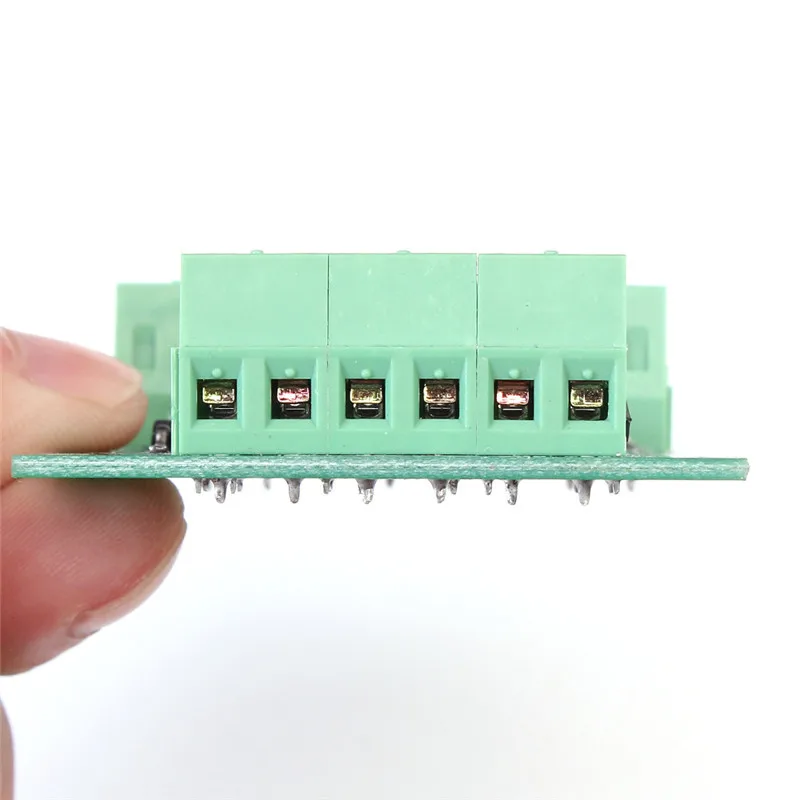

8.Using Pin To Input:convenient to connect with SCM

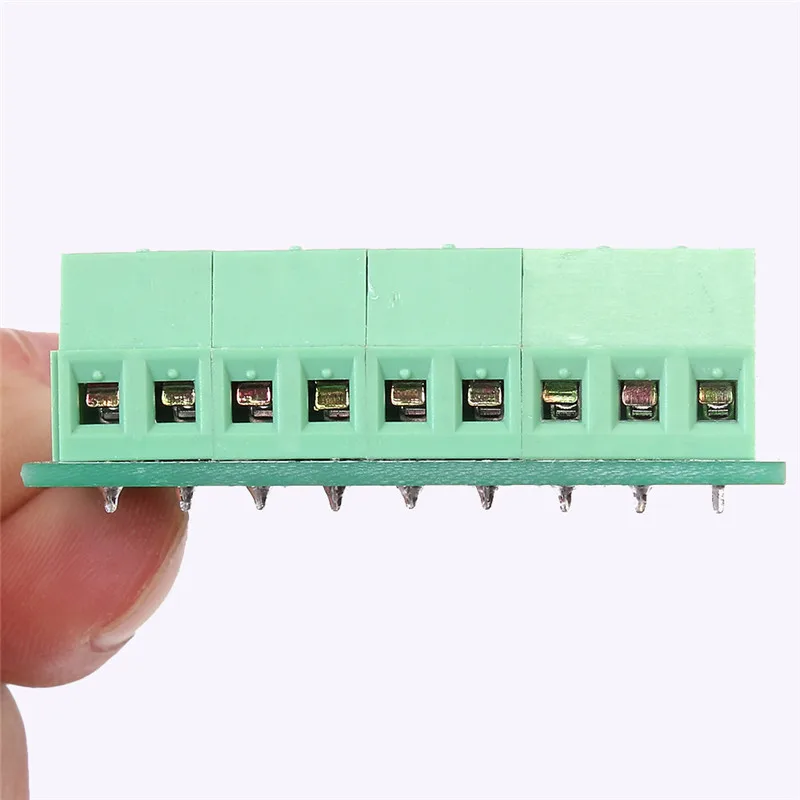

9.Using Connection Terminal To Output:convenient to connect with controlled device power
Applications:
1.Can use SCM,PLC or other devices output PWM signal to control DC motor speed regulation or dimming of LED
2.Can use SCM,PLC or other devices output high/low level to control output one DC power

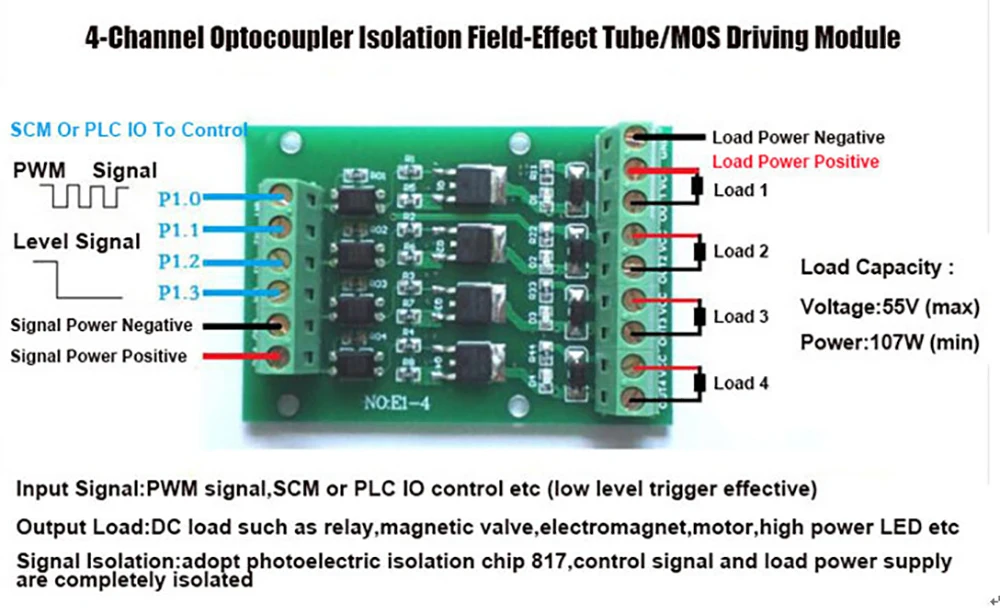

Pin Definition Picture:
- Unit Type: piece
- Package Weight: 0.05kg (0.11lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
