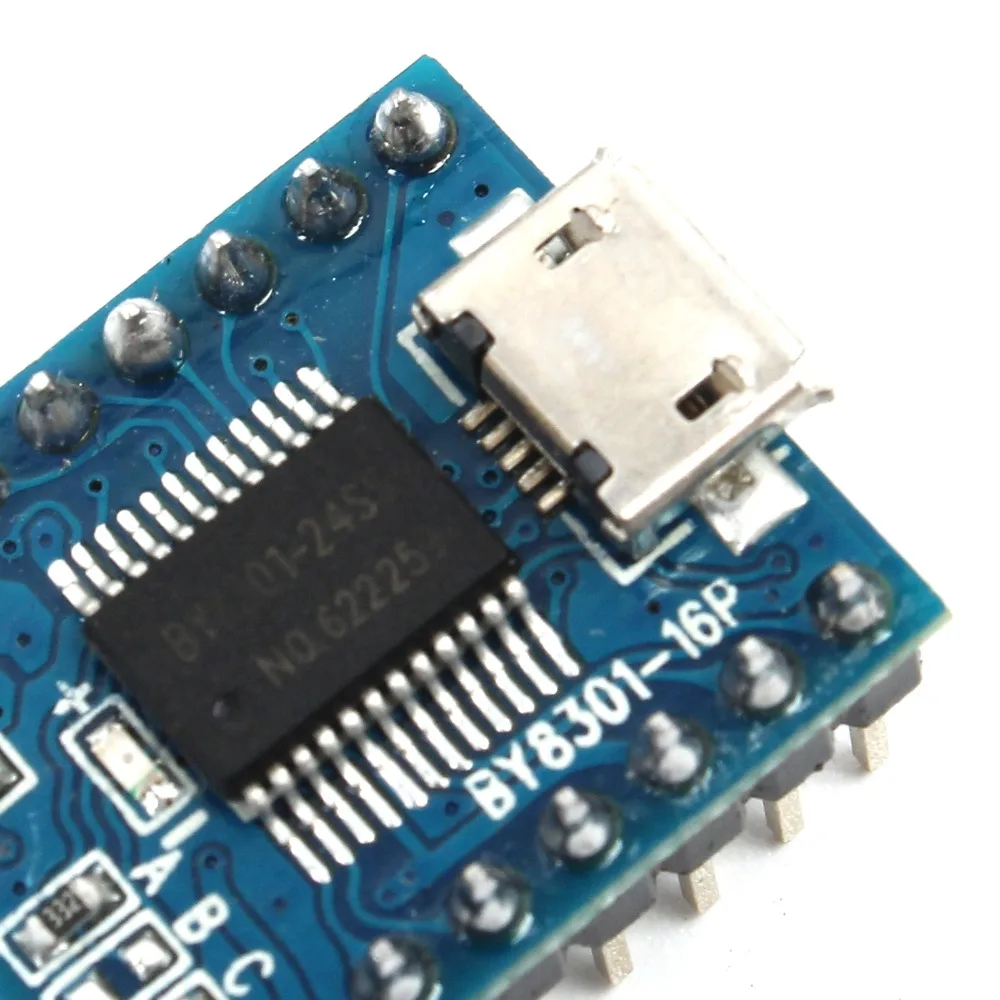

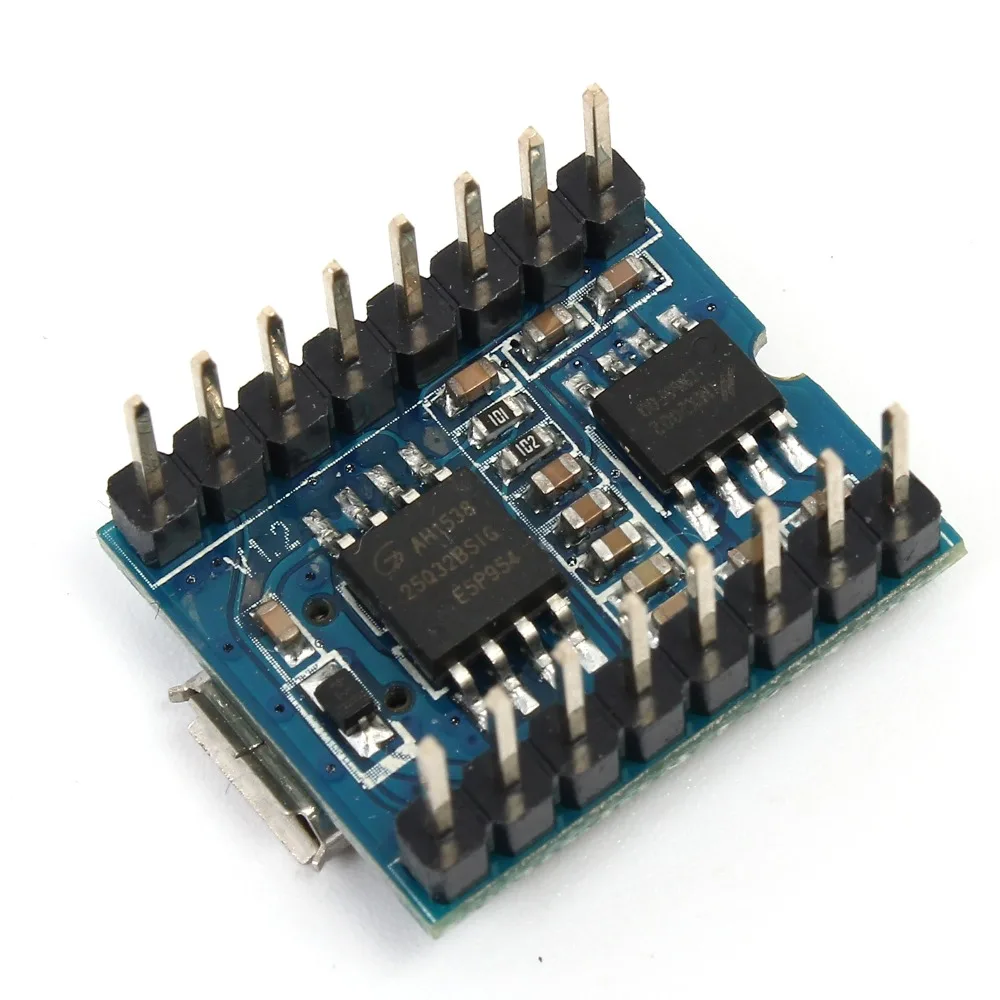

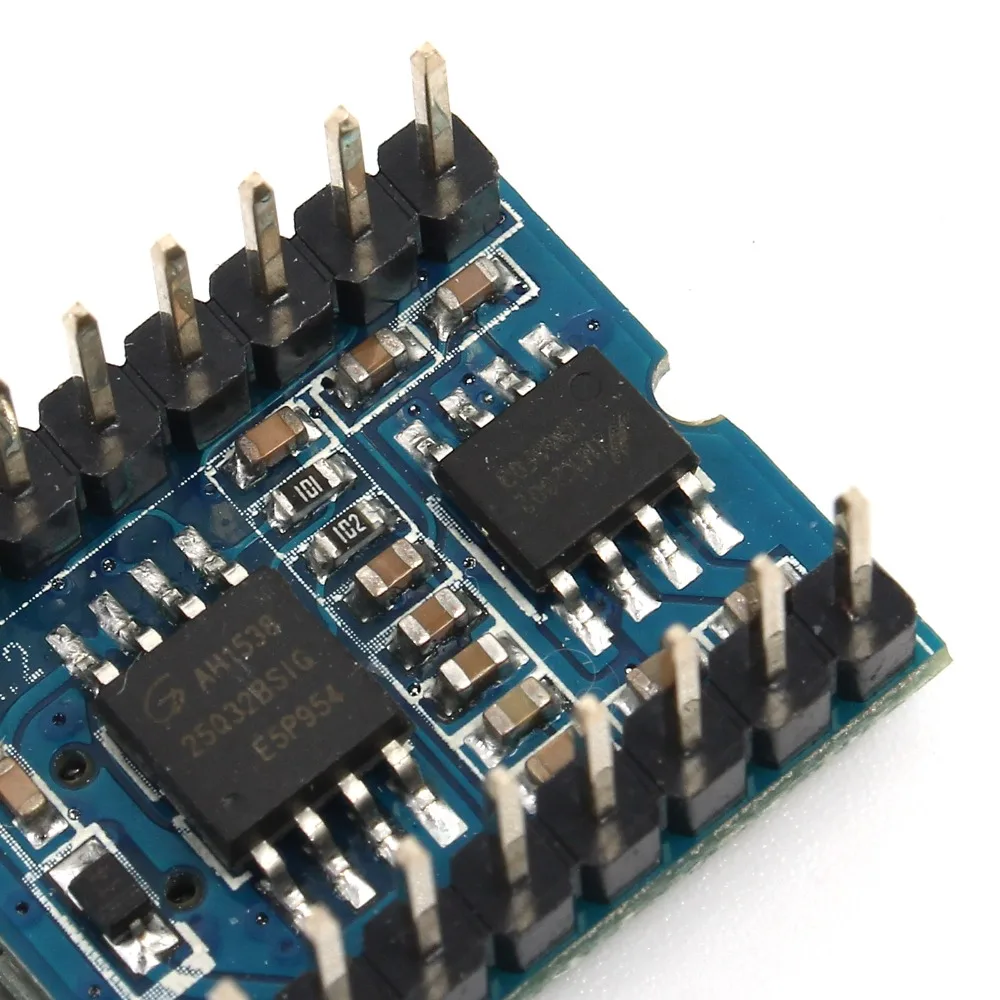

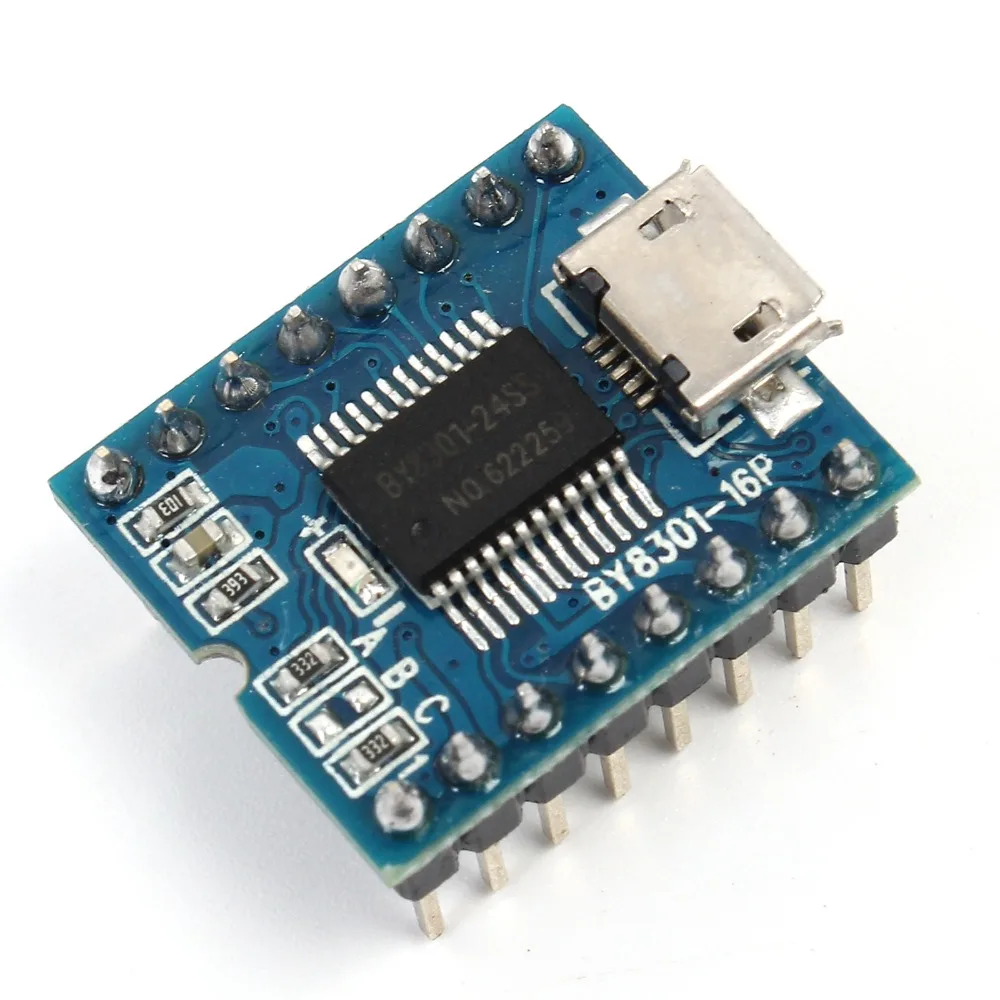

Monday Kids MP3 Player Module Mini MP3 Player Audio Voice Module Board BY8301-16P 32Mbit 4Mbyte Support USB Download

Be the first to review this product

$3.10

Availability: In stock

SKU

EK411

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Operating Temperature: -40 ~ 70 Celsuis
Condition: New
Type: Logic ICs
Supply Voltage: 3.6V-5V(recommended 4.2V)
Dissipation Power: none
is_customized: Yes
Model Number: MP3 Player Module
Application: MP3/MP4 Player
MP3,WAV file format: Supports sampling rates 8 ~ 48K,8 ~ 320Kbps bit rate audio files
USB interface: 2.0 standard (Micro USB interface)
UART interface: Standard serial port, 3.3V TTL level,baud rate 9600
Quiescent Current: 15MA (entire module)
Amplifier power: connect 2W / 4Ω or 1W / 8Ω speaker

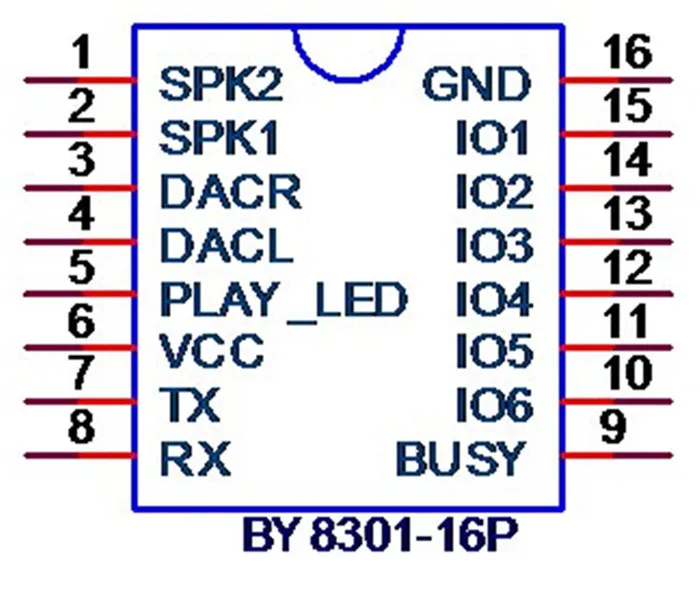

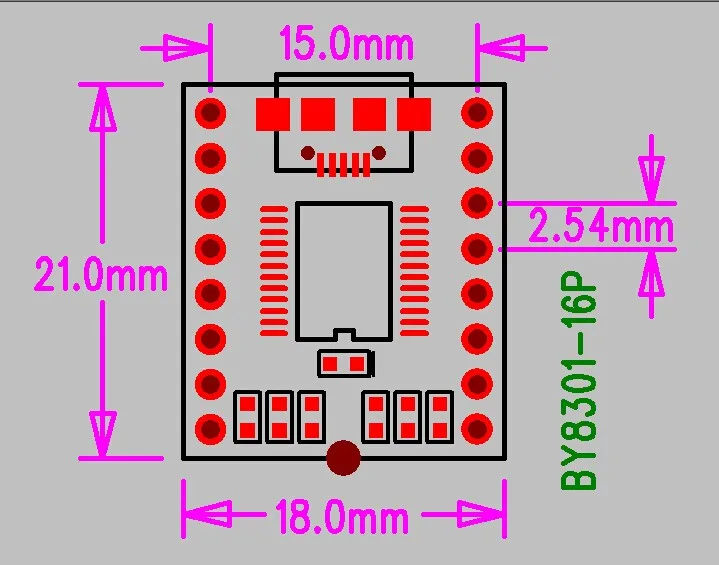

Size: 21mm * 18mm
Humidity: 5% to 95%

Features:

MP3,WAV file format:Supports sampling rates 8 ~ 48K,8 ~ 320Kbps bit rate audio files
UART interface:Standard serial port, 3.3V TTL level,baud rate 9600
Capacity：4M byte
Standard 2.54mm pin header, DIP16 package 24 bit DAC output, dynamic range support 90dB, SNR support 85dB.

Application areas

Industrial control areas: industrial, control equipment;

Intelligent transportation equipment: toll stations, car parks, car voice prompts;

Advertising industry: advertising language broadcast;

Access control, attendance: the door has been opened and other voice prompts;

Security industry: human induction tips, safe voice prompts, warm tips;

Senior toys: swing machine, crash, game and so on;

Medical electronics: Device voice prompts;

Education communication: educational equipment, communication electronics;

Application circuit diagram

Note ： the master chip IO port for all 3.3V voltage, when other microcontrollers connected to pay attention to voltage matching!

1. key control application circuit K1-K21 corresponds to 1-21 segment voice

2. MCU serial control application circuit

Above for the standard UART asynchronous serial port connection applications, this application is very flexible, including playback, pause, up and down, volume addition and subtraction, song selection, wide

and so on. Can be used single-chip, computer serial control, but also through the TTL to RS485 adapter board for 485 control .

3. MCU IO port direct control application circuit

Through the microcontroller through the low pulse signal (equivalent to press the button to lift) can trigger IO1-I06, to achieve one-on-six playback of voice, and the above 3IO selectable control mode.

4. For some customers may use the level of the trigger play, you can use the relay control, you can also use the lotus control, the following provides the connection schematic

The picture shows the IO1 combination play, the relay power IO1, IO2 short-circuit playback paragraph 6. Optocoupler

The picture shows the IO input, the connection is the IO low-level connection optocoupler 3 feet, high-digit connection 4 feet, the figure for the playback of the first 14 segment.
