Monday Kids 2S 7.4V 8.4V 18650 Lithium Battery Protection Board 20A Current

Be the first to review this product

$1.58

Availability: In stock

SKU

RY-ES-432

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Type: Voltage Regulator
Model Number: 2S 7.4V 8.4V 18650 Lithium Battery Protection Board
Supply Voltage: 8.4V - 9.0V
Condition: New
is_customized: Yes
Application: Suitable for a nominal voltage of 3.7V, full voltage 4.2V lithium batt
Balance Current : 100mA

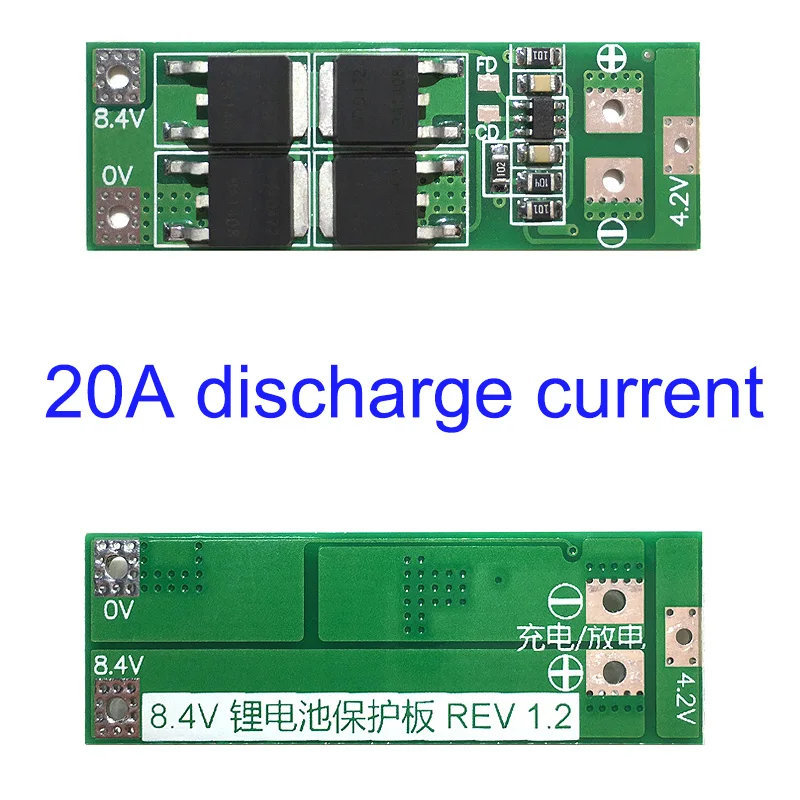

2S 8.4V 20A lithium battery protection board

Applicable scope: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without limitation on the dimensions)

Product Size: 45*15*3.4mm (Standard), 48*20*3.4mm (Balanced)

Product Weight: 2.9g (Standard Edition), 3.7g (Balanced Edition)

Charging voltage: 8.4V - 9.0V

Continuous discharge current (upper limit): 20A (If the cooling environment is not good, reduce the load current use)

Continuous charge current (upper limit): 10A

Standard Edition: Suitable for starting drills with currents up to 25A below 50W, or resistive loads below 168W.

Balanced version: Suitable for starting currents below 25A and below 50W power drills, or resistive loads below 168W, with balanced charging function.

Note:this item is Standard version .

Note 1: The successful start of the drill requires two 10C-20C power batteries, or four 5C-10C power batteries (ordinary 18650 can not start the drill! ! !).

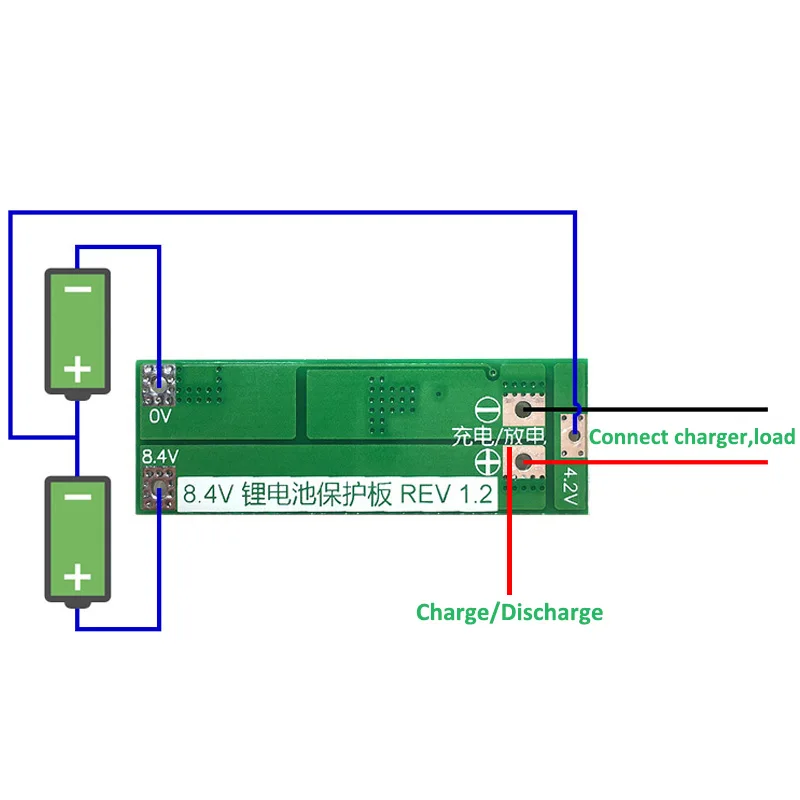

Note 2: Connect 0V, 4.2V, 8.4V according to the diagram strictly. When connecting the battery for the first time, it needs to be charged before output.

Note 3: When the battery is charged, “430” resistance heating is a normal phenomenon, indicating that the equalizing circuit is working; if the “430” resistance is also heating in the state of not charging, please check whether the wrong line is connected.

For some customers with poor electronic foundation, please explain: Do not mix good batteries and bad batteries together! The capacity/internal resistance of 2 batteries should be as close as possible! (1 good battery + 1 bad battery = 2 battery use effect).

Package Include:

1* 2S 8.4V 20A lithium battery protection board
