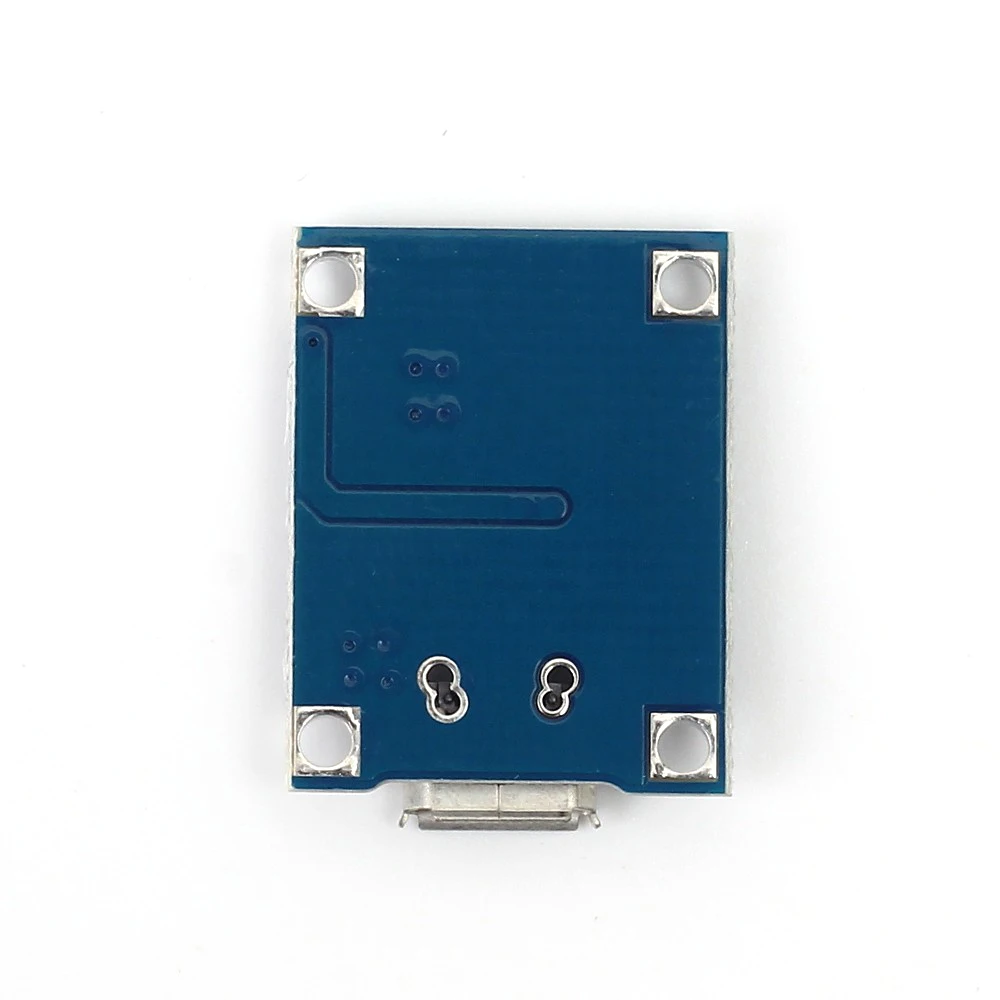

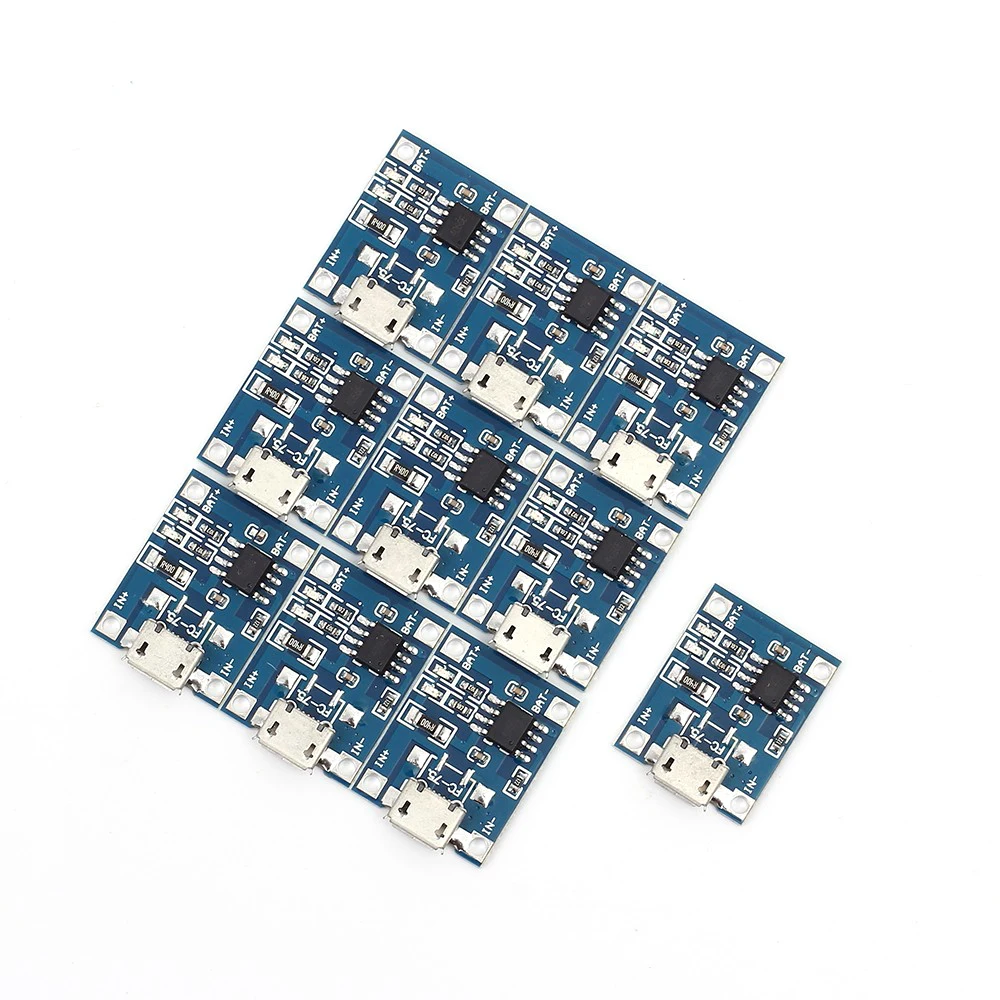

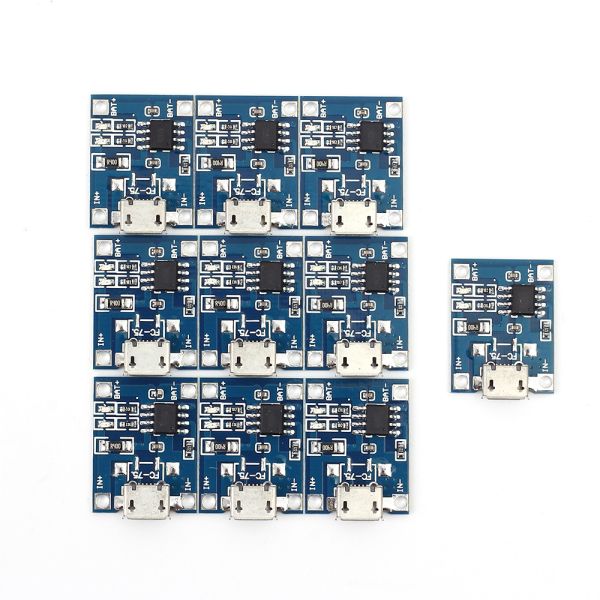

Monday Kids 10Pcs/lot TP4056 5V 1A Micro USB Charger Module 18650 Lithium Battery Charging Board Led Indicator Current Adjustable

Be the first to review this product

$2.50

Availability: In stock

SKU

EK376

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Operating Temperature: - 10 ~ 85 celsius
Condition: New
Dissipation Power: none
is_customized: Yes
Type: Voltage Regulator
Supply Voltage: 4.5V-5.5V
Model Number: 5V 1A Micro USB Charger Module
Application: Electronic Circuit
Charge precision: 1.5%
Current: 1A adjustable
Full charge voltage: 4.2V
Inversed polarity: NO
Chip: TP4056

Description

- Charge module: Linear charging
- Current: 1A adjustable
- Charge precision: 1.5%
- Input voltage: 4.5V-5.5V
- Full charge voltage: 4.2V

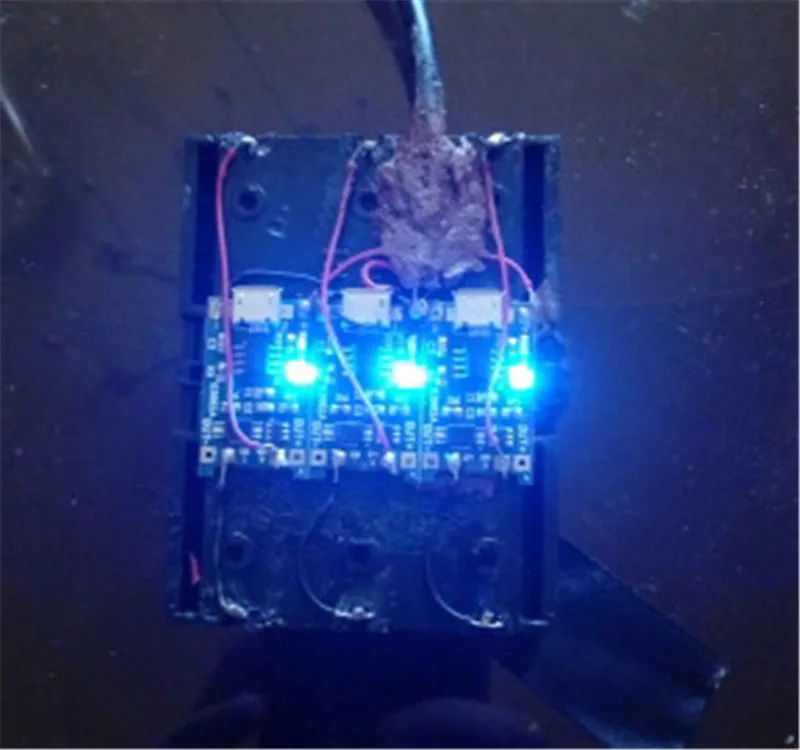

- Led indicator: red is charging Blue is full charged
- Input interface: micro USB.
- Work temperature: -10° ~ +85°
- Inversed polarity: NO
- Size: small to 25X19X10mm

The module current adjustable as long as you change the fixed resistors in the circuit board , then can change the output 100mA-1000mA, very convenient.

Note

1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5 NO Reveral polarity.

For the current self-regulation,the following table have proposed resistor value,the corresponding output and the current value
