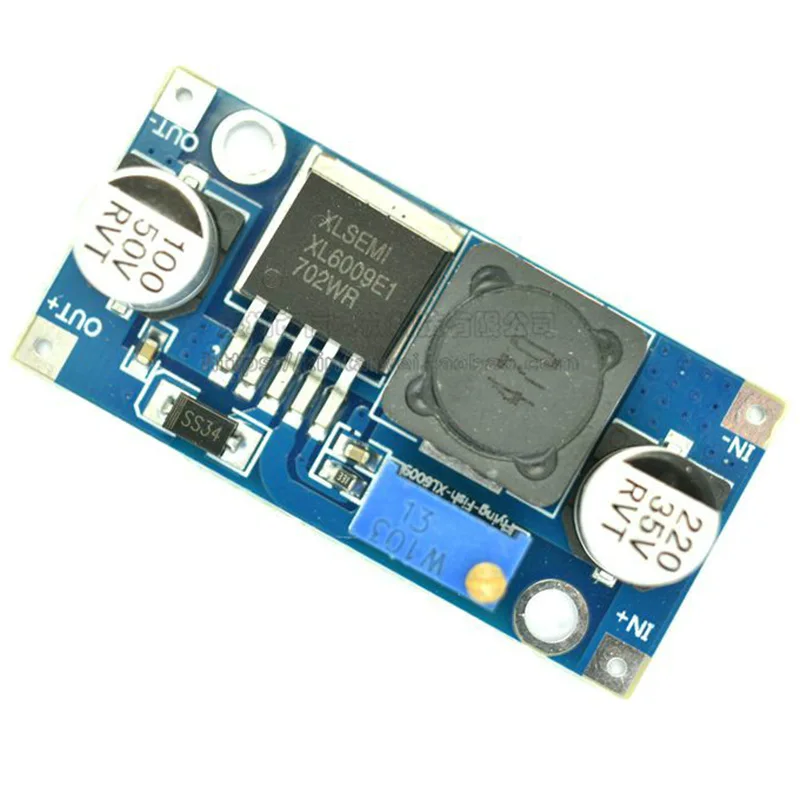

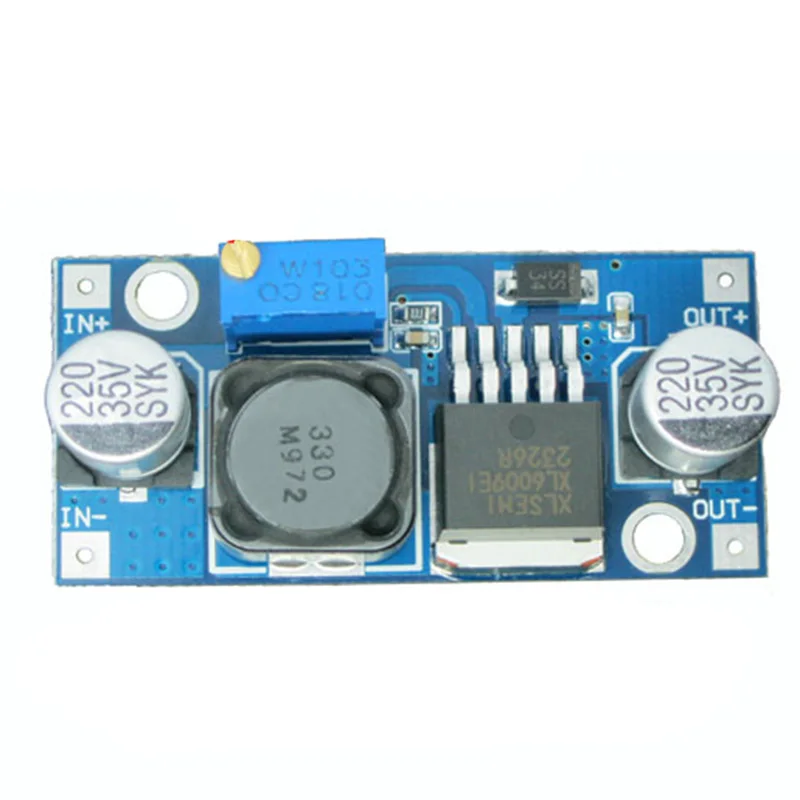

XL6009 DC-DC Booster Module Power Supply Module Output Adjustable Super LM2577 Step-up Vrm Module DC010

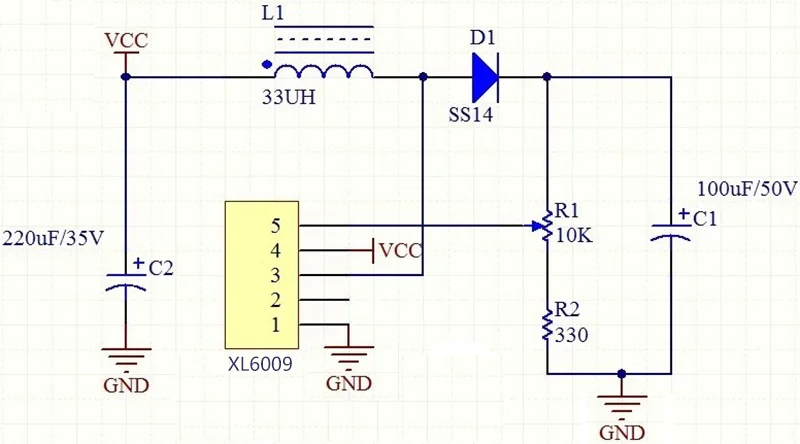

XTW6009 is a 4A switching current high performance step-up (BOOST) module. This module uses the third generation high frequency switching technology XL6009E1 as the core chip, the performance is far superior to the first generation technology LM2577. The XL6009 boost module is less expensive and better in performance, and the LM2577 module is about to be phased out.

• Ultra wide input voltage 3V~32V, the optimum operating voltage range is 5~32V;
• Ultra wide output voltage 5V~40V;
• Built in 4A high efficiency MOSFET switch tube, the efficiency is as high as 94%; (LM2577 current is only 3A);
• Ultra high switching frequency 400KHz, can use small capacity filter capacitor, that can achieve very good effect, ripple less, smaller size. (LM2577 frequency only 50KHz).

Technical parameters:

• Specifications: DSN6009 booster module

• Module properties: non isolated step-up (BOOST)

• Methods: the non synchronous rectifier rectifier

• The input range: 3V~32V

• The output range: 5V~40V

• Input current: 4A (max), no load 18mA (5V input, 8V output, load is less than 18mA. The higher the voltage, the greater the no-load current).

• Conversion efficiency: <94% (more, pressure is low efficiency)

• The switching frequency: 400KHz

• Output ripple: 50mV (the higher the voltage, the current is greater, the greater the ripple)

• Load regulation: +- 0.5%

• Voltage regulation rate: +- 0.5%

• Working temperature:-40~ +85 degrees Celsius

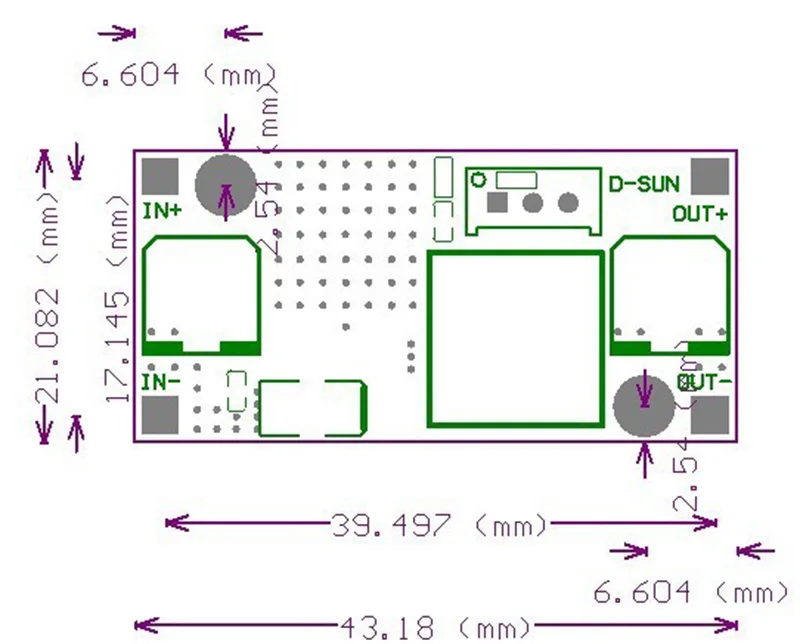

• Size: 43mm * 21mm * 14mm

1* XL6009 DC-DC Booster Module
