Monday Kids 10pcs/lot CC2500 Wireless Module 2.4G Low Power Consumption for electronics development Remote-control 1.8-3.6v WM004

Be the first to review this product

$20.59

Availability: In stock

SKU

RY-ES-417

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Type: Voltage Regulator
Operating Temperature: -40-85 centigrade
Supply Voltage: 1.8-3.6V
is_customized: Yes
Model Number: CC2500 Wireless Module
Condition: New
Application: Remote control

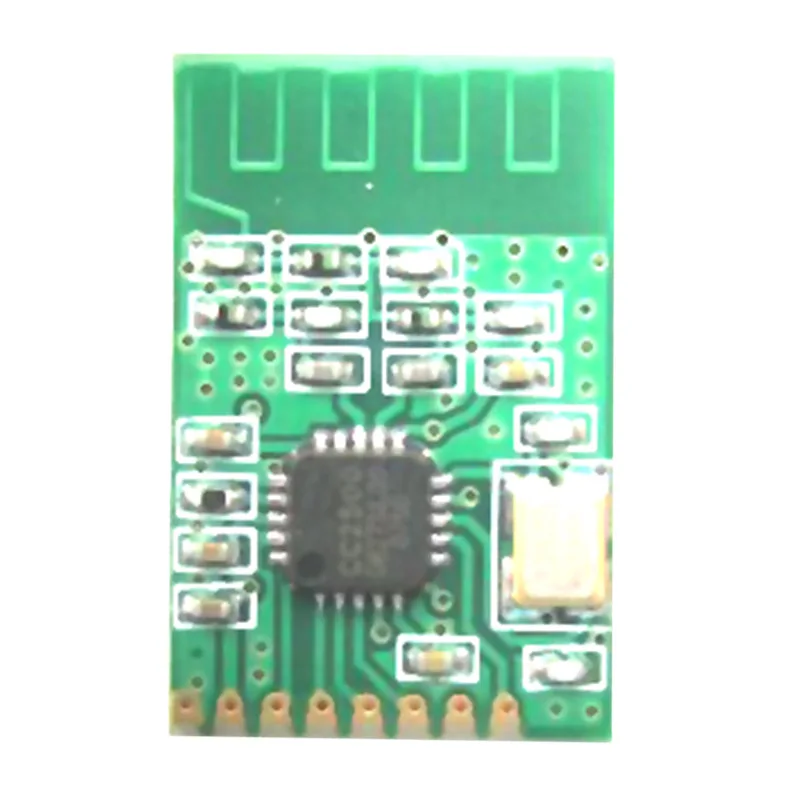

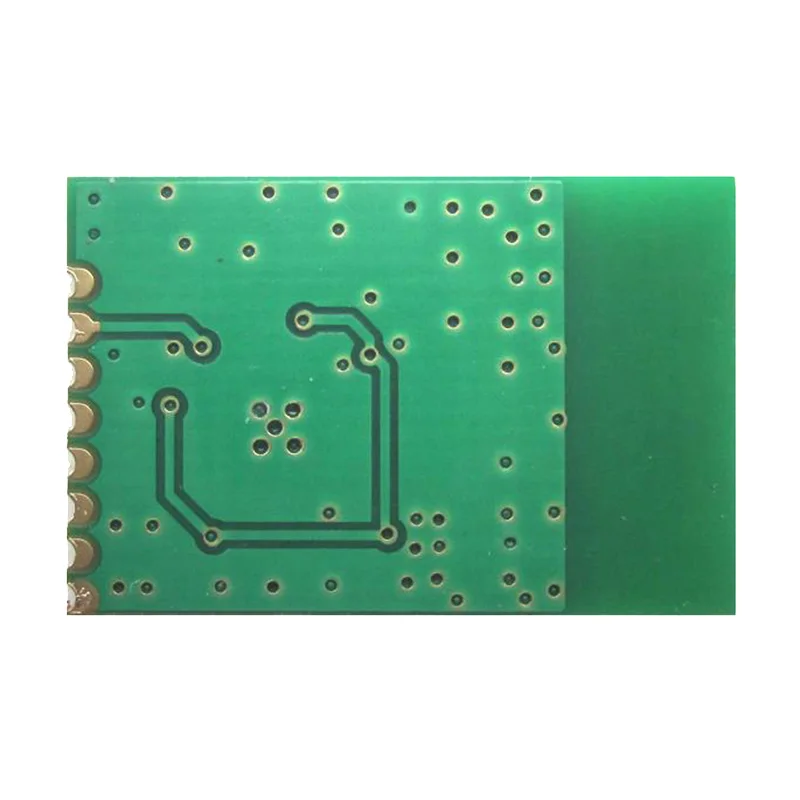

CC2500 Wireless Module 2.4G Small Volume Low Power Consumption

1、the working frequency is 2.4GHz, effective frequency: 2400-2483.5 MHz ISM/SRD band.

2、open transmission distance is greater than 60 meters, the farthest 100 meters. With PCB antenna, no need to match the antenna!

3、low current loss, launch current is 11mA to 21mA software can adjust,receive current is 15mA. with wireless wake-up (WOR, 900nA) function, you can wake up SCM in a wireless way.The sleep current is less than 500nA, which is the ideal product for the remote control and active RFID.

4、efficient SPI serial programming interface

5、the working temperature range: -40 ~ 85 degrees, at -20 degrees to 70 degrees, the precision is +-10ppm.

6、working voltage: 1.8-3.6 v.

7、effective frequency:2400-2483.5 MHz ISM/SRD band

8、the sensitivity is high, the output power can be programmed

9、the highest transmission rate up to 500Kbps.

10、up to 255 channels can be programmed,frequency hopping function can be realized conveniently. Bandwidth can be divided by setting register.

11、appearance size: 12 * 18 *2mm

12、circuit connection is as follows:
