Monday Kids Welding Practice JZ-K3 51 MCU Development Board Learning System Board Experiment Board Kit DIY Parts

$8.89
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Type: Voltage Regulator
  • Condition: New
  • Model Number: Welding Practice JZ-K3
  • is_customized: Yes
  • Application: Other

Description:

Note:This module is DIY Kit ,Not a finished product.

Characteristics:
1. Onboard MAX232 communication IC, USB to serial cable download and communication, USB male to male extension cable to the board, or DC port (5.5*2.1 specification) for power supply, 5V power adapter;
2, the self-recovery fuse on the board, automatically power off when the board is shorted or the microcontroller is reversed, to protect your computer and microcontroller;

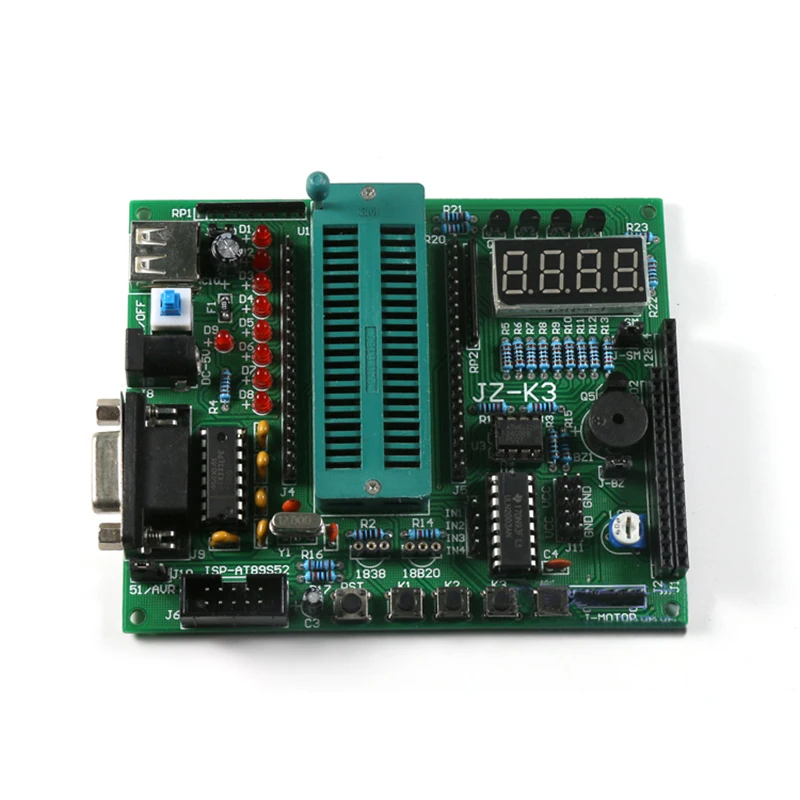

3, on the board: self-recovery fuse, LED water light, 4-digit common digital tube, buzzer, stepper motor driver chip ULN2003, memory chip 24C02, 4 independent buttons, MAX232 communication IC, 51/AVR select reset Circuit, temperature sense 18B20 interface, infrared receiver interface, P0 pull-up resistor, single-chip 40-pin pin, 5V/GND pin 5Pin, LCD1602 interface, LCD12864 interface and ISP download interface;
4. The three ICs on the board are active and plugged into the IC holder for easy replacement or “for other uses”.
Purchase Reminder: The kit does not include a microcontroller, download line and power cord, all parts need to be soldered by themselves.
Package include:

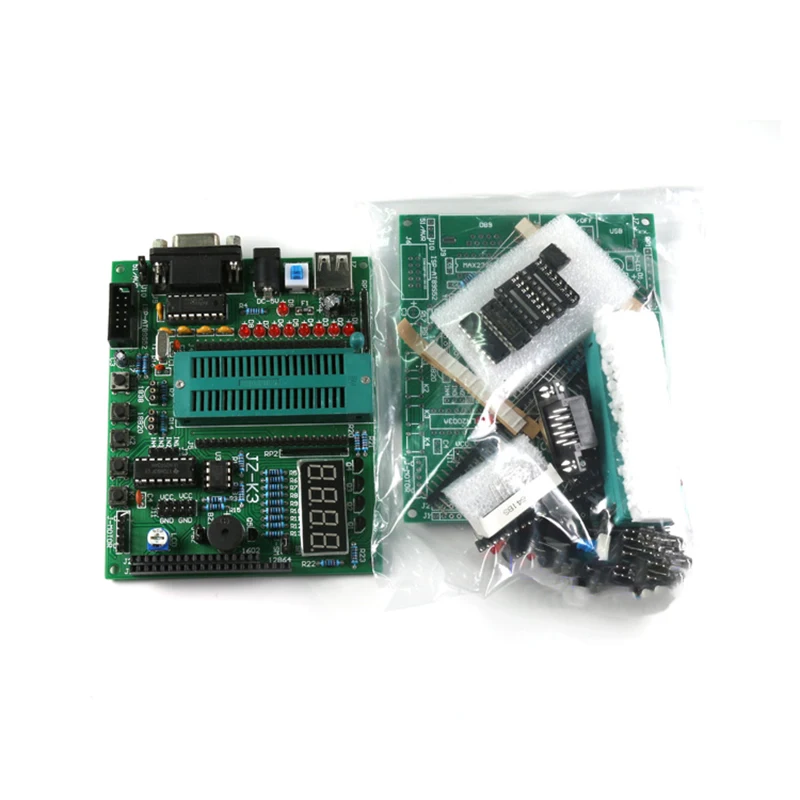

1 * JZ-K3 51 microcontroller development board Kit
Schematic:

  • Unit Type: piece
  • Package Weight: 0.1kg (0.22lb.)
  • Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
