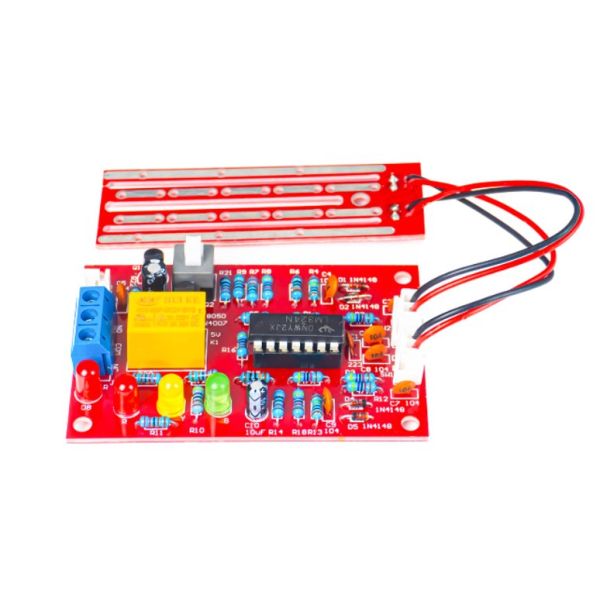

Monday Kids Water Level Control Relay Kit - Automatic Water Pump Circuit Board DIY Kit

This product is a Water Level Control Relay Kit designed for electronic enthusiasts and students to learn and practice electronics skills. The kit includes all necessary electronic components and circuit board, allowing users to assemble and solder a complete water level control relay. It is ideal for students for electronic skills training and for electronic enthusiasts for DIY projects.

Product Parameters:

Model: TJ-56-16
Power Supply Voltage: DC 5V
Board Size: 71 x 69mm


Function Explanation: The water level (liquid) controller can achieve the following two functions (functions 1 and 2 are switched via button S1):

Automatic Water Filling:
LEDs of three colors indicate low (red), medium (yellow), and high (green) water levels.
When the water level is low, the relay is activated (external water pump operates) to add water. When the water level rises to the low water level, the relay deactivates, stopping the water addition. When the water level drops again to the low water level, the relay reactivates, and the process repeats. This function maintains the water level between the low and high levels.
Automatic Drainage:
LEDs of three colors indicate low (red), medium (yellow), and high (green) water levels.
When the water level is high, the relay deactivates (external solenoid valve operates) to start draining. When the water level drops to the low water level, the relay activates (solenoid valve stops working). When the water level rises again to the high water level, the relay reactivates, and the process repeats. This function maintains the water level between the low and high levels.


Circuit Principle: The entire system consists of a power module, LED indicator circuit, relay drive circuit, liquid level sensor circuit, relay drive, and sensor module. The power module provides a stable voltage, the LED indicator circuit shows the current water level status, the relay drive circuit controls the relay's activation and deactivation, the liquid level sensor circuit detects water level changes, and the relay drive and sensor module achieve the water level control function.

Product Features:

Educational Value: Suitable for students to conduct electronic skills training, helping them grasp basic knowledge of electronic components and soldering techniques.
DIY Project: Perfect for electronic enthusiasts to carry out DIY projects, enhancing hands-on skills and innovative thinking.
High-Quality Components: Uses high-quality electronic components to ensure circuit stability and reliability.
Detailed Manual: Comes with a detailed assembly and soldering manual to help users complete the project smoothly.
Practical Function: The finished water level control relay can be used for practical applications such as automatic water filling and drainage.


Combination of Education and Entertainment: Students can learn electronic knowledge through hands-on creation, increasing their interest in learning.
Easy Assembly: Detailed manual and high-quality components make the assembly process simple and easy to understand.



Usage Instructions:

Preparation: Gather soldering tools (soldering iron, solder wire, etc.) and power supply.
Assemble Circuit: Follow the manual to solder the electronic components onto the circuit board.
Connect Power: Connect the circuit board to a 5V DC power supply.
Test Function: Test the water level control relay's functionality by inputting signals to ensure it works properly.


Circuit Diagram: A detailed circuit diagram is provided with the kit. Users can follow the circuit diagram to assemble and solder, ensuring the accuracy of the circuit.

Purchase Information:

Applicable Range: The kit is suitable for students' electronic skills training and electronic enthusiasts' DIY projects.
