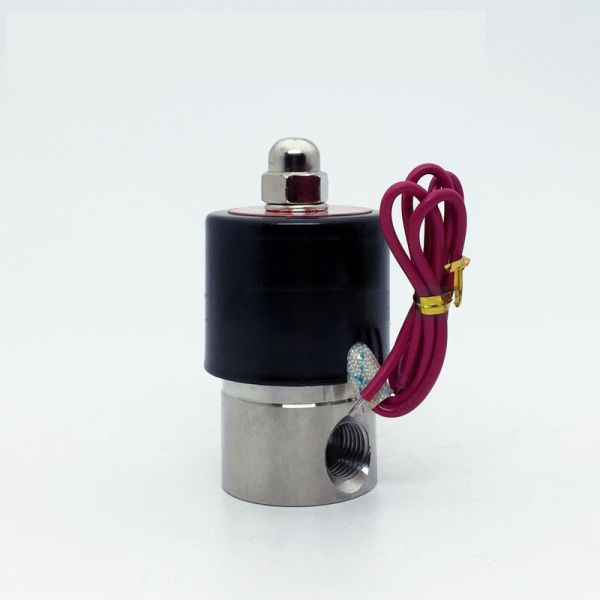

Monday Kids Solenoid Valve 24V AC Solenoid 380V AC Solenoid 36V AC Solenoid 220V AC Solenoid 110V AC Solenoid 24V DC Solenoid 6V DC Solenoid

Features:

It uses a direct-acting diaphragm structure that starts without pressure, expanding its field of use.
It uses a flat diaphragm structure for reliable opening and closing, which enhances the product’s lifespan.

Technical Specifications:

Medium: Air, Water, Oil
Action Mode: Direct Acting
Type: Normally Closed (Opens when energized, remains closed when de-energized)
Port Size: 1/4
Orifice Size: 2.5mm
CV Value: 48
Viscosity of Fluid: Below 20 CST
Operating Pressure: Air, Water, Oil: 0~1Mpa
Maximum Pressure Resistance: 1.0Mpa
Operating Temperature: -5~155℃
Voltage Range: ±10%
Body Material: Stainless Steel 304
Seal Material: NBR or VITON
Wiring: Two wires, connection not polarity sensitive

Installation Method: The bottom indicates the direction of water flow, and reversing the installation will affect its use.

Applications and Features:

This series is made of all stainless steel, suitable for weak acid and weak alkali environments that require corrosion resistance. It is an ideal control element for pure water equipment, food, medical machinery, and other applications.
The all-stainless steel solenoid valve is an actuator used in industrial process automation control systems. Upon receiving an electrical control signal, it can automatically open or close, achieving control of the fluid medium in the pipeline, either on/off or flow regulation. The solenoid valve can be widely used in textile mills, printing, chemical industry, plastics, rubber, pharmaceuticals, food, building materials, machinery, electrical appliances, surface treatment, etc., as well as in bathrooms, canteens, air conditioning, and other daily life applications.
This series of solenoid valves is mainly used to control corrosive liquids, ultra-pure liquids, and edible liquids, among other liquid media. This series of solenoid valves is mainly used to control corrosive liquids and ultra-pure gases, among other media.
