Monday Kids Voltage Current Converter Module Non-Isolated LED Indicator DC 7-30V For Industrial Control 4-20mA 3.3V 5V 9V 12V 24V

0-2.5V to 4-20mA

1.Description:
It is a 0-2.5V to 4-20mA Voltage to Current Converter. It can convert DC 0-2.5V voltage signal to 4-20mA current signal.User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.
2.Features:
1>.Repeatable setting parameters
2>.Constant current output source
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:0-2.5V to 4-20mA Voltage to Current Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Voltage:DC 0-2.5V(Default)
4>.Output Signal Current:4mA-20mAV(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH

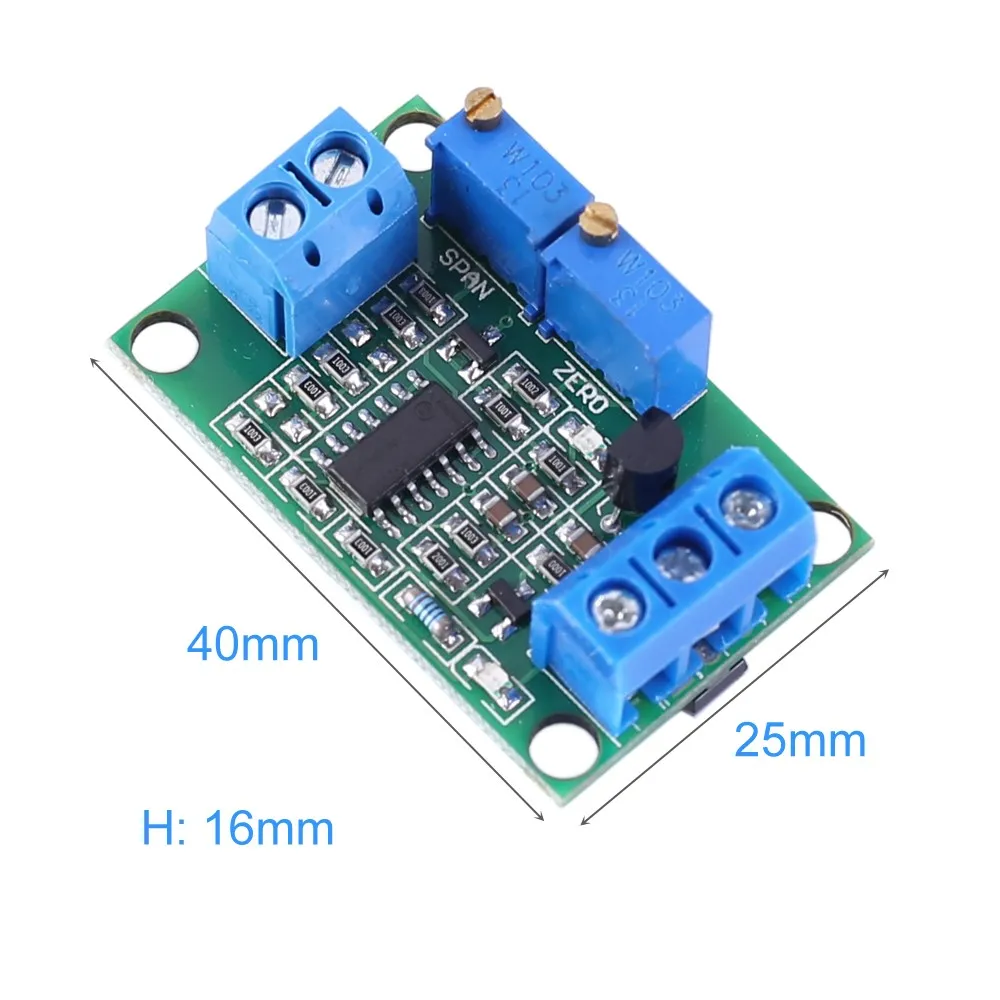

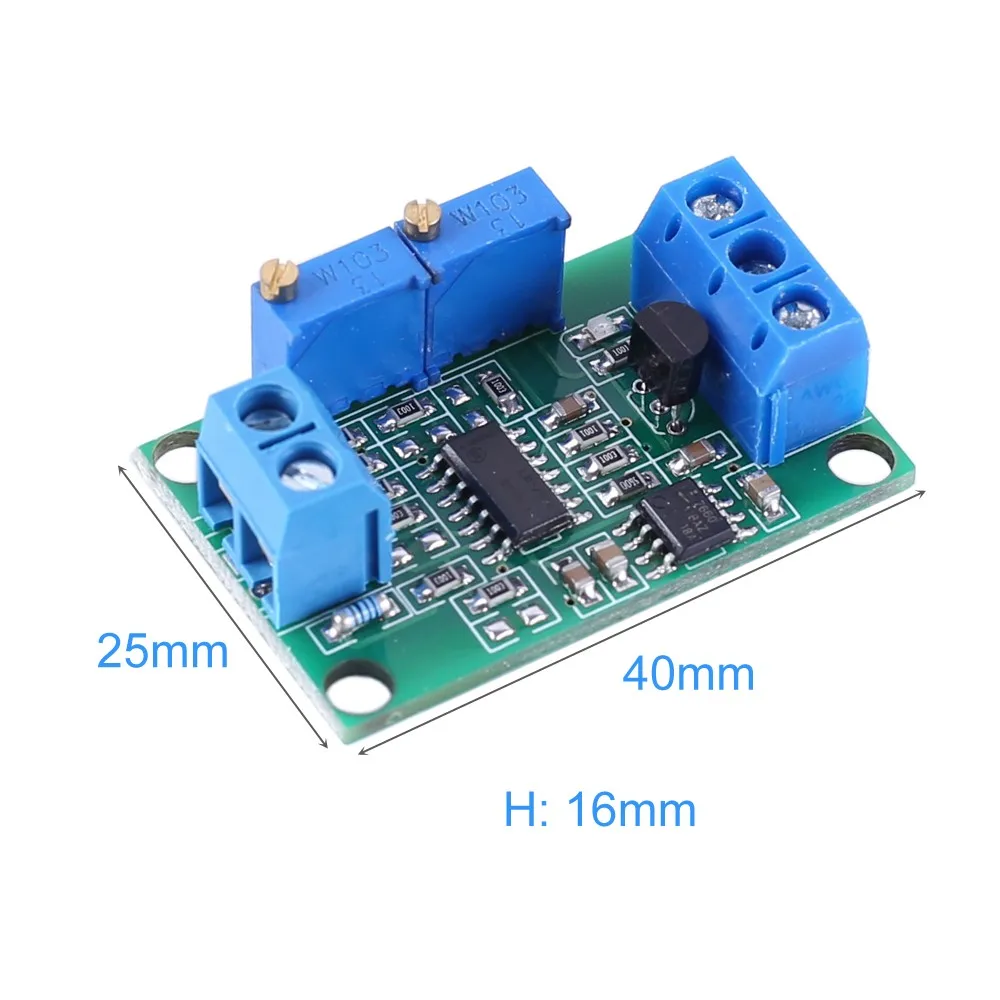

8>.Module Size:40*25*16mm

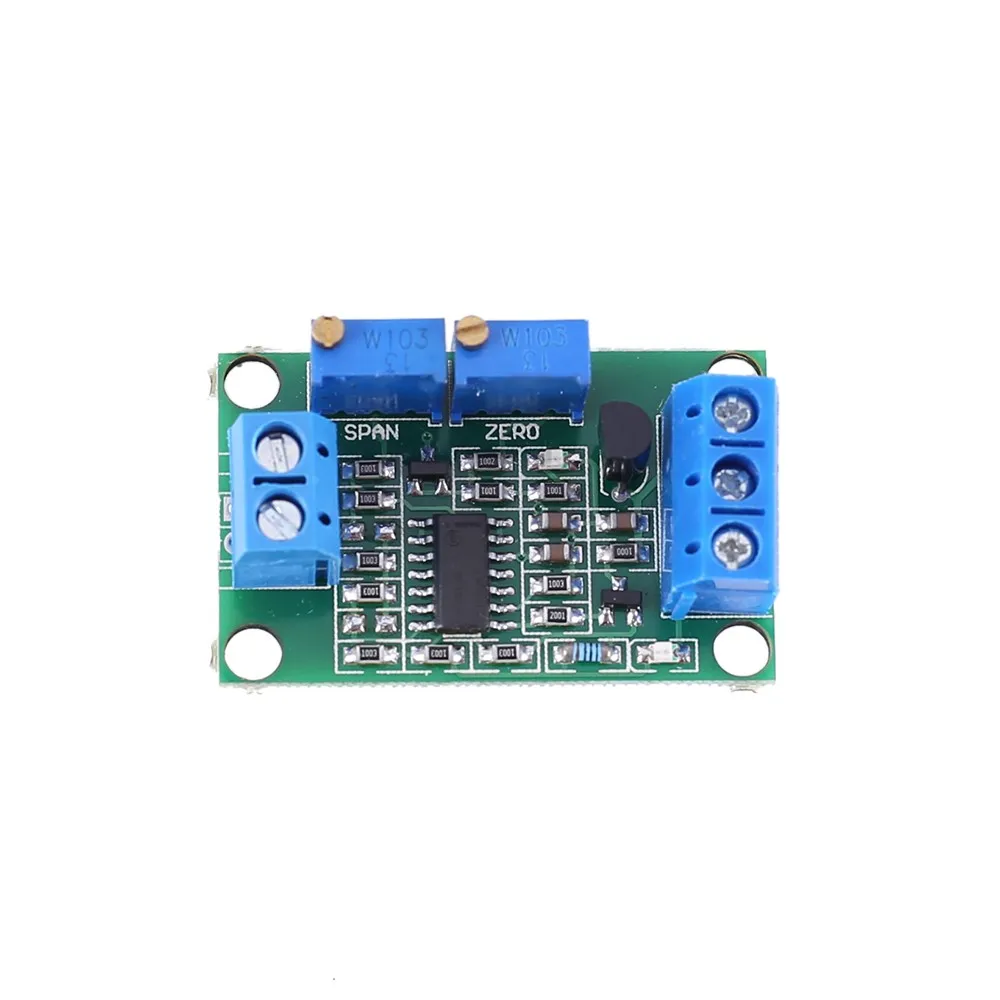

4.Reset Parameters:
1>.For example: set the module to 1.3V-2.4V to 3mA-18mA.
2>.Input 1.3V voltage signal.
3>.Adjust ZERO(Right) potentiometer until the output current is 3mA.
4>.Input 2.4V voltage signal.
5>.Adjust SPAN(Left) potentiometer until the output current is 18mA.
5.Application:
1>.PLC industrial controller
2>.Circuit safety protection equipment
3>.Factory circuit design
4>.Industrial measuring instruments

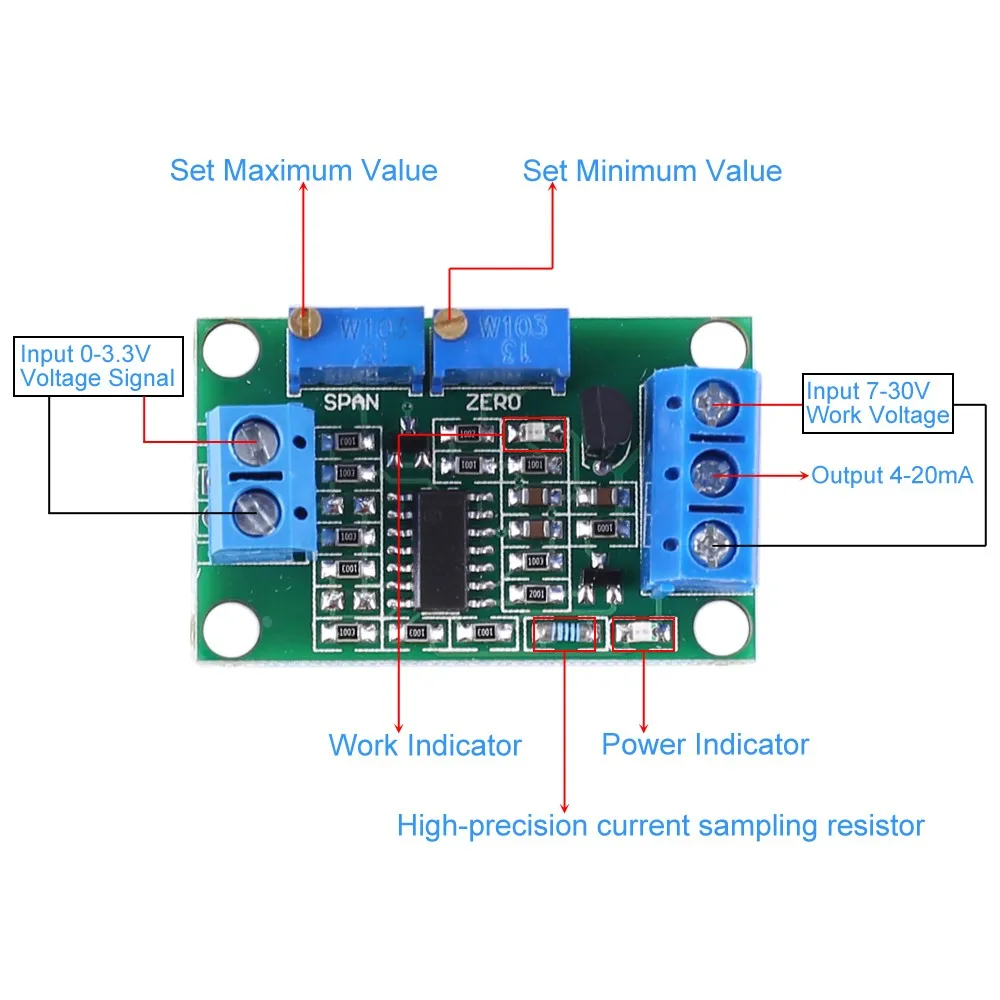

0-3.3V to 4-20mA

1.Description:
It is a 0-3.3V to 4-20mA Voltage to Current Converter. It can convert DC 0-3.3V voltage signal to 4-20mA current signal.User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.
2.Features:
1>.Repeatable setting parameters
2>.Constant current output source
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:0-3.3V to 4-20mA Voltage to Current Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Voltage:DC 0-3.3V(Default)
4>.Output Signal Current:4mA-20mAV(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

0-5V to 4-20mA:

Introduction:

1.Appearance Size:40*25*12mm

2.Power Supply Voltage:DC 7-30V

3.Input Voltage:0-5V

4.Output Current:4-20mA

5.Temperature Drifting:+/-100ppm/

6.Ambient Temperature:-10~60

7.Storage Temperature:-20~85

8.Relative Humidity:10-90%RH

9.Air Pressure:86-106Kpa

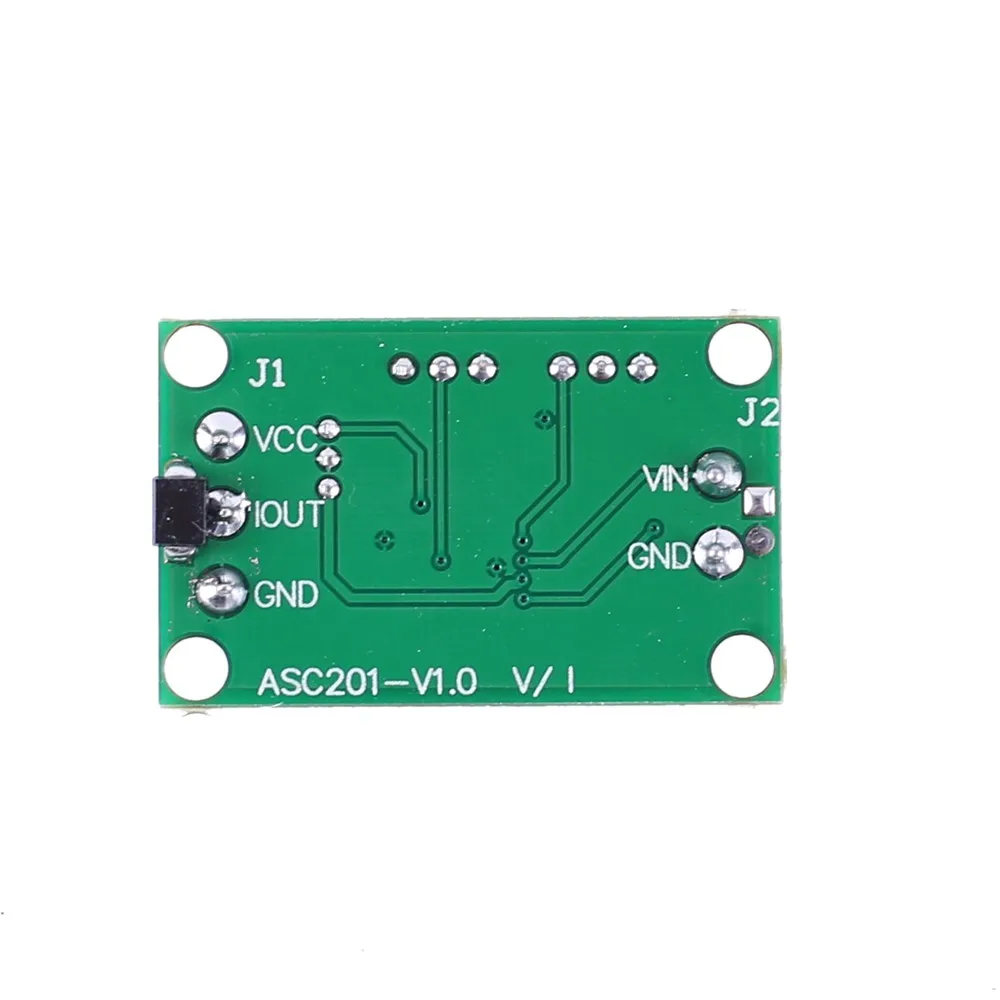

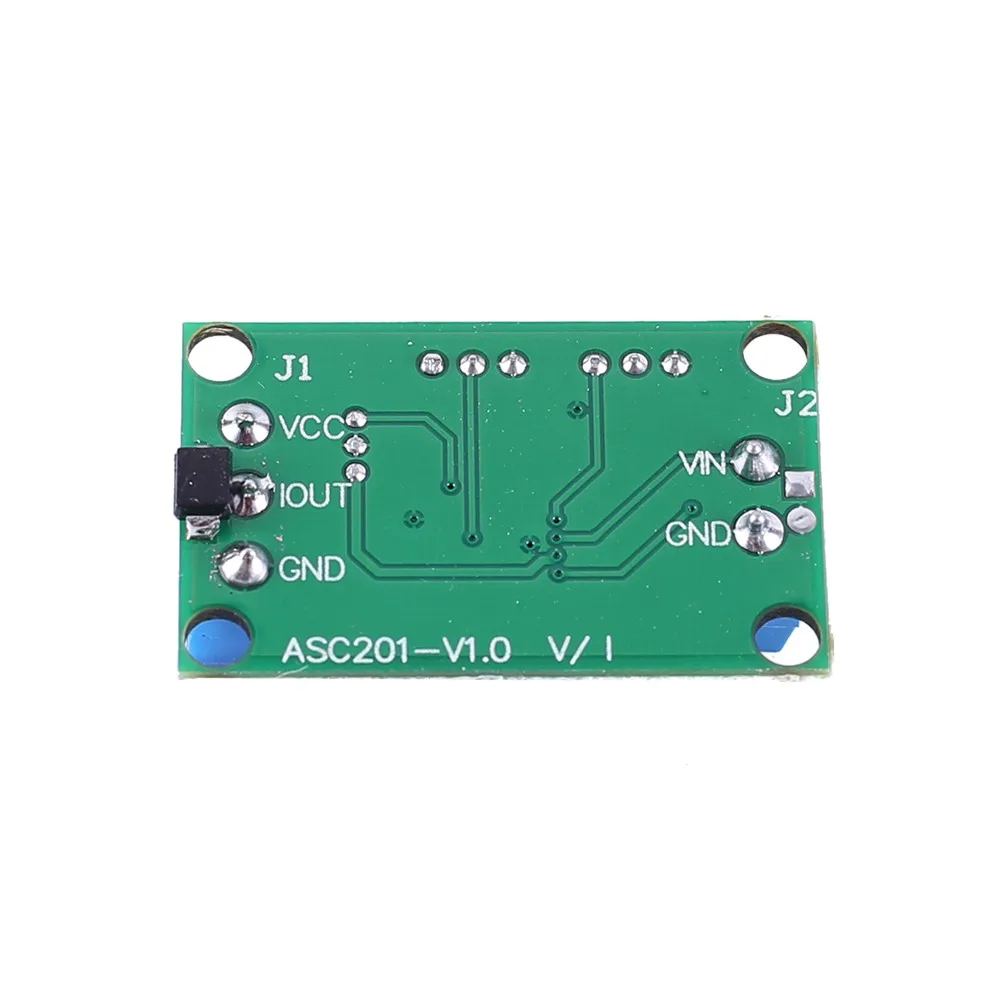

10.Connection Picture:

0-10V to 4-20mA

1.Description:
It is a 0-10V to 4-20mA Voltage to Current Converter. It can convert DC 0-10V voltage signal to 4-20mA current signal.User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.
2.Features:
1>.Repeatable setting parameters
2>.Constant current output source
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:0-10V to 4-20mA Voltage to Current Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Voltage:DC 0-10V(Default)
4>.Output Signal Current:4mA-20mAV(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

0-15V to 4-20mA

1.Description:
It is a 0-15V to 4-20mA Voltage to Current Converter. It can convert DC 0-15V voltage signal to 4-20mA current signal.User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.
2.Features:
1>.Repeatable setting parameters
2>.Constant current output source
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:0-15V to 4-20mA Voltage to Current Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Voltage:DC 0-15V(Default)
4>.Output Signal Current:4mA-20mAV(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

0-1V to 4-20mA

1.Description:
It is a 0-1V to 4-20mA Voltage to Current Converter. It can convert DC 0-1V voltage signal to 4-20mA current signal.User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.
2.Features:
1>.Repeatable setting parameters
2>.Constant current output source
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:0-1V to 4-20mA Voltage to Current Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Voltage:DC 0-1V(Default)
4>.Output Signal Current:4mA-20mAV(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

4-20mA to 0-2.5V

1.Description:
It is a 4-20mA to 0-2.5V Current to Voltage Converter. It can convert DC 0-2.5V voltage signal to 4-20mA current signal.User also can reset input current range and output voltage range by two potentiometer.
2.Features:
1>.Repeatable setting parameters
2>.Non-isolated module
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:4-20mA to 0-2.5V Current to Voltage Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Current:4mA-20mAV(Default)
4>.Output Signal Voltage:DC 0-2.5V(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

4.Reset Parameters:
1>.For example: set the module to 3mA-18mA to 1.3V-2.4V.
2>.Input 3mA current signal.
3>.Adjust Right potentiometer until the output voltage is 1.3V.
4>.Input 2.4V current signal.
5>.Adjust Left potentiometer until the output voltage is 2.4V.

4-20mA to 0-3.3V

1.Description:
It is a 4-20mA to 0-3.3V Current to Voltage Converter. It can convert DC 0-3.3V voltage signal to 4-20mA current signal.User also can reset input current range and output voltage range by two potentiometer.
2.Features:
1>.Repeatable setting parameters
2>.Non-isolated module
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:4-20mA to 0-3.3V Current to Voltage Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Current:4mA-20mAV(Default)
4>.Output Signal Voltage:DC 0-3.3V(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

4.Reset Parameters:
1>.For example: set the module to 3mA-18mA to 1.3V-2.4V.
2>.Input 3mA current signal.
3>.Adjust Right potentiometer until the output voltage is 1.3V.
4>.Input 2.4V current signal.
5>.Adjust Left potentiometer until the output voltage is 2.4V.

4-20mA to 0-5V

1.Description:
It is a 4-20mA to 0-5V Current to Voltage Converter. It can convert DC 0-5V voltage signal to 4-20mA current signal.User also can reset input current range and output voltage range by two potentiometer.
2.Features:
1>.Repeatable setting parameters
2>.Non-isolated module
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:4-20mA to 0-5V Current to Voltage Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Current:4mA-20mAV(Default)
4>.Output Signal Voltage:DC 0-5V(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

4-20mA to 0-10V

1.Description:
It is a 4-20mA to 0-10V Current to Voltage Converter. It can convert DC 0-10V voltage signal to 4-20mA current signal.User also can reset input current range and output voltage range by two potentiometer.
2.Features:
1>.Repeatable setting parameters
2>.Non-isolated module
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:4-20mA to 0-10V Current to Voltage Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Current:4mA-20mAV(Default)
4>.Output Signal Voltage:DC 0-10V(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

4-20mA to 0-15V

1.Description:
It is a 4-20mA to 0-15V Current to Voltage Converter. It can convert DC 0-15V voltage signal to 4-20mA current signal.User also can reset input current range and output voltage range by two potentiometer.
2.Features:
1>.Repeatable setting parameters
2>.Non-isolated module
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:4-20mA to 0-15V Current to Voltage Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Current:4mA-20mAV(Default)
4>.Output Signal Voltage:DC 0-15V(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm

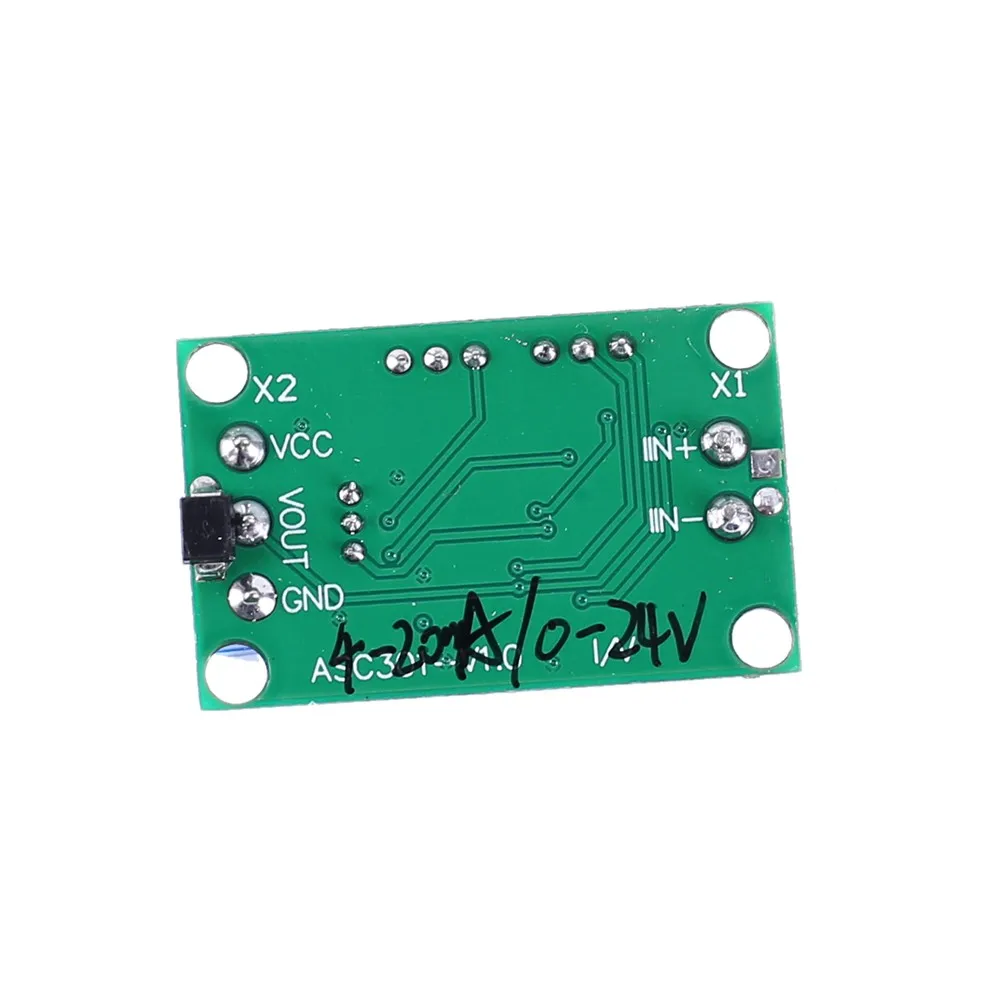

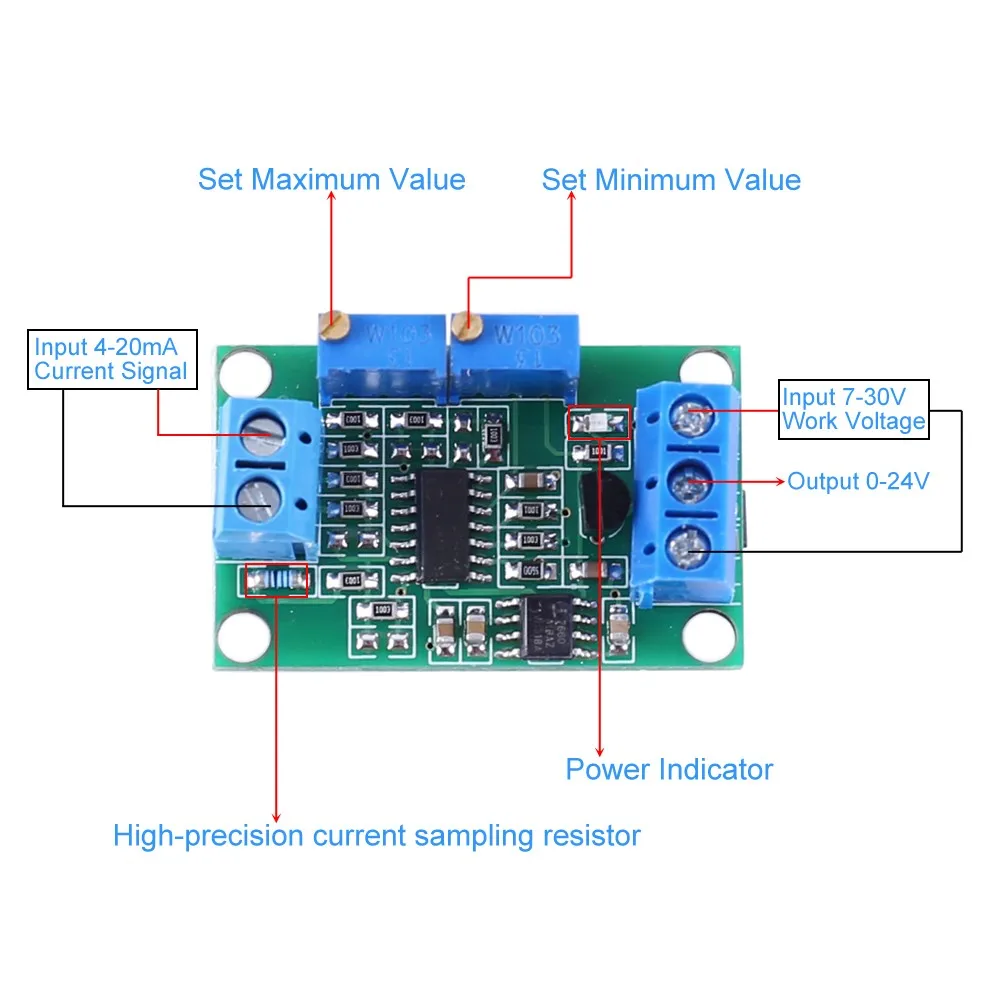

4-20mA to 0-24V

1.Description:
It is a 4-20mA to 0-24V Current to Voltage Converter. It can convert DC 0-24V voltage signal to 4-20mA current signal.User also can reset input current range and output voltage range by two potentiometer.
2.Features:
1>.Repeatable setting parameters
2>.Non-isolated module
3>.Flame retardant material connector
3.Parameters:
1>.Product Name:4-20mA to 0-24V Current to Voltage Converter
2>.Working Voltage:DC 7V-30V
3>.Input Signal Current:4mA-20mAV(Default)
4>.Output Signal Voltage:DC 0-24V(Default)
5>.Precision: 1mA
6>.Working Temperature range:-10~60
7>.Working Humidity Range:10%-90%RH
8>.Module Size:40*25*16mm
