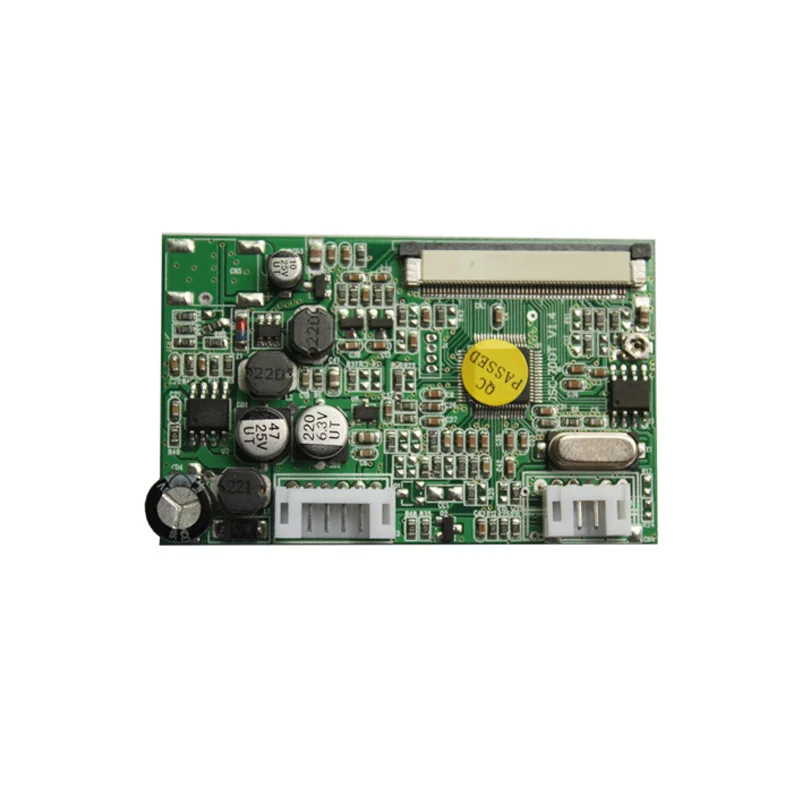

The SC-70DT V:1.1 driver board has two VIDEO inputs. The external potentiometer adjusts the brightness and color. There are two types of PAL and NTSC, which can realize automatic conversion. This module is widely used in display terminals such as car TV, portable consumer electronics, security access control, visual buildings, video phones, industrial instrumentation and other fields.
Basic parameters
Product Name: 7" board
Product model; SC-70DT
1) Driver board
Appearance dimensions (mm) of the drive board: 55 (W) * 37.2 (H) * 8.2 (D)
System standard; PAL/NTSC
2) LCD display
Representation: seven-inch BOE screen
Backlight mode: LED
Resolution: 800*3 (RGB) * 480
Appearance dimensions (mm) of the LCD screen: 164.9 (W) * 100 (H) * 5.7 (D)
LCD effective display size (mm): 153.84 (W) * 85.632 (H)
Color arrangement: R.G.B. Straight line arrangement
Image display ratio: 16:9
3) Video input signal
Video input: PAL/NTSC system (automatic identification)
Standard: 1.0 Vp-p (amplitude: 0.714Vp-p video signal, 0.286Vp-p sync signal)
Minimum: 0.5 Vp-p
Maximum: 2.0 Vp-p
1. Working voltage (power supply ripple is less than 0.3VP-P)
Standard: DC12V
Minimum: DC 9V
Maximum: DC15V
2. Working current (when DC12V is supplied)
DC180mA±20mA
3. Power consumption ≤ 2.1W
4. Startup time ≤ 3 seconds
5. Working temperature ambient temperature range -10 ° C - 60 ° C
6. Storage temperature range -20 ° C - 70 ° C
