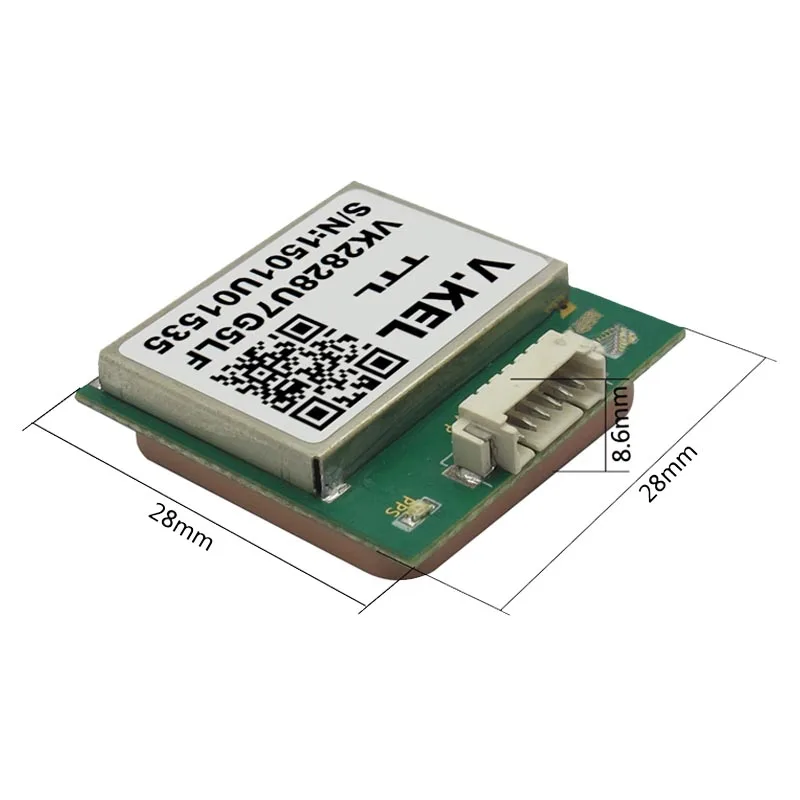

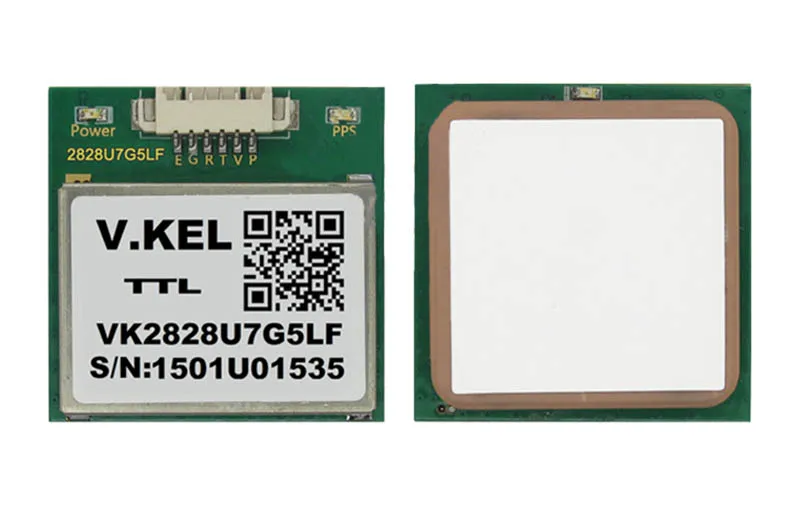

Monday Kids VK2828U7G5LF GPS Module Flight control antenna Navigation Module UART/TTL/232 optional interface for DIY GS004
$10.10
Availability:
In stock
SKU
RY-ES-268
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: 3.3-5V
- Operating Temperature: -40-85 centigrade
- Condition: New
- is_customized: Yes
- Model Number: VK2828U7G5LF
- Type: Logic ICs
- interface: UART/TTL,232 optional
- Built-in: SQI Flash
VK2828U7G5LF GPS Module Flight control antenna Navigation Module UART/TTL/232 optional interface for DIY
-
Standard 25*25*4MM high sensitivity GPS antenna
-
UART/TTL,232 optional interface
-
adopt KDS 0.5 PPM High Precision TCXO
-
Built-in SQI Flash
-
Built-in RTC crystal and Picofarads capacitance.faster hot root
-
Built-in LNA,Low-noise amplifier
-
1-10Hz
-
Support AssistNow Online and AssistNow Offline
-
GPS,GLONASS,GALILEO,SBAS(WAAS,EGNOS,MSAS,GAGAN) Hybrid Engine
Features:
-
Chip:UBX-G7020-KT
-
C/A code,1.023MHz Stream
-
receive frequency:L1 [1575.42MHz]
-
receive channel:56CH
-
S11 SWR:<=1.3
-
S11 Smith:50Ohm+(-)5%
-
S21 Log Mag:>=20.0dB
-
S22 SWR:<=1.3
Location Performance:
-
<2.5m[Autonomous][50%]
-
<2m[SBAS]
-
rate:<0.1m/s
-
direction:<0.5 Degrees
-
Timing accuracy:30ns
-
Reference coordinate system:WGS-84
-
Maximum altitude:50,000 m
-
Acceleration:<4g
-
Tracking sensitivity:-162dBm
-
catch sensitivity:-160dBm
-
root time:29s (in average)
-
warm root time:28s(in average)
-
hot root time:1s(in average)
-
AGPS:3s
1 * VK2828U7G5LF GPS Module
- Unit Type: piece
- Package Weight: 0.04kg (0.09lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
