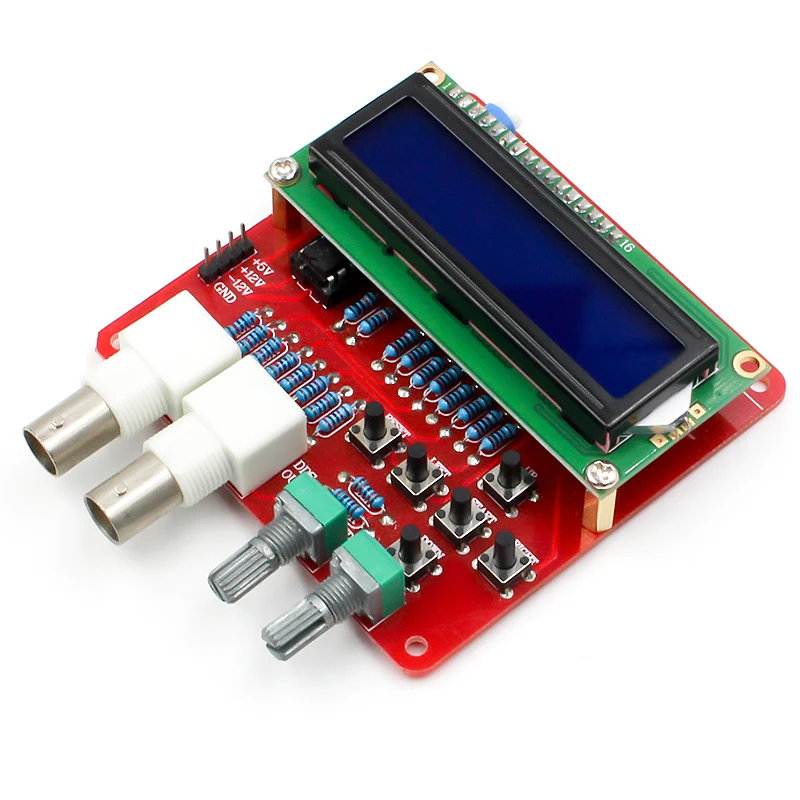

Monday Kids Version B AVR DDS Function DDS Signal Generator Module Kits Sine Triangle Square Wave Module
$6.12
Availability:
In stock
SKU
MX-20190909-A3
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Supply Voltage: 9V
- Type: Voltage Regulator
- DDS frequency range: 1HZ-65534Hz
- High speed frequency (HS) square wave: 1MHZ/2MHZ/4MHZ/8MHZ signal
- DDS signal: Sine wave, square wave, sawtooth wave, reverse sawtooth wave, triangle
- Step frequency value: 1,10,100,1000,10000Hz
- Offset: 0.5pp-5Vpp
- Amplitude: 0.5Vpp-14Vpp
- Output impedance: 20-200 ohms
Features:
Provided lots of electronic components for you to do it by yourself.
Simple circuit with easily accessible and cheap components.
Delicated high speed (HS) signal output up to 8MHz.
DDS signal with variable amplitude and offset.
DDS signals: sine, square, saw, rev saw ,triangle, ECG and noise.
2 * 16 LCD menu, intuitive 5 button keypad.
Frequency adjusting steps: 1, 10, 1000, 10000MHz.
Restoring last configuration after power up.
Has two outputs-one for DDS signal and another for high speed aquare signal.
Installation Detail:
http://www.dropbox.com/s/z0ktc666sct1gj1/H11887install.pdf?dl=0
Specifications:
Material: PCB + Electronic Components
Power Supply: +5V / +12V / -12V
Menu Displey: 2 * 16 LCD
HS Signal Frequency: 1, 2, 4, 8MHz
Red Board Size: 8 * 8cm / 3.15 * 3.15in (L * W)
Red Board Weight: 20g / 0.7oz
Screen Size: 6.5 * 1.5cm / 2.6 * 0.6in (L * W)
Screen Board Weight: 29g / 1.04oz
Package Size: 15 * 11 * 2cm / 5.9 * 4.3 * 0.8in (L * W * H)
Package Weight: 101g / 3.58oz
Package List:
1 * Bag of Electronic Components
