Monday Kids BMS 2S Li-ion 18650 Lithium Battery Charger Protection Board 7.4V 4A 2 Series Overcurrent Overcharge Overdischarge Protection
$1.48
Availability:
In stock
SKU
EK196
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: 7.4V
- Condition: New
- Type: Logic ICs
- Operating Temperature: -40~85 Celsius
- Dissipation Power: none
- is_customized: Yes
- Model Number: Charger Protection Board
- Application: Charger Protection Board
- Name: bms 18650
- Feature: li-ion charger
Please NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
Features:
1.Internally Install High Precision Volage Detection Circuit
2.Terminal Connecting With Charger Adopt High Withstand Voltage Compoents
3.Internally Install 3-Phase Overcurrent Detection Circuit (overcurrent 1,overcurrent 2,load short circuit)
4.Using MOS Tube Can Control Battery Charging/Discharging
5.Wide Operating Temperature Range:-40 Celsius ~85 Celsius
6.Low Consumption Current

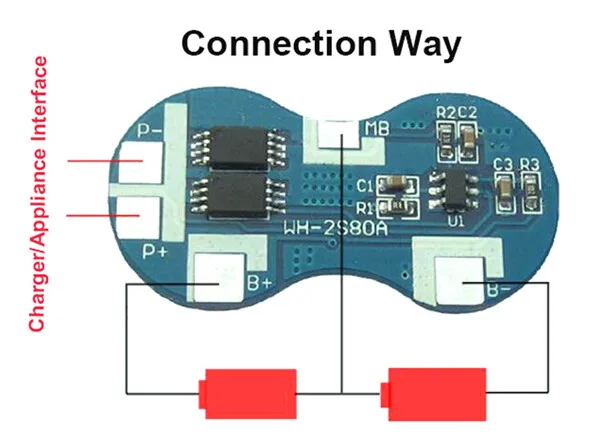

Connection Introduction:
1.B+:connect with battery positive
2.MB:connect with battery 1 and battery 2 joint
3.B-:connect with battery negative
4.P+:connect with charging/discharging port positive (charging port/discharging port are commonly used)
5.P-:connect with charging/discharging port negative (charging port/discharging port are commonly used)
Notice:
1.During connection,pay attention to input/output voltage,load current using condition,and make sure that board power consumption will not surpass tolerance consumption
2.When connect with battery,it may not discharge;in this condition,continuous charging can let it restore to normal operating state
3.When overcharging battery and overdischarging battery are mixed up,it will become charging and overdischarging state,both of them cannot perform charging and discharging
4.Although this protection board internallt installs anti-static protection circuit,please don't force too high static electricty on protection board

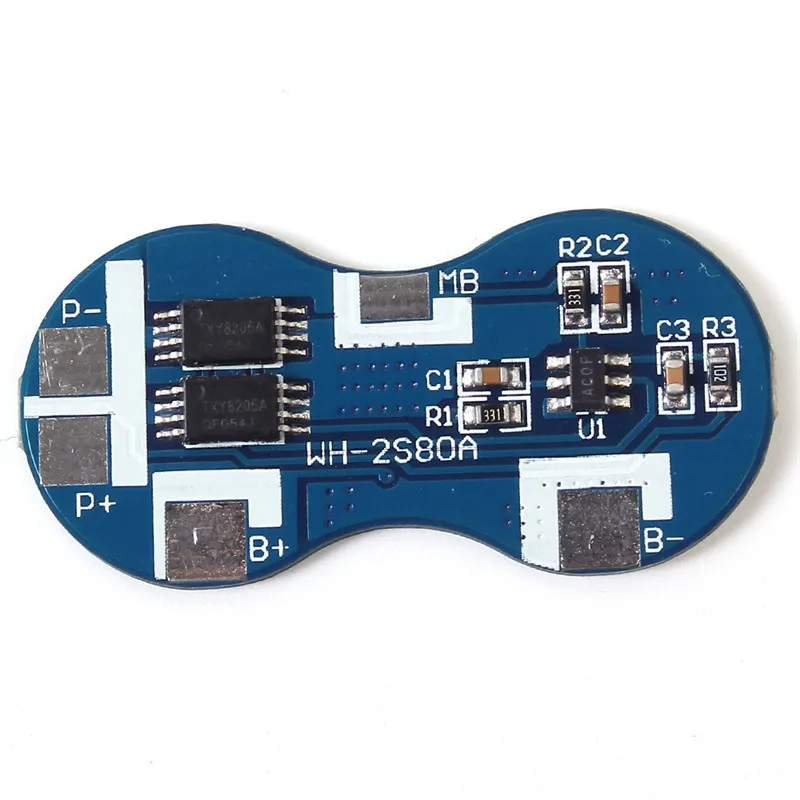

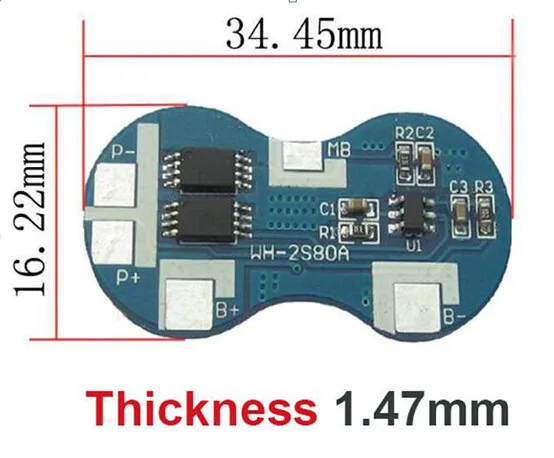

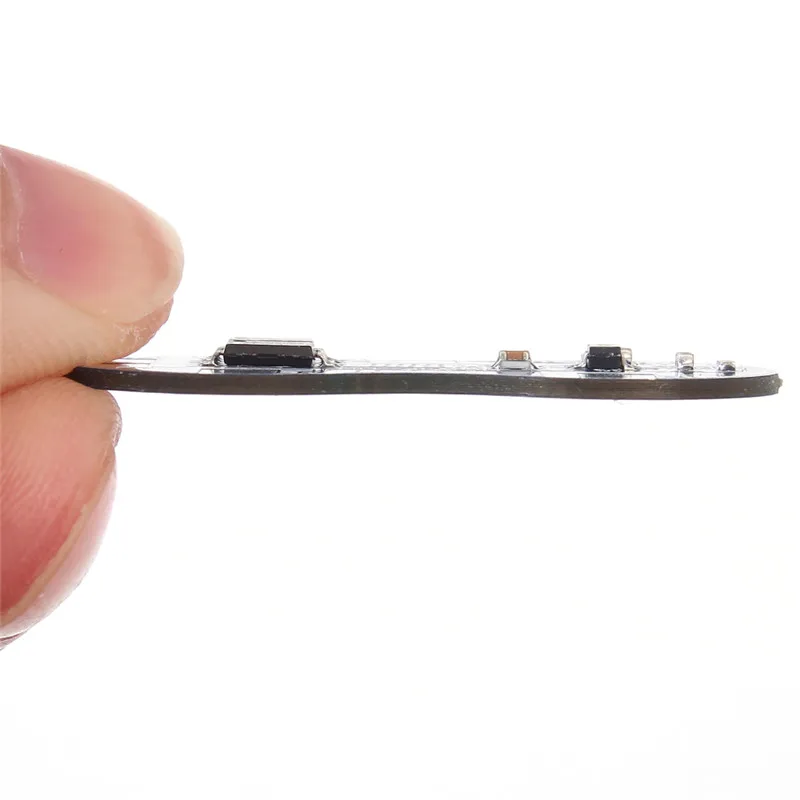

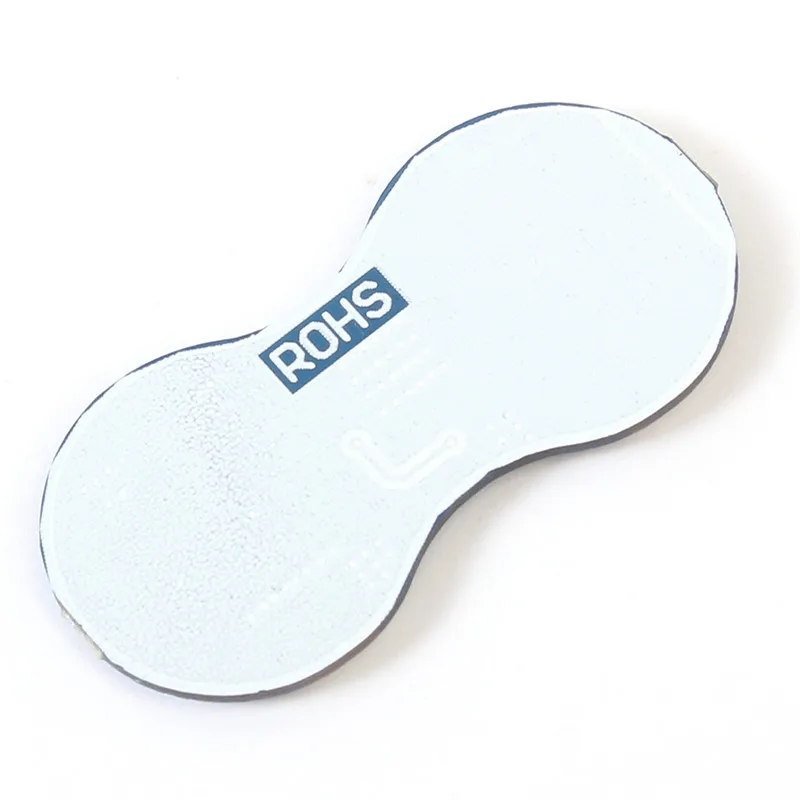

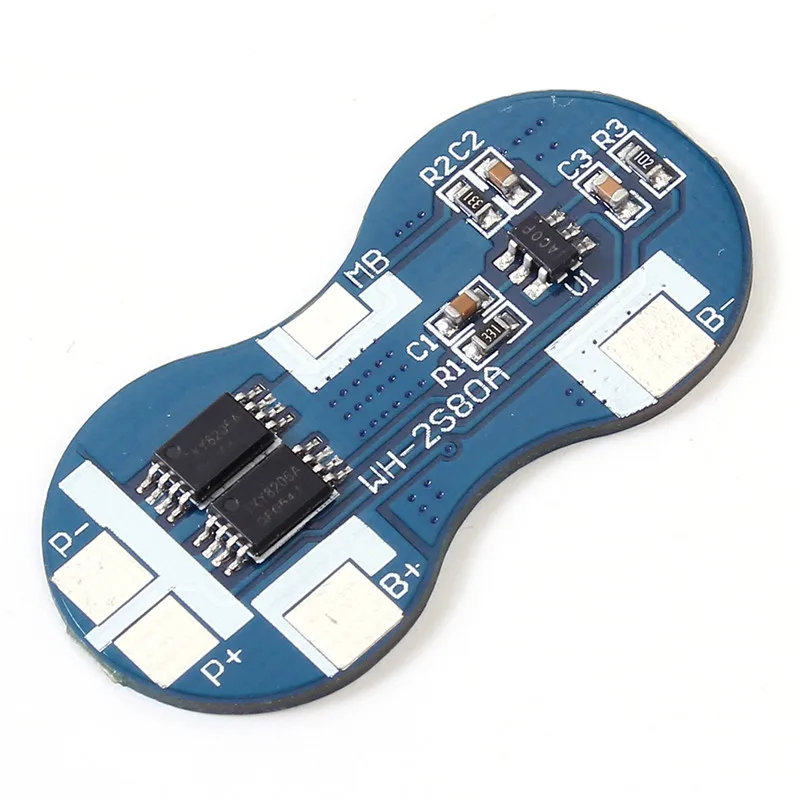

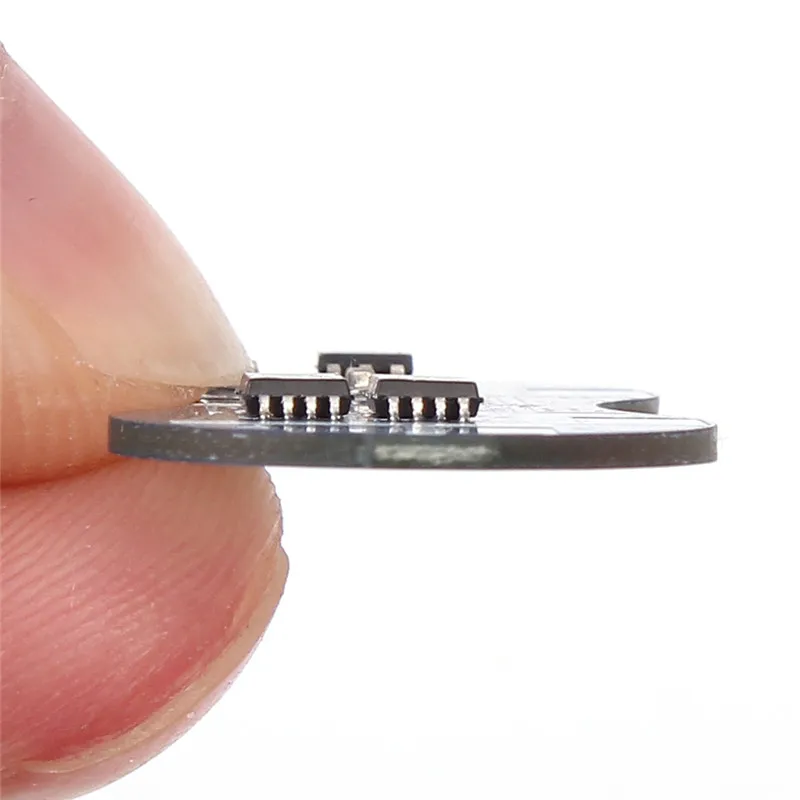

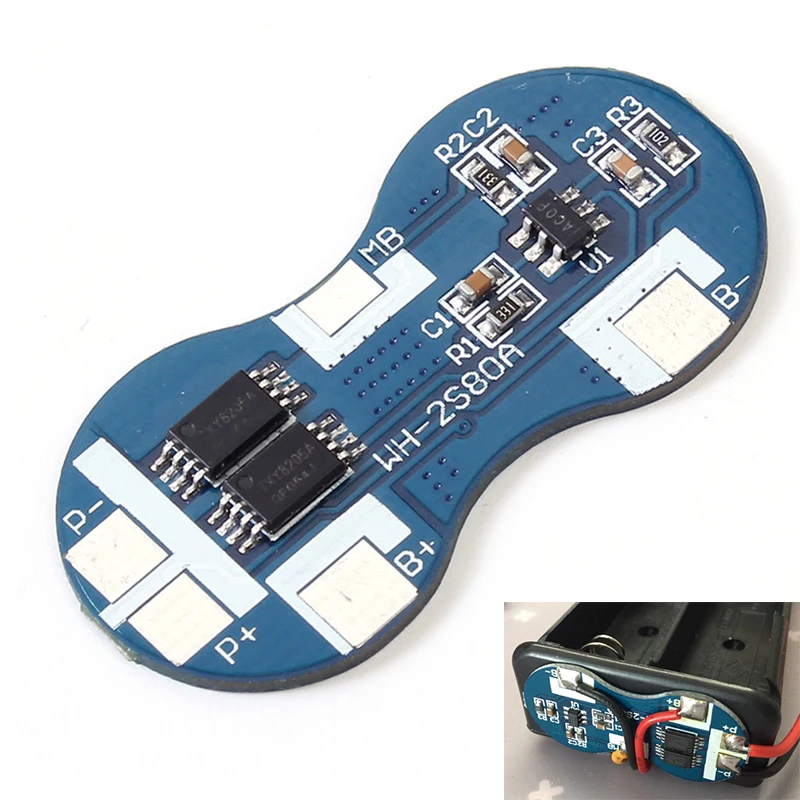

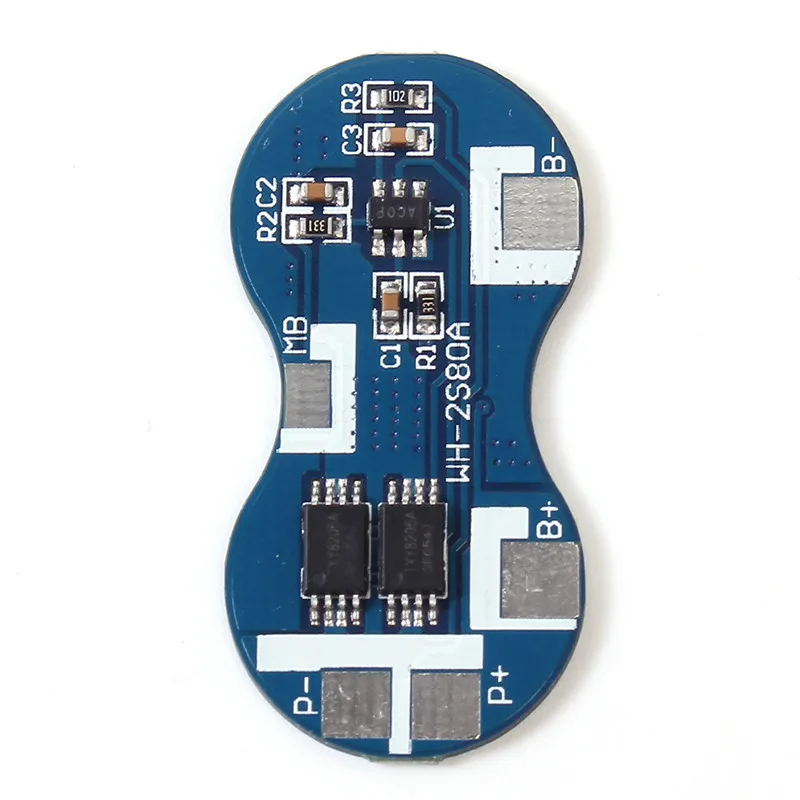

Product Picture:
- Unit Type: piece
- Package Weight: 0.015kg (0.03lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
