Monday Kids TD610 Stereo TWS Bluetooth Module Supporting TF Card, USB, AUX, Based on TD5161A Solution
$7.00
Availability:
In stock
SKU
EK-250730-C
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

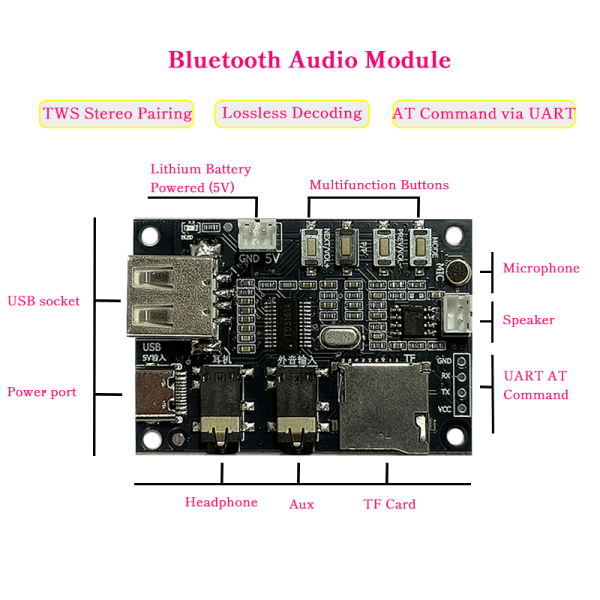

TD610 Bluetooth Audio Module Overview
Powered by the TD5161A chip, this Bluetooth audio module supports USB flash drives, TF cards, AUX-IN input, and true stereo via TWS functionality. Ideal for smart audio products, portable speakers, and IOT applications.
Key Features
- Supports both mono and true stereo output
- Includes TWS (True Wireless Stereo) pairing function
- AT command control via serial port
- Multi-button control: play/pause, next/previous track, volume adjustment
- Supports multiple audio input modes: USB drive, TF card, AUX-IN
- Soft power on/off supported
Typical Applications
- TWS Bluetooth speakers
- Bluetooth-enabled music lamps
- Amplifiers with added wireless functionality
TWS Mode Setup:
To test TWS functionality, power on two modules. Double-press the MODE key on one module to initiate pairing. Once connected, your phone will play stereo audio through the two modules. Double-pressing again exits TWS mode and returns to standard Bluetooth playback.
To test TWS functionality, power on two modules. Double-press the MODE key on one module to initiate pairing. Once connected, your phone will play stereo audio through the two modules. Double-pressing again exits TWS mode and returns to standard Bluetooth playback.
Frequently Asked Questions
Q: What is the default power control method?
A: The chip uses hard power on/off by default. It also supports soft power control via AT command. Long-press the MODE key to toggle power.
Q: Can the startup voice prompt be disabled or customized?
A: Yes. The default prompt is in Chinese. You can disable it via AT command or request customization for bulk orders.
Q: AT commands aren't working via serial—why?
A: Confirm correct baud rate (115200), check RX/TX wiring, and verify boot-up messages and command syntax.
Q: The demo board has excessive features—can custom development be provided?
A: Yes. For tailored functionality, contact our team to initiate a custom project.
Q: How many modules are required for TWS testing?
A: Two TD610 modules are needed. Instructions are provided above.
Q: What's the voltage range for battery input?
A: 3.3V–5V. Recommended: lithium batteries (3.3V–4.2V).
Q: What’s the purpose of the serial expansion port?
A: For host communication and serial interface access.
Q: Does AUX-IN support automatic detection?
A: Yes. Auto-switches to AUX mode when cable is inserted.
Q: Can the POP sound on startup be eliminated completely?
A: The chip suppresses POP on its own. For stricter control, reduce the amplifier’s Cin capacitor value on your board.
