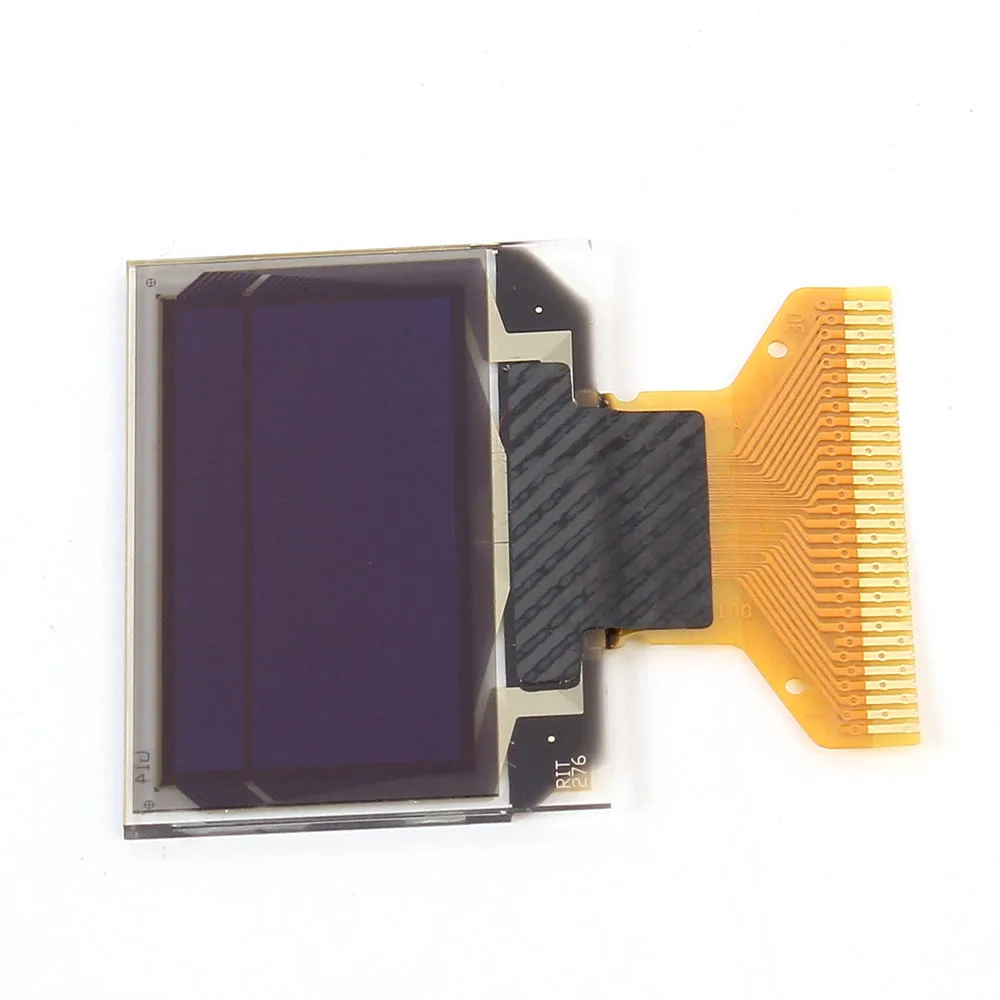

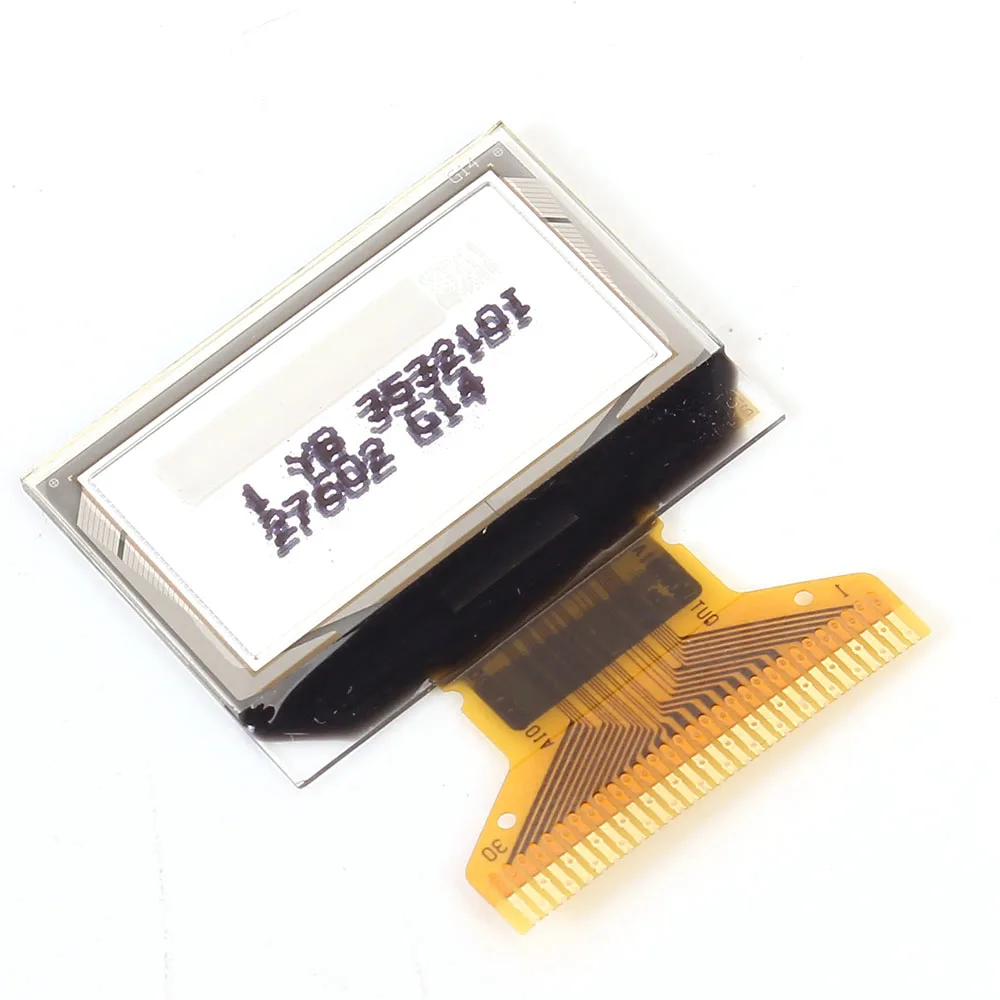

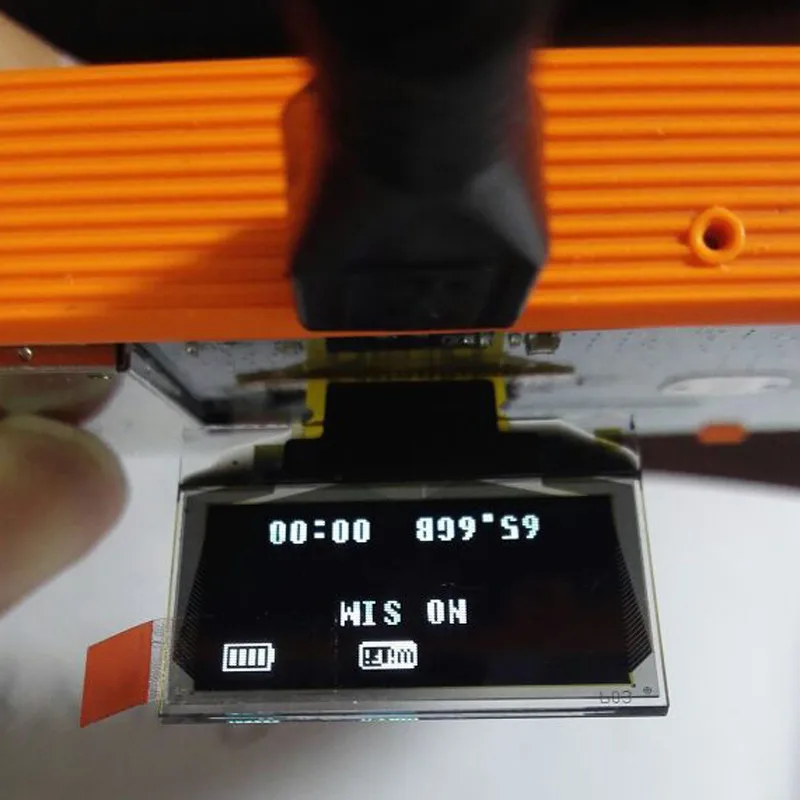

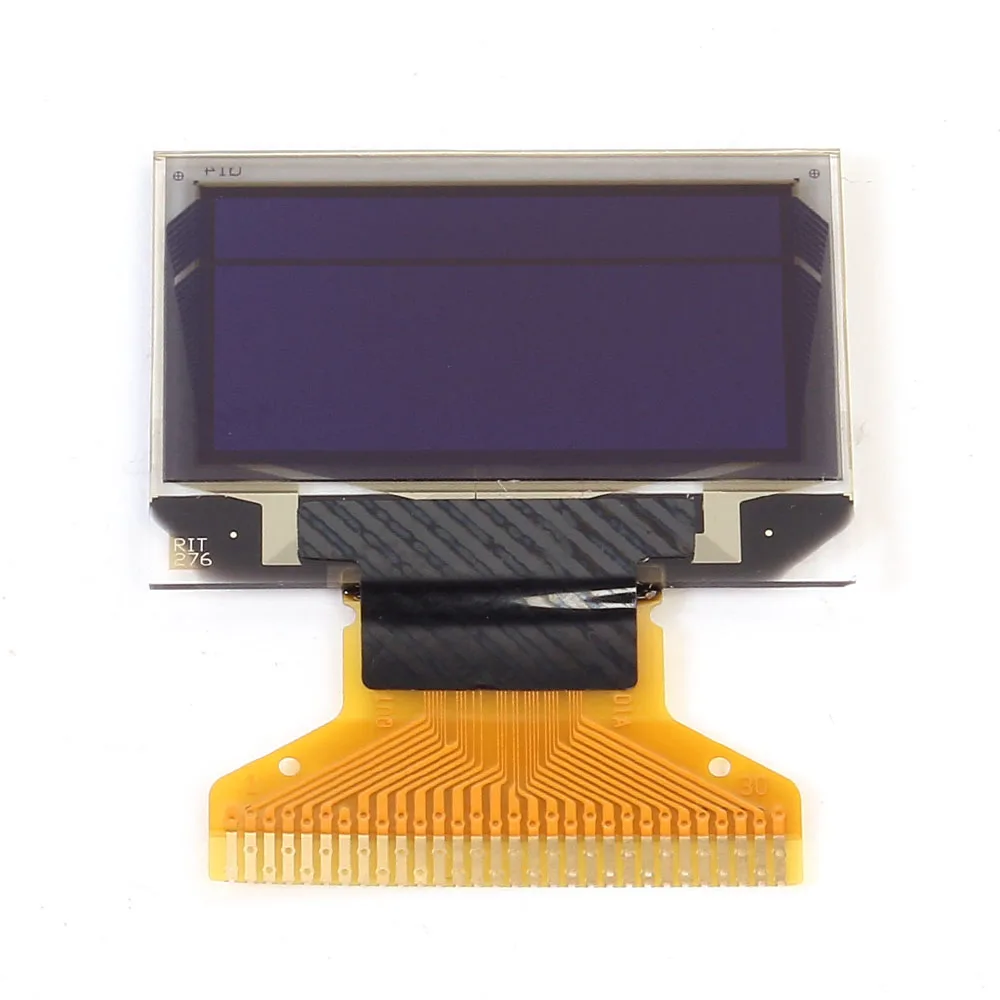

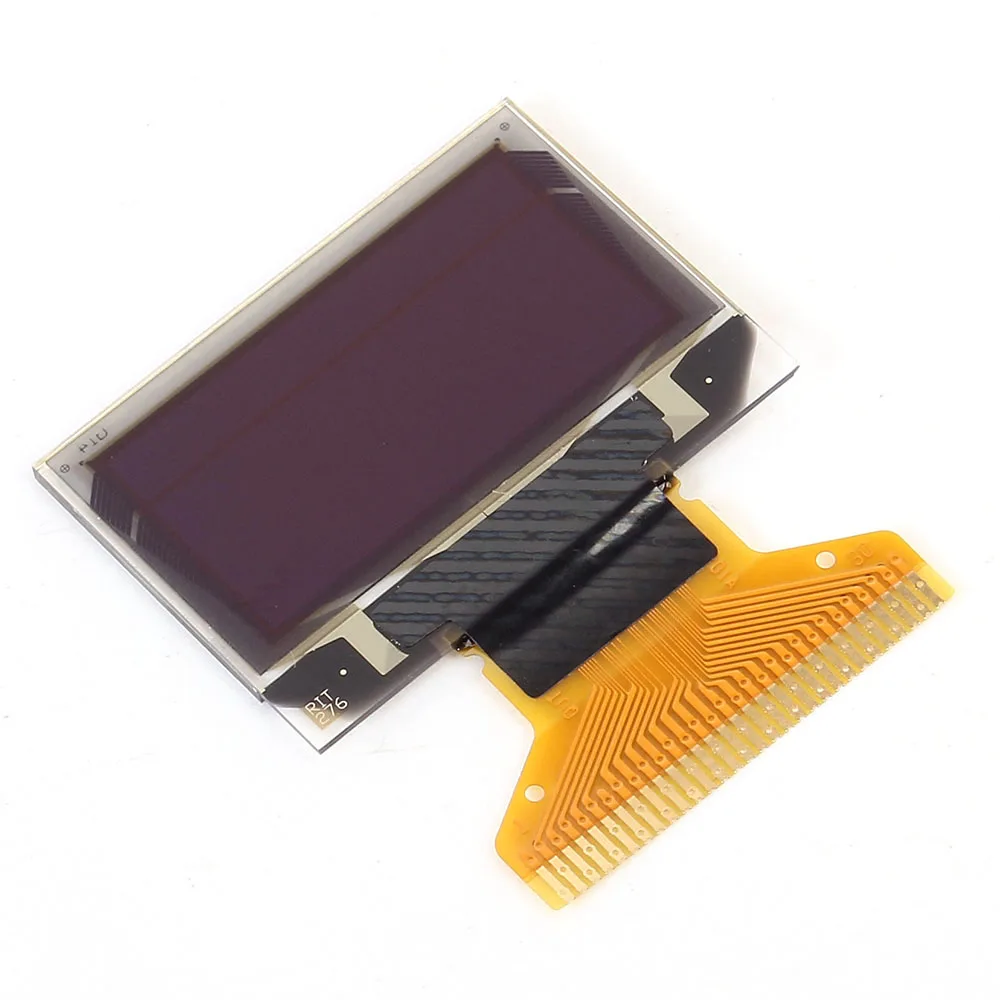

Monday Kids SSD1306 0.96 inch 128X64 White OLED Display 12864 LCD Screen Board 0.96" Passive Matrix for Arduino

$2.27
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Resolution: 128*64
  • is_customized: Yes
  • Display Mode: none
  • Model Number: OLED Display Module
  • Type: OLED Display Module
  • Driving Chip: SSD1306

NOTE : we have documents of most of products in our store

If you need it , contact us :)

1.Basic Specifications:

1.1 Display Specifications:

1)Display Mode:passive matrix

2)Display Color:monochrome (white)

3)Drive Duty:1/64 duty

1.2 Mechanical Specifications:

1)Outline Drawing:according to the annexed outline drawing

2)Number Of Pixels:128*64

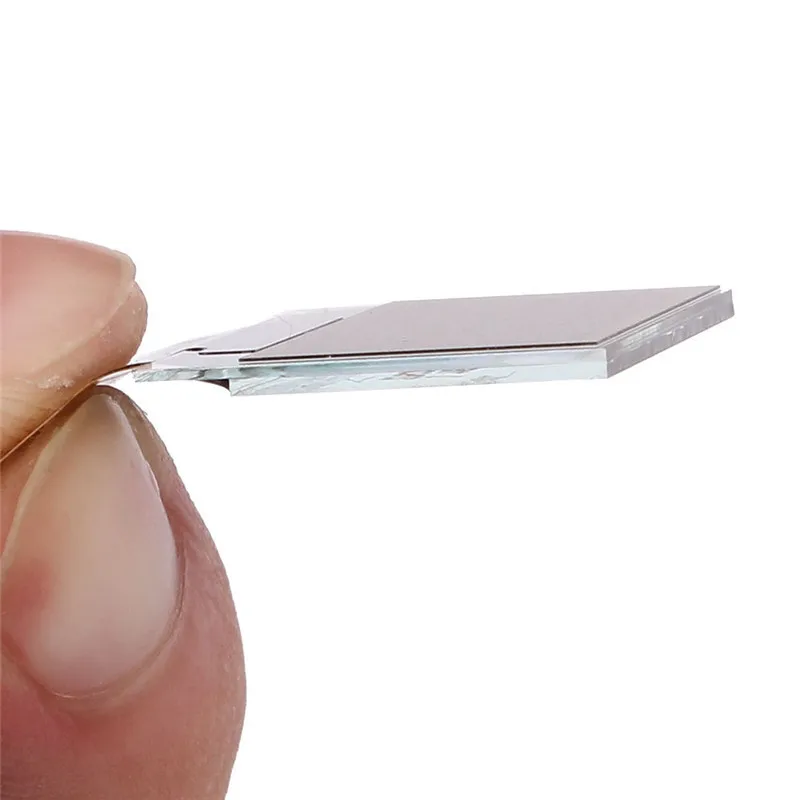

3)Panel Size:26.70*19.26*1.4mm

4)Active Area:21.744*10.864mm

5)Pixel Pitch:0.17*0.17mm

6)Pixel Size:0.154*0.154mm

1.3 Active Area/Memory Mapping And Pixel Construction

Size Picture:

  • Unit Type: piece
  • Package Weight: 0.015kg (0.03lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
