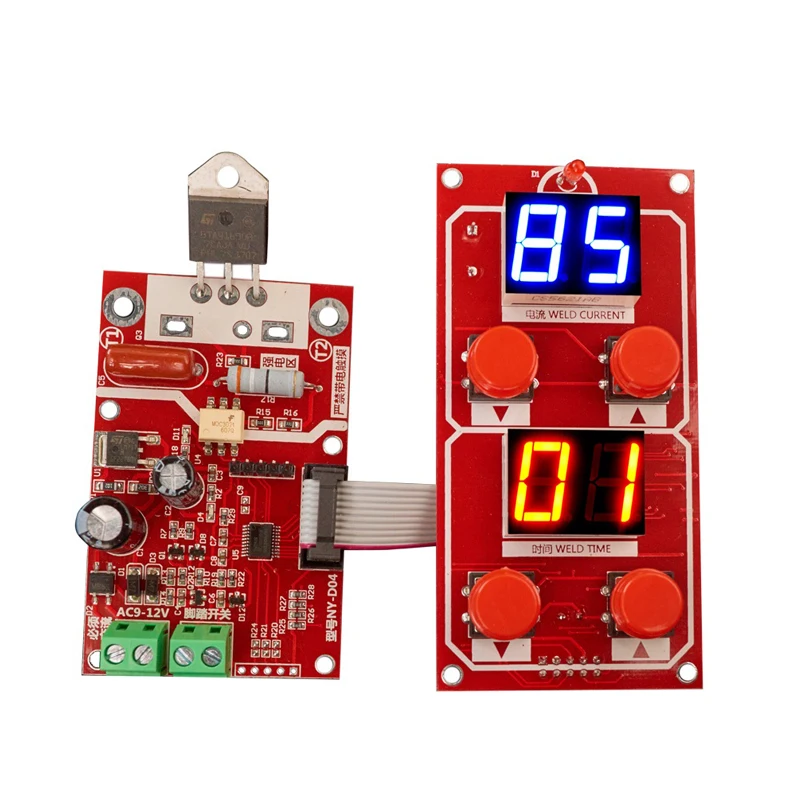

Monday Kids NY-D04 DIY Spot Welder Transformer Controller
$14.96
Availability:
In stock
SKU
RY-ES-279
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Condition: New
- Application: Computer
- Model Number: NY-D04 DIY Spot Welder Transformer
- is_customized: Yes
Description:
A: Product Features:
1: Full digital circuit, new zero-crossing detection circuit, accurate current and time control
2: Compatible with 50HZ and 60HZ power supply, the controller automatically judges
3: Current adjustment range is 30%-99%, time control range 1-99 cycles (1 week wave = 20 ms)
4: 2 0.56 inch high brightness digital tube display
5: Press the button to adjust the parameters, the operation is more convenient
6: The display panel contains status lights and buzzer, indicating more intuitive
7: Easy to install, convenient for customers to install production spot welder

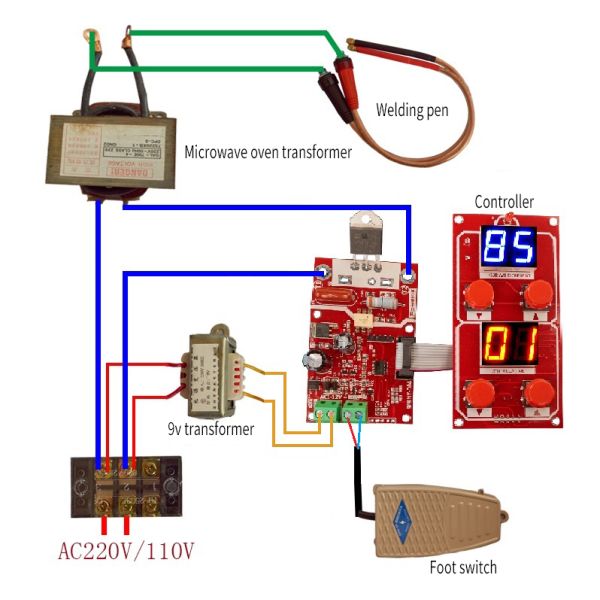

B: physical wiring diagram
Package include:
1 * 100A/40A adjustable current Controller
Ins tructions for use:
Press the time plus time minus button at the same time on the operation panel to enter the parameter settings.
Simultaneous status indicator is on
parameter settings:
Parameter selection via the current setting button,
Preload: Pt interval: Et welding times: Cn
Select the corresponding parameter and adjust the parameter by time button
Pre-compression range: 01-99 interval range: 01-99 welding times 01-05
Save parameters:
Simultaneously press the current plus current minus button to save the parameters.
- Unit Type: piece
- Package Weight: 0.06kg (0.13lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
