Monday Kids NRF51822-02 Data Transmission bluetooth Module NORDIC BLE4.0 Low Power consumption BT005

Be the first to review this product

$3.21

Availability: In stock

SKU

RY-ES-512

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Condition: New
Supply Voltage: 3.3V
Model Number: Data Transmission Bluetooth Module
Type: Voltage Regulator
is_customized: Yes
Application: Bluetooth sensor

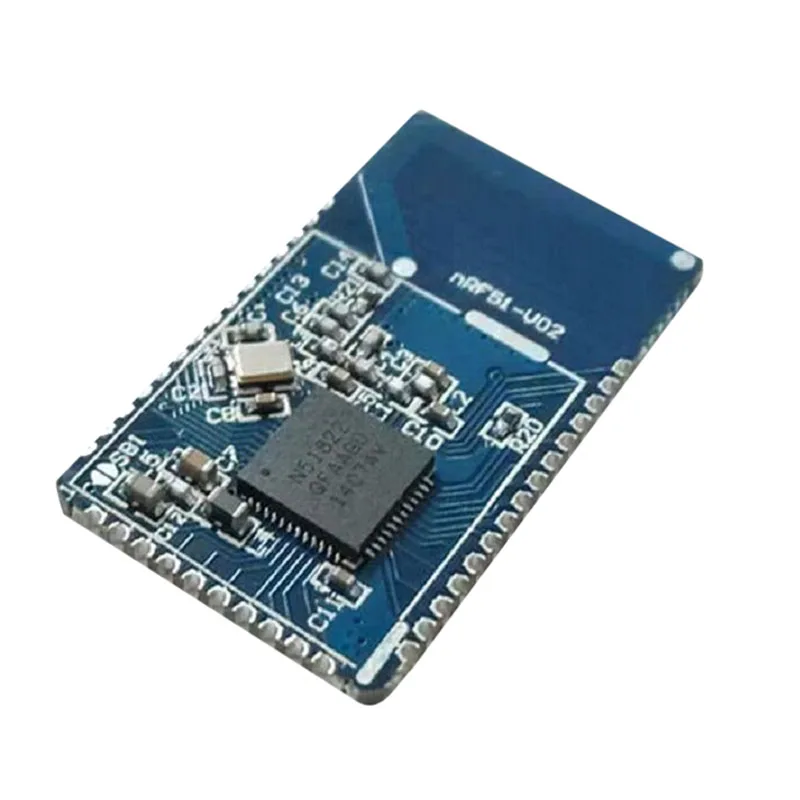

NRF51822-02 Data Transmission bluetooth Module NORDIC BLE4.0 Low Power consumption

NRF51822-02 module is a data transmission module, the BLE Bluetooth MCU integrated SOC chip nRF51822-QAFF ,the internal integration of the underlying low power Bluetooth 4.0 standard protocol, module interface is the standard UART interface, built-in interrupt output prompt, When the module receives data from a pair of Bluetooth transmission, it outputs a high level signal, which is used to notify the external device, At the same time, the module is equipped with hardware.make enable foot,In the absence of data transfer,can be set to make the foot high,to disable the function of serial data transmission, thereby reducing the power consumption of the system.

Characteristic:

Low power BLE4.0 Bluetooth single mode chip
The integration of the standard BLE4.0 protocol stack
Standard UART (TTL) interface, can be directly connected to the external MCU serial or serial port
9600 or 38400 optional hardware serial baud rate, the default is 9600
Interrupt output prompt
Hardware enable control
Operating distance: 0~20 m,class II
Power supply voltage: 3.3V
The module comes with a PCB antenna, and can also use the external antenna

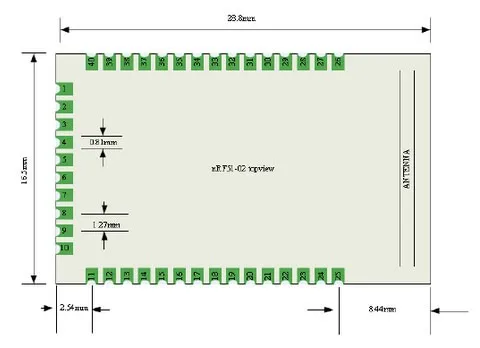

Module size: 16.5*28.8mm
