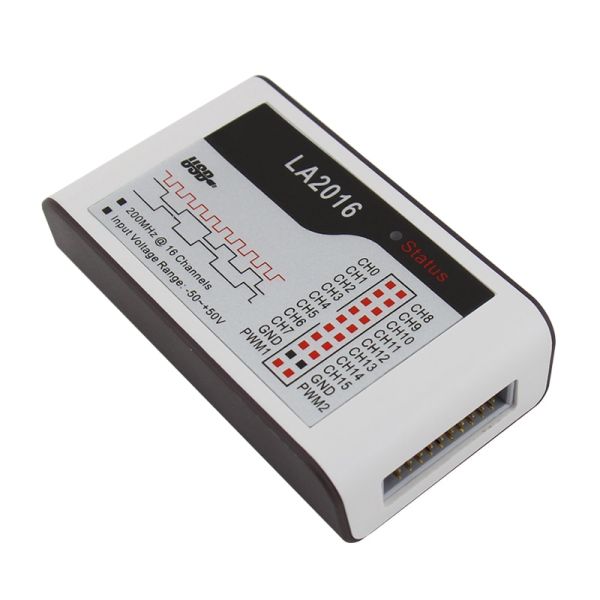

Monday Kids LA2016 Usb Logic Analyzer 16 Channels 200M Sample Rate Analyzer 10B Samples MCU ARM FPGA Debug Tool English Software
$106.74
Availability:
Out of stock
SKU
RY-ES-346
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Condition: New
- Application: Computer
- Model Number: LA2016 Logic Analyzer
- is_customized: Yes
Description:
LA2016 is a high-performance logic analyzer with 16 channels and 200M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.
LA2016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.
Features:
Portable and lightweight
200M sampling rate @ full channels
Large sampling depth and support compression
The built-in PWM generator
Compatible USB2.0/3.0 interface
Powerful software and easy to use
Support online upgrade automatically
Specification:
Input channels number: 16
Max sampling rate: 200M
Measurement bandwidth: 40M
Min pulse width can be captured: 12.5ns
Hardware memory size: 1Gbits
Hardware sampling depth: 50M/channel
Max compressed depth: 10G/channel
Input voltage range: -50V ~ +50V
Input impedance: 220KΩ, 12pF
Adjustable threshold voltage: -4V ~ +4V, step: 0.01V
PWM channels number: 2
PWM frequency range: 0.1 ~ 20MHz
PWM frequency adjust step: 10ns
PWM pulse width adjust step: 5ns
PWM output voltage: +3.3V
PWM output impedance: 50Ω
Standby current: 150mA
Max operating current: 300mA
Dimensions: 95mm * 55mm * 23mm
Support OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit)
Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,
LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc...
Package include:
1 * LA2016 USB Logic Analyzer
- Unit Type: piece
- Package Weight: 0.4kg (0.88lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
