Monday Kids 3S 10A 12V Lithium Battery Charger Protection Board Module for 3pcs 18650 Li-ion Battery Cell Charging BMS 11.1V 12.6V

$1.53

Product name is 3S 10A 12V Lithium Battery Charger Protection Board Module for 3pcs 18650 Li-ion Battery Cell Charging BMS 11.1V 12.6V...

Product origin name is Monday Kids 3S 10A 12V Lithium Battery Charger Protection Board Module for 3pcs 18650 Li-ion Battery Cell Charging BMS 11.1V 12.6V

Availability: In stock
SKU
EK420

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Model Number: 12V Lithium Battery Charger Board
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: -40-80 celsius
  • Supply Voltage: none
  • Dissipation Power: none
  • is_customized: Yes
  • Application: Lithium Battery Charger Protection

NOTE : we have documents of most of products in our store

If you need it , contact us :)

Specification:

Model: HX-3S-01
Overcharge voltage range: 4.25-4.35v ± 0.05v
Overpressure voltage range: 2.3-3.0v ± 0.05v
Size: 50 * 16 * 1.0mm

Maximum operating current: 5-8A Operating temperature: -40 --- +50 Celsuis

Maximum instantaneous current: 9-10A Storage conditions: -40-- +80 Celsuis

Quiescent current: less than 6uA Effective life: more than 30,000 hours

Internal resistance: less than 60mΩ Short circuit protection: protection, delay self-recovery.

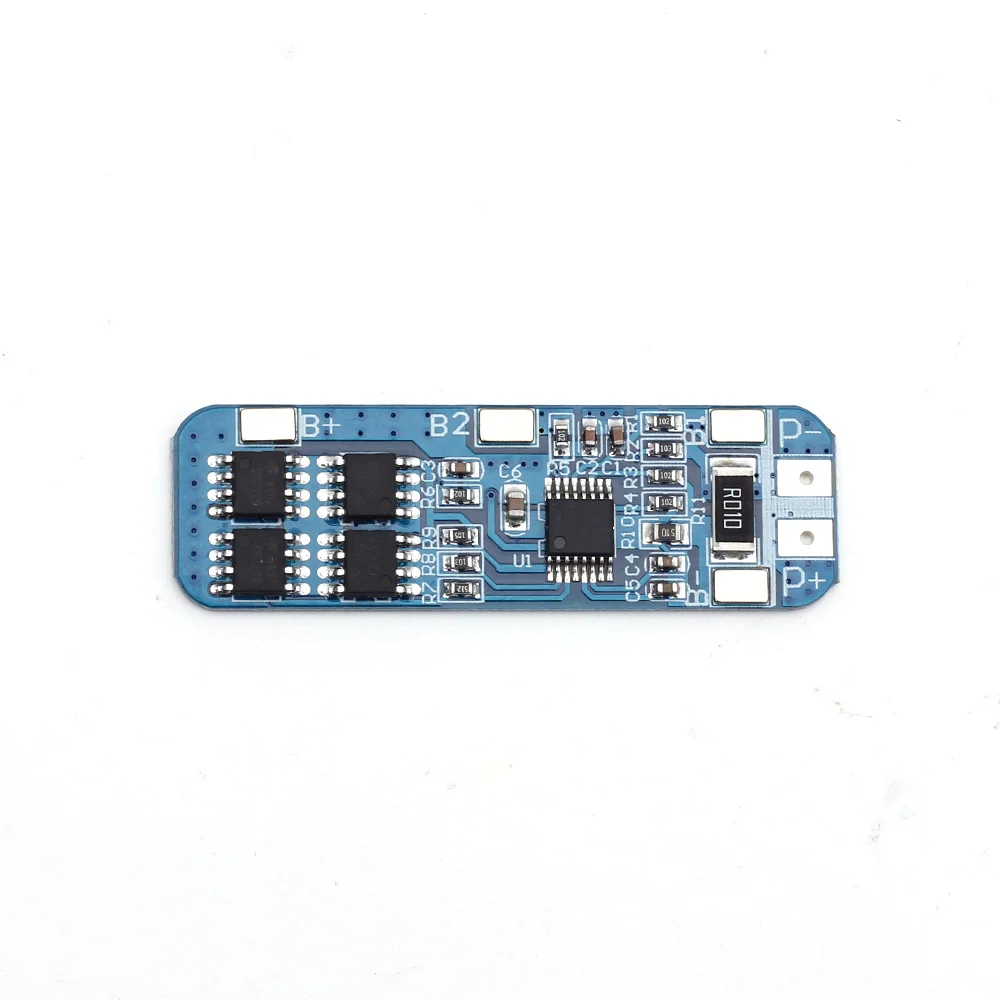

The protection board size and device description;

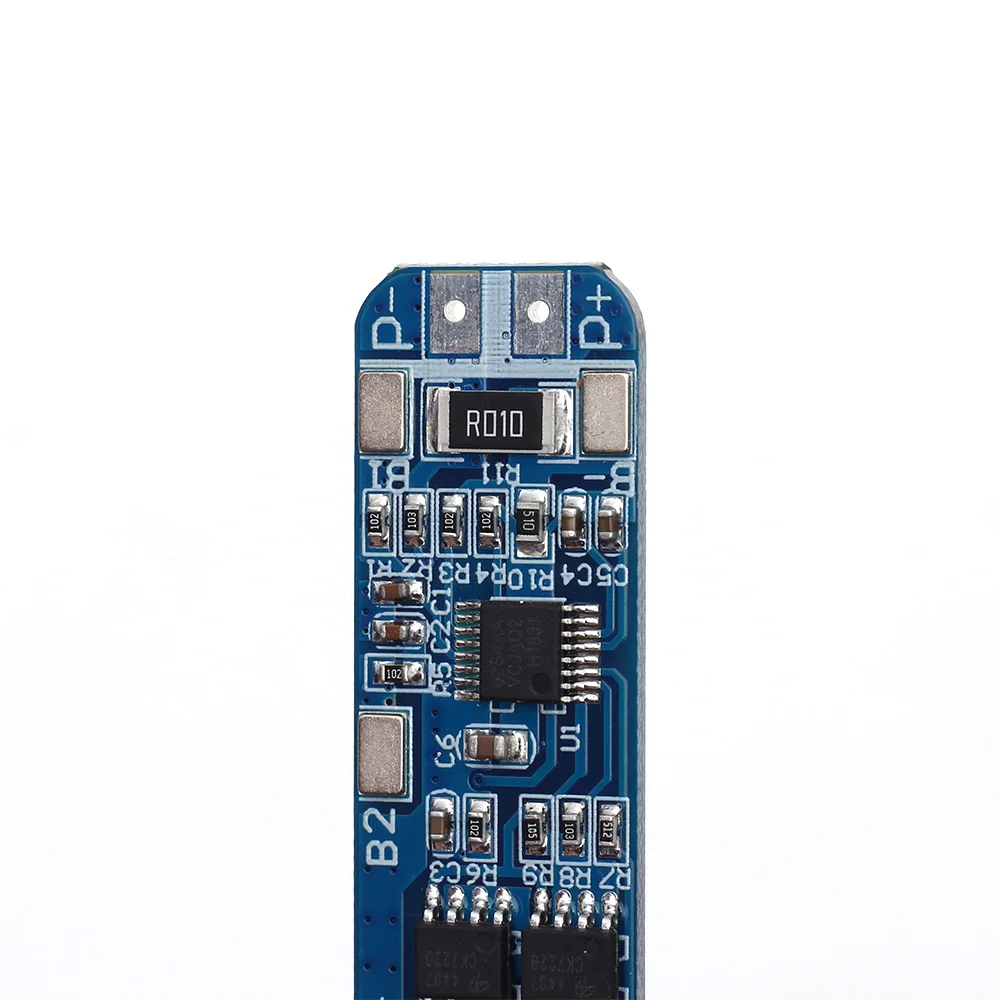

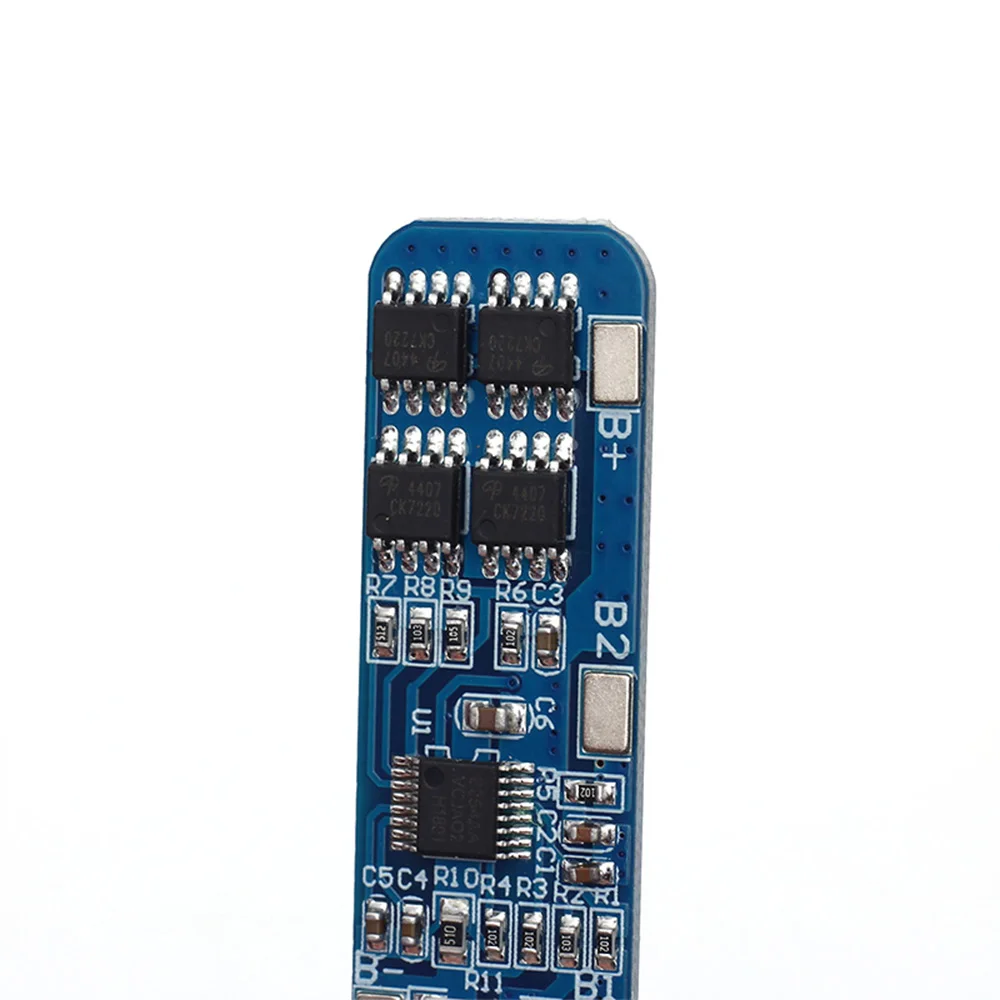

The protection board size is 50 * 16 * 1.0mm; components for the Seiko S-8254AA protection chip and genuine FDS 4435A * 4;

Note:

The protection board can not be used for iron from the polymer battery, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, 2 and then in series 24V use, 775 (4A) above motor, 1W fisheye LED light.

Described in the power range for the following products:

Vacuum cleaner massager battery pack, LED light standby power supply, 12V electronic products, solar street lamp battery pack, monitor backup power supply, and other products.

Description Explanation:
3 string (for 3 18650 batteries or polymer lithium battery series combination)
10.8V (rated voltage for polymer battery)
11.1V (18650 or 3.7V lithium battery rated voltage)
12.6V (lithium battery is fully charged after the voltage)

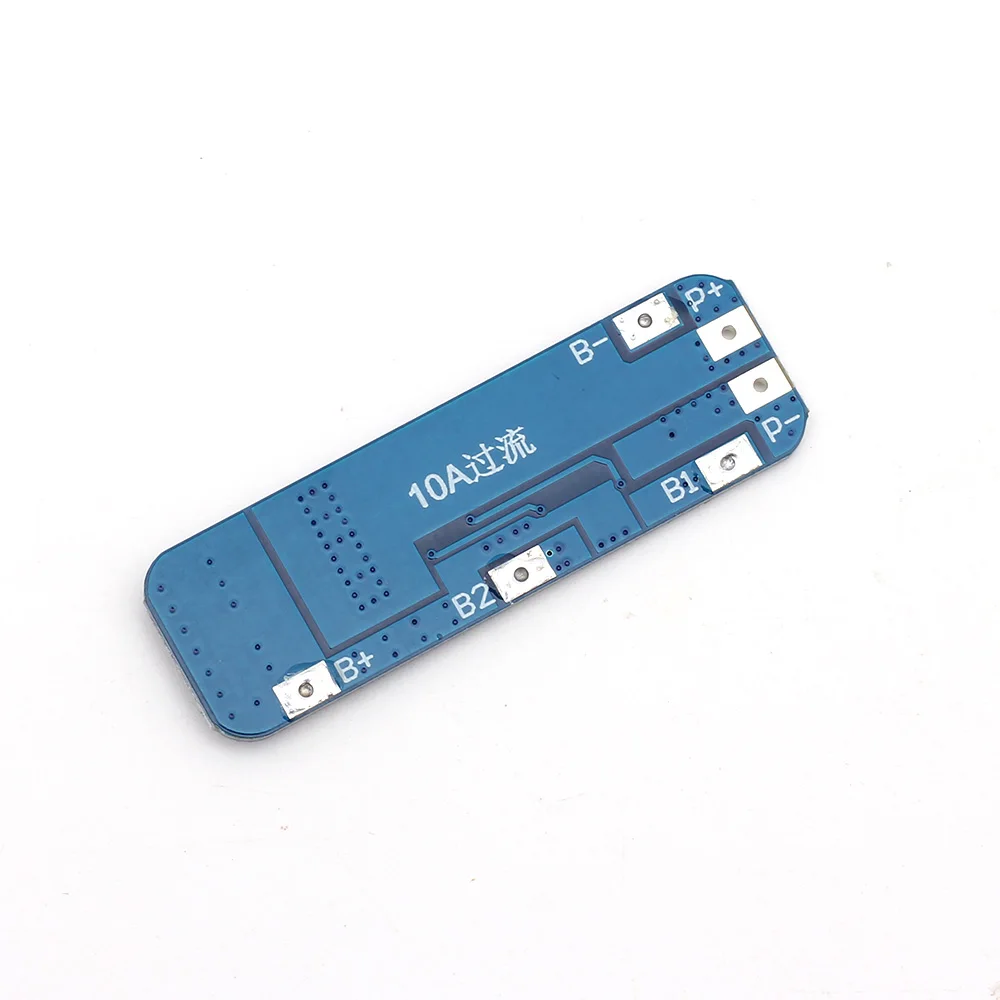

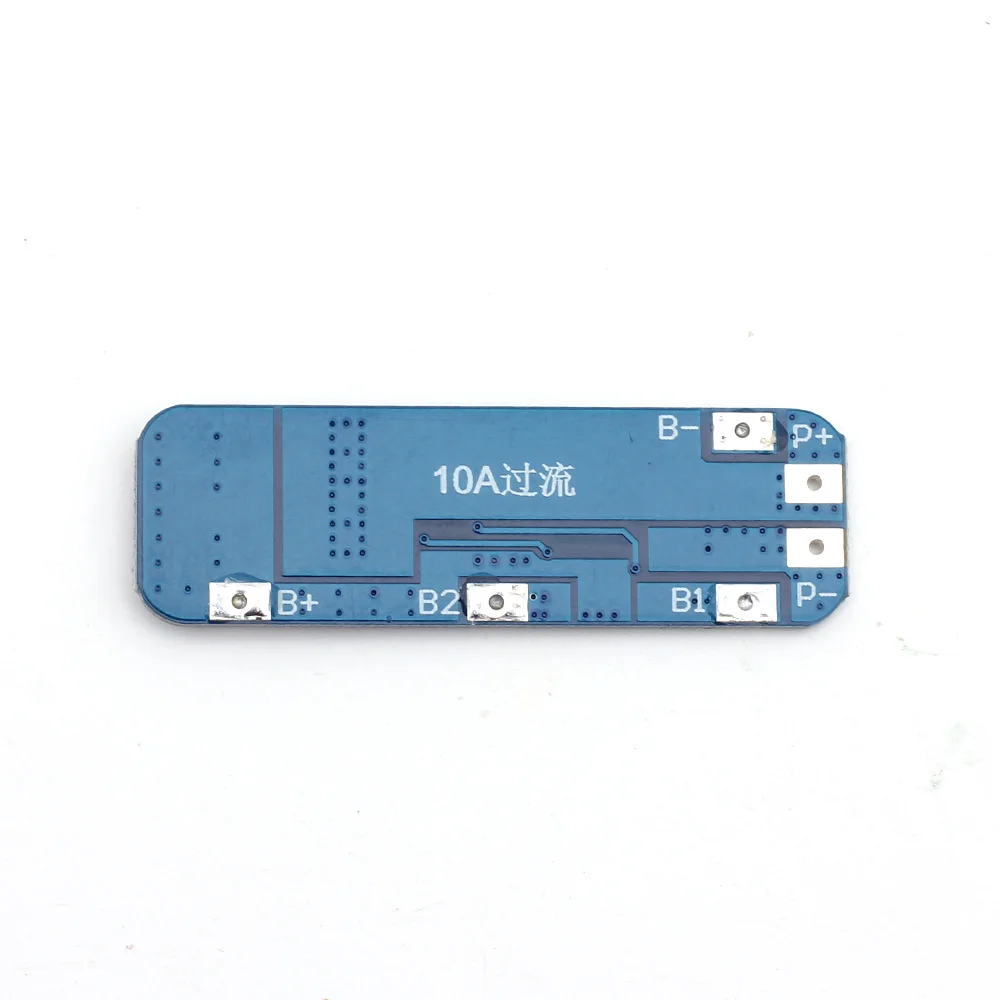

Discharge 10A (referring to the maximum discharge current limit)
Lithium battery protection board
Comes with: overcharge, over discharge, overcurrent, short circuit protection
18650 lithium battery pack must!


  • Unit Type: piece
  • Package Weight: 0.015kg (0.03lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
