Monday Kids LA1010 Logic Analyzer 100M Sample Rate 16 Channels Adjustable Threshold PWM Output MCU ARM FPGA Debug Tool with English Software
$48.71
Availability:
In stock
SKU
RY-ES-160
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Condition: New
- Application: Computer
- Model Number: LA1010 Logic Analyzer
- is_customized: Yes
Description:

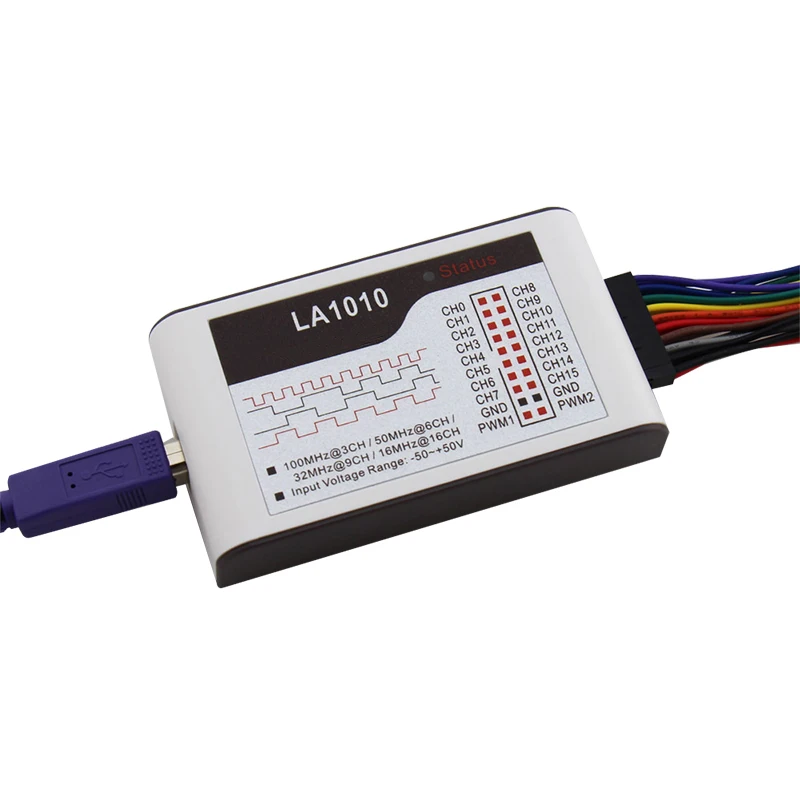

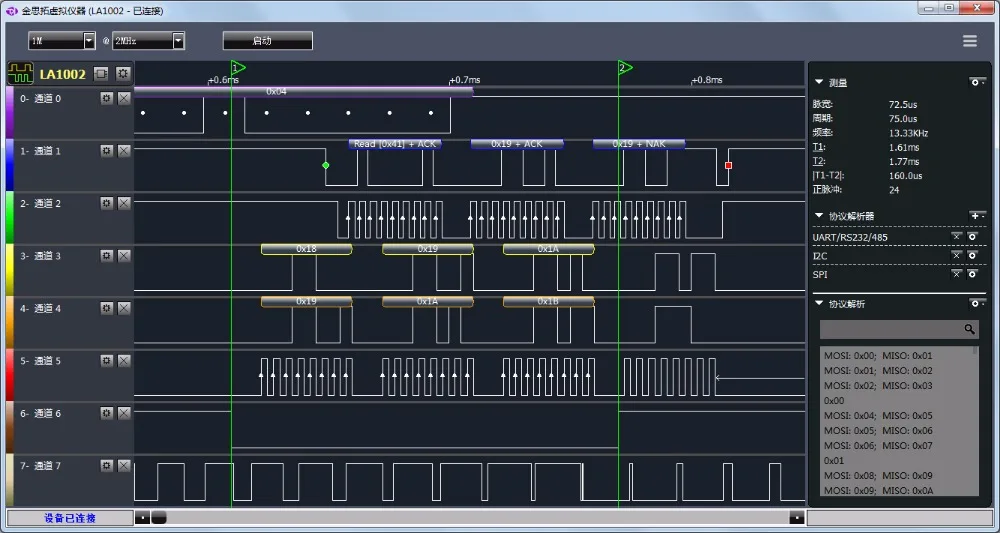

LA1010 is a logic analyzer product with high performance. It has 16 input channels and the sample rate is up to 100 MHz. Along with the PC software KingstVIS, 16 channels of digital signal sampled simultaneously, and converted to digital waveform while displayed on monitor. Analyze signal with many standard protocols for straightforward communication data. Helps in testing and analyzing digital systems(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording digital signals long-term
Features
·Portable and lightweight
·Max sampling rate: 100 m @ 3 channels, 50 m @ 6 channels, 32 m @ 9 channels, 16 m @ 16 channels
·Large sampling depth and supported compression
·Built-in PWM generator
·Compatible USB 2.0 / 3.0 interface
·Powerful software and easy to use
·Online automatic updates

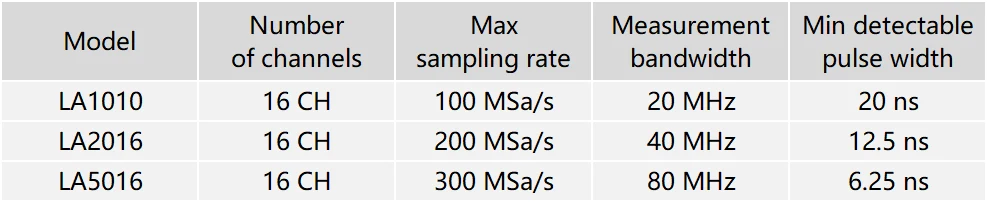

Specifications:
·Input channels: 16
·Max sampling rate: 100 m
·Measurement bandwidth: 20 m
·Min pulse width captured: 20 ns
·Max sampling depth: 10 G / channel
·Input voltage range: -50 ~ +50 V
·Input impedance: 220 KΩ, 12 pF
·Adjustable threshold voltage: -4 ~ +4 V, step: 0.01 V
·PWM channels: 2
·PWM frequency range: 0.1 ~ 10 MHz
·PWM frequency adjust step: 10 ns
·PWM pulse width step: 10 ns
·PWM output voltage: +3.3 V
·PWM output impedance: 50 Ω
·Standby current: 100 mA
·Max operating current: 150 mA
·Dimensions: 95 x 55 x 23 mm
·Supported OS: Windows XP, Vista, Windows 7/8/10(32/64bit)
·Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,
LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc...

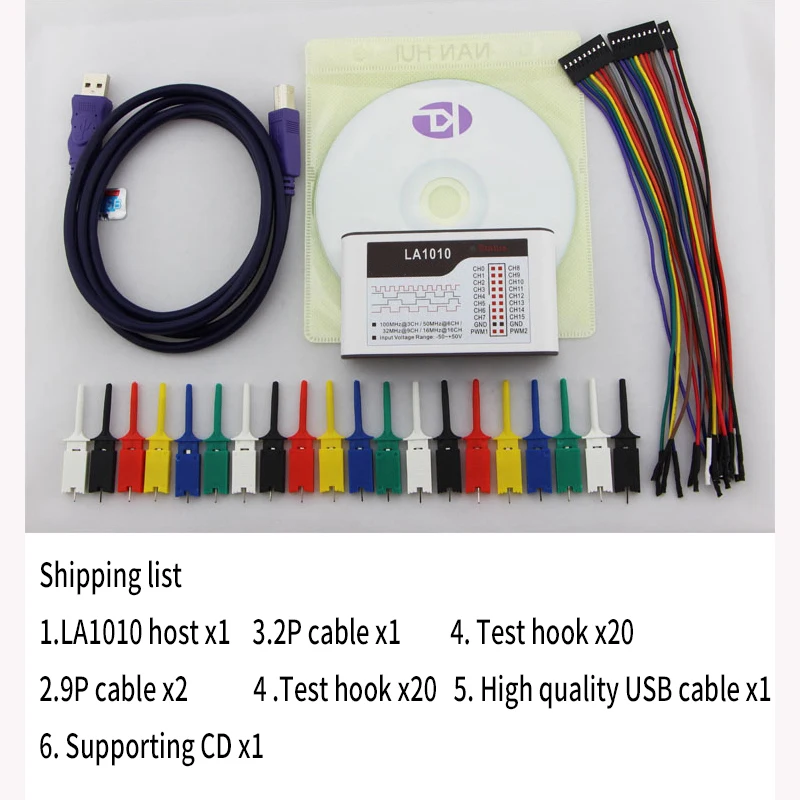

Package include:
1 * LA1010 USB Logic Analyzer
- Unit Type: piece
- Package Weight: 0.15kg (0.33lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
