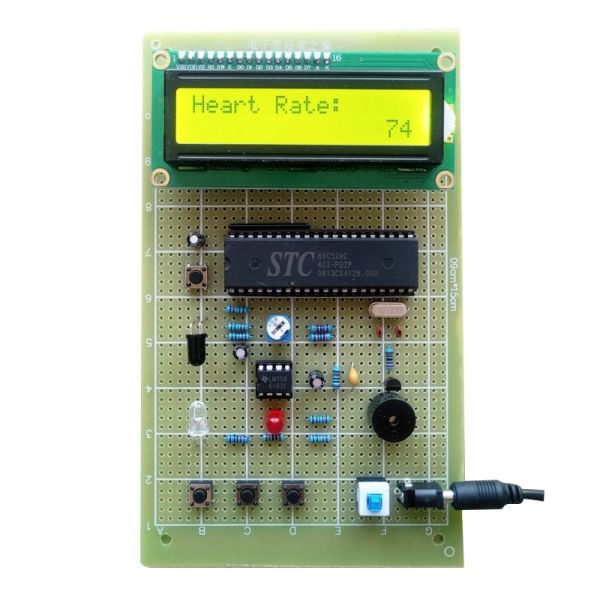

Monday Kids Heart Rate Meter Based on 51 Single-chip Computer Graduation Design Pulse Measuring Instrument Universal Board Making Kit
$10.53
Availability:
In stock
SKU
RY-ES-169
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- is_customized: Yes
- Type: Sine /Triangle Wave Square Wave
Description:
Note: This kit is a universal board, you need to solder your own wiring.
Supply voltage: DC 4.5-5V
Universal board size: 9*15cm
Function introduction:
The heart rate can be measured by infrared measurement of the finger, and the lowest value and the highest value can be set. When the heart rate is less than the minimum value or greater than the highest value, the buzzer alarms.
Hardware composition:
MCU + minimum system +1602 liquid crystal display + buzzer + button
Features:
1. This design is based on the STC89C52RC microcontroller.
2. LCD1602 liquid crystal displays the current heart rate in units of heart rate/minute.
3. Place your finger in the infrared tube and read the heart rate within 2 seconds.
4. Press the button to set the upper and lower heart rate of the alarm.
.
The purchase of parts from the self-welding friends noticed that the universal board kit does not solder the components like the PCB board kit. This requires you to plan the placement of the components and the wiring, which is very capable of exercising the welding ability. The basis of welding (read the schematic), such as the parents who are not sure about themselves, please consider.
Package include:
1 * Pulse Measuring Instrument Kit
- Unit Type: piece
- Package Weight: 0.05kg (0.11lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
