Monday Kids DP50V5A Digital Control DC Power Supply Adjustable Buck Module Integrated Voltmeter Ammeter Color Screen 50V 5A

Be the first to review this product

$34.60

Availability: In stock

SKU

RY-ES-361

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Type: Voltage Regulator
Condition: New
Operating Temperature: -10 °c ~60°c
Model Number: DP50V5A
is_customized: Yes

DP50V5A Digital Control DC Power Supply Adjustable Buck Module Integrated Voltmeter Ammeter Color Screen 50V 5A

Product introduction:

The digital control power supply is a combination of analog adjustment and digital control. The output voltage is adjustable from 0 to 50.00V, the step is 0.01V, the output current is adjustable from 0 to 2.000A, and the step is 0.001A. The product has a power-down preset value storage function, which can store 10 sets of preset values, and can quickly call up two sets of preset values. Self-contained liquid crystal display, with voltage and current meter function, through the liquid crystal can easily view the preset voltage, preset current, output voltage, output current, output power, input voltage and so on. The output status prompt area can easily see whether the output is currently turned on/off, the constant voltage/constant current output status, whether the output is normal, whether the button is locked, and the data group currently being called. In the data setting interface, it is also possible to adjust the overvoltage value, the overcurrent value, the overpower value, the data group, the liquid crystal brightness, and the like. Equipped with intelligent start-up long-life ball fan, it automatically starts when the output current is greater than 0.5A, which helps the product to dissipate heat and ensure high-power stable output. This product is small in size, advanced in function, good in visual effect, operability and high precision. It can be used independently or embedded in equipment, and has a wide range of applications.

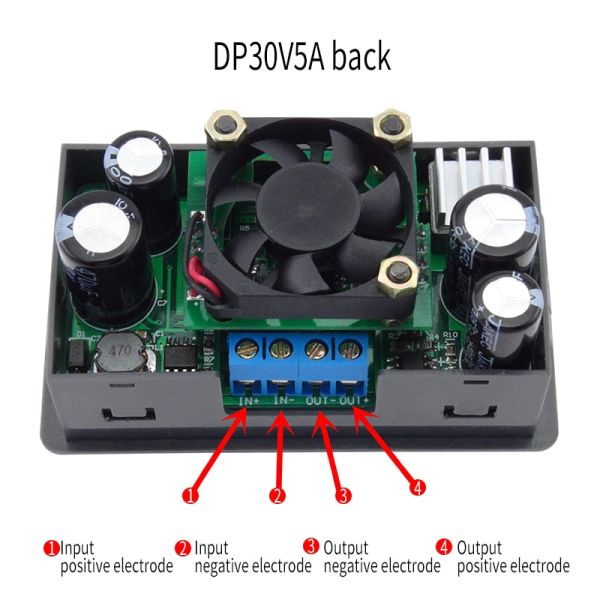

General Information:

IN+: Input positive IN-: Input negative:

OUT+: Output positive: OUT-: Output negative

Note: Input voltage range is DC 6-55V ,and 55v is the limit voltage; please leave a room to use. Or else it will be burnt. The input must be DC power supply, not AC 220V, or else it will be burnt too. Though this module has reverse connection protection and output short circuit protection, you can muse be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt.
