Monday Kids 3S 6A Polymer Lithium Battery Charger Protection Board Li-ion Charging Protect Module For 3pcs 18650 Lithium Battery
$1.51
Availability:
In stock
SKU
EK416
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Operating Temperature: -30-85 celsius
- Condition: New
- Type: Logic ICs
- Dissipation Power: none
- Model Number: Charger Module
- is_customized: Yes
- Supply Voltage: 12V
- Application: Charger Module
- Size: 53*17*2.5mm
- Charging Current: <6A
- Charging Voltage: 12.6-14V
|
Product Introduction:
1.Model:3 Serial 12V 6A protection board specially for 18650

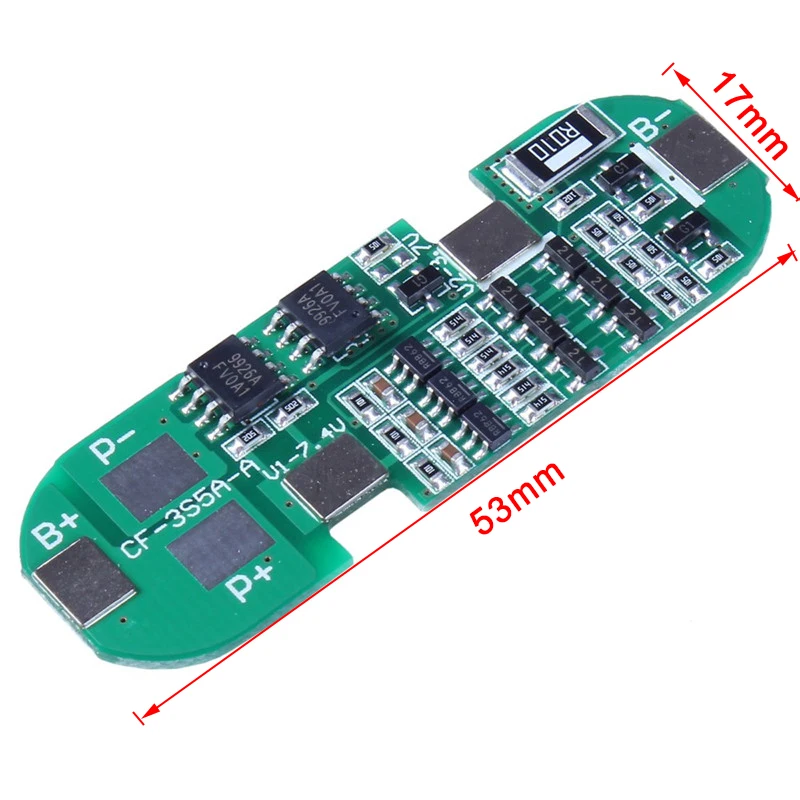

2.Size:53*17*2.5mm
3.Continuous Operating Current:<6A
4.Charging Voltage:12.6-14V
5.Charging Current:<6A
6.Overcharging Protection Voltage:single cell 4.20V+/-0.025V
7.Overdischarging Protection Voltage:single cell 2.50V+/-0.1V
8.Short Circuit Protection:yes
9.Application Fits:3.7V cell/3 serial
10.Load Power:<DC 12V 70W
Notice:

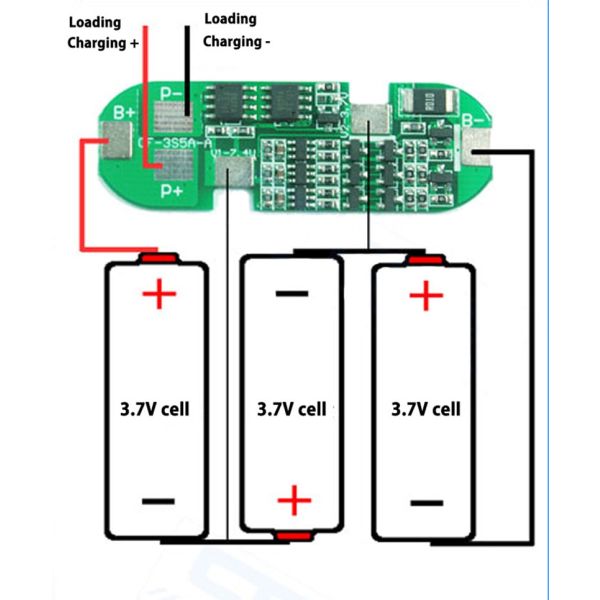

1.Firstly detect cell voltage is basically stable,then serial connection
2.When soldering protection board,soldering iron and protection board touch time should not be too long,wihin 1.5s is best
- Unit Type: piece
- Package Weight: 0.013kg (0.03lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
