Monday Kids Digital AC Voltage Meters 100A/80~260V Power Energy Voltmeter Ammeter Watt Current Amps Volt Meter LCD Panel Monitor
$10.34
Availability:
In stock
SKU
RY-ES-441
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Condition: New
- Application: Computer
- Supply Voltage: 80-260V
- Operating Temperature: -20~60C
- is_customized: Yes

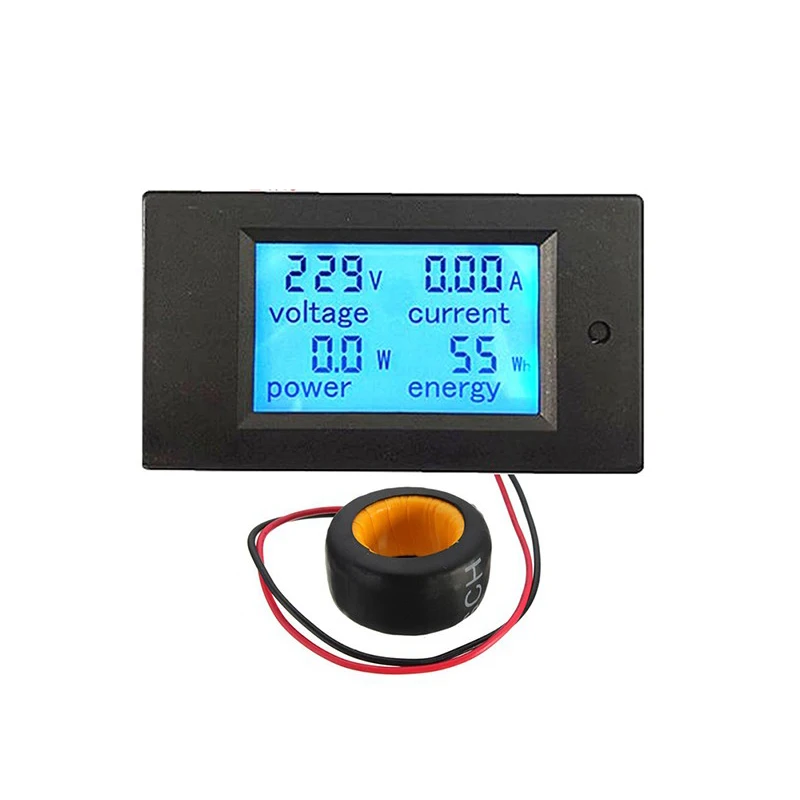

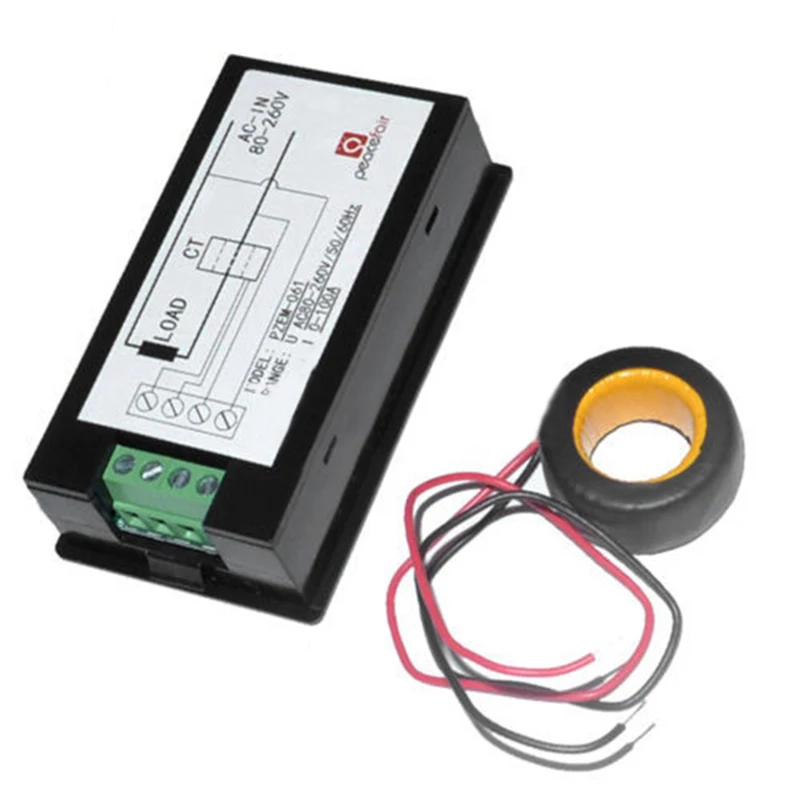

Note: AC 100A comes with a CT Coil, There is no coil for AC 20A.
Description
Active power is calculated as: P = U I cos, cos represents the power factor, purely resistive loads (such as incandescent, heater, etc.) the power factor is generally close to 1, inductive and capacitive load load power factor 0-1; therefore purely resistive load test time, P is substantially equal to or close to U I; test inductive or capacitive loads (such as refrigerators, washing machines, televisions, computers, etc.) when, P Less than U I As for the specific number to keep the power factor related to power factor different for each appliance, please show table prevail.
Specification
Size: 90x50x25mm
Apply to power grid voltage range 110V-220V
Working voltage: 80 ~ 260VAC
Test voltage: 80 ~ 260VAC
Rated power: 100A / 22000W
Working Frequency: 45-65Hz
Measurement accuracy 1.0
Feature
network voltage direct power supply, no external power supply, measurement precision, large-screen LCD liquid crystal screen display clearly.
A. Function
1. electrical parameter measurement function (voltage, current, active power, power).
2. overload alarm function (over power alarm threshold, the backlight and power flicker tips).
3. The power alarm threshold preset function (can set up their own power alarm threshold).
The power button clear function.
5. Power-down data storage function.
6. Large-screen LCD screen full display function (display voltage, current, active power, power).
7. Backlight.
B. display and key

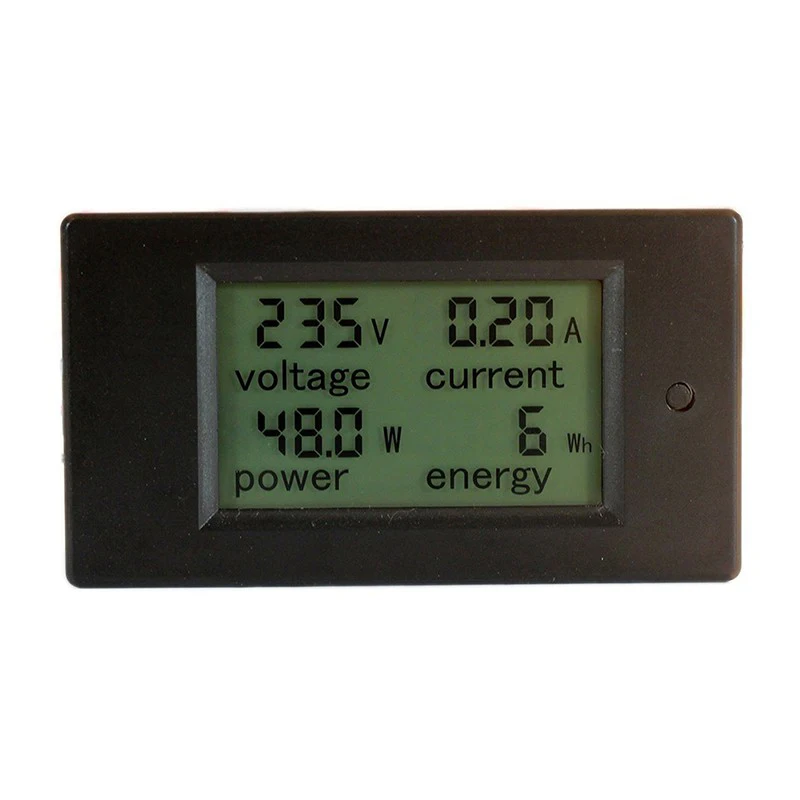

Display Interface
Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.
Description
Active power is calculated as: P = U I cos, cos represents the power factor, purely resistive loads (such as incandescent, heater, etc.) the power factor is generally close to 1, inductive and capacitive load load power factor 0-1; therefore purely resistive load test time, P is substantially equal to or close to U I; test inductive or capacitive loads (such as refrigerators, washing machines, televisions, computers, etc.) when, P Less than U I As for the specific number to keep the power factor related to power factor different for each appliance, please show table prevail.
Specification
Size: 90x50x25mm
Apply to power grid voltage range 110V-220V
Working voltage: 80 ~ 260VAC
Test voltage: 80 ~ 260VAC
Rated power: 100A / 22000W
Working Frequency: 45-65Hz
Measurement accuracy: 1.0
Package Include:
1 * Digital AC Voltage Meters
- Unit Type: piece
- Package Weight: 0.05kg (0.11lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
