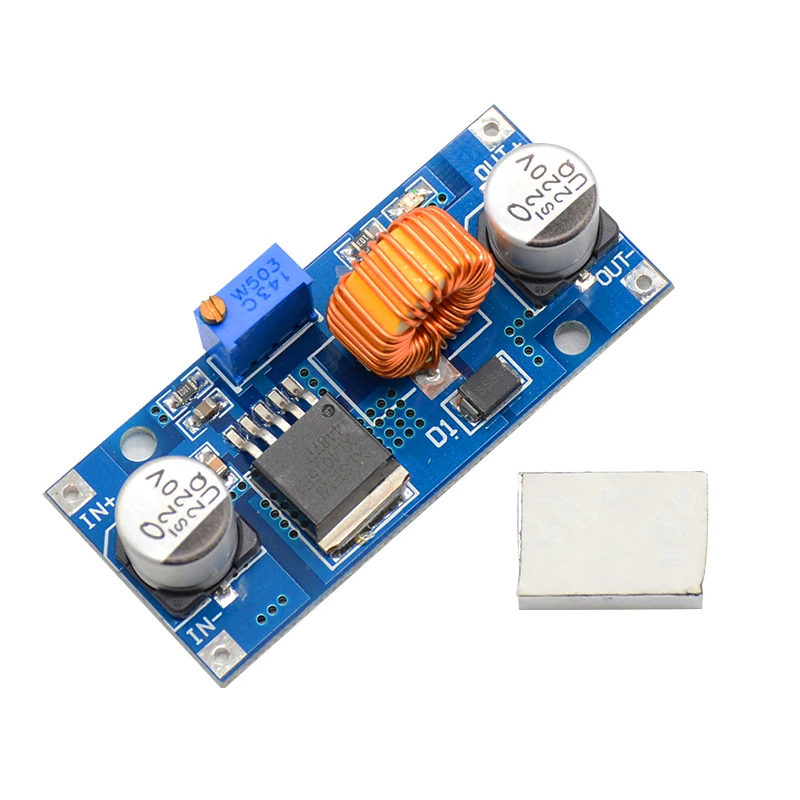

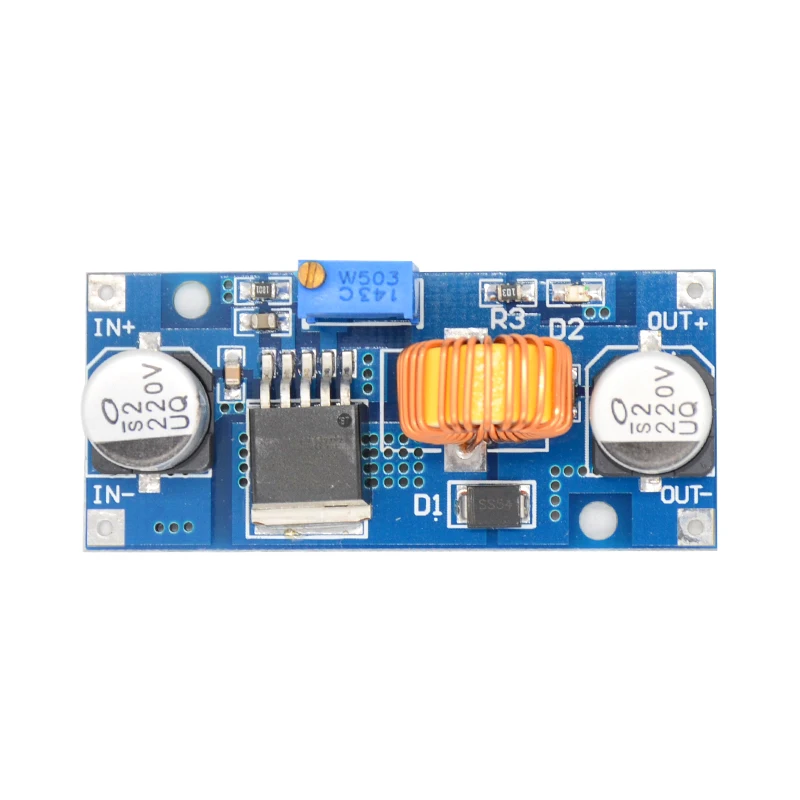

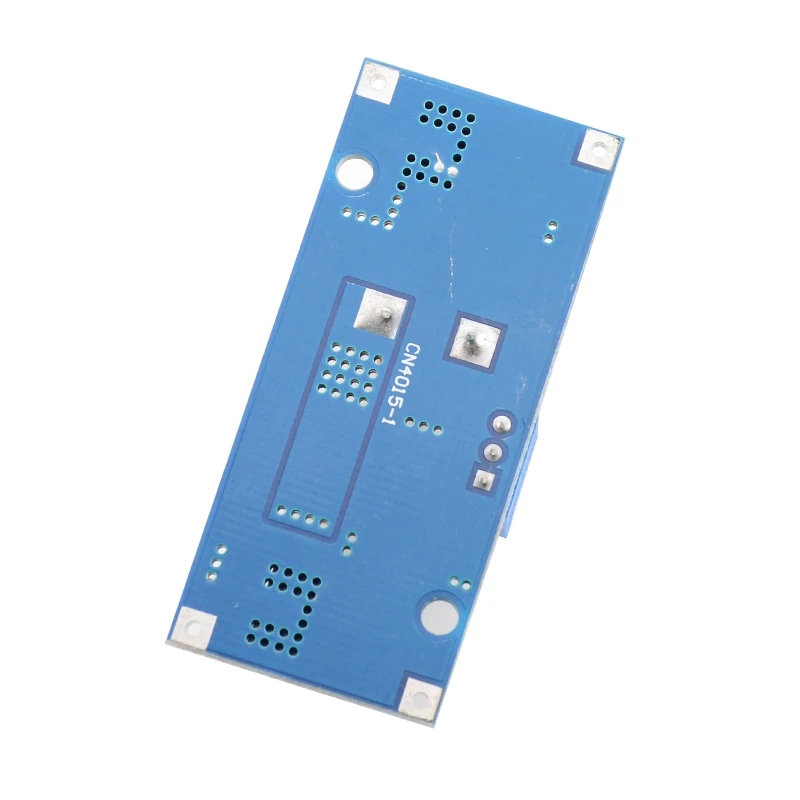

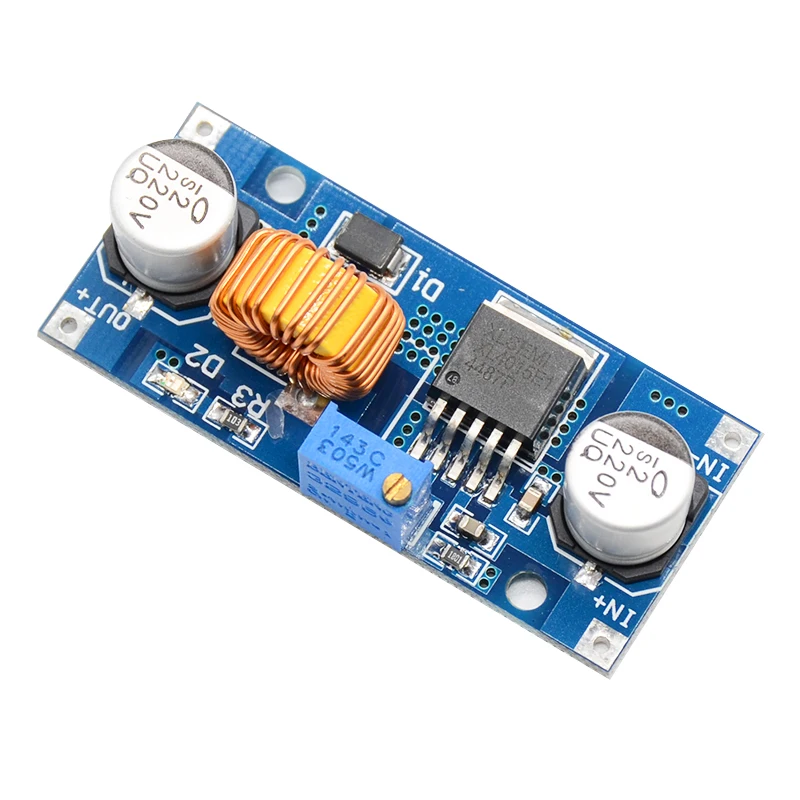

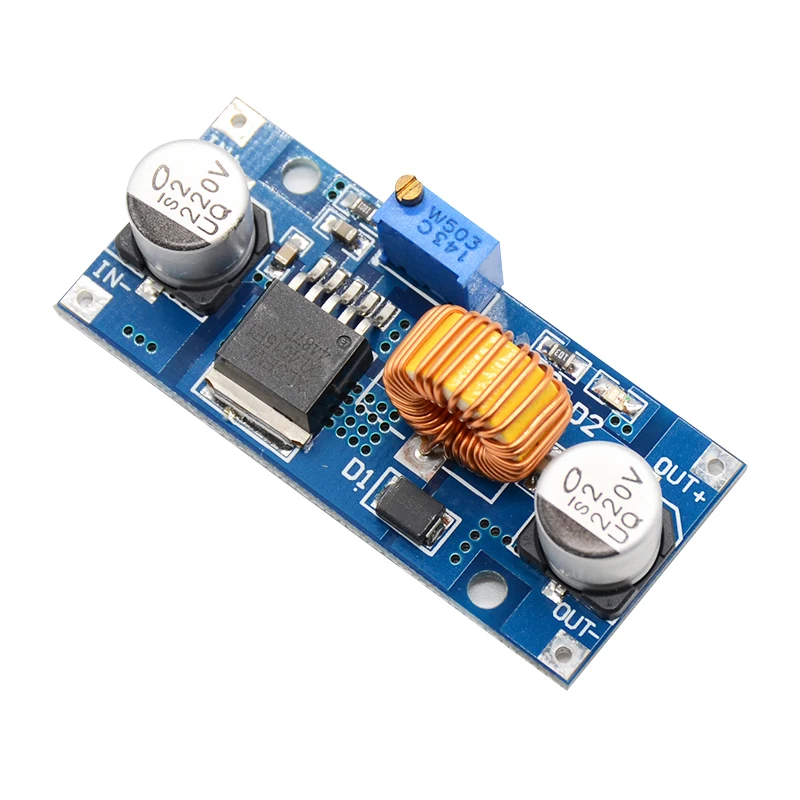

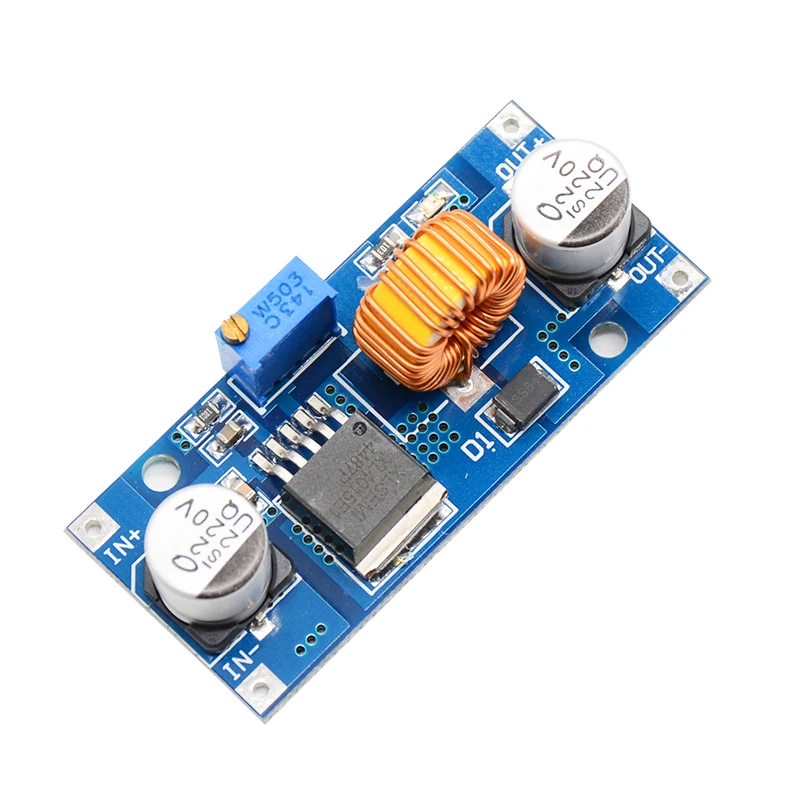

Monday Kids DC-DC 5A Step-down Module Adjustable Power Supply Module 4~38V High Power Buck Module 96% High Efficiency Low Ripple
$2.25
Availability:
In stock
SKU
RY-ES-293
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Model Number: Step-down Module
- Type: Voltage Regulator
- Supply Voltage: 4-38V
- is_customized: Yes
- Operating Temperature: -40-85
Module performance:
-
Module property: non isolated buck module(BUCK)
-
Input voltage: 4-38V
-
Output voltage: 1.25-36V, adjustable continuously
-
Output current: 0-5A, it is recommended to use in 4.5A.
-
Output power: it is recommended to be used in 75W, more than 50W, please add cooling fins.
-
Operating temperature: -40~+85
-
Operating frequency: 180KHz
-
Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, pressure difference)
-
Load adjustment rate: S (I) = 0.8%
-
Voltage adjustment rate: S (U) = 0.8%
-
Power indicator: Yes
-
Short circuit protection: with (limiting current 8A)
-
Over temperature protection: Yes (over temperature, automatic shutdown, output)
-
Input reverse connect protection: No, (for example, please enter high current diode in input string)
-
Installation: 2 3mm screws
-
Connection mode: welding, V-IN as input, V-OUT as output
-
Module size: 54*23*18mm
Application range:
The module can be applied in the field of blood pressure is higher than the output voltage of the input voltage, such as battery, power transformer, DIY adjustable regulated power supply, 24V vehicle notebook power supply, industrial equipment, pressure 12V turn 3.3V, 12V turn 5V, 24V turn 5V, 24V turn 12V, 36V turn 24V.
1 * 5A DC-DC step-down module
- Unit Type: piece
- Package Weight: 0.05kg (0.11lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
