Monday Kids DC 5V 9V 12V UPS Uninterrupted Power Supply Module Step Up Booster Voltage Converter for 18650 Lithium Battery Charge Protection

5V

J1 is used to set the power of the external power supply. The default value is below 1A. When the jumper is short-circuited, an external power supply output power of 5v 2A is required. The jumper is to switch the current of 0.5A/1A, supply the load first, and transfer the remaining current to the battery for charging.

1.Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5V 1A
3>.Output Voltage:DC 5V 1A
4>.Output Power:5W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 10Ah(Max)
6>.Input reverse connection protection:Yes
7>.Input overvoltage protection:Yes
8>.Output reverse connection protection:Yes
9>.Output short circuit protection:Yes
10>.Working Temperature range:-40~85
11>.Working Humidity range:0%-95%RH

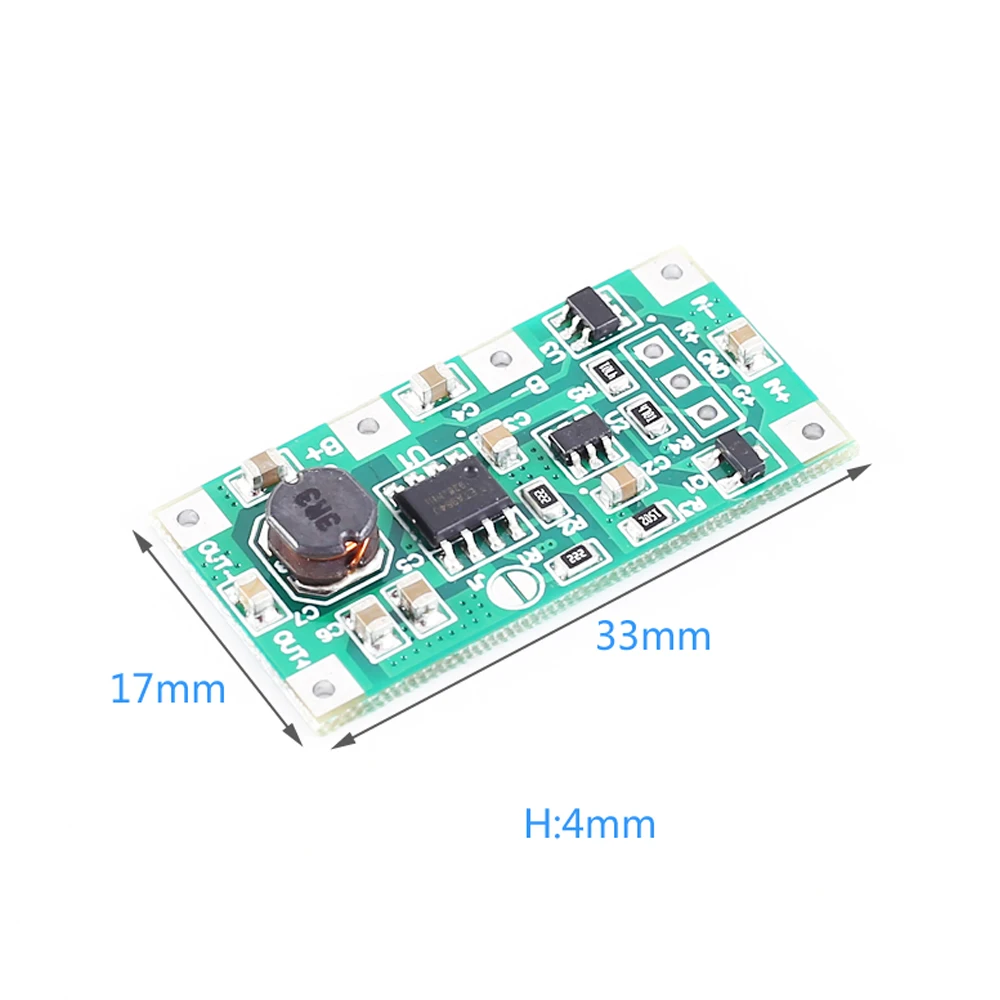

12>.Size:33*17*4mm

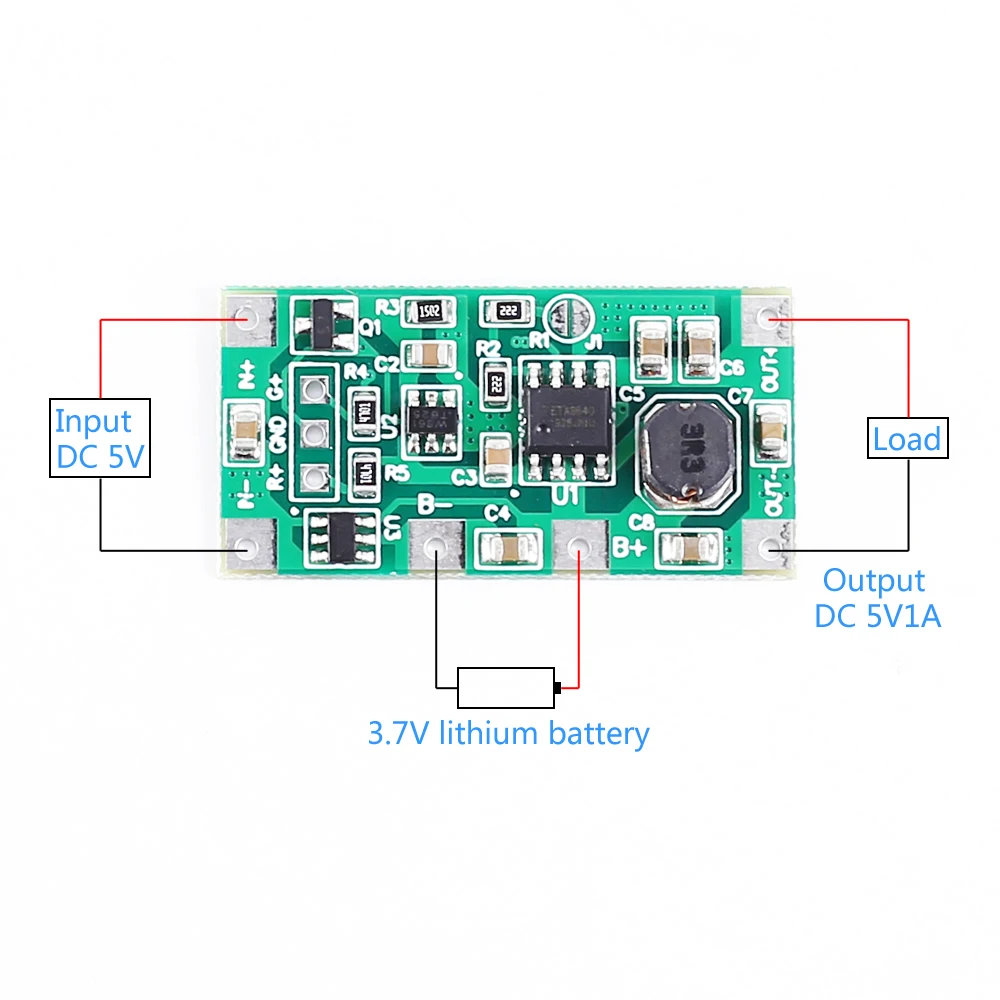

2.Using Steps:
1>.Connect right input voltage at input terminal.
2>.Check output voltage by voltmeter and ammeter.

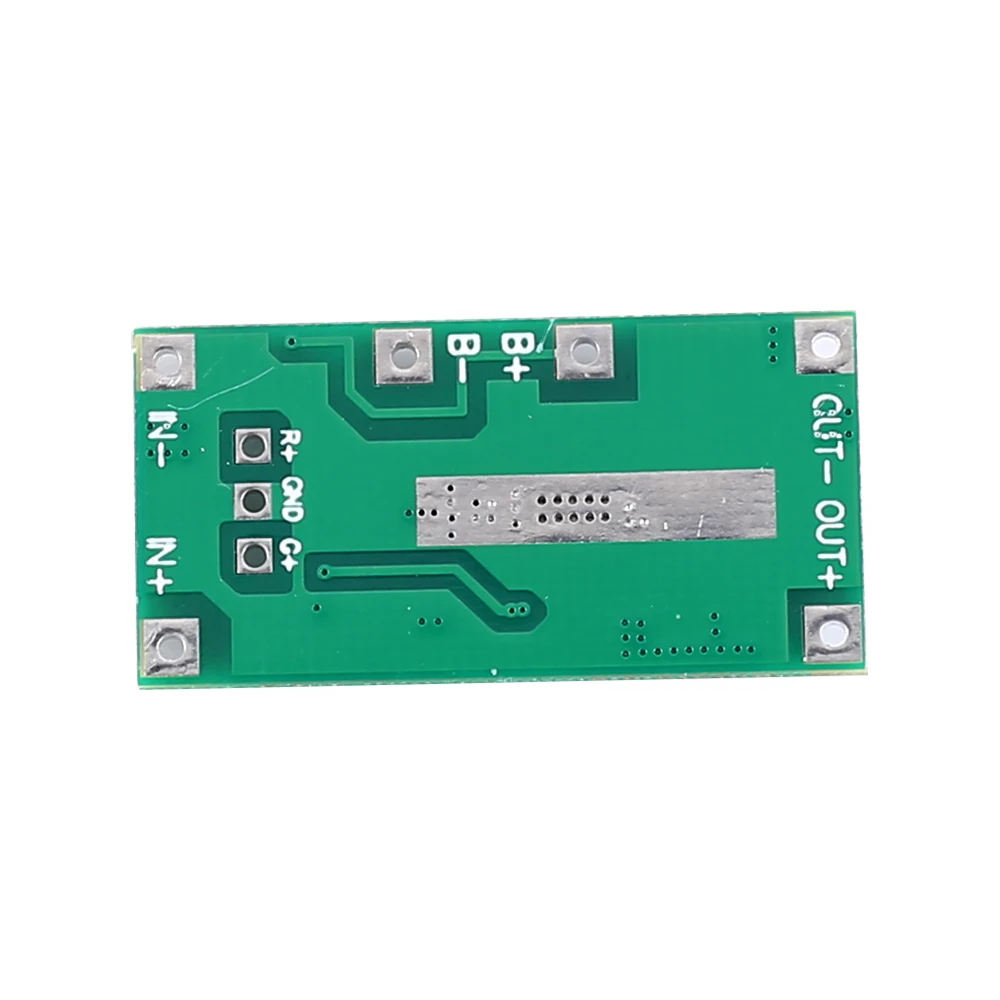

3>.Connect battery at B+ and B-.

3.Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the battery cannot be reversed Otherwise the module will be damaged.
3>.Users can install a common cathode Red-Green LED by yourself as charging indicators.Red light indicates whether there is a load at output. Green flashing display capacity.Green OFF if without load or battery.
4>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.

4.Application:
1>.Ordinary power supply;
2>.Battery charger;
3>.Mobile power;
4>.Power conversion;
5>.Infrared alarm;
6>.Network equipment such as switches;
7>.Router;
8>.Battery car modification

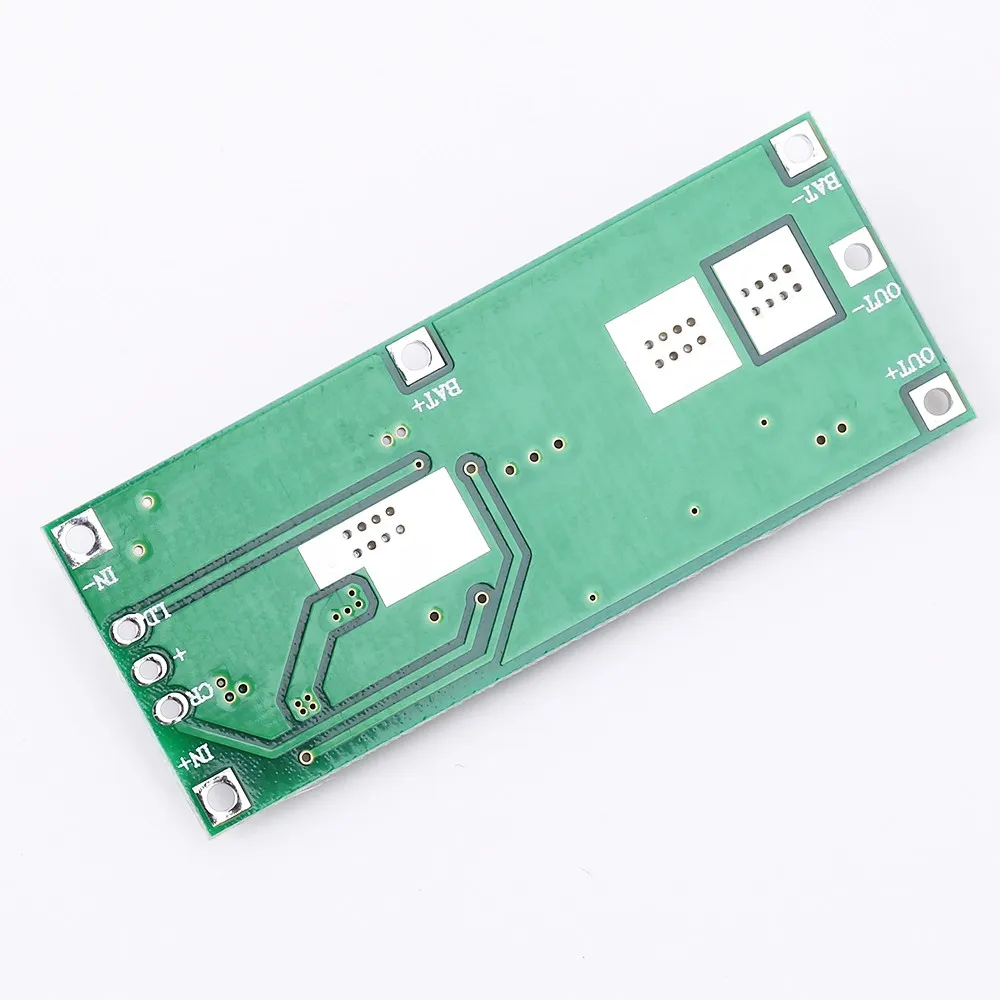

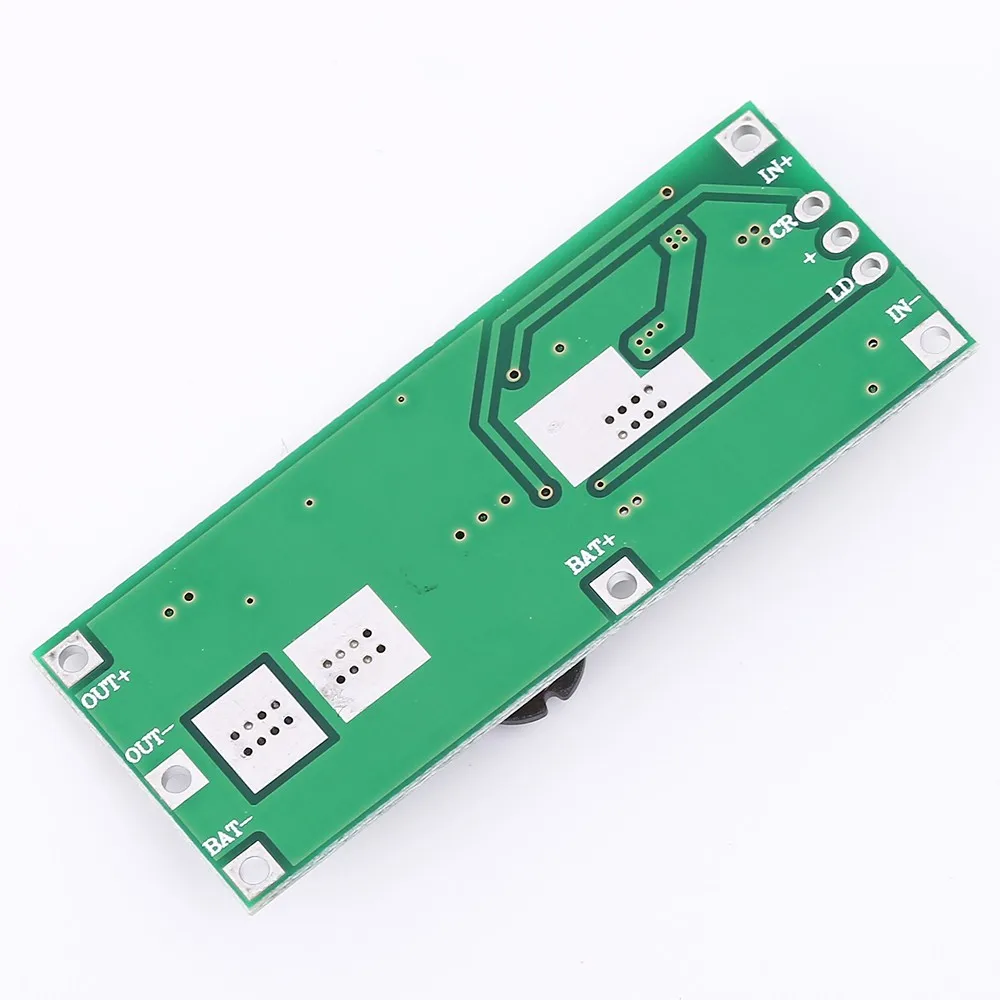

9V

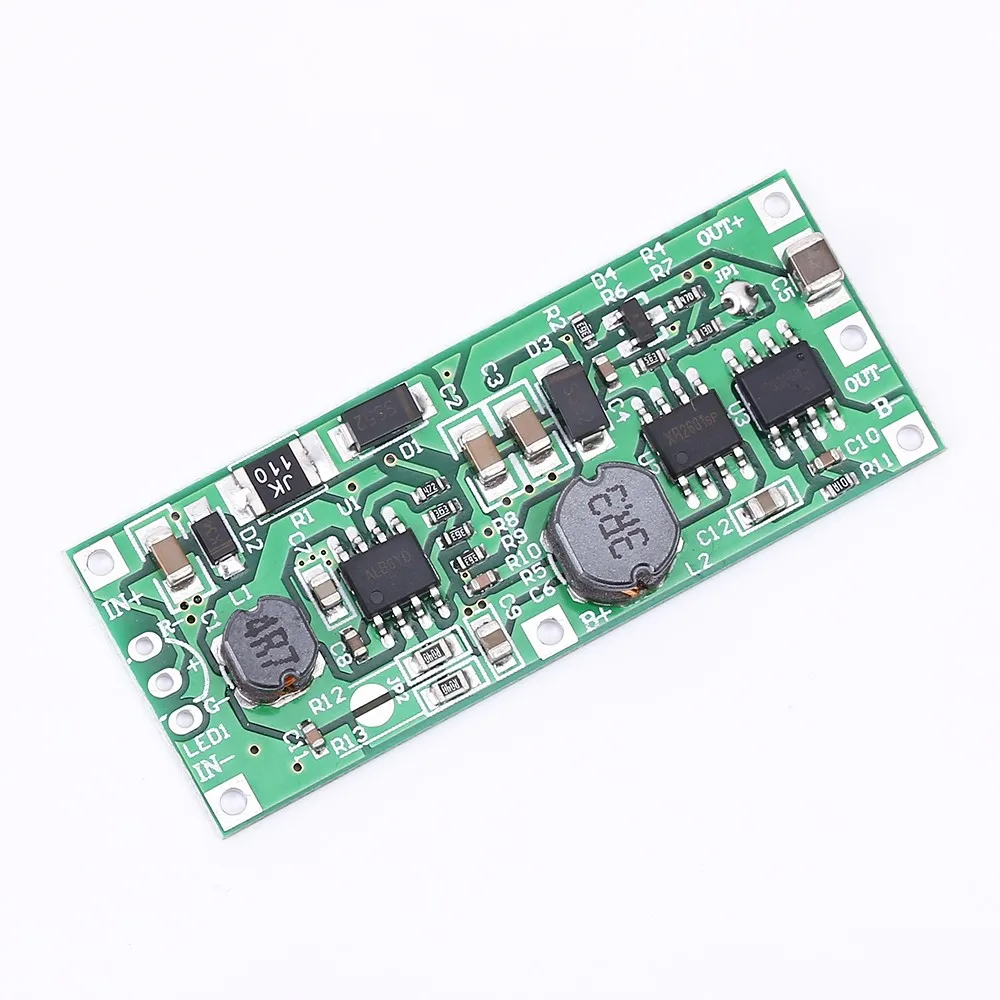

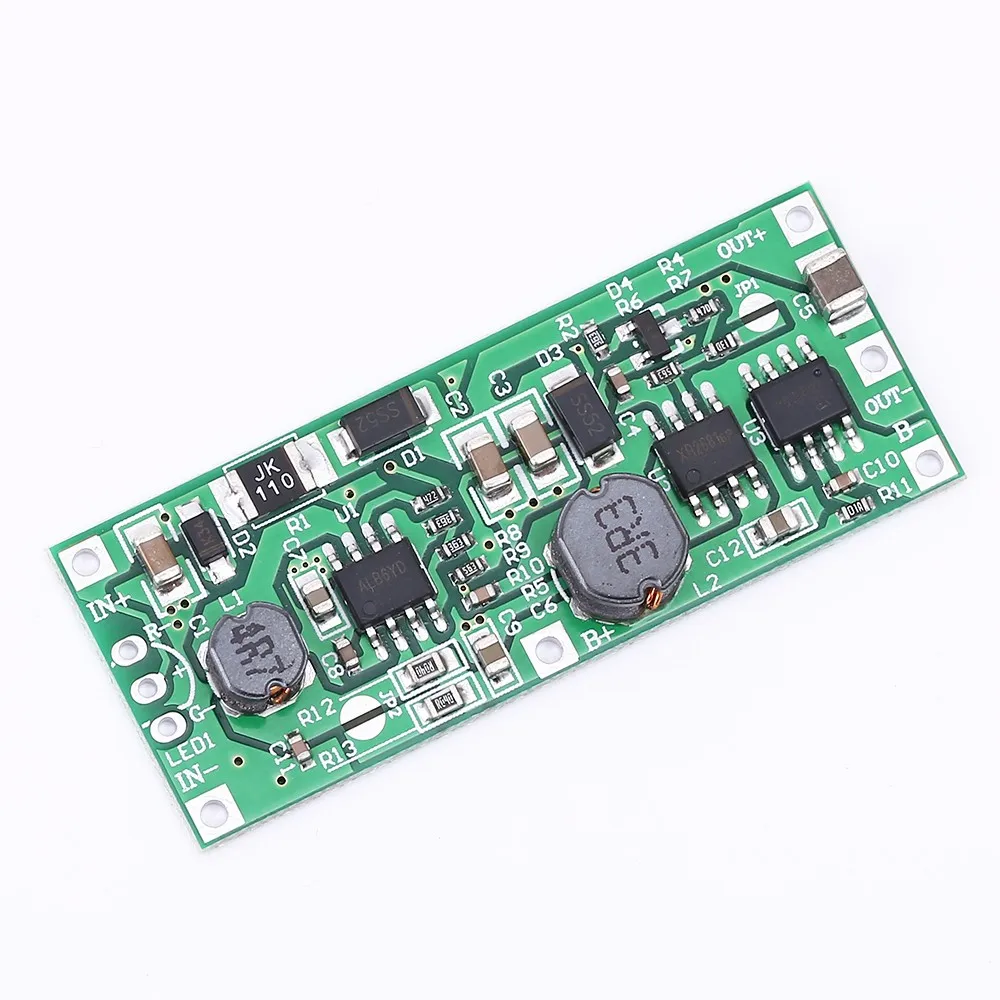

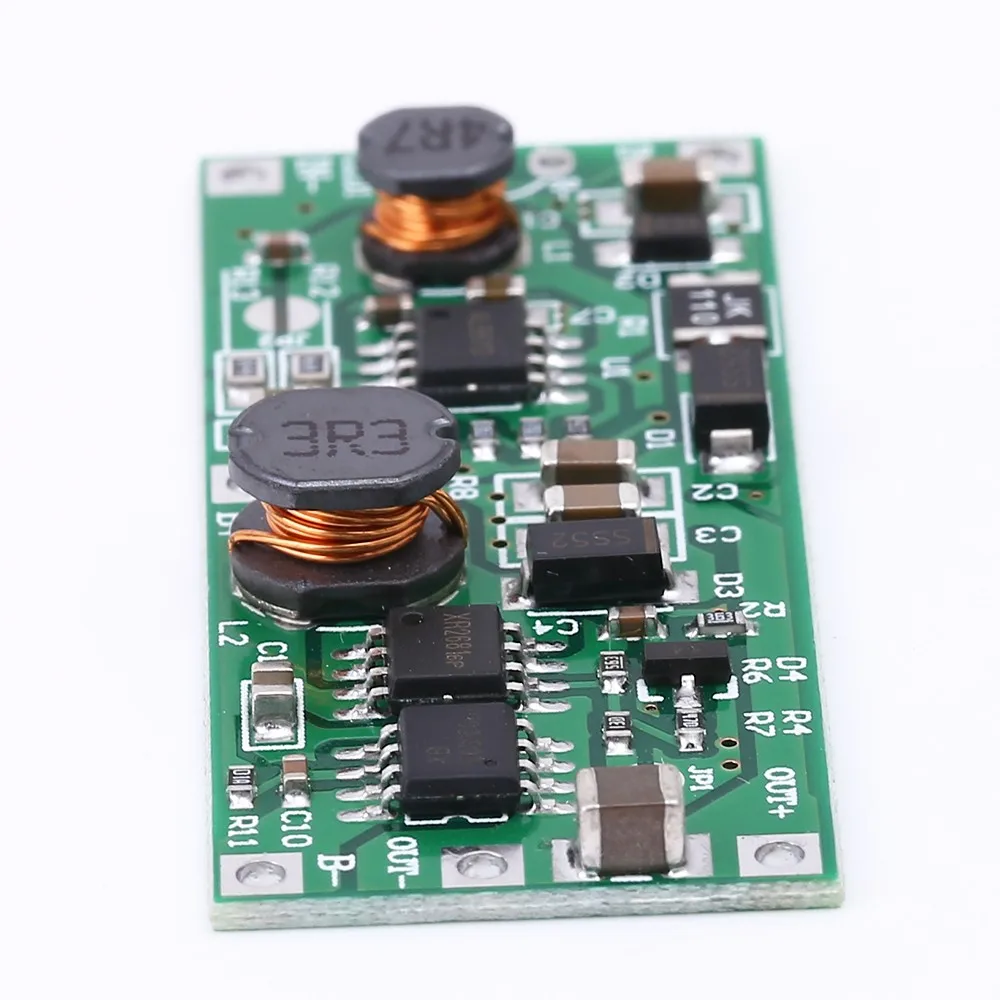

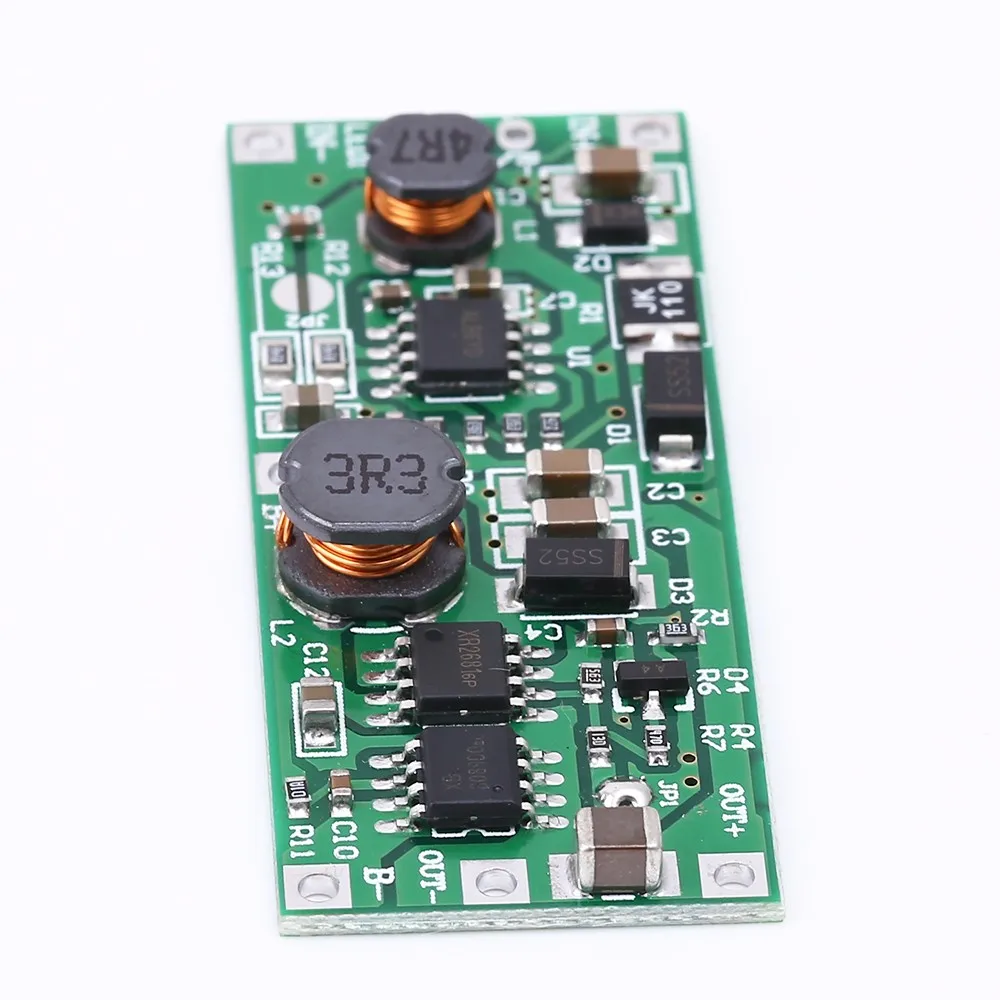

JP1 is to change the output voltage (short circuit is 12V output, disconnected is 9V output).
JP2 is to change the charging current for the battery (short circuit is about 1A, disconnection is about 0.5A).

1.Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5.0V-12.0V
3>.Output Voltage:DC 9.0V
4>.Output Power:9W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
6>.Working Temperature range:-40~85
7>.Working Humidity range:0%-95%RH
8>.Size:50*20*6.3mm

2.Using Steps:
1>.Connect right input voltage at input terminal.
2>.Check output voltage by voltmeter and ammeter.
3>.Connect battery at B+ and B-.

3.Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
3>.Users can install a common cathode Red-Blue LED by yourself as charging indicators.Blue light indicates whether there is a load at output.Keep Red is charging.There is no battery if Red flashing.Red OFF if charged.
4>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.

12V

1.Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5.0V-12.0V
3>.Output Voltage:DC 12.0V
4>.Output Power:12W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
6>.Working Temperature range:-40~85
7>.Working Humidity range:0%-95%RH
8>.Size:50*20*6.3mm
2.Using Steps:
1>.Connect right input voltage at input terminal.
2>.Check output voltage by voltmeter and ammeter.
3>.Connect battery at B+ and B-.
3.Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
3>.Users can install a common cathode Red-Blue LED by yourself as charging indicators.Blue light indicates whether there is a load at output.Keep Red is charging.There is no battery if Red flashing.Red OFF if charged.
4>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.
