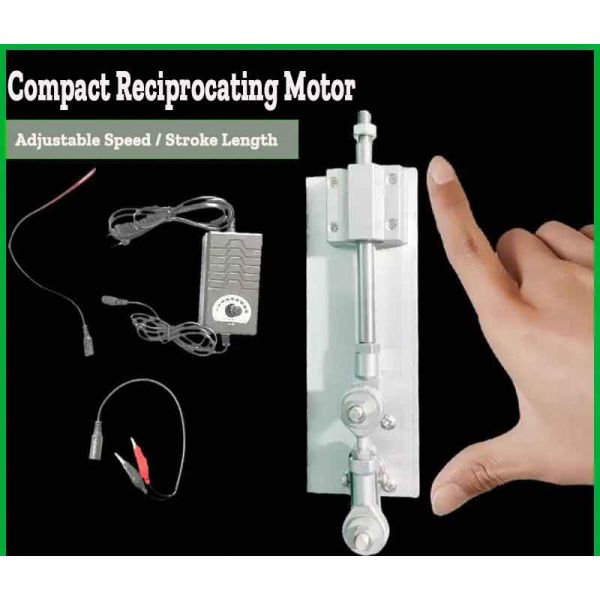

Monday Kids Compact Reciprocating Motor Adjustable Speed & Stroke Linear Actuator Mini Electric Push Rod Heavy Duty Gear
$40.00
Availability:
In stock
SKU
BK-DG-250314-02
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
Product Description
The Compact Reciprocating Motor is a high-performance, multi-functional electric device designed for precise control of push-pull actions. Its compact size and powerful performance make it ideal for various applications, from industrial automation to household use.
Key Features
- Stepless Speed Control: Easily adjust the speed via a knob for flexible operation.
- Adjustable Stroke: Stroke length can be infinitely adjusted between 1.4cm and 3.5cm.
- Plug-and-Play: Comes with a standard power adapter for immediate use.
- Reinforced Chrome-Plated Rod: Rust-resistant and wear-resistant for long-lasting performance.
- Versatile Applications: Compact design suits multiple installation environments.
Technical Specifications
- Included Components: Motor, mechanism, power supply, connecting wires.
- Voltage: Motor voltage 12/24V, power supply voltage 220V/12V/24V.
- Stroke: Adjustable from 1.4cm to 3.5cm.
- Speed: Adjustable from 1 to 1280 cycles per minute.
- Product Weight: 0.6Kg.
- Rated Speed: From 1 to 1280 cycles per minute.
- Applications: Suitable for all scenarios requiring reciprocating motion.
Performance Data
The motor offers varying thrust levels at different speeds:
| RPM | 1.4cm Thrust | 2cm Thrust | 2.5cm Thrust | 3cm Thrust | 3.5cm Thrust |
|---|---|---|---|---|---|
| 7 RPM | 21.4kg | 15.0kg | 12.0kg | 10.0kg | 8.6kg |
| 12 RPM | 11.4kg | 8.0kg | 6.4kg | 5.3kg | 4.6kg |
| 22 RPM | 7.1kg | 5.0kg | 4.0kg | 3.3kg | 2.9kg |
| 35 RPM | 5.1kg | 3.6kg | 2.9kg | 2.4kg | 2.1kg |
| 66 RPM | 2.1kg | 1.5kg | 1.2kg | 1.0kg | 0.9kg |
| 107 RPM | 1.7kg | 1.2kg | 1.0kg | 0.8kg | 0.7kg |
| 200 RPM | 1.1kg | 0.8kg | 0.6kg | 0.5kg | 0.5kg |
| 319 RPM | 0.7kg | 0.5kg | 0.4kg | 0.3kg | 0.3kg |
| 600 RPM | 3.3kg | 2.3kg | 1.8kg | 1.5kg | 1.3kg |
| 800 RPM | 2.6kg | 1.8kg | 1.4kg | 1.2kg | 1.0kg |
| 1280 RPM | 1.6kg | 1.1kg | 0.9kg | 0.7kg | 0.6kg |
Product Dimensions
- Size: 140mm x 50mm x 29mm (motor part), 198mm x 50mm x 15mm (including installation bracket).
Core Advantages
- Copper Core Motor: Provides robust power for stable long-term operation.
- Multi-Purpose Use: Adaptable to various applications, enhancing device utilization.
- Dual Bearing Design: Enhances durability and stability.
- Heavy Duty Gear: Improves transmission efficiency and extends service life.
- Stroke Adjustment: Flexible stroke adjustment to meet different work requirements.
- Stepless Speed Change: Adjust speed according to actual needs for higher work efficiency.
This Compact Reciprocating Motor delivers exceptional performance and versatility, making it the ideal choice for industrial automation and household applications. Whether for precise industrial tasks or simple home repairs, this motor offers reliable support.
